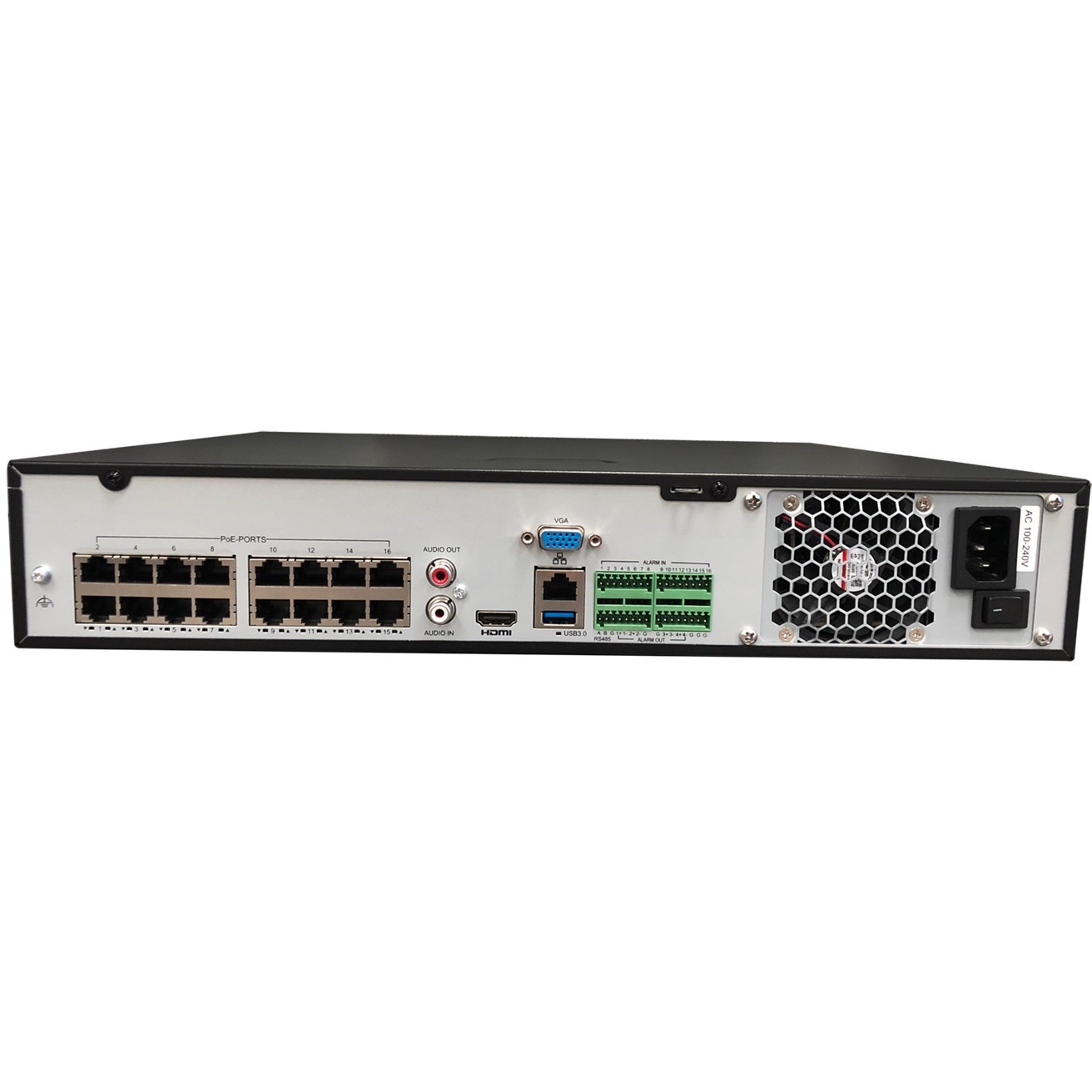

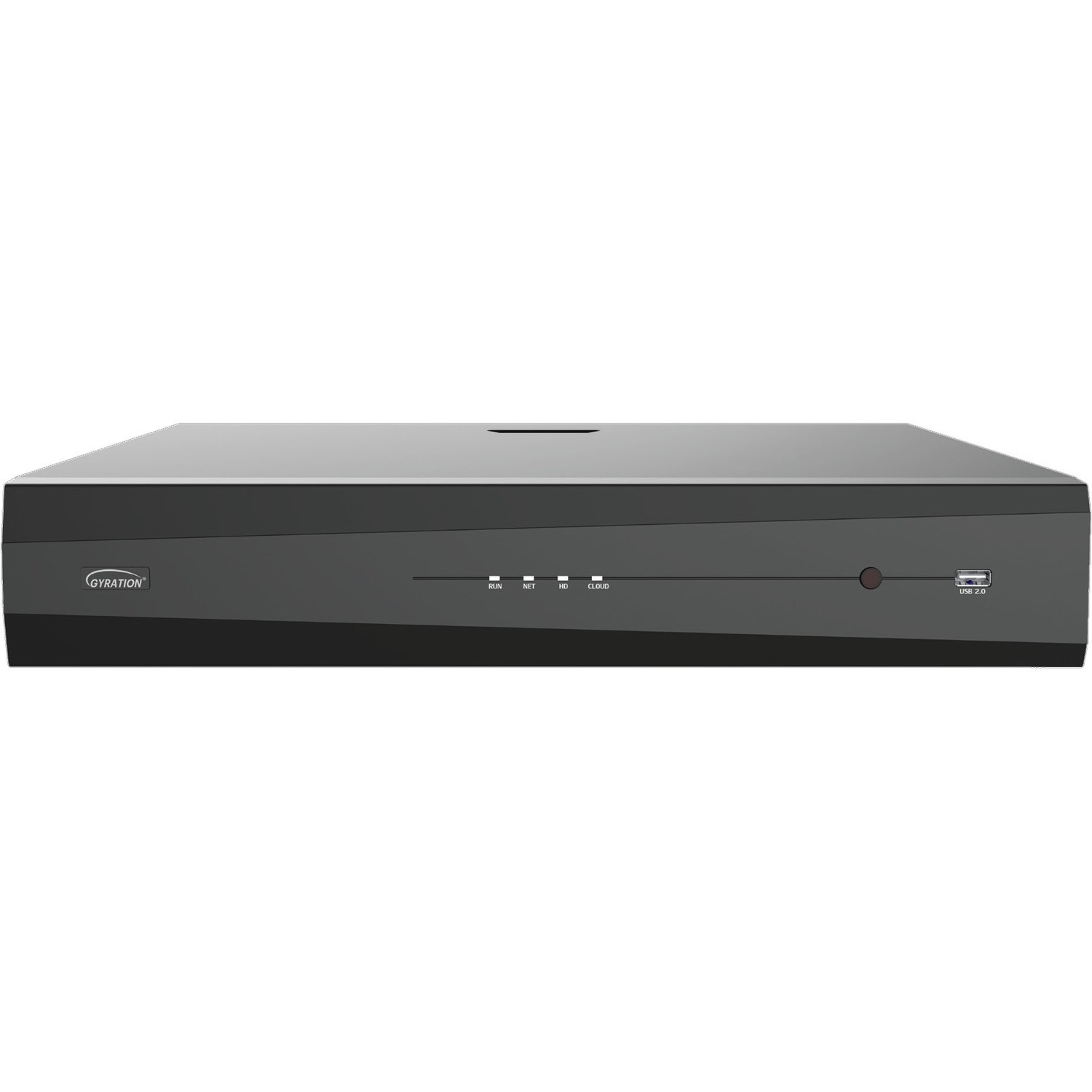

Gyration 32-Channel Network Video Recorder With PoE

Part No. CYBERVIEW N32

by Adesso, Inc

Gyration 32-Channel Network Video Recorder With PoE

Network Video Recorder - HDMI - 4K Recording

Part No. CYBERVIEW N32

by Adesso, Inc

$888.99
General Information
ManufacturerAdesso, Inc
Manufacturer Part NumberCYBERVIEW N32
Brand NameGyration
Product Name32-Channel Network Video Recorder With PoE
Marketing Information

32 Channel
Connect up to 32 cameras for complete video surveillance of selected property.

4K Ultra High Definition
Ability to record in 4K Ultra HD image quality for high resolution surveillance.

H.265
Video compression standard for 4K video surveillance.

ONVIF
Standardized interface for effective interoperability of IP-based physical security products.

HDMI & VGA
Provides simultaneous delivery of HDMI and VGA output for multiple monitoring needs.

Cloud Upgradeable
Store surveillance footage remotely without worrying about on-site storage capacity.

Key Features:

  • Supports Ultra 265/H.265/H.264 video compression formats
  • 32-channel input
  • Compatible with third-party IP cameras supported with ONVIF conformance to: Profile S, Profile G, Profile T
  • Supports 1-ch HDMI and 1-ch VGA output simultaneously
  • Records HDMI at up to 4K(3840×2160) resolution
  • 4 SATA HDD up to 40TB (sold separately)
  • ANR technology enhances the storage reliability when the network is disconnected
  • Supports detection features such as face, intrusion, cross line, audio, defocus, scene change, auto-tracking, object left behind, and object removed. Also offers face search, behavior search, and people counting. Supports cloud-based firmware upgrades

The Gyration Cyberview N32 Network Video Recorder (NVR) supports up to 32 IP cameras and provides up to 4K high-definition recording for your IP video surveillance applications. It is also compatible with Ultra 265, H.265, and H.264 video compression formats. The CyberView N32 is ideal for a variety of circumstances where image details are critical for identification, such as residential areas, retail stores, businesses, office buildings, hotels, transportation hubs, and many more. The embedded programming allows for centralized management of your IP camera settings, including configuration, information import/export, real-time information display, two-way audio, firmware upgrades, etc.

Product TypeVideo Surveillance Station
Technical Information
Total Number of Channels32
Connectivity TechnologyWired
Recording Formats4K
HD RecordingYes
System ComponentsNetwork Video Recorder
Video
Video Formats
  • H.264
  • H.265
  • Ultra 265
Maximum Resolution8MP
Maximum Frame Rate60 fps
Network & Communication
EthernetYes
Remote ManagementYes
Interfaces/Ports
USBYes
Total Number of Audio In Ports1
Total Number of Audio Out Ports1
Number of VGA Out1
HDMIYes
Power Description
Power Consumption15 W
Physical Characteristics
Height2.91" (74 mm)
Width15.75" (400 mm)
Depth14.25" (362 mm)
Weight (Approximate)11.02 lb (5000 g)
Miscellaneous
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC744390952593
Warranty
Limited Warranty1 Year
