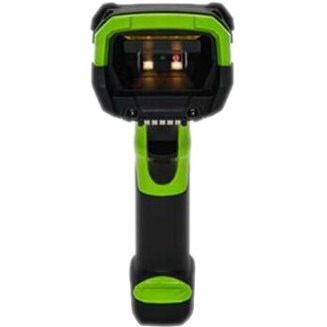

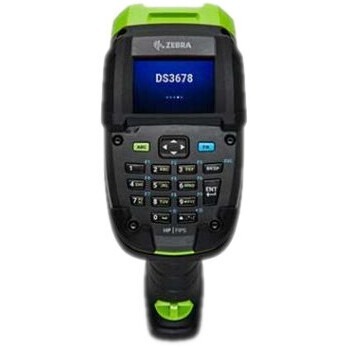

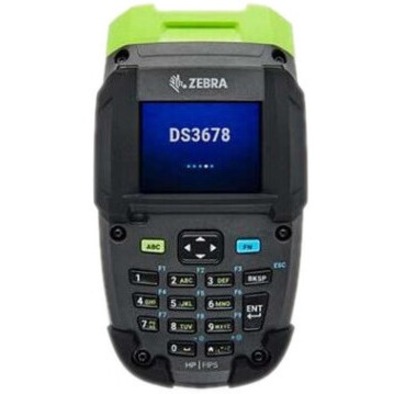

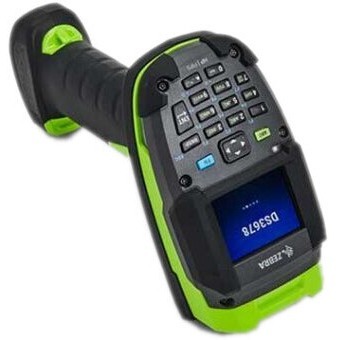

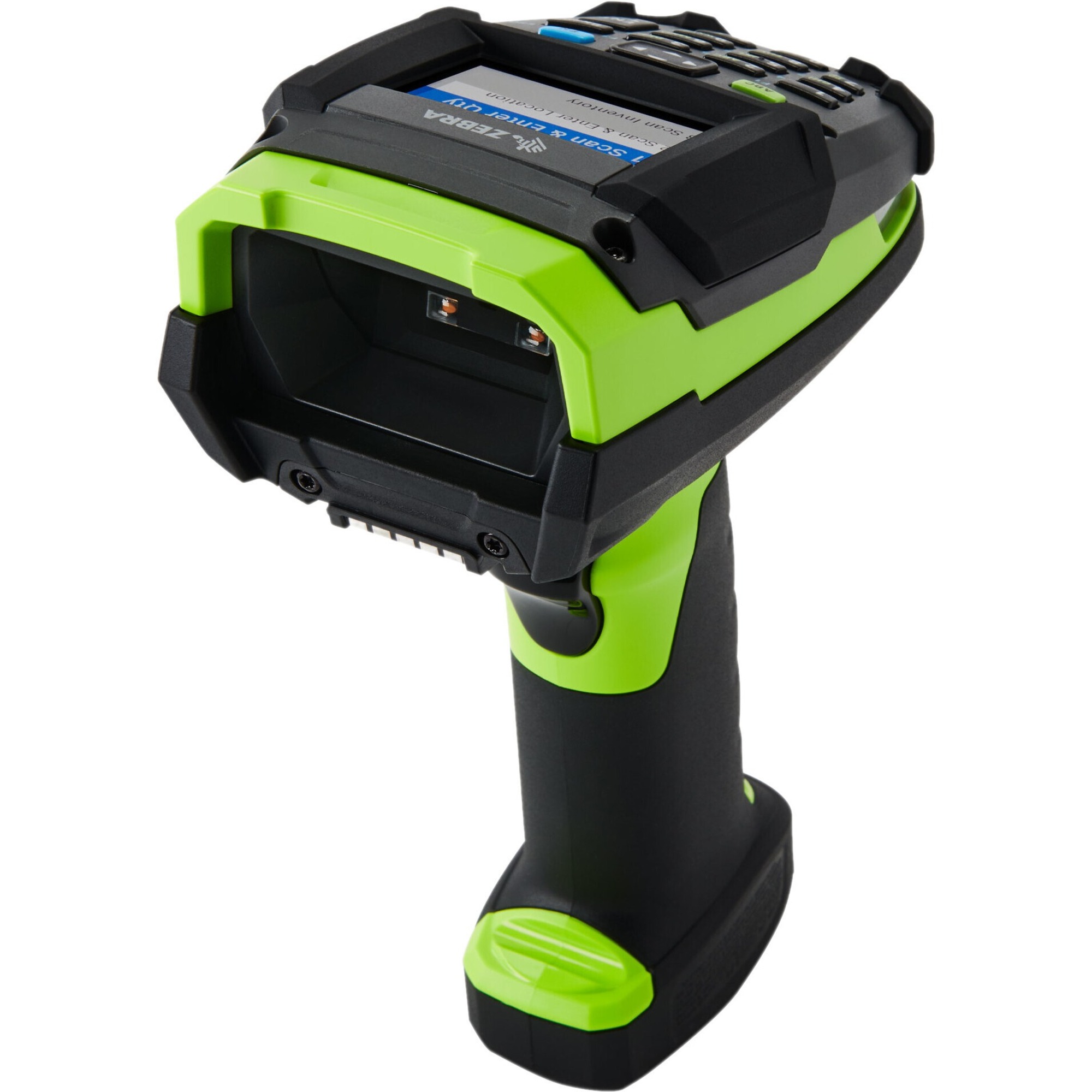

Zebra DS3600-KD Cordless Barcode Scanner Kit
Wireless Connectivity - 80" (2032 mm) Scan Distance - 1D, 2D - LED - Imager - Bluetooth, Radio Frequency - USB, Serial, Keyboard Wedge, Ethernet, PROFINET - Industrial Green - Power Supply Included - Stand Included - IP65, IP68 - USB - Warehouse, Distribution, Retail, Manufacturing, Asset Tracking, Inventory, Picking, Packing
$1619.99
In Stock Availability
- All Locations: (262+)
- Mississuaga, ON (262+)
General Information
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS3678-HP3U4212SKW |
| Brand Name | Zebra |
| Product Model | DS3600-KD |
| Product Name | DS3600-KD Cordless Barcode Scanner Kit |
| Marketing Information | Unstoppable performance with the versatility of a keypad and color display Warehouses, retailers and manufacturers face unrelenting pressure to deliver more - and to do it faster and more accurately. Rise to meet the challenge with the DS3600-KD Ultra-Rugged Scanner with Keypad and Color Display. Built for your toughest environments, the DS3600-KD is virtually indestructible, including an enhanced 10 ft./3 m drop spec to concrete. The scanner reads barcodes in any condition, whether they're in hand or as far as 7 ft./2.1 m away. Workers can key in data, such as adding quantity and location, with the ergonomic keypad and color display. Pre-built applications offer the same 'point and shoot' simplicity of a scanner and enable workers to complete picking, putaway and inventory tasks with amazing efficiency and accuracy. And DataCapture DNA, Zebra's exclusive software ecosystem, takes scanner performance far beyond the basics - simplifying every stage of the scanning experience over the life of your device. Scan it all - at astonishing speeds Workers can capture virtually any 1D or 2D barcode as fast as they can pull the trigger, from as far as 7 ft./2.1 m away. Powered by Zebra's exclusive PRZM Intelligent Imaging technology and the highest sensor resolution in its class, the DS3600-KD instantly captures the most problematic barcodes - including barcodes that are dirty, damaged, poorly printed and under shrinkwrap. Tackle more tasks with groundbreaking versatility Make picking, inventory and point of sale tasks more efficient with the keypad and color display. The ergonomic backlit keypad is well designed for one-handed operation. The color display provides a more intuitive, modern experience and the display brightness automatically adjusts for easy viewing in any lighting condition. Pre-built applications ready to use right out of the box The DS3600-KD takes the complexity out of app development and integration. Start using our pre-built applications on day one - including the ability to add quantity and/or location data to any scanned barcode, confirm that the contents inside a container match the outer label, and even add location data during inventory counts while roaming away from the host. There's virtually no learning curve for workers - if they can use a scanner, they can use the pre-built applications. And the ability for future customization can meet specific application needs Performs in your toughest environments Ultra-rugged - the most indestructible design in its class Zebra ultra-rugged scanners earned their name for a reason - you won't find a tougher family of scanners. The DS3600-KD has the highest drop, tumble and sealing specifications in its class. It can survive 10 ft./3 m drops to concrete and 7,500 tumbles. |
| Product Type | Barcode Scanner Kit |
Technical Information
| Connectivity Technology | Wireless |
| Scanning Capability |
|
| Barcode Symbology Supported | 1D :
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scanner Range | Short Range |
| Scanning Distance | 80" (2032 mm) |
| Display Screen | Yes |
| Number of Keys | 19 |
| Keypad Type | Alphanumeric |
| Cable Type Included | USB |
| Stand Included | Yes |
| Field of View (Horizontal) | 31° |
| Field of View (Vertical) | 23° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 108000 lux |
| Drop Specification | Withstands multiple 10.0 ft./3.0 m drops to concrete at room temperature Withstands multiple 8.0 ft./2.4 m drops to concrete at -4° F to 122° F/-20° C to 50° C |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 7.50 mil (0.19 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
Network & Communication
| Bluetooth | Yes |
| Radio Frequency | Yes |
Interfaces/Ports
| Host Interface |
|
Power Description
| Power Supply Included | Yes |
Battery Information
| Battery Included | Yes |
Physical Characteristics
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Green |
| Product Color | Industrial Green |
| Height | 7.50" (190.50 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 5.60" (142.24 mm) |
| Weight (Approximate) | 1.12 lb (510.291416 g) |
Miscellaneous
| Ingress Protection (IP) Rating |
|
| Application/Usage |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
