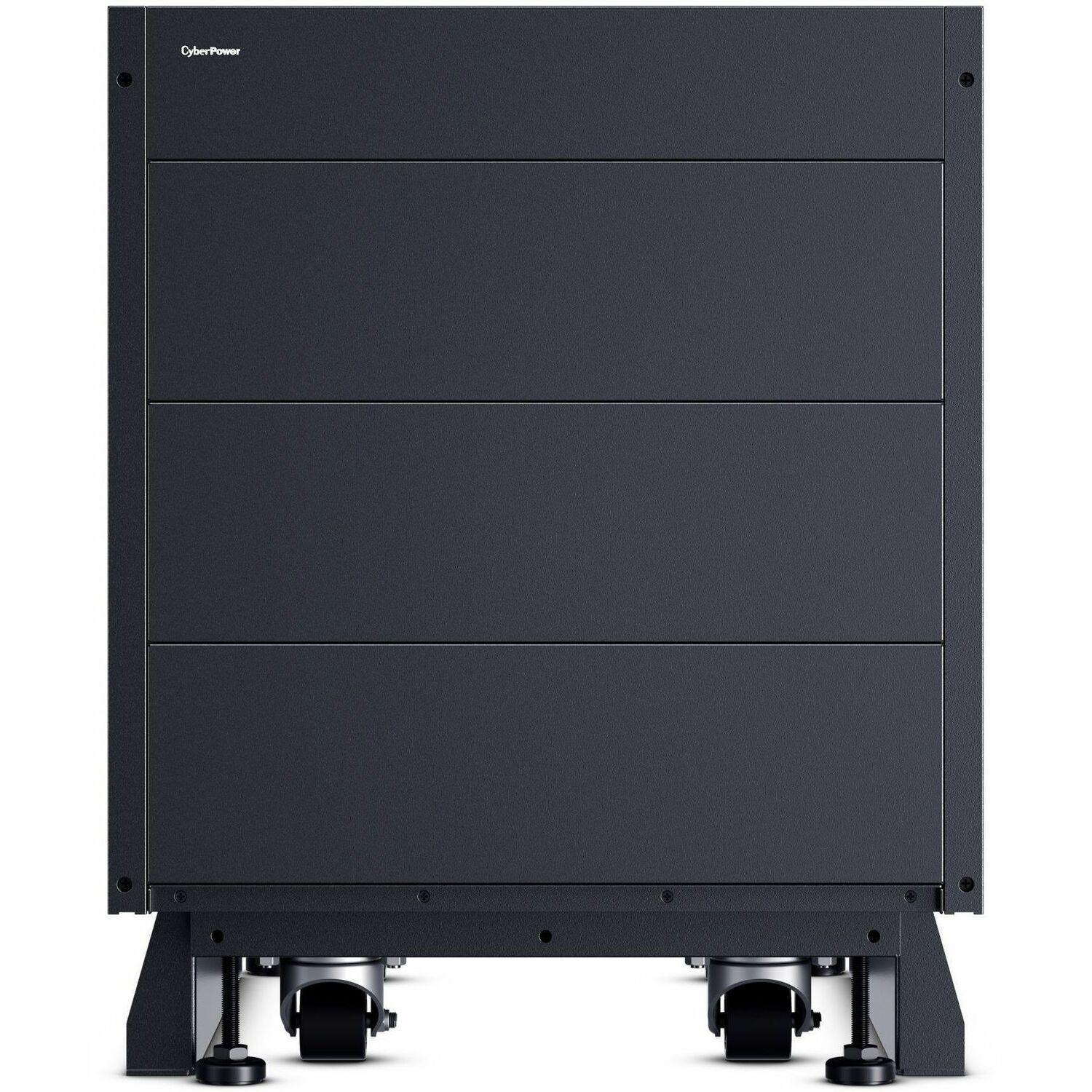

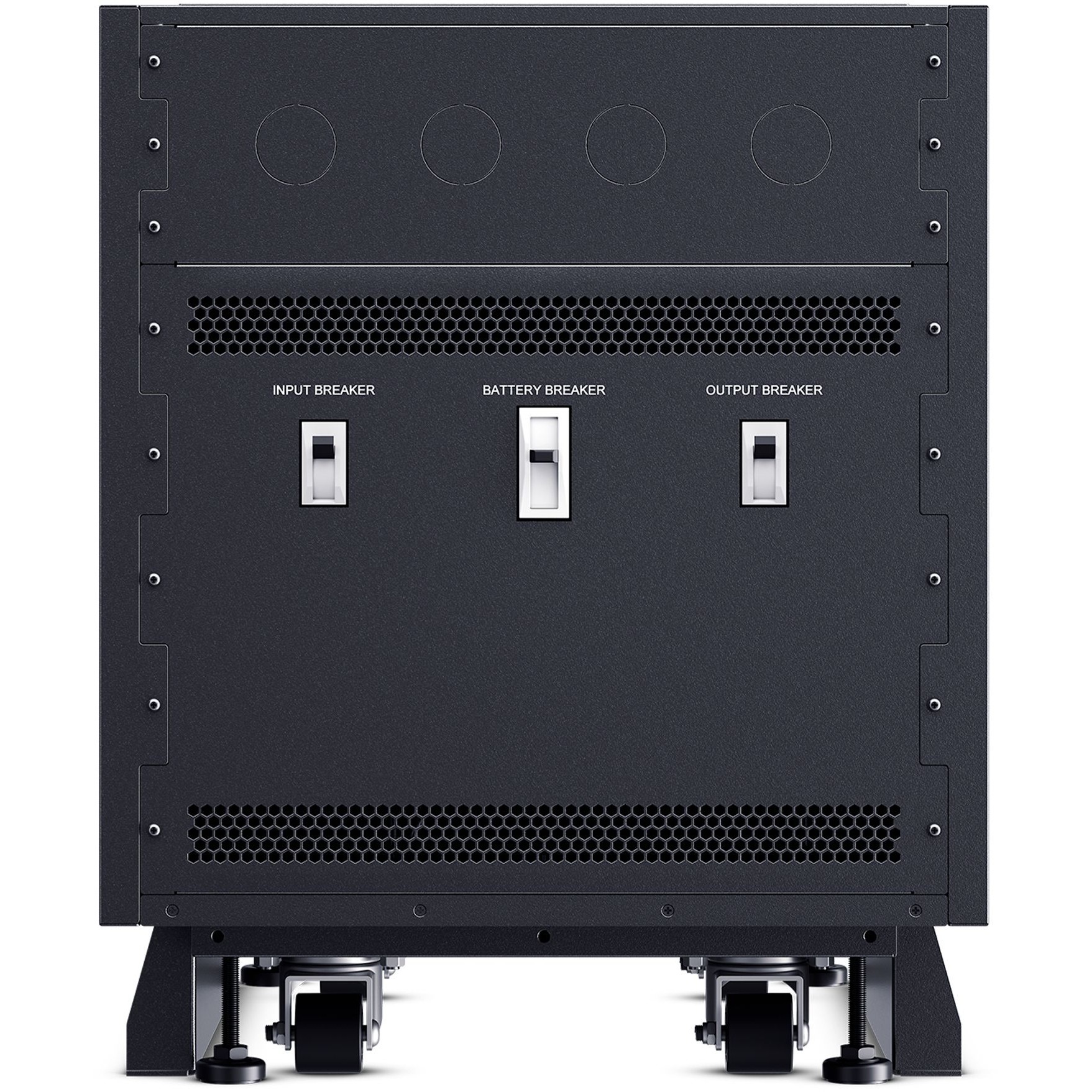

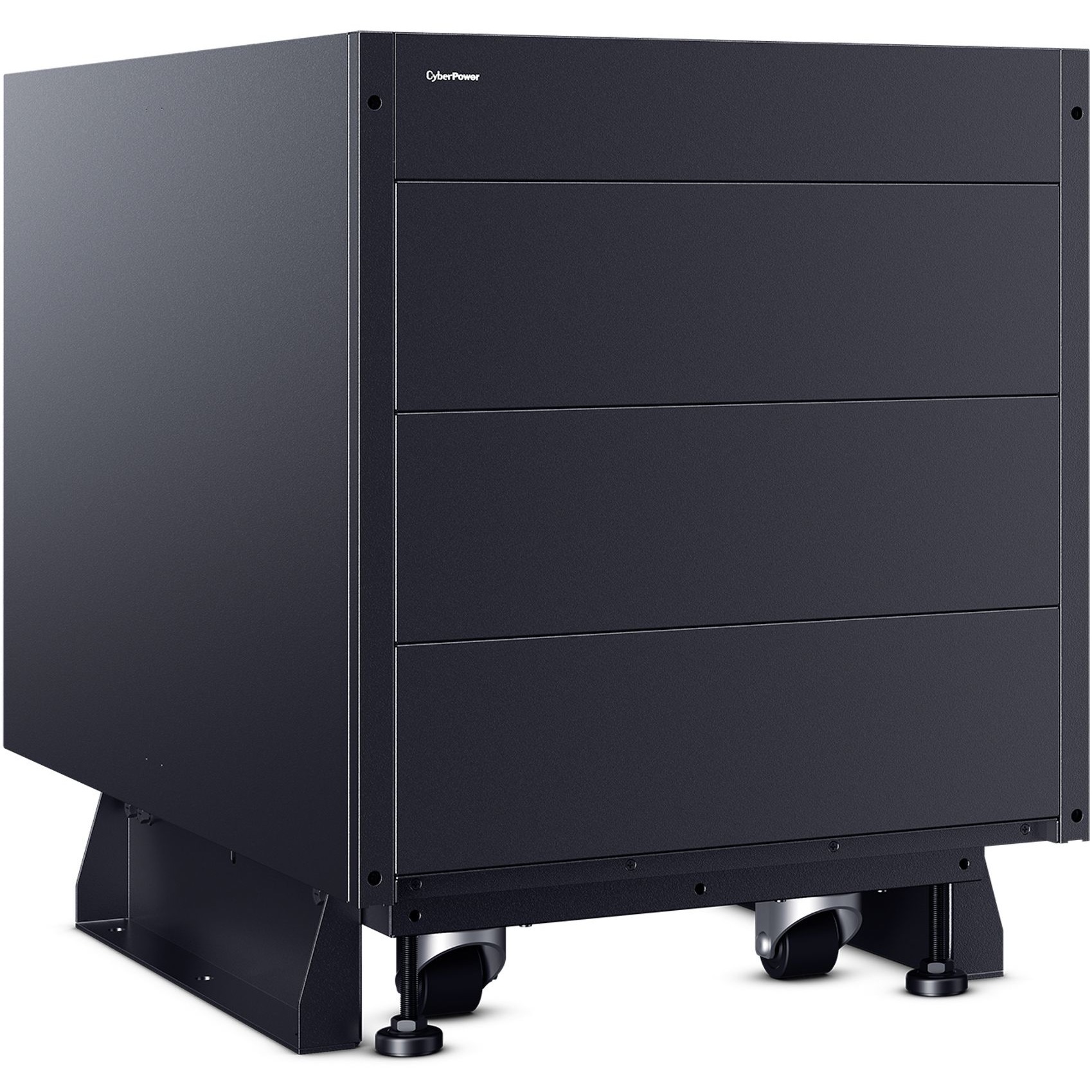

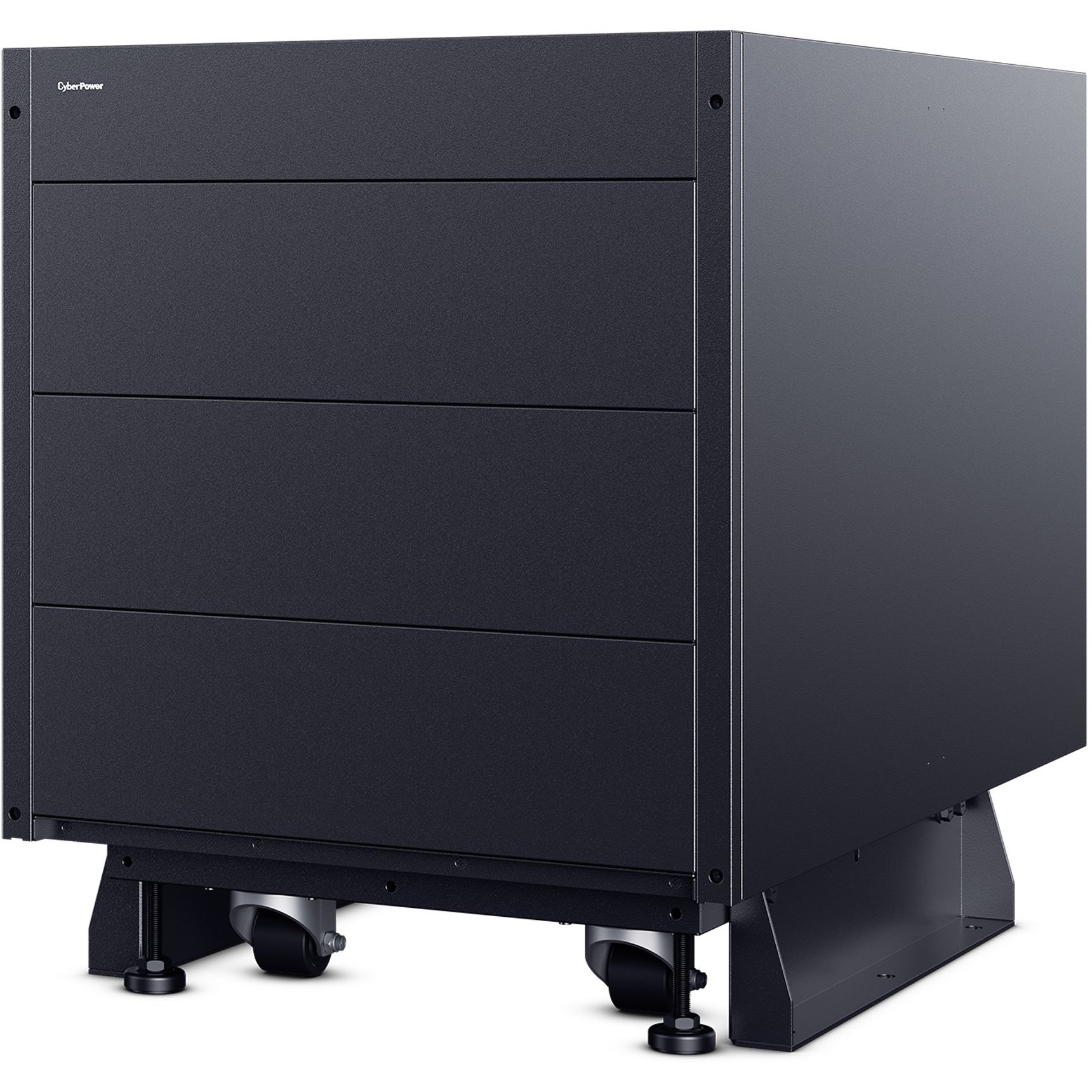

The CyberPower BCT3L9N125 3-Phase Modular UPS Battery Cabinet can hold up to 6 battery modules (BM120V30ATY). These 3-layer units can be configured as stand-alone cabinets, rack mounted, or stacked with another component of our modular UPS system. Includes a One-Year Limited Warranty.

• Rack/Tower/Stack
• Modular

• BCT3L9N125 Battery Cabinet
• Mounting Hardware

• Battery Module Capacity Maximum: 6
• Boost Charge Voltage: 2.4 VDC/Cell, Constant Current and Constant Voltage Charge Mode
• Boost Charge Voltage (Selectable): 2.3 - 2.45 VDC/Cell
• Charger Voltage Tolerance: ≤1% Float
• End of Discharging Voltage 0.15C discharge current: 1.75 VDC/Cell
• End of Discharging Voltage 0.15C discharge current (Selectable): 1.65 - 1.8 VDC/Cell
• End of Discharging Voltage 0.6C discharge current: 1.65 VDC/Cell
• End of Discharging Voltage 0.6C discharge current (Selectable): 1.6 - 1.75 VDC/Cell
• Float Charge Voltage: 2.25 VDC/Cell
• Float Charge Voltage (Selectable): 2.2 - 2.35 VDC/Cell
• Hot Swappable Battery Module: Yes - Qualified Personnel Only
• Recharge Power: Default 10% x Power
• Replacement Battery Cartridge Quantity: 6
• Ripple Current: ≤5% C10
• Ripple Voltage: ≤1% VDC Float
• Temperature Compensation (Per Cell): -3 mV/°C
• Temperature Compensation (Selectable): 0 - 5 mV/°C
• Material of Construction: Metal
• Operating Elevation: 0 - 10000 ft (0 - 3048 m)
• Operating Elevation Note: At ≤1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m
• Operating Relative Humidity: 0 - 95 % (non-condensing)
• Operating Temperature Note: Battery life is halved for every 10°C increase above 20°C
• Storage Battery Temperature Note: Optimum battery storage between -15°C and 20°C
• Storage Relative Humidity: 0 - 95% (non-condensing)
• Storage Temperature: 5 - 104 °F (-15 - 40 °C)
