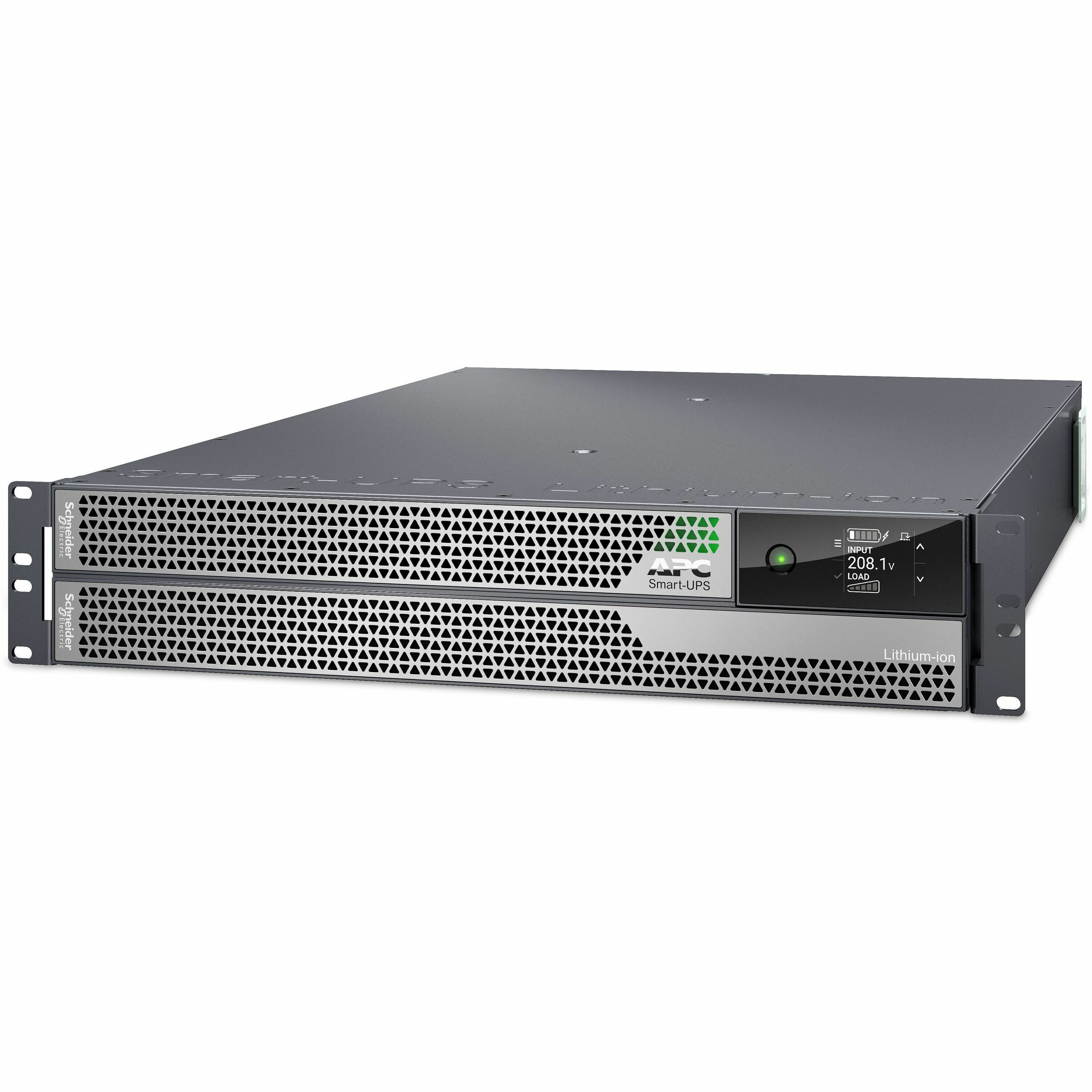

APC by Schneider Electric Smart-UPS Ultra On-Line Lithium ion, 5KVA/5KW, 2U Rack/Tower, 208V
2U Rack/Tower - 1.50 Hour Recharge - 208 V Input - 208 V AC Output - Sine Wave - 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s)
$11537.99
In Stock Availability
- All Locations: (5+)
- Mississauga, ON (5+)
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL5KRM2UT |
| Brand Name | APC by Schneider Electric |
| Product Name | Smart-UPS Ultra On-Line Lithium ion, 5KVA/5KW, 2U Rack/Tower, 208V |
| Marketing Information | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L6-30P input, 2x NEMA L6-20R and 2x NEMA L6-30R outlets. The Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications. |
| Packaged Quantity | 4 Pack |
| Product Type | Double Conversion Online UPS |
Technical Information
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30P |
| Receptacle Detail |
|
| Cord Length | 10 ft (3.05 m) |
Power Description
| Load Capacity (VA) | 4.90 kVA |
| Load Capacity (Watt) | 5 kW |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1260 J |
Controls/Indicators
| Status Indicators | Multi-function LCD Status and Control Console |
Interfaces/Ports
| EPO Port | Yes |
| USB (HID Compliant) Port | No |
Battery Information
| DC System Voltage | 180 V DC |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 2592 kJ |
| Battery Life | 10 Year |
| Typical Battery Recharge Time | 1.50 Hour |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 1047 BTU/h |
Physical Characteristics
| Color Family | Silver |
| Product Color | Silver Gray |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 27.60" (701 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Mounting Preference | No Preference |
| Mounting Location | Front |
| Weight (Approximate) | 64.37 lb (29197.74 g) |
Miscellaneous
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | ENERGY STAR V2.0 (USA) |
| Energy Star | Yes |
| Product Take Back Program | No |
| Mercury Free | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555124200&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555124200&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304435730 |
Warranty
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 years |
