Vertiv Geist GU VA4U1100 PDU

Part No. VA4U1100

by Vertiv

This Product is currently not in offering

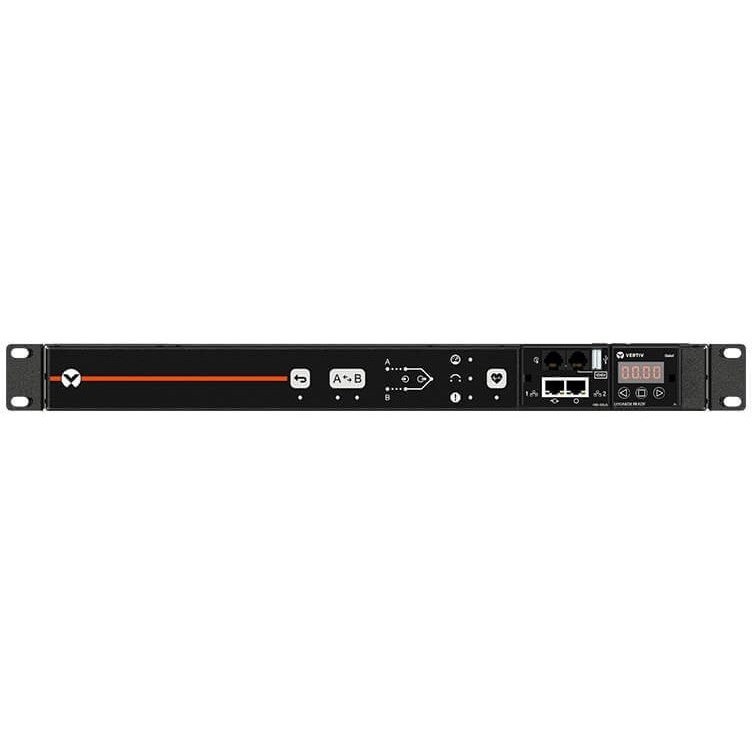

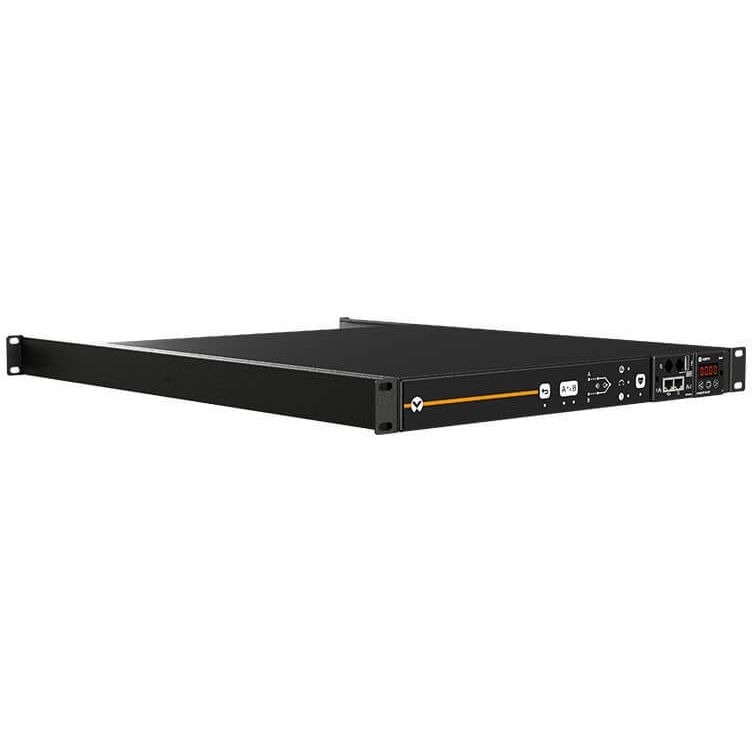

Vertiv Geist GU VA4U1100 PDU

Part No. VA4U1100

by Vertiv

This Product is currently not in offering

General Information
ManufacturerVertiv
Manufacturer Part NumberVA4U1100
Brand NameVertiv Geist
Product SeriesU
Product ModelAU03E1R0-10L137-1C14C14A900-D
Product NameGU VA4U1100 PDU
Marketing Information

The Vertiv Geist Rack Transfer Switch VA4U1100 is a versatile rack power distribution unit (rPDU) with a transfer switch. It is a 10A/15A, 120V/208V/230V single phase unit level monitored rack PDU with 10 U-Lock C13 Outlets and dual input C14 inlets that provide 1.4kW/2.4kW/2.3kW in max power capacity. The RTS provides redundant power to single corded devices and helps ensure continuity in the event of power loss. It can quickly detect power loss on the main source and automatically switch it to the secondary source within 4 to 8 milliseconds. High-retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord. The Interchangeable Monitoring Device provides unit level remote power monitoring, as well as environmental monitoring capabilities with the addition of optional sensors. This TAA-Compliant Vertiv RTS comes with a standard three-year warranty, which can be extended to five years if registered within 120 days after purchase.

More from the Manufacturer

Product TypePDU
Technical Information
PDU TypeSwitched Auto Transfer Switch
PhaseSingle Phase
Plug/Connector TypeIEC 60320 C14
Plug/Connector Detail2 x IEC 60320 C14
Receptacle TypeIEC 60320 C13
Receptacle Detail10 x IEC 60320 C13
Locking ReceptaclesIEC 60320 C13
Power Description
Input Voltage
  • 120 V
  • 230 V
Input Voltage Range100 V AC - 240 V AC
Output Voltage Range100 V AC - 240 V AC
Power Rating (Watt)2.40 kW
Input Current15 A
Management
Management
  • DHCP
  • HTTP
  • HTTPS
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RADIUS
  • RSTP
  • SSH
  • SMTP
  • SNMP (v1/v2c/v3)
  • Modbus TCP/IP
  • Syslog
  • TACACS+
Remote Outlet SwitchingNo
Interfaces/Ports
Network (RJ-45)Yes
Physical Characteristics
Product ColorBlack
Mounting OrientationHorizontal
Rack Height1U
Height1.72" (43.69 mm)
Width17" (431.80 mm)
Depth18" (457.20 mm)
Miscellaneous
Country of OriginUnited States
TAA CompliantYes
Environmentally FriendlyYes
Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty5 Year
