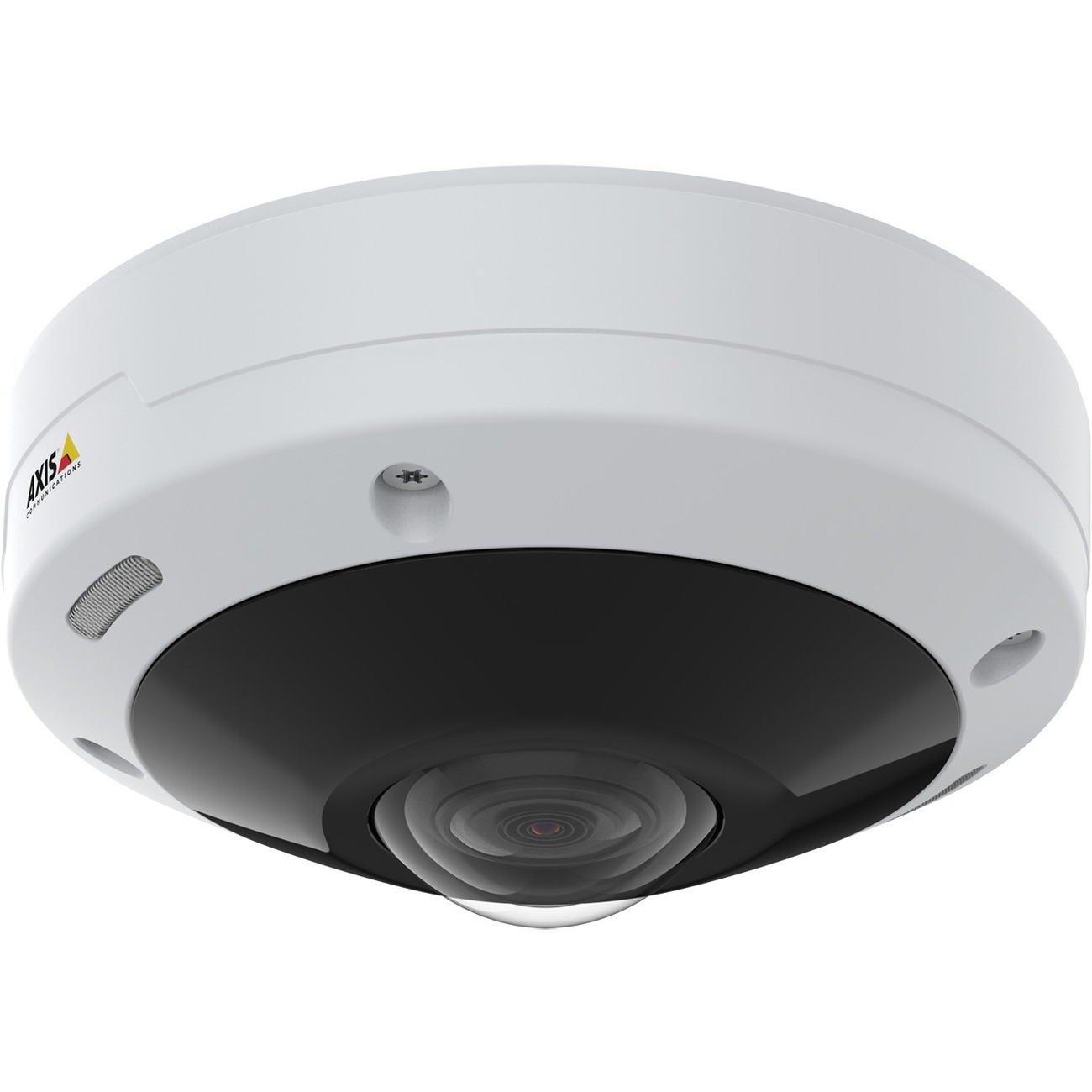

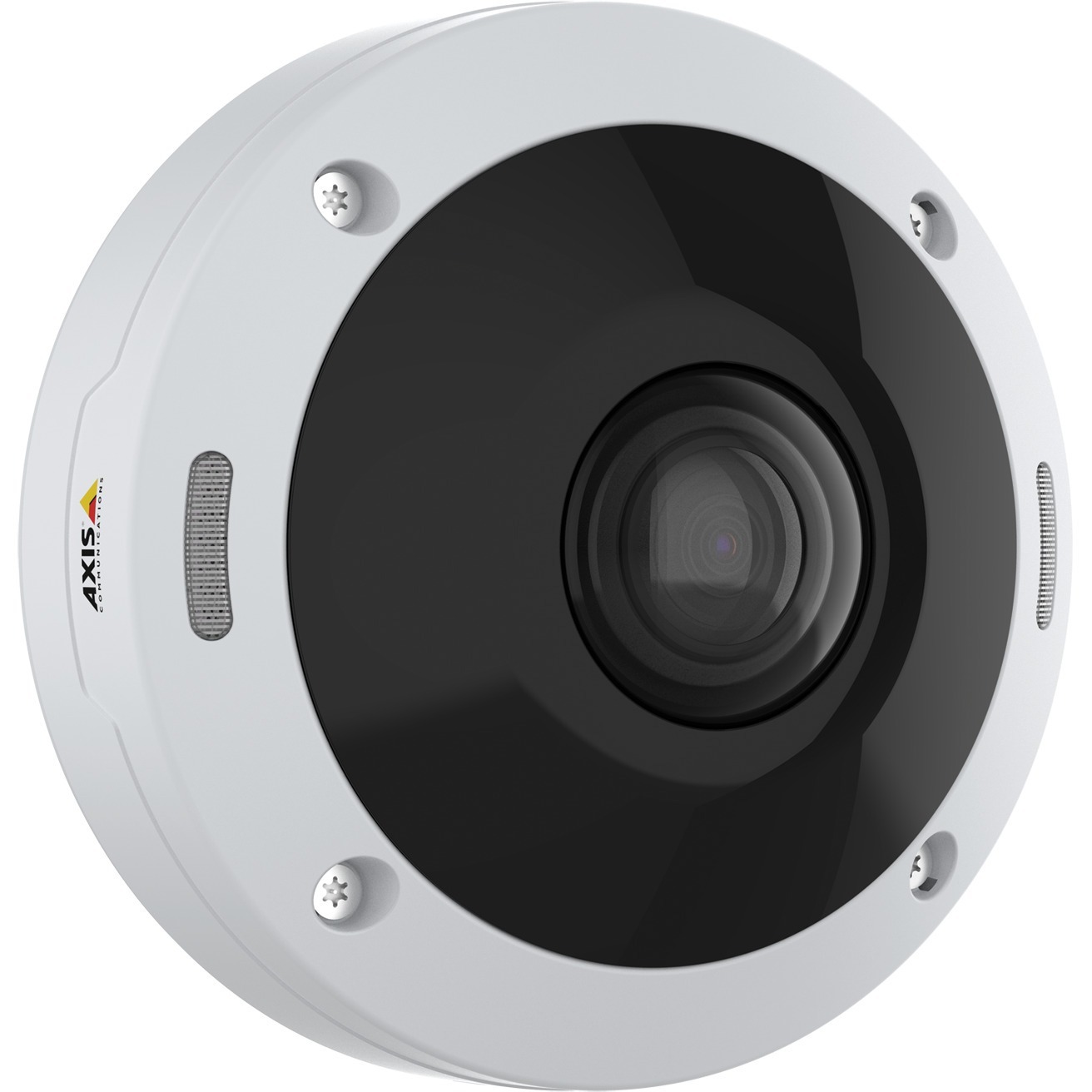

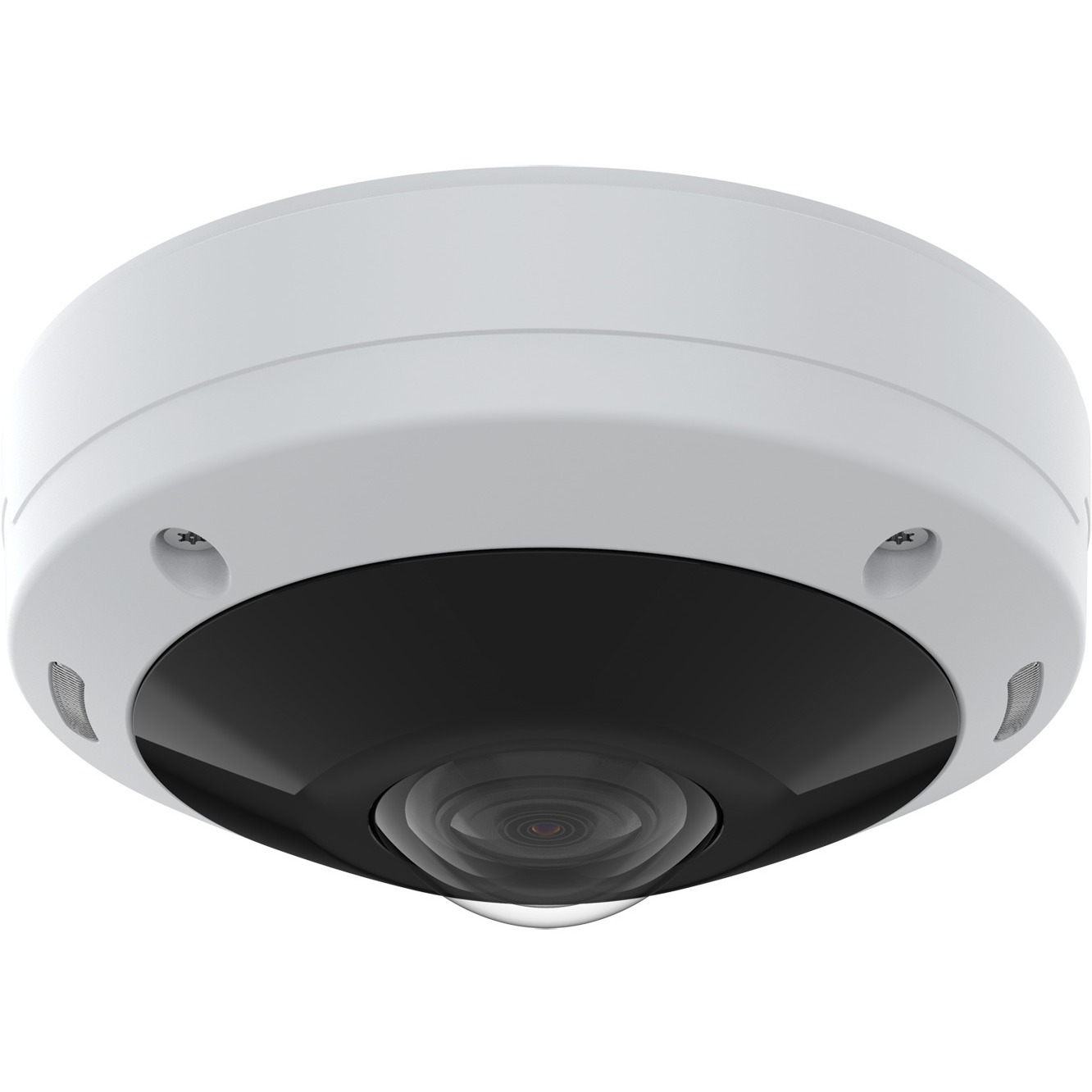

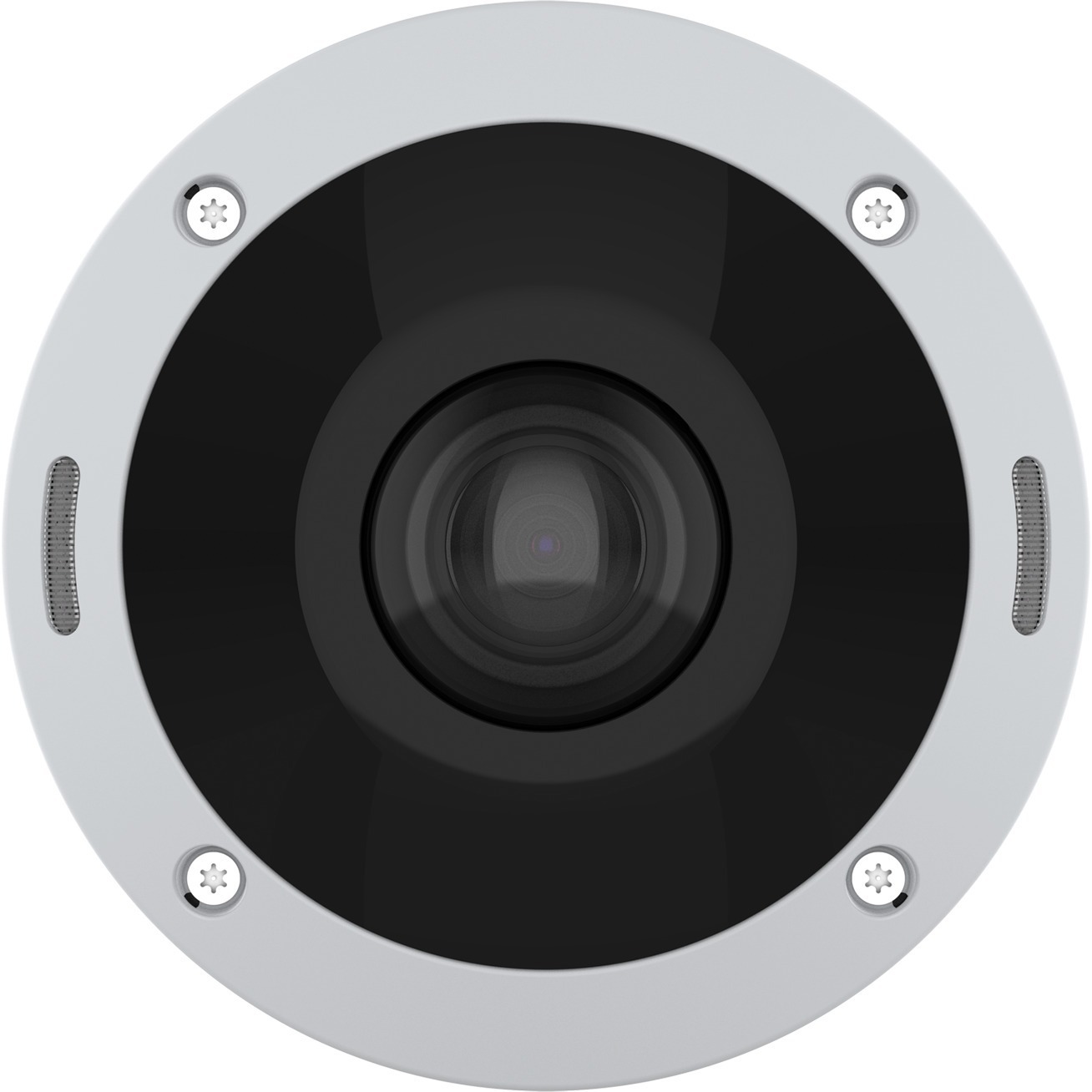

AXIS M4308-PLE 12 Megapixel Outdoor Network Camera - Color - Dome - White

Part No. 02100-001

by Axis Communications

AXIS M4308-PLE 12 Megapixel Outdoor Network Camera - Color - Dome - White

49.21 ft (15 m) Infrared Night Vision - H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, H.264 BP, H.264 (MP), H.264 (MP), H.265 (MP), Zipstream, H.264, H.265 - 2880 x 2880 - 1.3 mm (0.05") Fixed Lens - 30 fps - CMOS - Recessed Mount, Bracket Mount - IK10, IK09 - IP66 - Vandal Resistant

Part No. 02100-001

by Axis Communications

$1465.99
General Information
ManufacturerAxis Communications
Manufacturer Part Number02100001
Brand NameAXIS
Product ModelM4308-PLE
Product NameM4308-PLE Panoramic Camera
Marketing Information

This discreet, outdoor-ready mini dome offers outstanding images and complete 360° panoramic overview with audio capture. A deep learning processing unit (DLPU) allows you to benefit from analytics based on deep learning on the edge.

Extended possibilities

AXIS M4308-PLE offers great possibilities to add value to your camera and extend the functionality of your surveillance system. With a DLPU, this mini dome enables unique opportunities to take advantage of analytics based on deep learning on the edge. It comes with AXIS Object Analytics allowing you to detect and classify humans and vehicles for reliable detection with fewer false alarms. And, with forensic search functionality, it eliminates the need to scroll through endless hours of video surveillance and you can search through hours of video in seconds.

Sharp images and audio

Featuring a stereographic lens, AXIS M4308-PLE ensures a higher resolution around the outer portion of the view so objects located in the camera's peripheral view can be captured more clearly. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 12 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Featuring four built-in microphones with voice enhancer it offers high-quality audio capture and great noise suppression. And, with complete 360° overview you'll be sure to record everything with no blind spots.

Secure and easy

Based on a powerful Axis chipset, AXIS M4308-PLE features Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis devices on your network. It's delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview- no need to do it manually on each camera. The discreet, flat design blends seamlessly into any environment. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.

Product TypeNetwork Camera
Technical Information
HD RecordingYes
Night VisionYes
Night Vision Distance49.21 ft (15 m)
Night Vision TypeInfrared
Display & Graphics
Image Sensor TypeCMOS
Color SupportedColor
Field of ViewHorizontal field of view: 183° Vertical field of view: 183°
Effective Camera Resolution12 Megapixel
Video
Video Formats
  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
  • Motion JPEG
  • H.264 BP
  • H.264 (MP)
  • H.265 (MP)
  • Zipstream
  • H.264
  • H.265
Maximum Video Resolution2880 x 2880
Maximum Frame Rate30 fps
Lens
Lens TypeFixed
Maximum Focal Length1.3 mm (0.05")
Lens IncludedYes
Maximum Aperturef/2.4
Exposure
Shortest Shutter Speed1/22000 Second
Longest Shutter Speed1 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Power Source TypePoE
Physical Characteristics
Mount Type
  • Recessed Mount
  • Bracket Mount
Form FactorDome
DurabilityVandal Resistant
Color FamilyWhite
Product ColorWhite
Height2.72" (69 mm)
Diameter5.87" (149 mm)
Weight (Approximate)1.87 lb (850 g)
Environmental Conditions
Minimum Operating Temperature-40°F (-40°C)
Maximum Operating Temperature122°F (50°C)
Maximum Operating Humidity100%
Miscellaneous
Features
  • Wide Dynamic Range
  • Day/Night
  • White Balance
  • Built-in Microphone
  • Password Protection
  • HTTPS Encryption
  • SD Card Local Storage
  • Built-in Infrared Illuminator
  • Audio Detection
  • Motion Detection
Indoor/OutdoorOutdoor
Package Contents
  • M4308-PLE Panoramic Camera
  • Installation Guide
  • Windows decoder1-user License
  • Drill Hole Template
  • Cable Gaskets
  • Connector Guard
  • I/O Connector
  • RESISTORX TR20 Bit
  • Mounting Bracket
  • Cable Hole Lid
  • View Protector
Impact Protection Rating
  • IK10
  • IK09
Ingress Protection RatingIP66
Country of OriginThailand
ConditionNo
UPC7331021072534
Warranty
Limited Warranty5 Year
