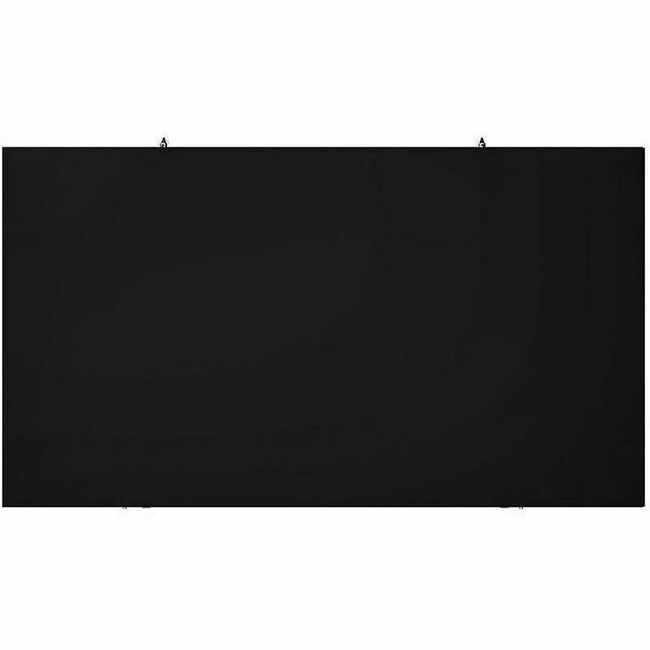

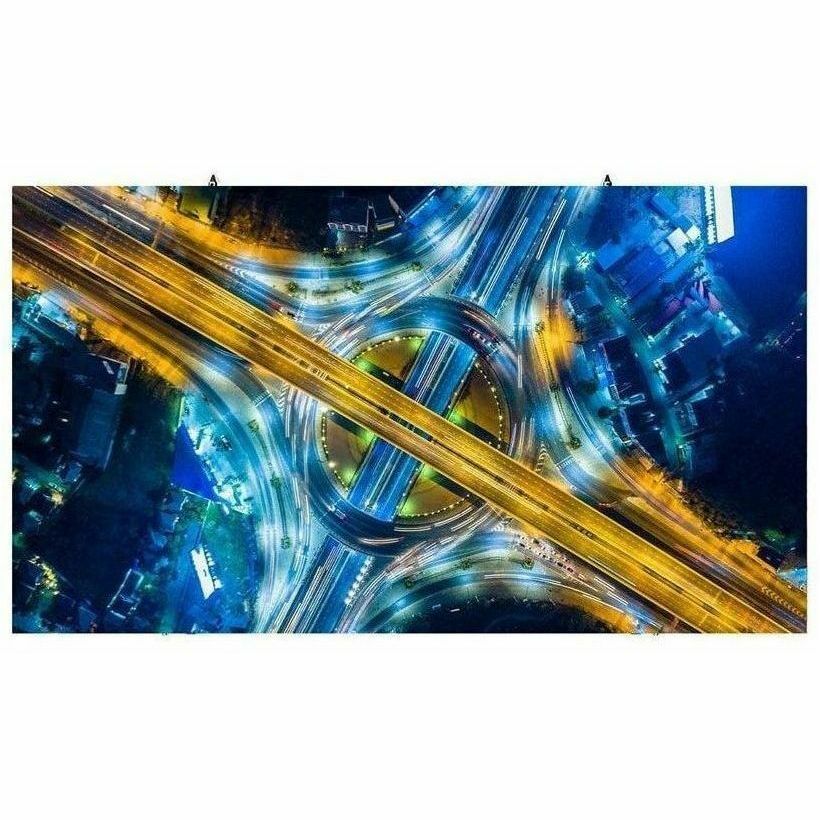

LG Fine-pitch Essential LSBB018-GD Digital Signage Display
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | LG Electronics |
| Manufacturer Part Number | LSBB018-GD |
| Brand Name | LG |
| Product Line | Fine-pitch Essential |
| Product Model | LSBB018-GD |
| Product Name | Fine-pitch Essential LSBB018-GD Digital Signage Display |
| Marketing Information | Signal Detection Status Indicator Status indicators and a check button are located in the main frame of the cabinet structure and can be conveniently accessed from both the front and back of the unit. Easy Alignment in Z-direction A uniform tool can be used for X/Y/Z 6-axis adjustment between panels. Modules can be easily adjusted in Z-direction to deliver a distortion-free image. Front Serviceability Front access reduces the need to access the unit from behind for more convenient maintenance. Easy-handling Lightweight Cabinet The lightweight design of the LSBB018-GD makes it a breeze to install, which can also reduce the risk of damage during installation. A full set of LED screens is still light can also reduce any strain on the installation structure. Signal / Power Redundancy With an additional controller and power unit, a backup controller activates if a signal transmission error occurs, preventing a screen blackout error (Signal Redundancy). The product also offers Power Redundancy as an option. Two power units are provided in a single LED cabinet, and one activates to provide power when the other fails. Service Maintenance is easy and fast with the optional LG ConnecedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and provides remote-control services that better support the stable operation of clients' businesses. |
| Product Type | Digital Signage Display |
| Video Wall Compatible | Yes |
| Minimum Color Temperature | 5300.3°F (2926.8°C) |
| Maximum Color Temperature | 16280.3°F (9026.8°C) |
| Number of Screens | 9 |
| Video Wall Configuration | 3x3 |
| Display Screen Type | LCD |
| Display Resolution | 320 x 180 |
| High Dynamic Range (HDR) | Yes |
| High Dynamic Range (HDR) Type |
|
| Pixel Pitch | 73.82 mil (1.88 mm) |
| Backlight Technology | LED |
| Module Resolution | 80 x 180 |
| Standard Refresh Rate | 3.84 kHz |
| Frame Refresh Rate | 60 Hz |
| Dynamic Contrast Ratio | 5,000:1 |
| Color Depth | 16-bit |
| Brightness | 600 cd/m² |
| Input Voltage |
|
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Height | 13.29" (337.50 mm) |
| Width | 23.62" (600 mm) |
| Depth | 2.20" (56 mm) |
| Weight (Approximate) | 13.23 lb (6000 g) |
| Housing Material | Die-cast Aluminum |
| Certifications & Standards | FCC / CE / TUV |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 0195174020906 |
