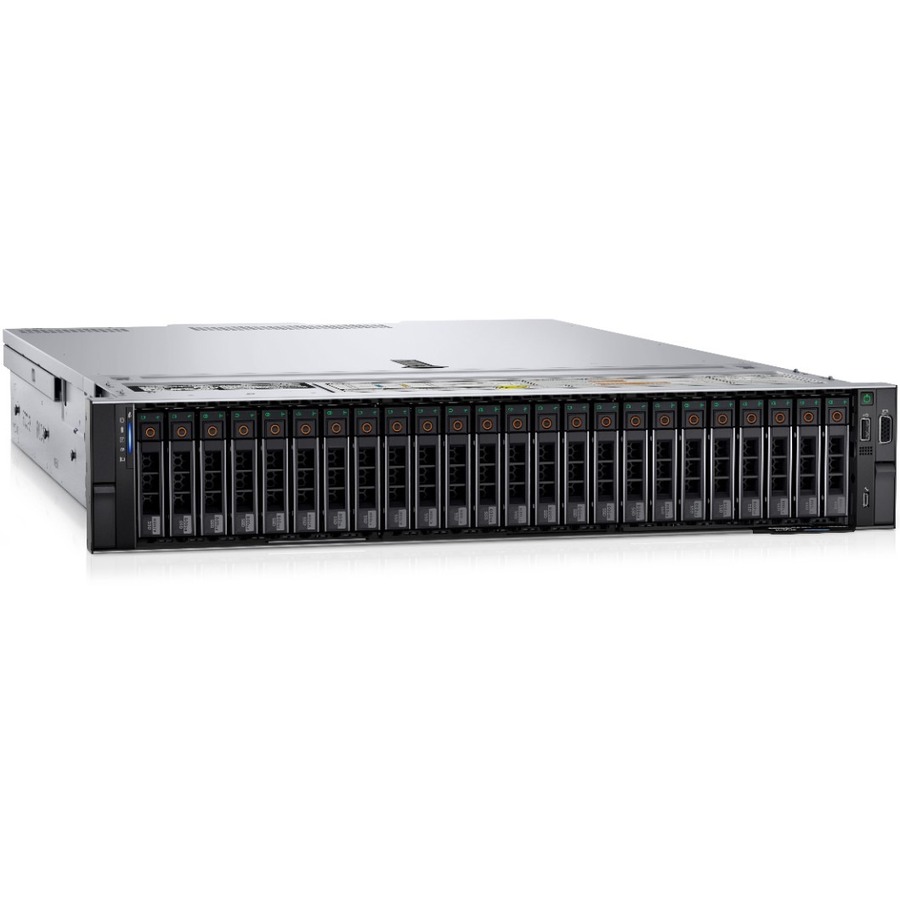

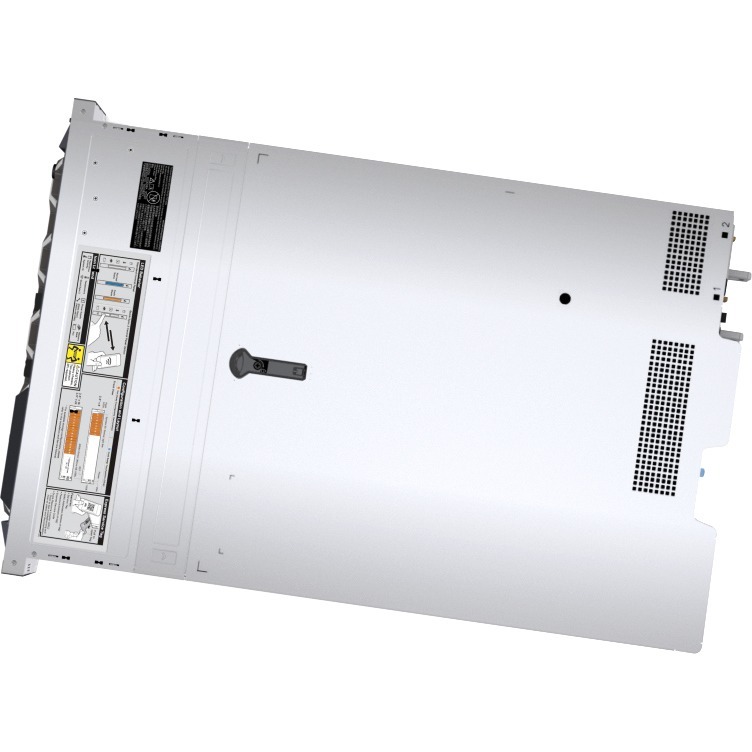

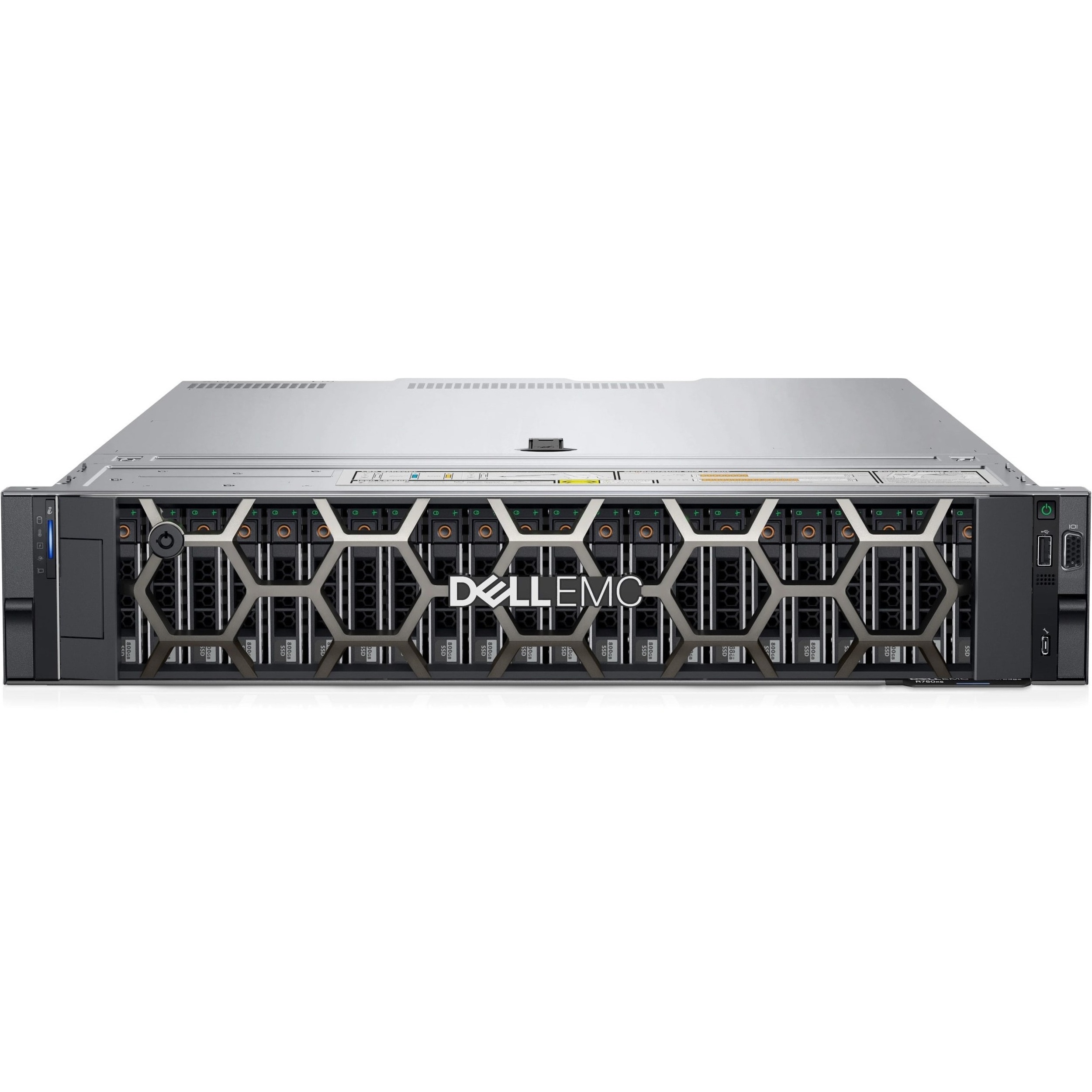

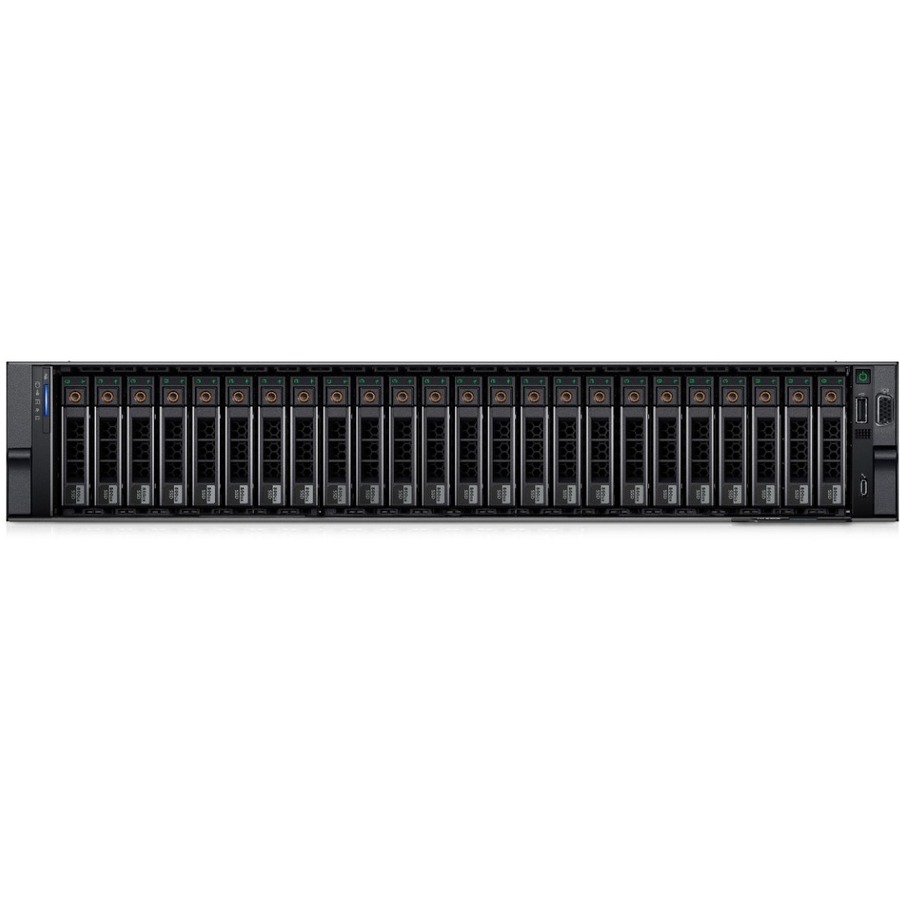

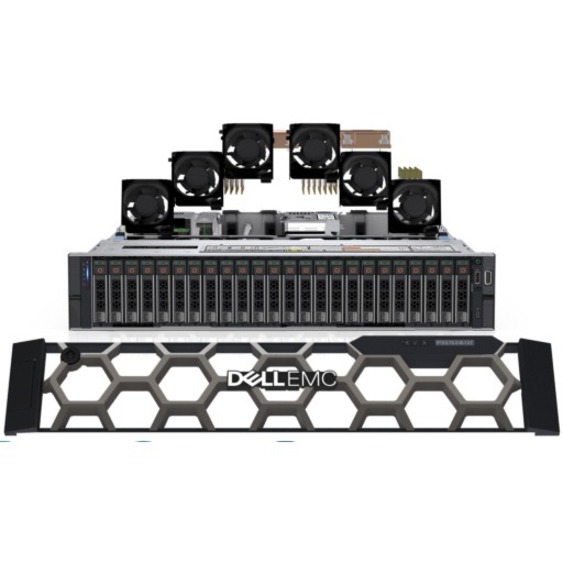

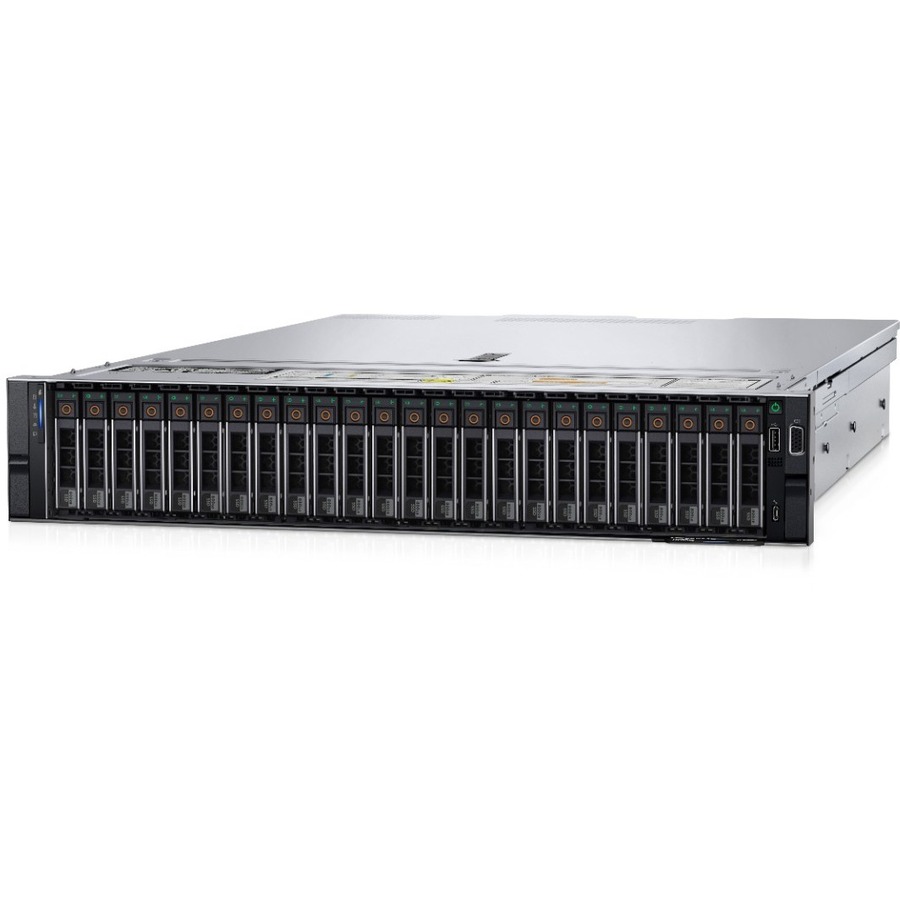

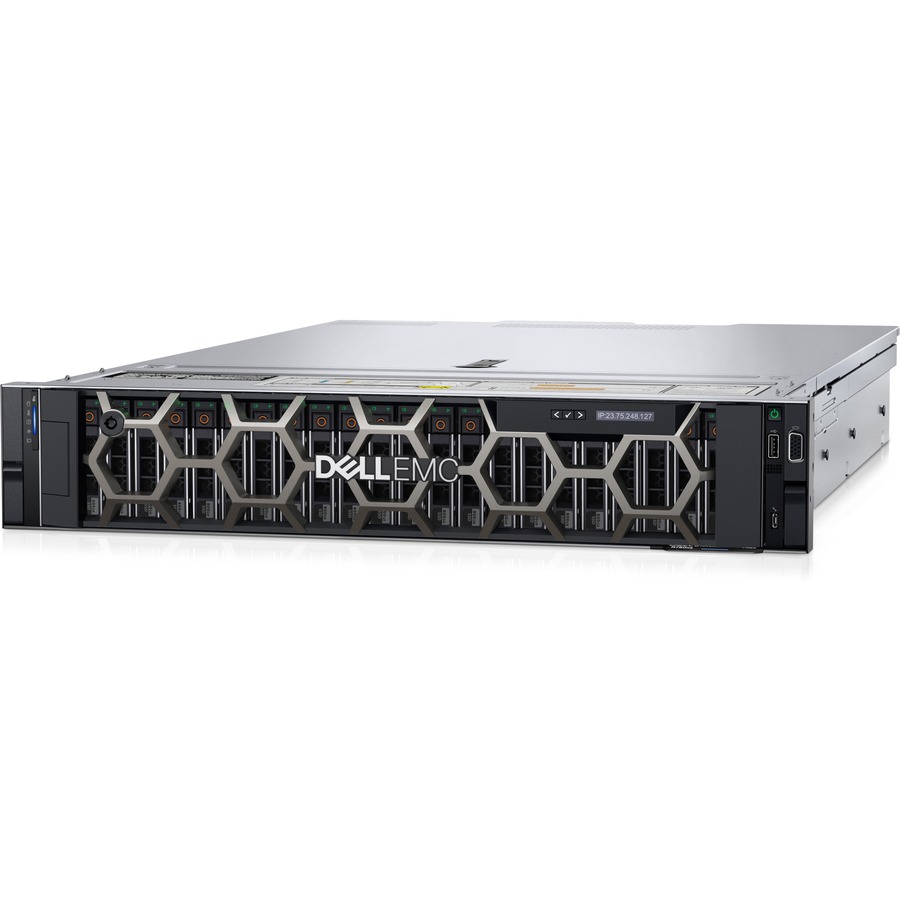

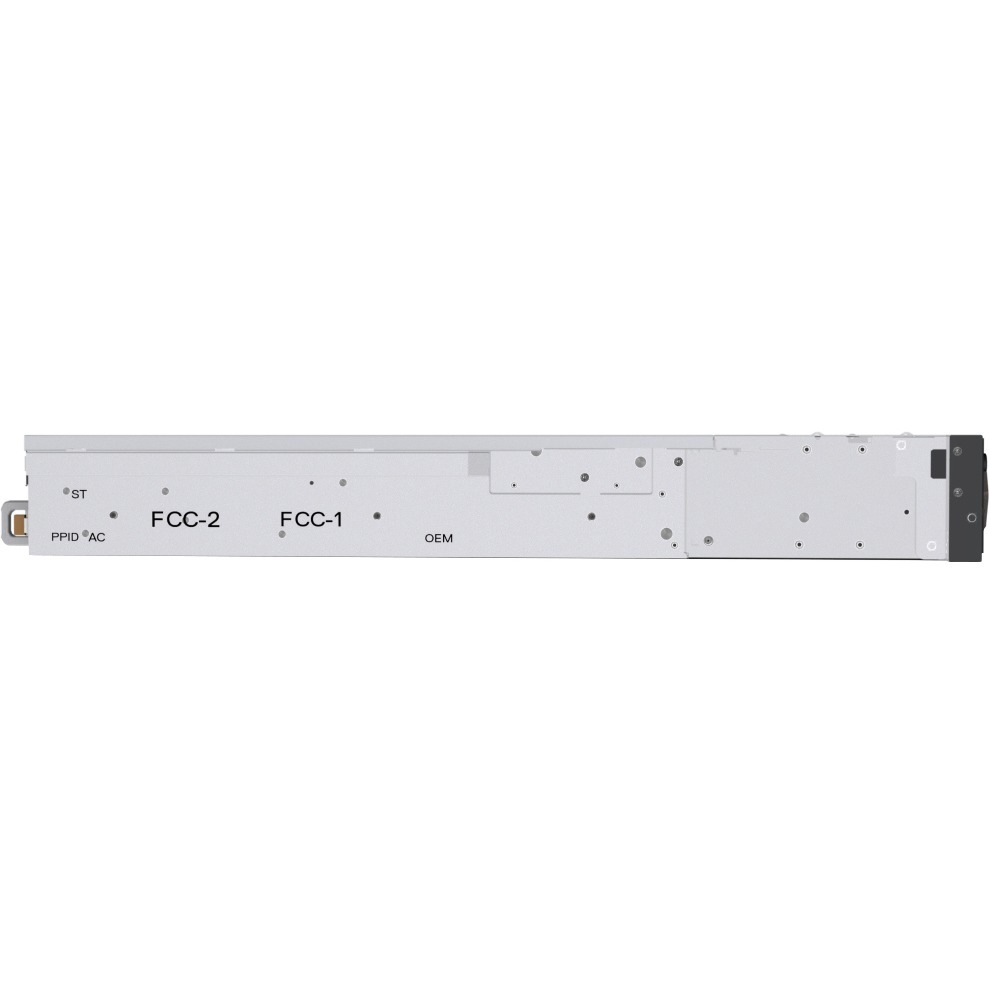

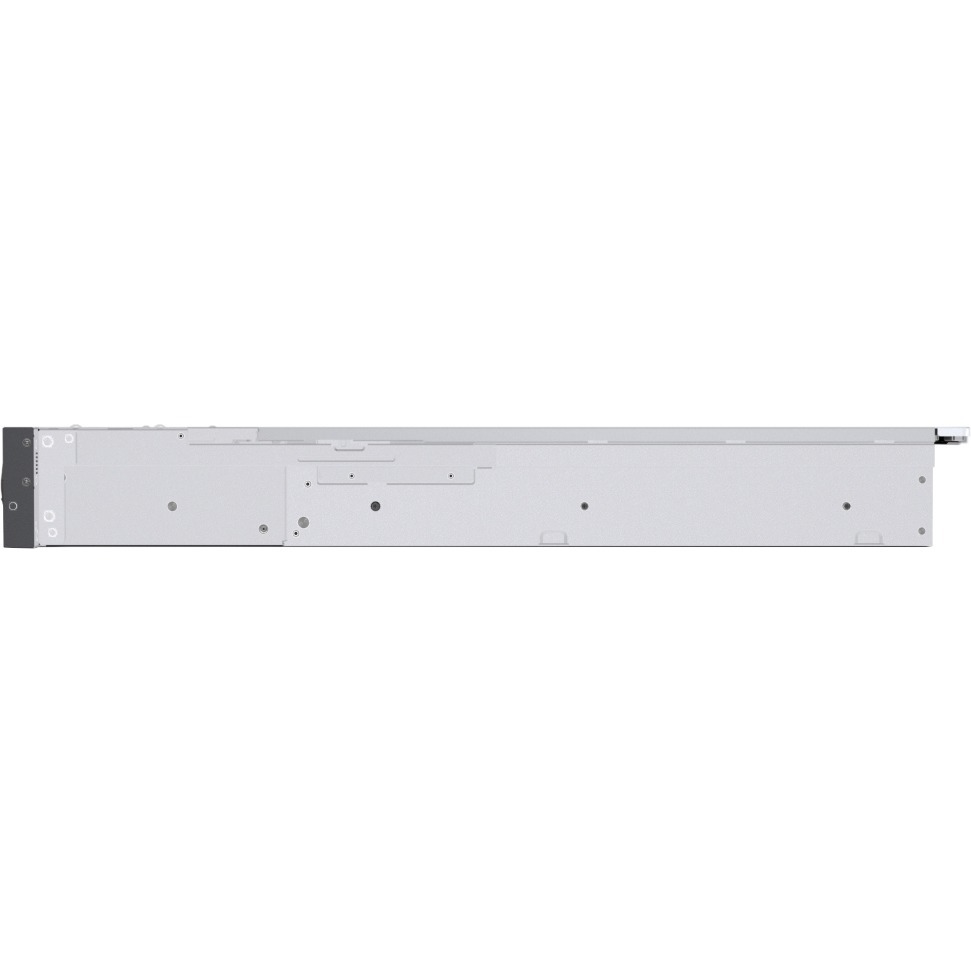

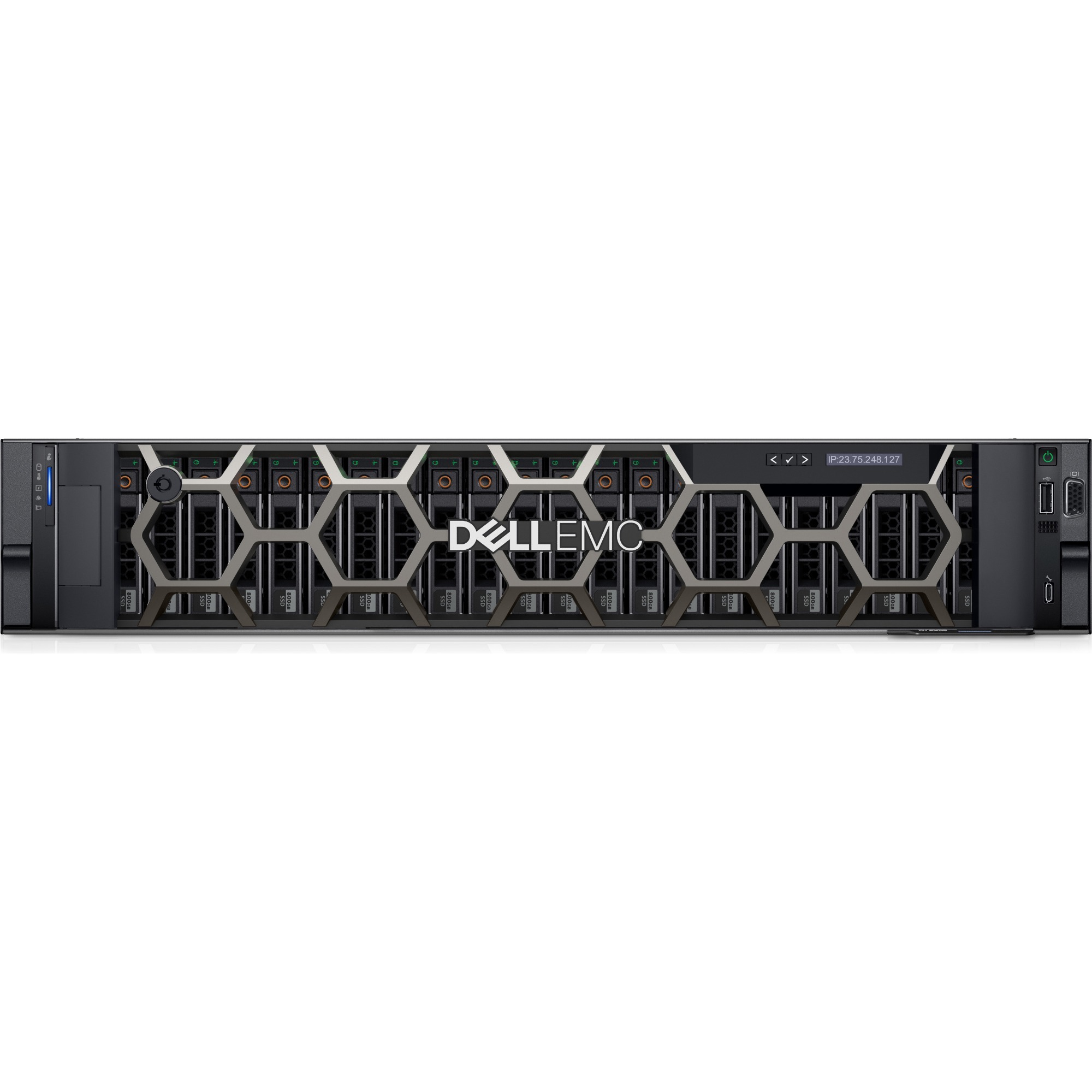

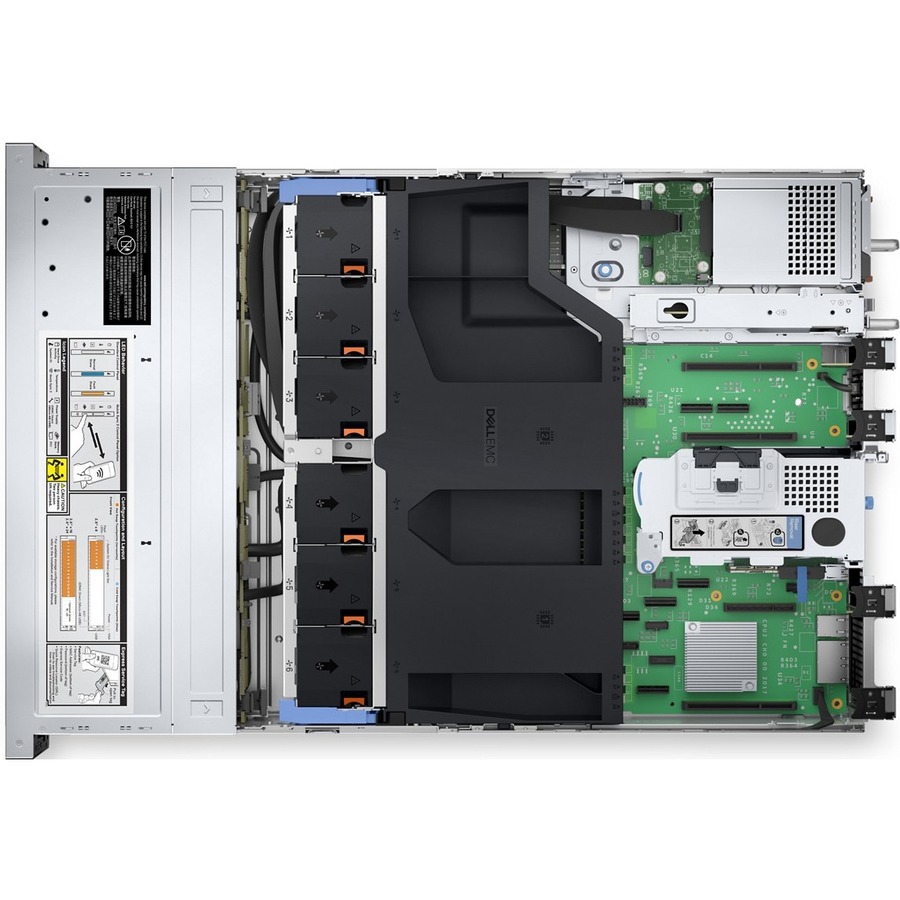

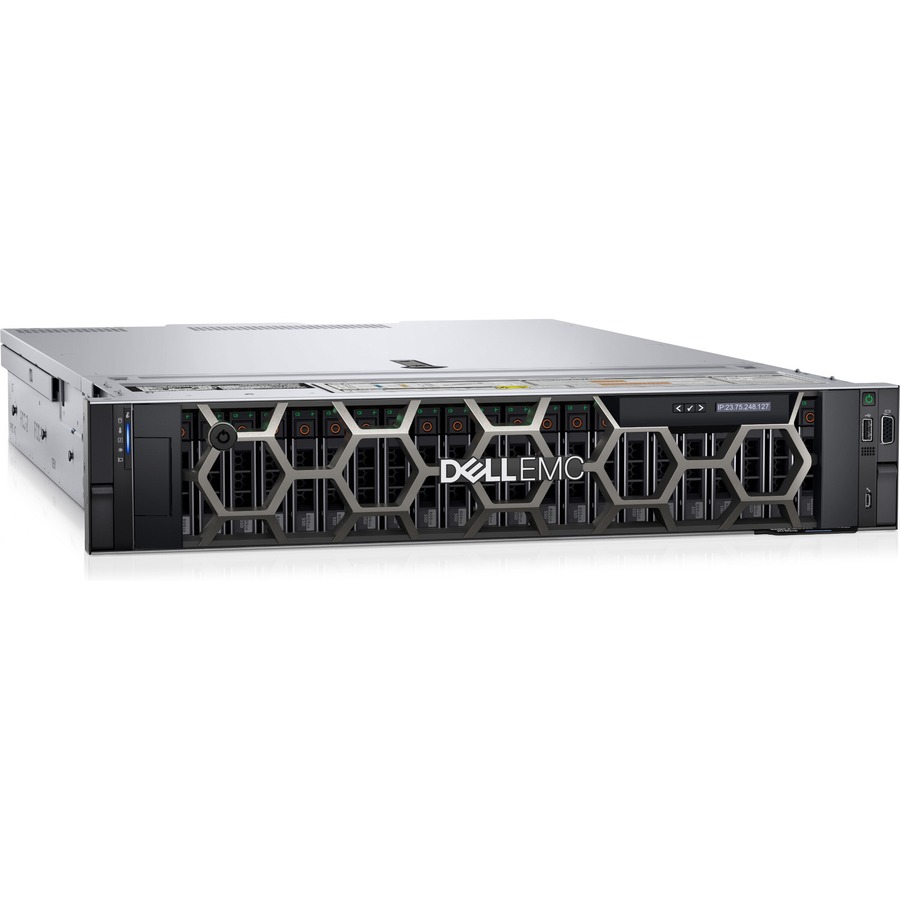

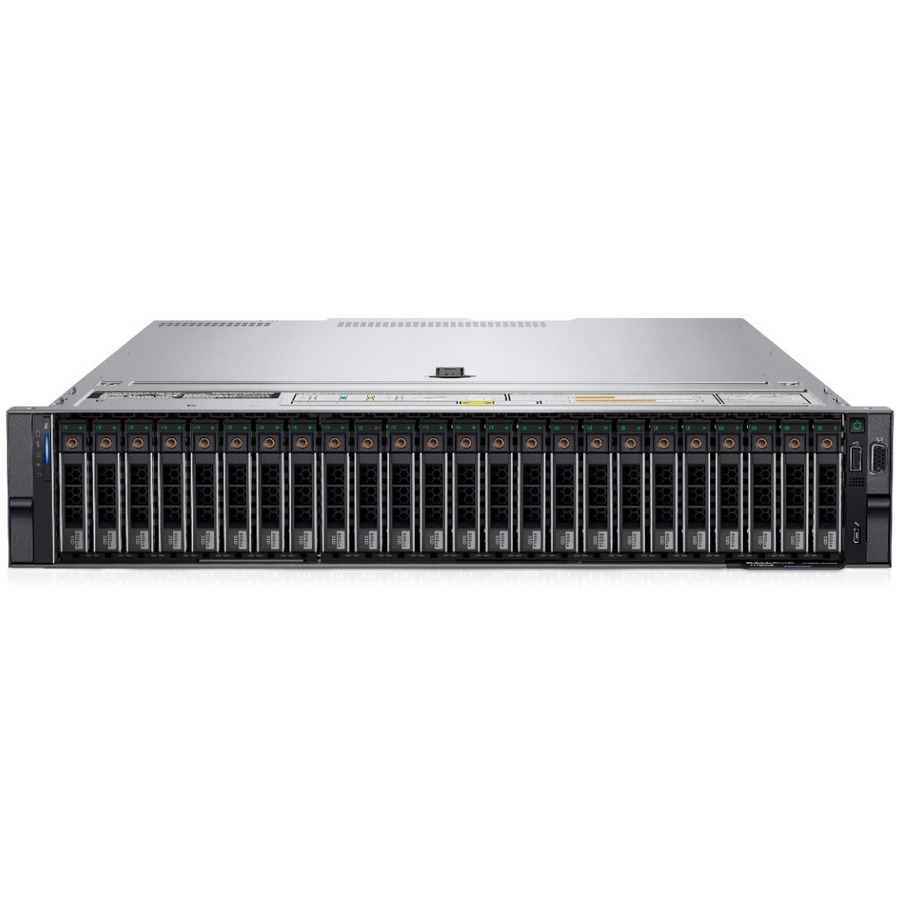

Dell PowerEdge R750xs 2U Rack-mountable Server - 2 Xeon Silver 4310 2.10 GHz - 32 GB RAM - 480 GB SSD - (1 x 480GB) SSD Configuration - Serial ATA/600, Serial Attached SCSI (SAS) Controller
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Dell Technologies |
| Manufacturer Part Number | PY6Y4 |
| Brand Name | Dell |
| Product Line | PowerEdge |
| Product Model | R750xs |
| Product Name | PowerEdge R750xs Server |
| Marketing Information | Purpose-built 2U for growing scale-out solutions The Dell EMC PowerEdge R750xs, with 3rd generation Intel® Xeon® Scalable processors, is purposefully designed with distinctive, customer-defined requirements to deliver enterprise performance for scale-out environments. Innovate at scale with challenging and emerging workloads The new Dell EMC PowerEdge R750xs is a 2U, dual-socket, feature-optimized server with an ideal selection of CPU, I/O, and storage performance for scale-out environments. With it, you can:
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies' intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
From the silicon and supply chain all the way to asset retirement, know that your servers are safe and secure with innovative Dell EMC and Intel technologies. We give you the confidence of cyber resilience with enterprise class security that minimizes risk for any organization, from small business to hyperscale.
|
| Product Type | Server |
Processor
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Silver |
| Processor Generation | 3rd Gen |
| Processor Model | 4310 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 2.10 GHz |
| Cache | 18 MB |
Chipset
| Chipset Manufacturer | Intel |
Memory
| Standard Memory | 32 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 16 |
| Number of Occupied Memory Slots | 2 |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
Storage
| Number of Solid State Drives | 1 |
| Total Solid State Drive Capacity | 480 GB |
| Solid State Drive Interface | Serial ATA/600 |
| Optical Drive Type | No |
Controllers
| Controller Type |
|
| Controller Model | PERC H755 |
| RAID Supported | Yes |
I/O Expansions
| Number of Total Expansion Bays | 16 |
| Number of Internal 2.5" Bays | 16 |
| Number of SFF Bays | 16 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 6 |
| Riser Card | Riser Config 1, Half Length, Low Profile, 4x16 + 1x8 + 1x4 slots w/SNAPI on 1 slot |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Interfaces/Ports
| Number of USB 2.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | iDRAC9 Datacenter 15G with OpenManage Enterprise Advanced |
Operating System
| Operating System Supported |
|
| Operating System | No |
Power Description
| Input Voltage |
|
| Number of Power Supplies Installed | 2 |
| Plug/Connector Type | NEMA 5-15P to C13 |
| Maximum Power Supply Wattage | 1.10 kW |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Country of Origin | Mexico |
Physical Characteristics
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.42" (86.80 mm) |
| Width | 18.98" (482 mm) |
| Depth | 27.87" (707.78 mm) |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Years Basic Hardware Warranty Repair 5x10 HW-Only 5x10 Next Business Day Onsite-Disti SNS |
