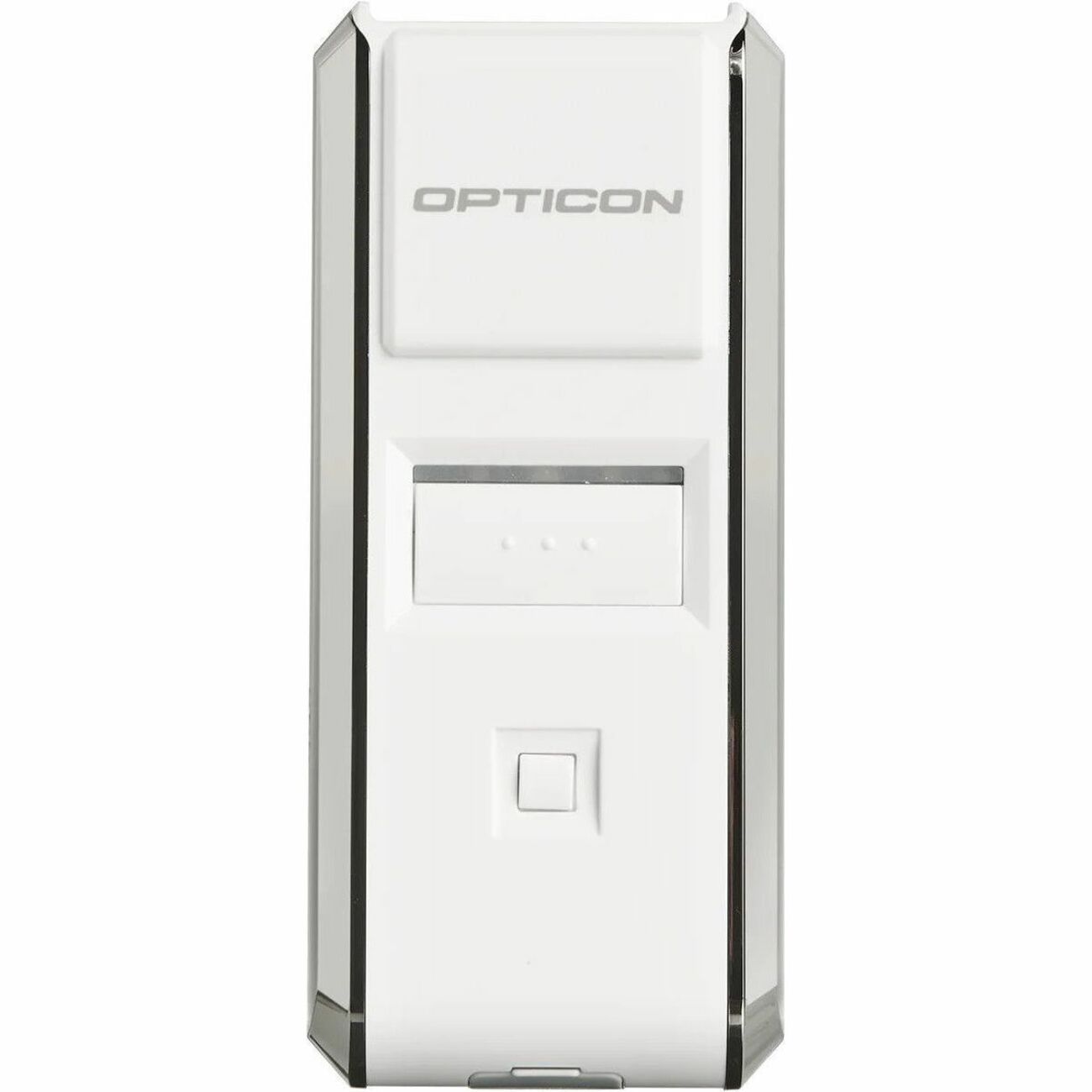

Opticon OPN-3102i 2D CMOS Imager

Cable/Wireless Connectivity - 15.35" (389.89 mm) Scan Distance - 1D, 2D - LED - Imager - Area - Bluetooth - USB - IP54 - Field Sales/Service, Inventory, Asset Tracking, Retail

Part No. OPN3102I-01

by Opticon Sensors Europe

$374.99

Specifications

General Information

Manufacturer	Opticon Sensors Europe
Manufacturer Part Number	OPN3102I-01
Brand Name	Opticon
Product Line	Companion
Product Model	OPN-3102i
Product Name	OPN-3102i 2D CMOS Imager
Marketing Information	The OPN-3102i adds real-time barcode scanning to any Bluetooth device. It is extremely small, making it an ideal solution for field sales, POS, inventory management, and many more. The integrated NFC tag enables easy Bluetooth pairing. It contains wireless charging technology and can as well as be charged over a standard USB cable.
Product Type	Barcode Scanner

Technical Information

Connectivity Technology	Cable/Wireless
Scanning Capability	1D 2D
Barcode Symbology Supported	1D: UPC-A, UPC-A Add-on, UPC-E, UPC-E Add-on, EAN-13, EAN-13 add-on, EAN-8, EAN-8 Addon, JAN-8, JAN-13, Codabar / NW-7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Composite GS1-DataBar, Composite GS1-128, Composite EAN, Composite UPC, IATA, Industrial 2of5, Interleaved 2of5, Matrix 2of5, MSI/Plessey, UK/Plessey, S-Code, Telepen, Tri-Optic Postal Code: Chinese Post, Korean Postal Authority code 2D: Aztec Code, Codablock F, Data Matrix (ECC 200), Maxi Code (mode 2 to 5), MicroPDF417, Micro QR Code, PDF417, QR Code, Chinese Sensible Code
Light Source	LED
Image Sensor Type	Imager
Depth of Field	Depth of field at code 39: 60 - 150 mm (0.127 mm) / 2.36 - 5.90 in (5 mil) 70 - 205 mm (0.254 mm) / 2.76 - 8.07 in (10 mil) 80 - 390 mm (0.508 mm) / 3.15 - 15.35 in (20 mil) Depth of field at Code 128: 80 - 165 mm (0.2 mm) / 3.15 - 6.50 in (7.87 mil) Depth of field at UPC: 65 - 260 mm (1.33 mm) / 2.56 - 10.24 in (52.36 mil) Depth of field at PDF417: 65 - 125 mm (0.169 mm) / 2.56 - 4.92 in (6.65 mil) 50 - 180 mm (0.254 mm) / 1.97 - 7.09 in (10 mil) Depth of field at QR Code: 70 - 95 mm (0.169 mm) / 2.76 - 3.74 in (6.65 mil) 35 - 225 mm (0.381 mm) / 1.38 - 8.86 in (15 mil) Depth of field at Data Matrix: 60 - 130 mm (0.212 mm) / 2.36 - 5.12 in (8.35 mil) 50 - 150 mm (0.254 mm) / 1.97 - 5.91 in (10 mil)
Scan Pattern	Area
Scanning Distance	15.35" (389.89 mm)
Features	Notification LED Vibration Scan Button
Number of Keys	2
Field of View (Horizontal)	38°
Field of View (Vertical)	29°
Reading Angle (Skew)	70°
Reading Angle (Pitch)	70°
Reading Angle (Roll)	360°
Maximum Ambient Light	100000 lux
Drop Specification	201.5 m / 5 ft drop onto concrete surface
Minimum Element Resolution (Code 39)	5 mil (0.13 mm)
Maximum Element Resolution (Code 39)	20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix)	8.35 mil (0.21 mm)
Maximum Element Resolution (DataMatrix)	10 mil (0.25 mm)
Minimum Element Resolution (PDF417)	6.65 mil (0.17 mm)
Maximum Element Resolution (PDF417)	10 mil (0.25 mm)
Image Sensor Resolution	640 x 480

Memory

Standard Memory	96 KB
Flash Memory	1 MB

Network & Communication

Bluetooth	Yes

Interfaces/Ports

Host Interface	USB

Battery Information

Battery Chemistry	Lithium Ion (Li-Ion)
Battery Capacity	600 mAh
Maximum Battery Run Time	10 Hour

Environmental Conditions

Operating Temperature	14°F (-10°C) to 122°F (50°C)
Storage Temperature	-4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing)	20% to 85%

Physical Characteristics

Durability	Dust Resistant Water Resistant Drop Resistant
Height	3.27" (83 mm)
Width	1.42" (36 mm)
Depth	0.85" (21.50 mm)
Weight (Approximate)	2.12 oz (60 g)

Miscellaneous

Package Contents	OPN-3102i 2D CMOS Imager MicroUSB Cable Neck Strap
Ingress Protection (IP) Rating	IP54
Application/Usage	Field Sales/Service Inventory Asset Tracking Retail
Platform Supported	iOS Android PC
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
COO	JP
Condition	No

Warranty

Limited Warranty	2 Year
