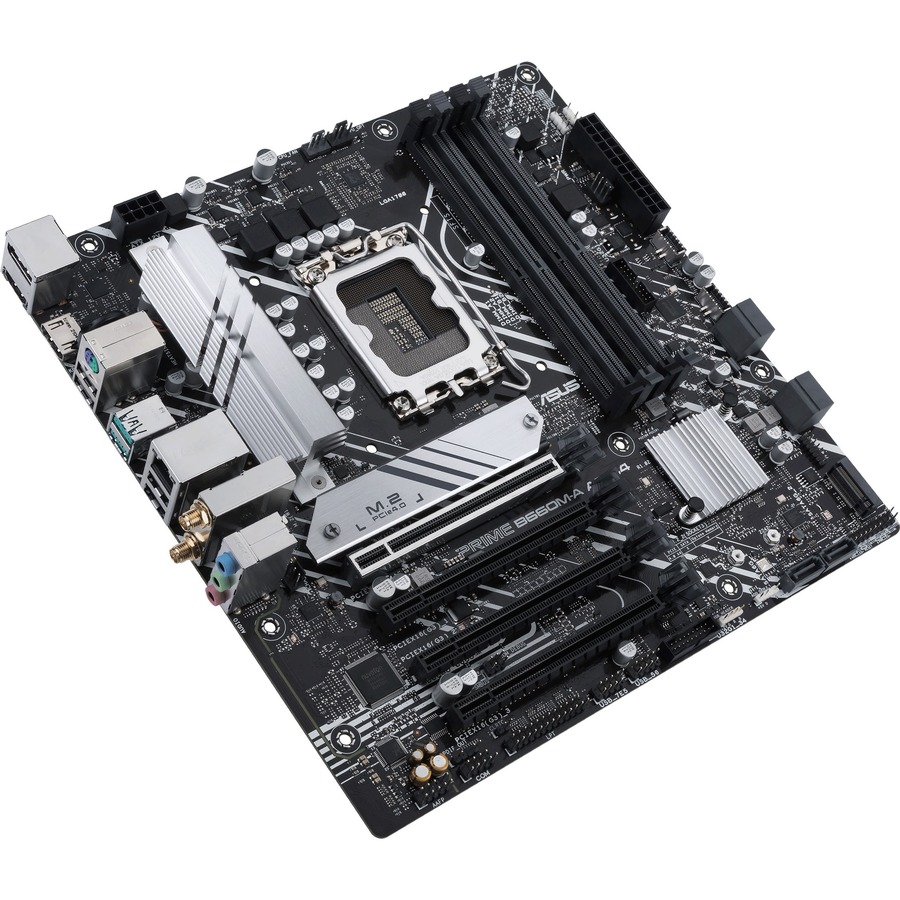

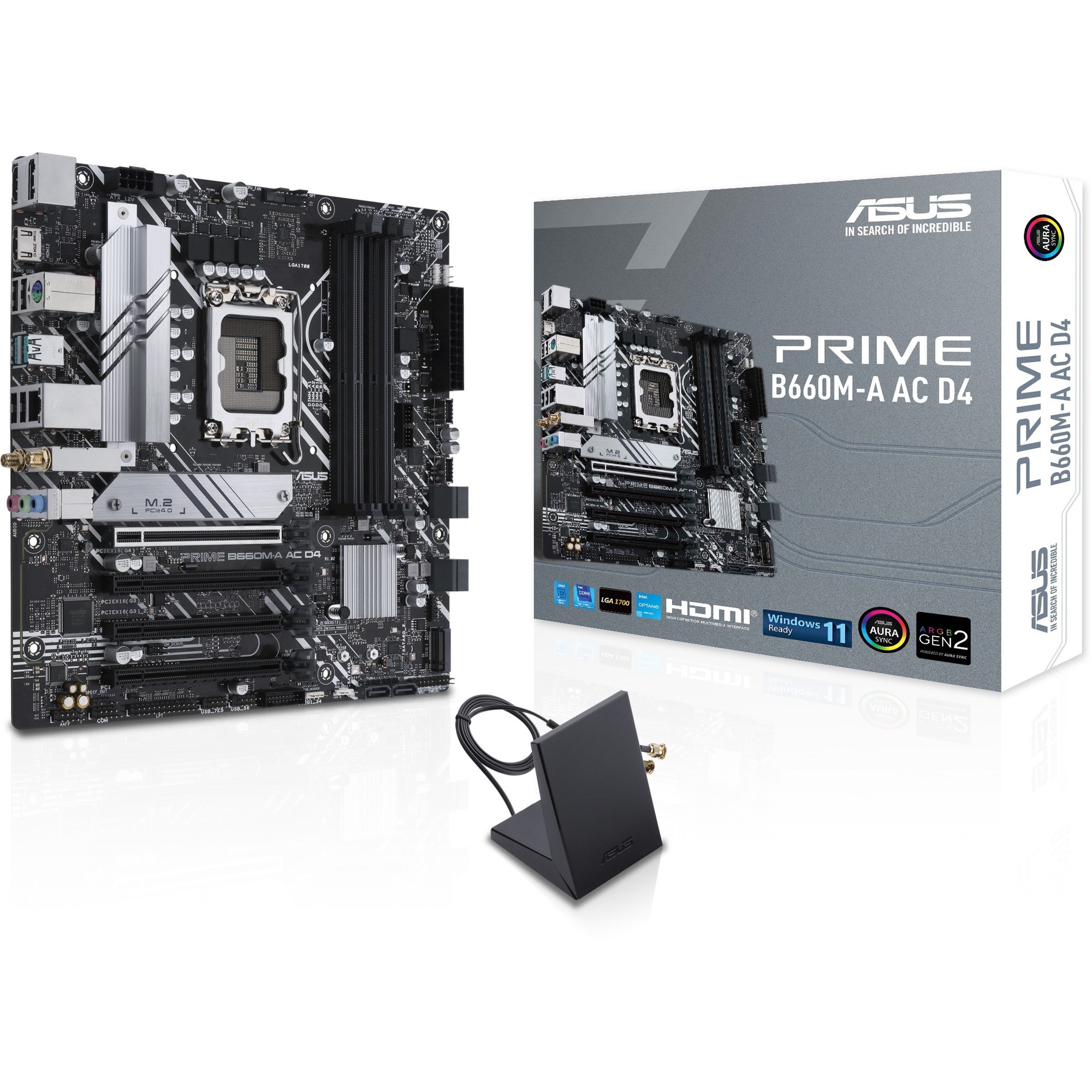

Asus Prime B660M-A AC D4 Desktop Motherboard - Intel B660 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIME B660M-A AC D4 |
| Brand Name | Asus |
| Product Line | Prime |
| Product Model | B660M-A AC D4 |
| Product Name | Prime B660M-A AC D4 Desktop Motherboard |
| Product Type | Desktop Motherboard |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | B660 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen |
| Processor Supported |
|
Memory
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported |
|
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
I/O Controller
| Controller Type | Serial ATA/600 |
| Intel RST | Yes |
| RAID Supported | Yes |
| RAID Levels |
|
Video
| Onboard Video | CPU Dependent Video |
Audio
| Audio Channels | 7.1 |
Network & Communication
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
I/O Expansions
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x16 Slots | 4 |
Interfaces/Ports
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 10 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of Onboard USB 3.2 Ports | 6 |
Physical Characteristics
| Form Factor | Micro ATX |
| Width | 9.61" (244 mm) |
| Depth | 9.61" (244 mm) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty
| Limited Warranty | 3 Year |
