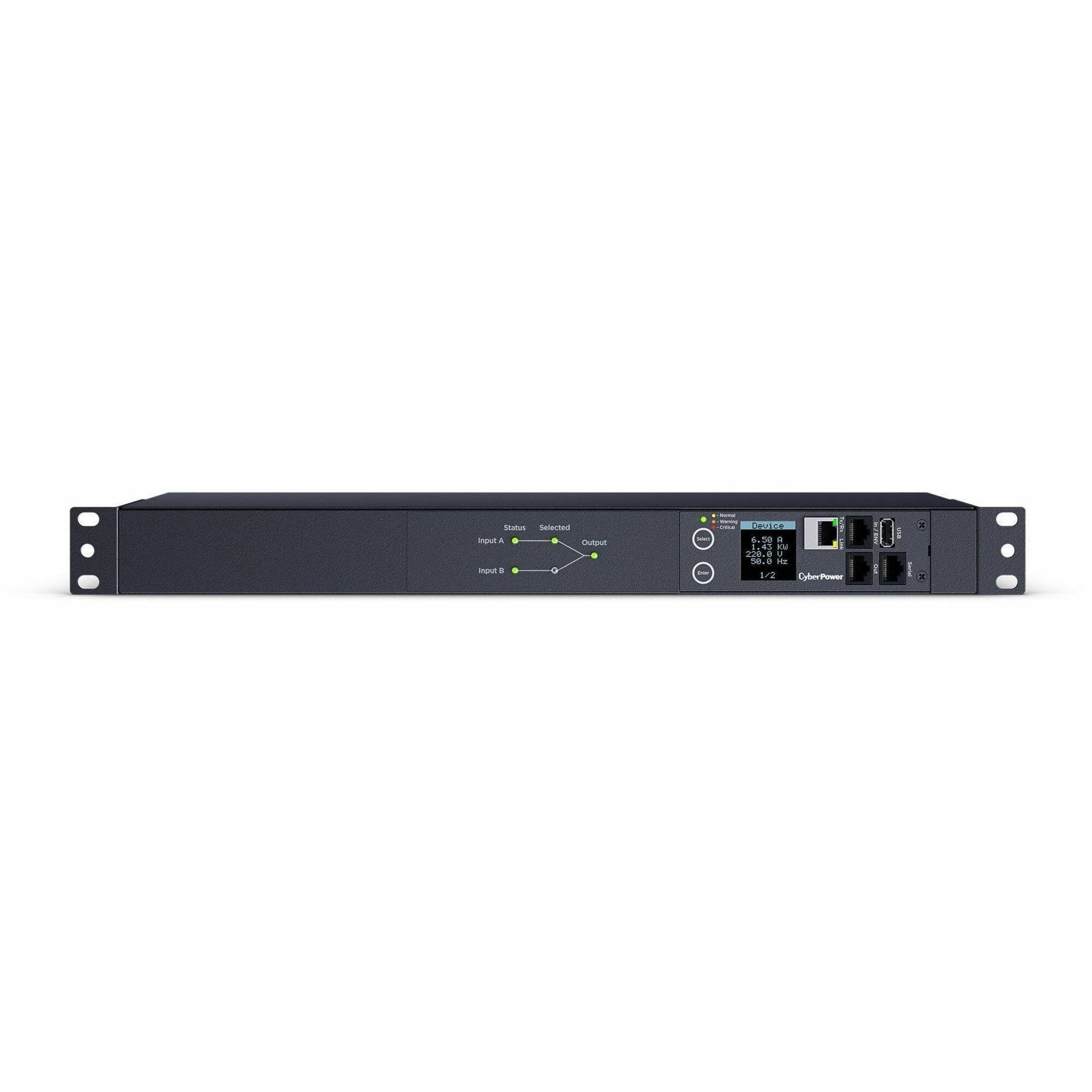

CyberPower PDU44004 Single Phase 240 - 200 VAC 15A Switched ATS

12 Outlets, 10 ft, 2 x IEC-320 C14, Horizontal, 1U, SNMP, LCD, 3YR Warranty

Part No. PDU44004

by CyberPower Systems, Inc

$1498.99

Specifications
Services (1)

General Information

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU44004
Brand Name	CyberPower
Product Series	Switched ATS PDU
Product Model	PDU44004
Product Name	PDU44004
Marketing Information	Ensure continued operation of critical devices with the CyberPower PDU44004 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management. The PDU44004 supports inputs between 200-240V and includes (12) IEC C13 outlets. Dual IEC C14 power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44004 is protected by a three-year limited warranty.
Product Type	PDU

Technical Information

PDU Type	Switched
Design	Modular
Phase	Single Phase
Plug/Connector Type	IEC 60320 C14
Plug/Connector Detail	2 x IEC 60320 C14
Receptacle Type	IEC 60320 C13
Receptacle Detail	12 x IEC 60320 C13
Protection Type	Overload Protection
Features	LCD Display LED Status Indicator

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	230 V AC
Output Voltage Range	200 V AC - 240 V AC
Input Current	15 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	1U
Cord Length	10 ft (3.05 m)
Height	1.75" (44.45 mm)
Width	17.05" (433.07 mm)
Depth	8.45" (214.63 mm)
Weight (Approximate)	7.50 lb (3400 g)

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	113°F (45°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	131°F (55°C)

Miscellaneous

Additional Information	Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm) Weight (kg) : 3.4 Weight (lb) : 7.5 Shipping Dimensions - (WxHxD) (cm) : 54.99 x 12.45 x 39.8 (cm) Shipping - Dimensions (WxHxD, in) : 21.65 x 4.9 x 15.67 (in) Shipping - Dimensions (WxHxD, mm) : 549.91 x 124.46 x 398.02 (mm) Shipping - Weight (kg) : 6.44 Shipping - Weight (lb) : 14.2 Cord Length : 10 ft (3.0 m) Derated Input Current : 12 A Input Frequency Range : 50 Hz - 60 Hz Input Overload Protection : 15A x 2 Input Plug Type : 2 x IEC-320 C14 Maximum Input Current : 15A Nominal Input Voltage : 240 - 200 VAC Phase : Single Phase Plug Style : Straight (Socket) Nominal Output Voltage : 240 - 200 VAC Outlet Banks : 1 Outlets - Total : 12 Outlet Type COMPUTED : 12 - IEC-320 C13 Overload Protection : None Power Source Transfer Time : 2-7 ms Source Failure Detection Time : 2-3 ms Total Transfer Time : <10 ms Environmental Sensor : Optional, via RJ45 Hardware Connection Port : Ethernet (RJ45) LCD : Multifunction LCD LED Indicators : Source Status Modular Expandability (Cascading) : Yes, via RJ45 Outlet switching : Yes SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Upgradeable firmware : Yes Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Style : Rackmount Operating Elevation : 0 - 13123 ft (0 - 4000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Environmental : RoHS Compliant Safety : UL62368 : FCC Class A : cTUVus/CE/UKCA Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
Application/Usage	Data Center Network Closet
Certifications & Standards	UL62368 FCC Class A cTUVus CE UKCA
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes
Condition	No
UPC	0649532933341

Warranty

Limited Warranty	3 Year
