Panasonic AW-HE20 Full HD Network Camera - Color - White

Part No. AWHE20WP

by Panasonic

This Product is currently not in offering

Panasonic AW-HE20 Full HD Network Camera - Color - White

Part No. AWHE20WP

by Panasonic

This Product is currently not in offering

General Information
ManufacturerPanasonic
Manufacturer Part NumberAWHE20WP
Brand NamePanasonic
Product ModelAW-HE20
Product NameAW-HE20 Full HD Zoom Certified PTZ Camera
Marketing Information

PTZ cameras play an increasingly important role in teleworking such as online meetings and online classes. The AW-HE20 offers high image quality, wide shooting angle and high-magnification zoom to provide more comfortable communication through high-quality video images and stable transmission. The AW-HE20 is compatible with a wide range of systems such as SDI, HDMI, USB and IP, thus allowing flexible camera setup and operation. The AW-HE20 is a high-quality entry model. The compact unit can be installed in a small place without getting in the way.

Key features

  • High-Quality Video Streaming for More Comfortable Online Communication
  • Excellent System Flexiblility to Achieve Smart Wiring and Smooth Operation
  • Compact Size and Excellent Functionality that do not Disturb the existing Video Streaming Environment
  • New camera web interface with expanded control and dark mode
Product TypeNetwork Camera
Technical Information
HD RecordingYes
Recording FormatsFull HD
Display & Graphics
Image Sensor TypeMOS
Color SupportedColor
Field of ViewHorizontal angle of view: 71° (wide) to 6° (tele)Vertical angle of view: 43° (wide) to 3° (tele)Diagonal angle of view: 79° (wide) to 7° (tele)
Video
Video Formats
  • H.264
  • H.265
  • Motion JPEG
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
Analog Video Signal Format3G-SDI
Lens
Lens TypeVarifocal
Minimum Focal Length3.9 mm
Maximum Focal Length46.8 mm
Lens IncludedYes
Minimum Aperturef/2.8
Maximum Aperturef/1.6
Optical Zoom12x
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes

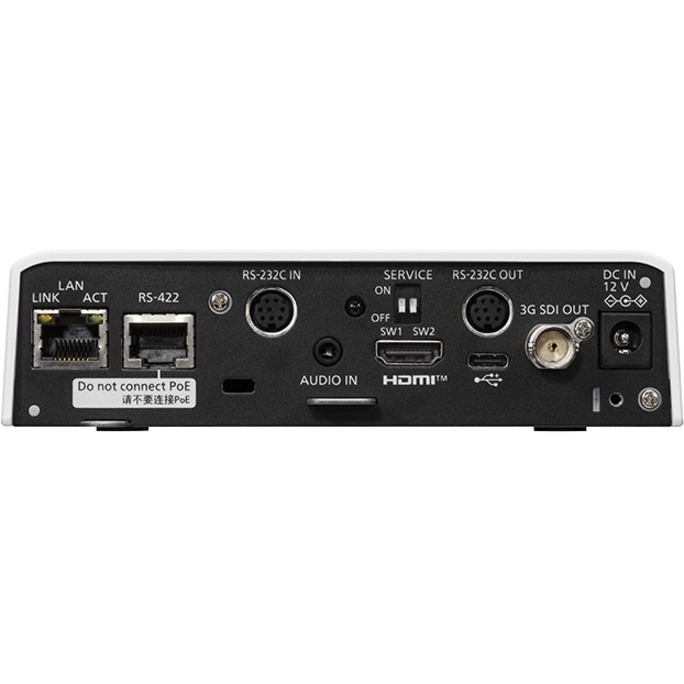

Interfaces/Ports
HDMIYes
Network (RJ-45)Yes
Power Description
Input Voltage12 V DC
Power Source Type
  • DC
  • PoE
Physical Characteristics
Color FamilyWhite
Product ColorWhite
Mount TypeWall Mount
Environmental Conditions
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Maximum Operating Humidity90%
Miscellaneous
Features
  • PTZ
  • Automatic White Balance
