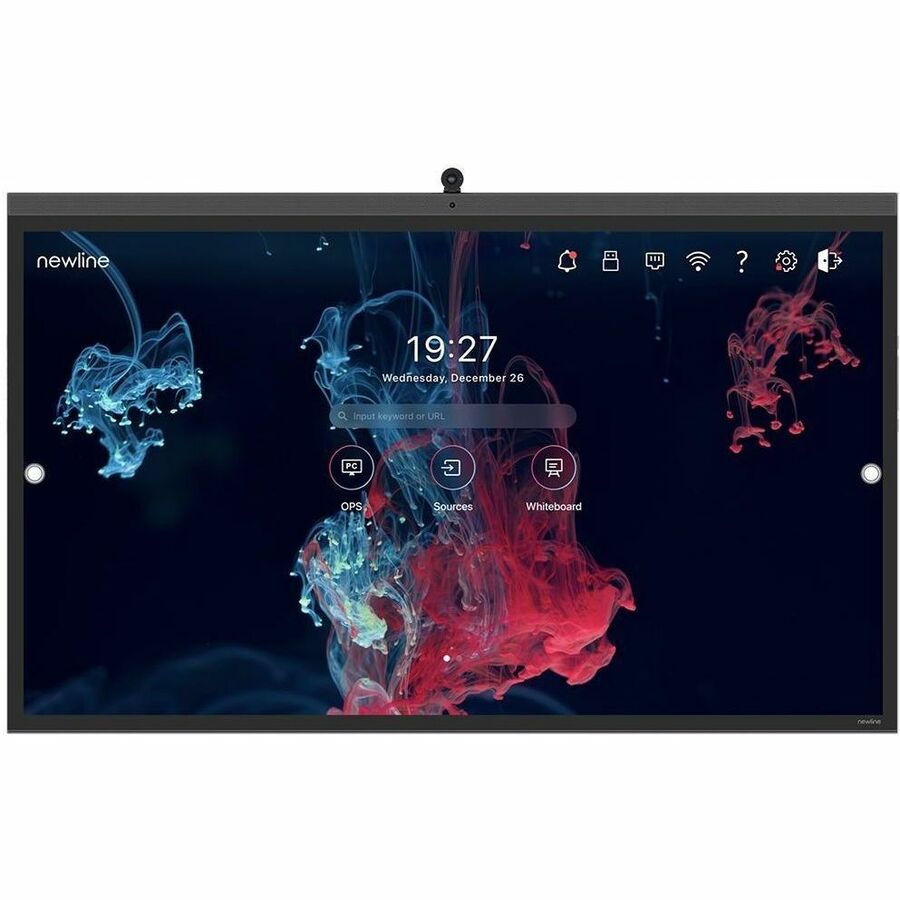

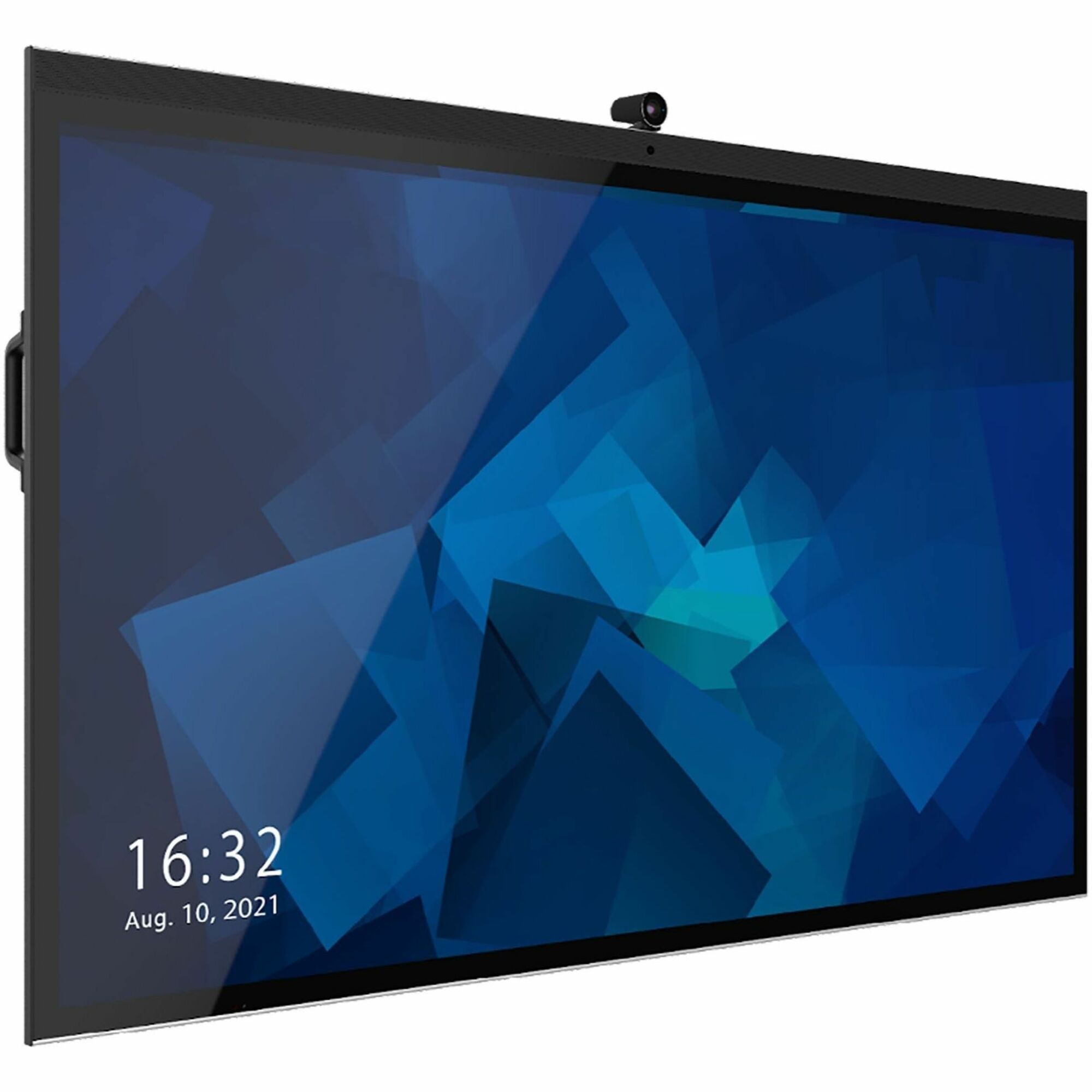

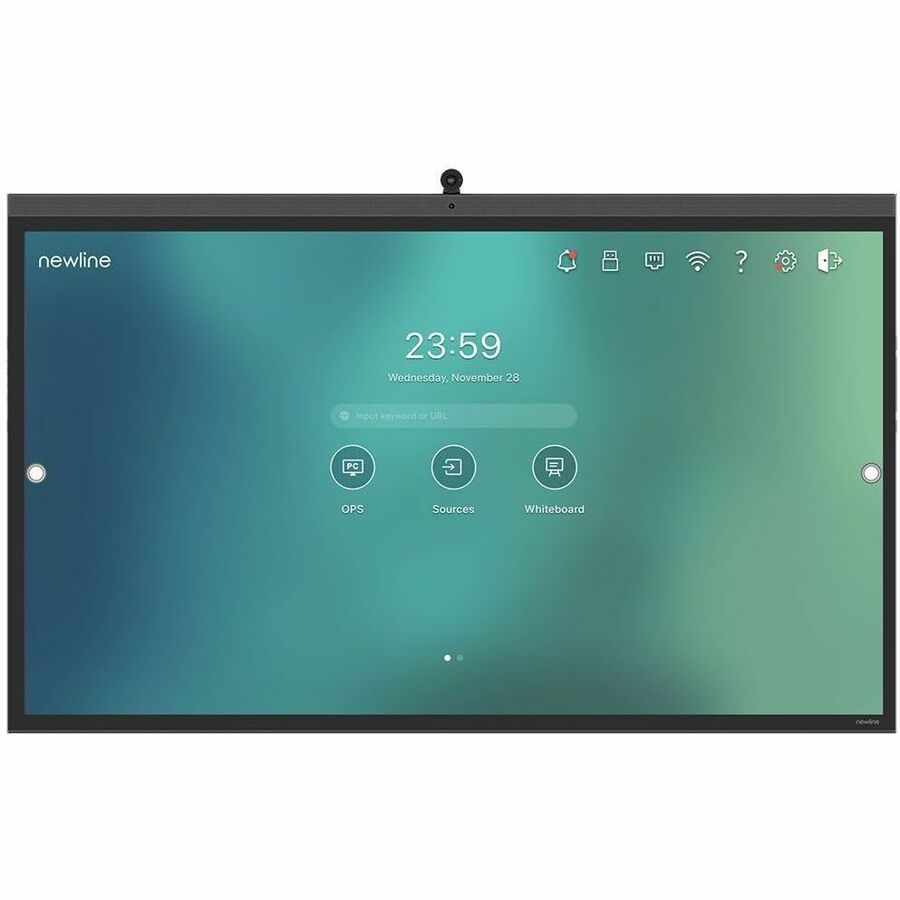

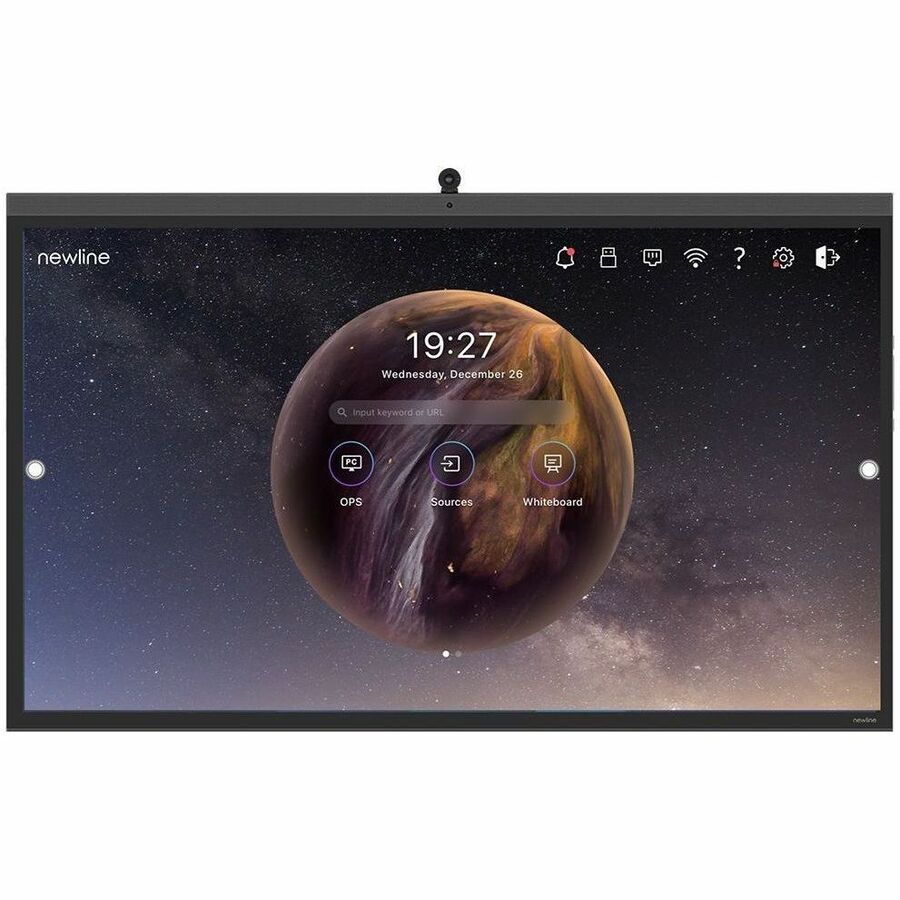

Newline TT-5522Z-UC Collaboration Display
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Newline Interactive |
| Manufacturer Part Number | TT5522ZUC |
| Brand Name | Newline |
| Product Series | Z |
| Product Model | TT-5522Z-UC |
| Product Name | TT-5522Z-UC Collaboration Display |
| Marketing Information | Redefine collaboration with the Newline Z Series, an ultra-high definition display that provides an immersive audio-visual experience for your meeting rooms and huddle spaces. No matter where you sit, the 4K display provides a crystal clear image and a 178° viewing angle. Start meetings faster with the plug and play design of the Z Series. Plug in your laptop through the USB Type-C cable and start presenting, all while the Z Series keeps your laptop charged. Keep your panel and data secure with the embedded Android 11 OS that also provides customization options like unique user profiles. A built-in Wi-Fi 6 module offers greater connectivity and compatibility for securely connecting multiple devices. The Z Series comes equipped with a Proximity Sensor, and will sleep/reawaken automatically based on human presence in the room. The UC ready Z series display comes with an onboard computer (OPS) integrated into the display, no extra devices needed, a flexible 4K wide angle camera, and a built-in 8 mic array for the perfect all in one collaboration solution. Build a more dynamic collaborative space with the Z Series. |
| Product Type | Collaboration Display |
| Display Screen Type | LCD |
| Backlight Technology | LED |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms |
| Color Supported | 1.07 Billion Colors |
| Color Depth | 8-bit |
| Contrast Ratio | 4,000:1 |
| Brightness | 400 cd/m² |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Graphics Controller Model | HD Graphics 620 |
| Tempered Glass | Yes |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Touch Points | 40 |
| Touchscreen Technology | Projected Capacitive |
| Processor Type | Core i7 |
| Processor Model | i7-8565U |
| Processor Speed | 4.60 GHz |
| Standard Memory | 8 GB |
| Total Solid State Drive Capacity | 256 GB |
| Flash Memory Capacity | 64 GB |
| Speakers | Yes |
| Number of Speakers | 2 |
| Microphone | Yes |
| Number of Microphone Array Elements | 8 |
| RMS Output Power | 40 W |

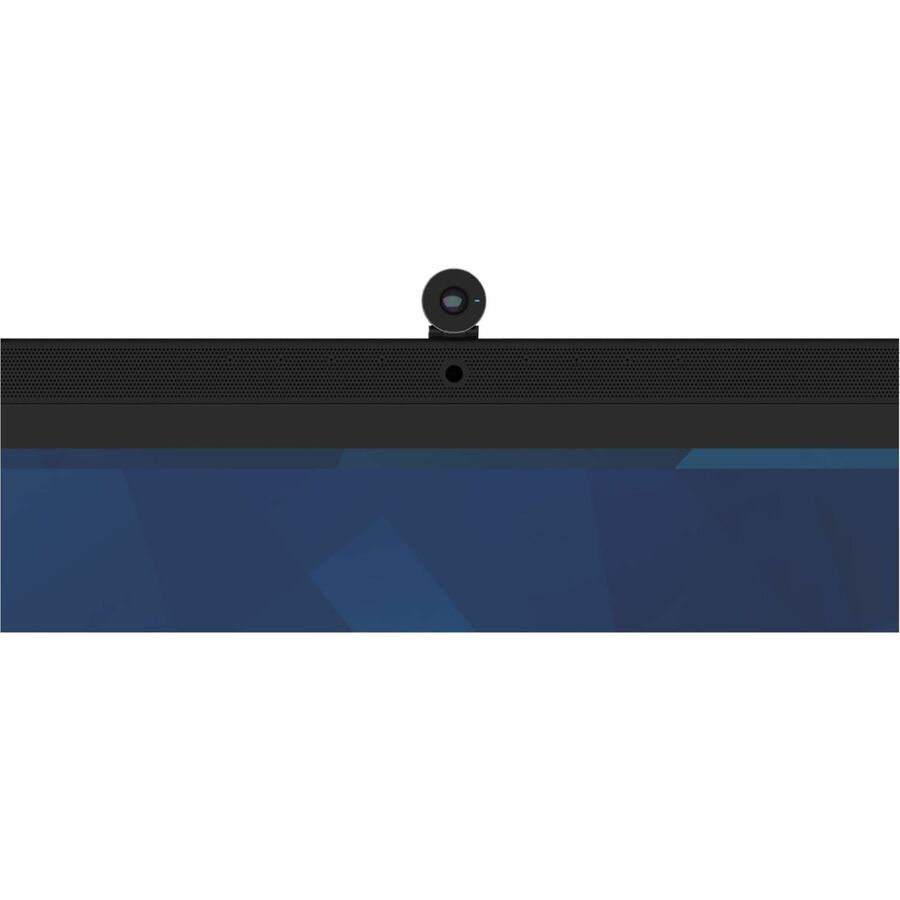

| Webcam | Yes |
| Ethernet | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac |

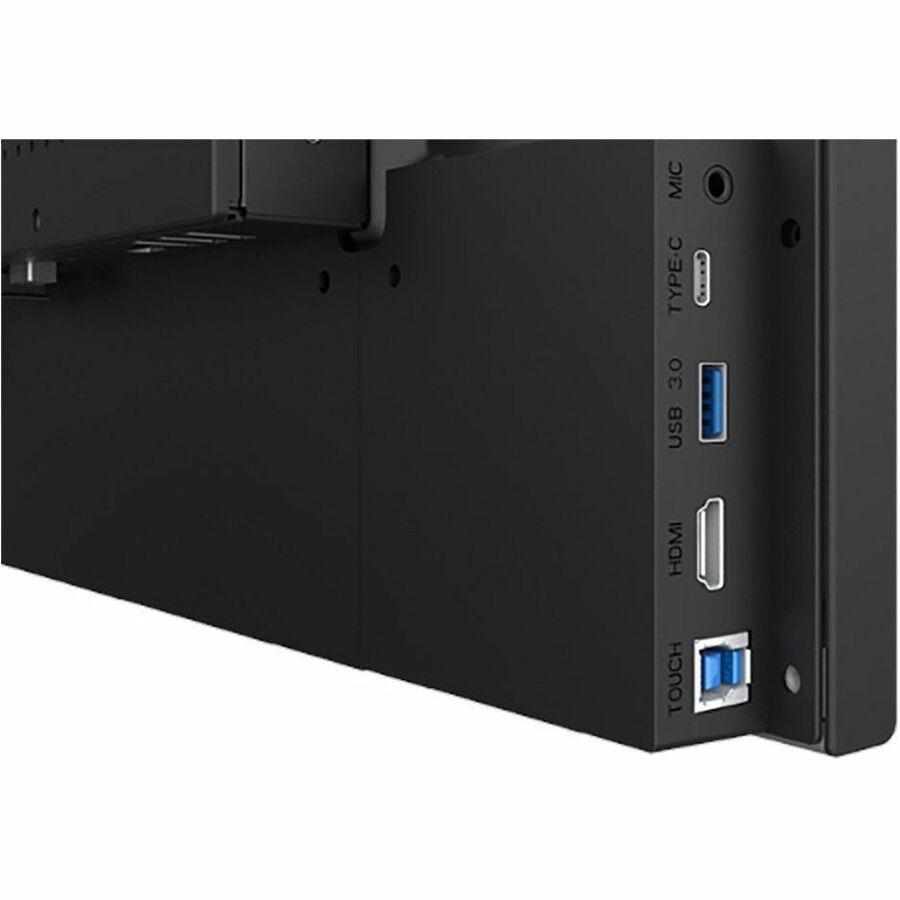

| HDMI | Yes |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 2 |
| Total Number of USB Ports | 15 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Network (RJ-45) | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| Operating System Platform | Windows |
| Operating System | Windows 10 Pro (64-bit) |
| Software Included |
|
| Input Voltage |
|
| Power Consumption | 250 W |
| Product Material | Metal |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 400 x 400 |
| Height | 31.40" (797.56 mm) |
| Width | 50.30" (1277.62 mm) |
| Depth | 3.10" (78.74 mm) |
| Weight (Approximate) | 61.70 lb (27986.65 g) |
| Package Contents |
|
| Condition | No |
