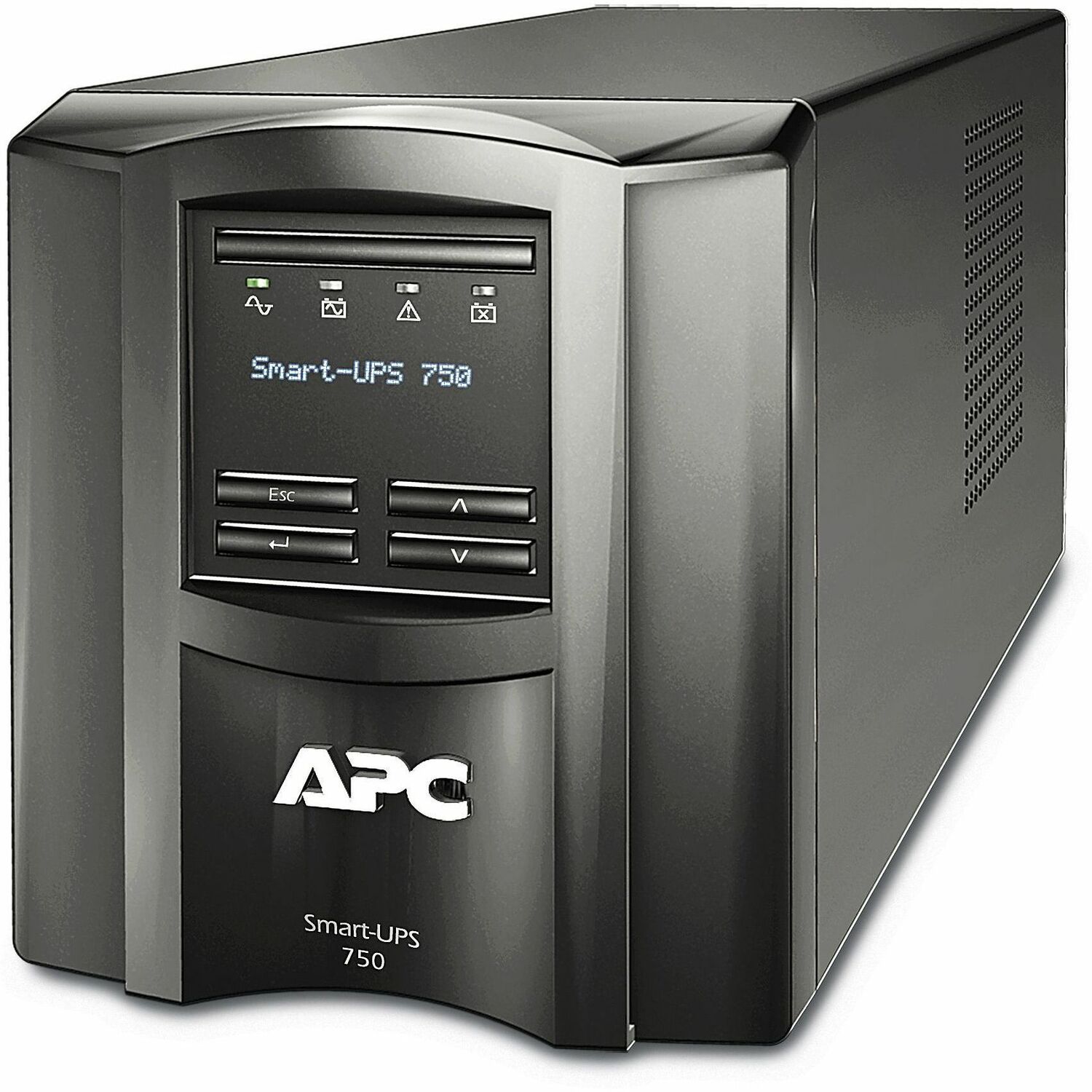

APC by Schneider Electric Smart-UPS 750VA Tower UPS
Tower - 3 Hour Recharge - 5 Minute Stand-by - 120 V Input - 120 V AC Output - 6 x NEMA 5-15R Receptacle(s) - 6 x Battery/Surge Outlet
$1267.99
In Stock Availability
- All Locations: (7+)
- Mississauga, ON (7+)
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT750X93 |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 750VA Tower UPS |
| Marketing Information | The APC Smart-UPS 750VA 120V Shipboard (SMT750X93) is a robust and reliable uninterruptible power supply (UPS) designed specifically for marine and shipboard applications. This UPS ensures continuous power supply during outages, protecting critical equipment and preserving data integrity. With naval ready features shipboard UPSs provide clean, reliable, and battle-ready performance. |
| Product Type | Line-interactive UPS |
Technical Information
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |

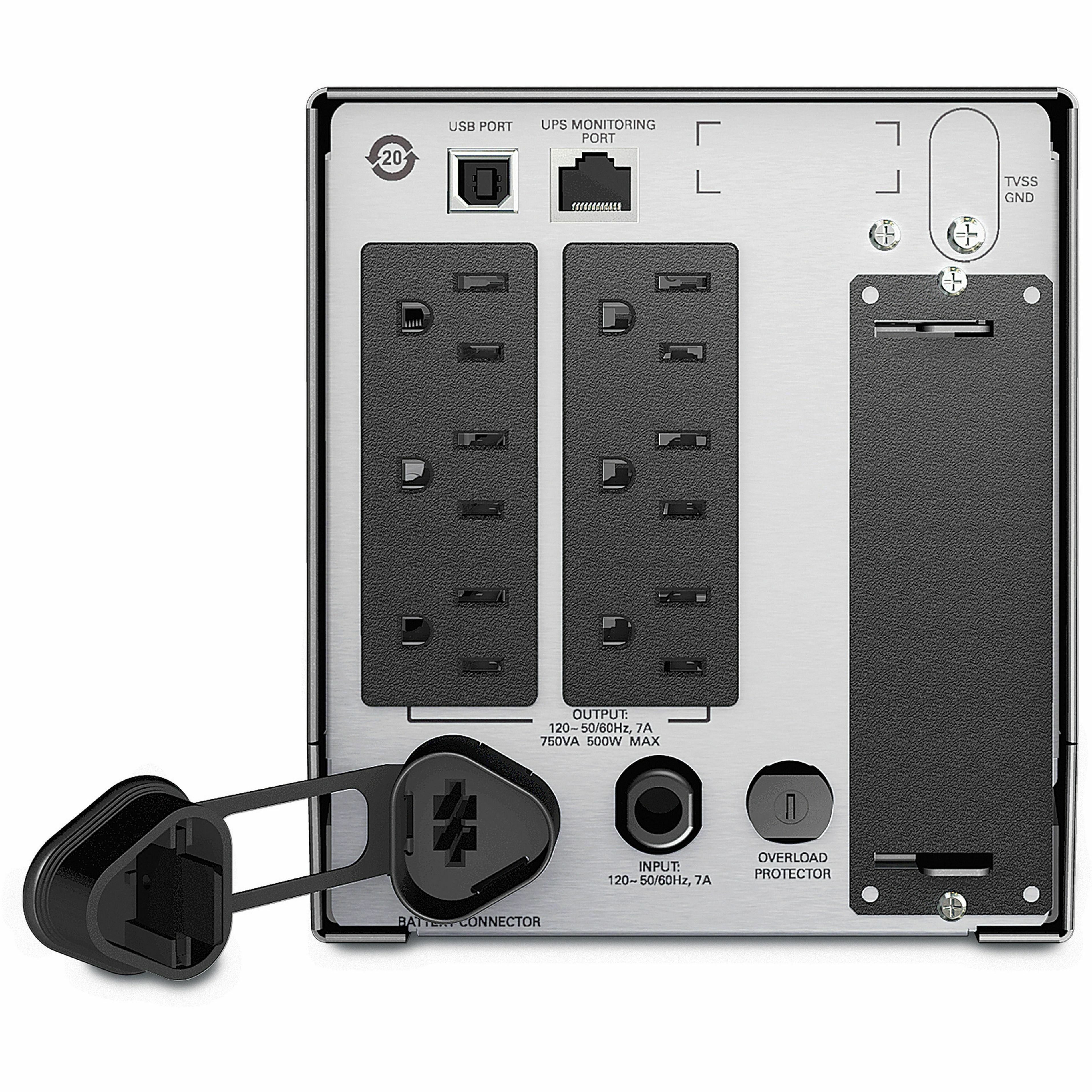

| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Transfer Time | 10 ms |
| Application/Usage |
|
Power Description
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 500 W |
| Input Voltage | 120 V |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 593 J |
Controls/Indicators
| Status Indicators | LED Status:
|
Interfaces/Ports
| USB (HID Compliant) Port | Yes |
Battery Information
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Battery Life | 5 Year |
| Typical Battery Recharge Time | 3 Hour |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 131°F (55°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49212.60 ft (15000000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 41 dB(A) |
| Thermal Dissipation | 90 BTU/h |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 6.34" (161 mm) |
| Width | 5.43" (138 mm) |
| Depth | 14.53" (369 mm) |
| Form Factor | Tower |
| Mounting Preference | No Preference |
| Mounting Location | Front |
| Weight (Approximate) | 27.56 lb (12501.01 g) |
Miscellaneous
| For Country/Region | United States |
| Certifications & Standards | CSA C22.2 No 107.1 |
| Product Take Back Program | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT750X93_ROHS_DECLARATION&p_FileName=SMT750X93KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=559241380&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559241380&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304433637 |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
