CyberPower CP1500PFCRM2U PFC Sinewave UPS Systems

Part No. CP1500PFCRM2U

by CyberPower Systems, Inc

$445.99

In Stock Availability

  • All Locations: (240+)
  • Calgary, AB (16+)
  • Halifax, NS (9+)
  • Mississauga, ON (44+)
  • Richmond, BC (12+)
  • Toronto, ON (170+)
  • Vancouver, BC (3+)

CyberPower CP1500PFCRM2U PFC Sinewave UPS Systems

1500VA/1000W, 120 VAC, NEMA 5-15P, 2U, Rackmount, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $500000 CEG, 3YR Warranty

Part No. CP1500PFCRM2U

by CyberPower Systems, Inc

$445.99

In Stock Availability

  • All Locations: (240+)
  • Calgary, AB (16+)
  • Halifax, NS (9+)
  • Mississauga, ON (44+)
  • Richmond, BC (12+)
  • Toronto, ON (170+)
  • Vancouver, BC (3+)

General Information
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberCP1500PFCRM2U
Brand NameCyberPower
Product LinePFC Sinewave
Product SeriesPFC Sinewave UPS
Product ModelCP1500PFCRM2U
Product NameCP1500PFCRM2U PFC Sinewave UPS Systems
Marketing Information

The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

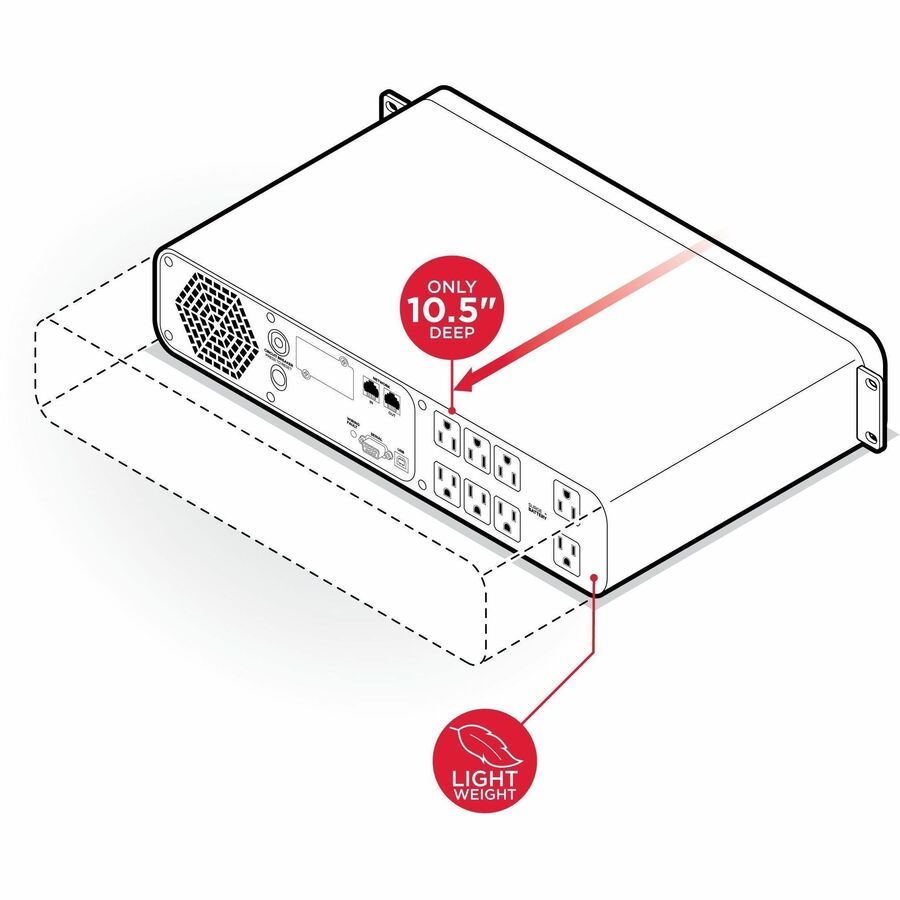

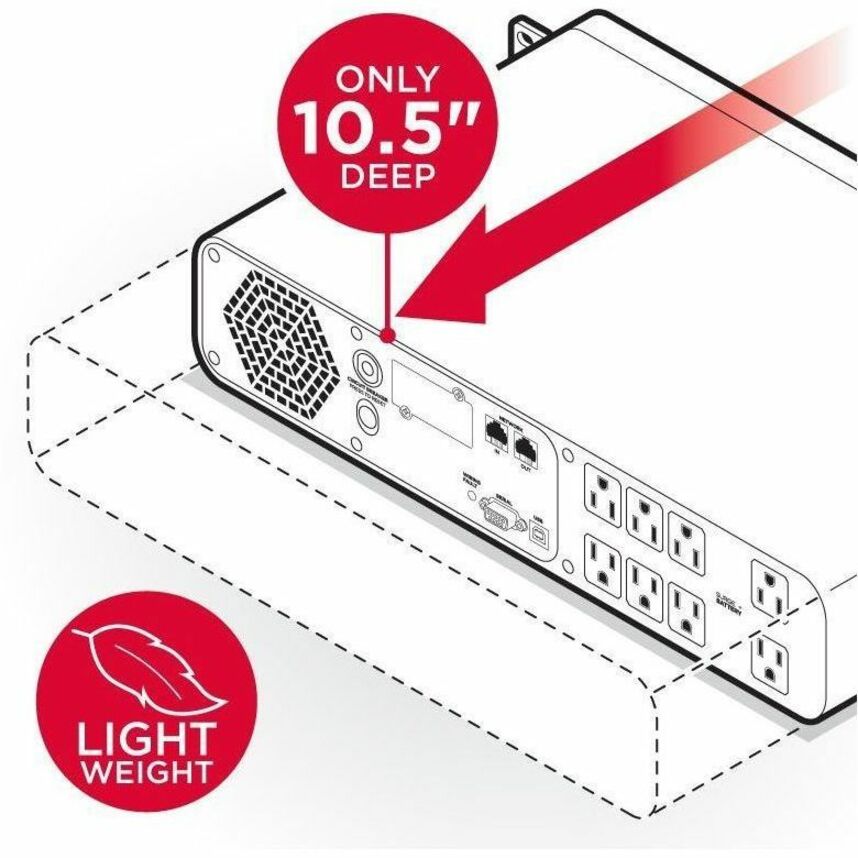

The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium.

The CP1500PFCRM2U comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

Product TypeLine-interactive UPS
Technical Information
AVRYes
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail8 x NEMA 5-15R
Number of Battery & Surge Outlets8
Dataline ProtectionRJ-45
Overload ProtectionYes
Cord Length6 ft (1.83 m)
Transfer Time8 ms
EMI/RFI Noise FilterYes
Energy SavingGreenPower UPS™ Bypass Technology
Application/Usage
  • Surveillance System
  • Security System
  • POS
  • Network Device
  • Storage Device
  • Audio System
Surge SuppressionYes
Power Description
Load Capacity (VA)1.50 kVA
Load Capacity (Watt)1 kW
Input Voltage120 V AC
Input Voltage Range82 V AC - 144 V AC
Output Voltage120 V AC
Input Frequency
  • 50 Hz
  • 60 Hz
Output Frequency60 Hz
Waveform TypeSine Wave
Surge Energy Rating1500 J
Circuit BreakerYes
Output Power Factor0.7
Display & Graphics
DisplayLCD
Management
Network Management
  • Dry Contact
  • SNMP/HTTP Remote Monitoring
AlarmBattery Mode
Controls/Indicators
Status IndicatorsWiring Fault
Interfaces/Ports
Serial PortYes
Network (RJ-45)Yes
USBYes
USB (HID Compliant) PortYes
Battery Information
DC System Voltage12 V DC
Number of Batteries2
Battery CharacteristicsSealed
Battery ChemistryLead Acid
Battery Size12V
Battery Capacity9000 mAh
Backup/Run Time (Full Load)3.10 Minute
Backup/Run Time (Half Load)10.20 Minute
Typical Battery Recharge Time8 Hour
Hot SwappableYes
Replaceable BatteryYes
Environmental Conditions
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Storage Temperature5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation10000 ft (3048000 mm)
Maximum Storage Elevation50000 ft (15240000 mm)
Operating Humidity0% - 95%
Thermal Dissipation26.30 BTU/h
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Height3.40" (86.36 mm)
Width17" (431.80 mm)
Depth10.50" (266.70 mm)
Rack Height2U
Form FactorRack-mountable
Weight (Approximate)26.80 lb (12156.28 g)
Miscellaneous
Additional Information
  • Active PFC Compatible : Yes
  • Energy Saving : GreenPower UPS™ Bypass Technology
  • Energy Star Certified : Yes
  • UPS Topology : Line Interactive
  • Battery Quantity : 2
  • Battery Size : 12 V / 9 Ah
  • Battery Type : Sealed Lead-Acid Battery
  • Hot Swappable : Yes
  • Replacement Battery Cartridge : RB1290X2D
  • Replacement Battery Cartridge Quantity : 1
  • Runtime at Full Load : 3.1 min
  • Runtime at Half Load : 10.2 min
  • Typical Recharge Time : 8 Hours
  • User Replaceable Battery : Yes
  • Physical Dimensions - (WxHxD) (cm) : 43.18 x 8.64 x 26.67 (cm)
  • Physical Dimensions - (WxHxD) (in) : 17 x 3.4 x 10.5 (in)
  • Physical Dimensions - (WxHxD) (mm) : 432 x 86 x 267 (mm)
  • Weight (kg) : 12.16
  • Weight (lb) : 26.8
  • Shipping Dimensions - (WxHxD) (cm) : 37.34 x 16.26 x 52.32 (cm)
  • Shipping - Dimensions (WxHxD, in) : 14.7 x 6.4 x 20.6 (in)
  • Shipping - Dimensions (WxHxD, mm) : 373.38 x 162.56 x 523.24 (mm)
  • Shipping - Weight (kg) : 13.43
  • Shipping - Weight (lb) : 29.6
  • Circuit Breaker : 15 A
  • Cord Length : 6 ft (1.8 m)
  • Input Frequency Range : 57 Hz - 63 Hz
  • Input Plug Type : NEMA 5-15P
  • Input Voltage Range : 88 VAC - 144 VAC
  • Nominal Input Voltage : 120 VAC
  • Plug Style : Right Angle - 45° Offset
  • Automatic Voltage Regulation : Single Boost
  • On AC WaveForm : Sine Wave
  • On Battery Frequency : 60 Hz ± 1%
  • On Battery Voltage : 120 VAC ± 5%
  • On Battery Waveform : Sine Wave
  • Outlets - Battery & Surge Protected : 8
  • Outlets - Total : 8
  • Outlets - Widely Spaced : 2
  • Outlet Type COMPUTED : 8 - NEMA 5-15R
  • Output Power Factor : 0.7
  • Overload Protection : Internal Circuitry Limiting
  • Typical Transfer Time : 4 ms
  • Under/Over-Voltage Correction : +11%
  • VA : 1500 VA
  • Watts : 1000 W
  • EMI/RFI Filtration COMPUTED : Yes
  • Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
  • Surge Suppression (Joules) : 1500 J
  • EMI/RFI Filtration COMPUTED : Yes
  • Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
  • Surge Suppression (Joules) : 1500 J
  • Audible Alarms : Battery Mode
  • HID Compliant USB Port : Yes
  • LCD : Multifunction LCD
  • LED Indicators : Wiring Fault
  • Management Cable : USB Cable
  • Serial Port : 1 Dry Contact
  • SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205
  • Software (Free Download) : PowerPanel® Business
  • Color : Black
  • Form Factor : Rackmount
  • Material of Construction : Plastic
  • Rack Height : 2U
  • AC Mode Thermal Dissipation : 26.3 BTU/hr
  • Operating Elevation : 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
  • Storage Elevation : 0 - 50000 ft (0 - 15239 m)
  • Storage Temperature : 5 - 113 °F (-15 - 45 °C)
  • Environmental : RoHS Compliant
  • Safety : UL1778
  • CEG Amount : $500000
  • Connected Equipment Guarantee : Lifetime
  • Extended Warranty Option : WEXT5YR-U2A
  • Product Warranty : 3 Year Limited Warranty
    • Certifications & StandardsUL1778
    Energy StarYes
    Country of OriginChina
    Environmentally FriendlyYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    ConditionNo
    UPC0649532934621
    Warranty
    Limited Warranty3 Year
    Directly Connected Equipment Guarantee$500000 Lifetime
