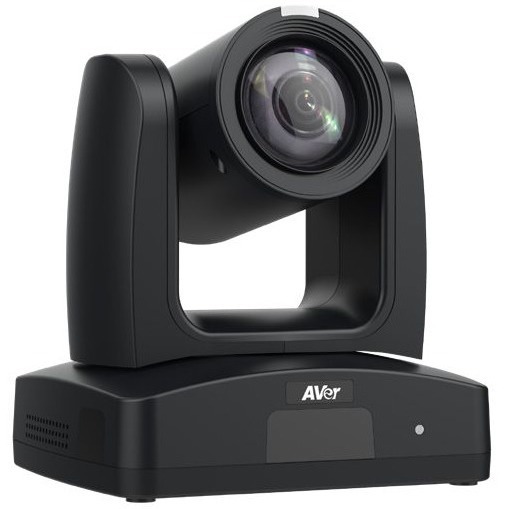

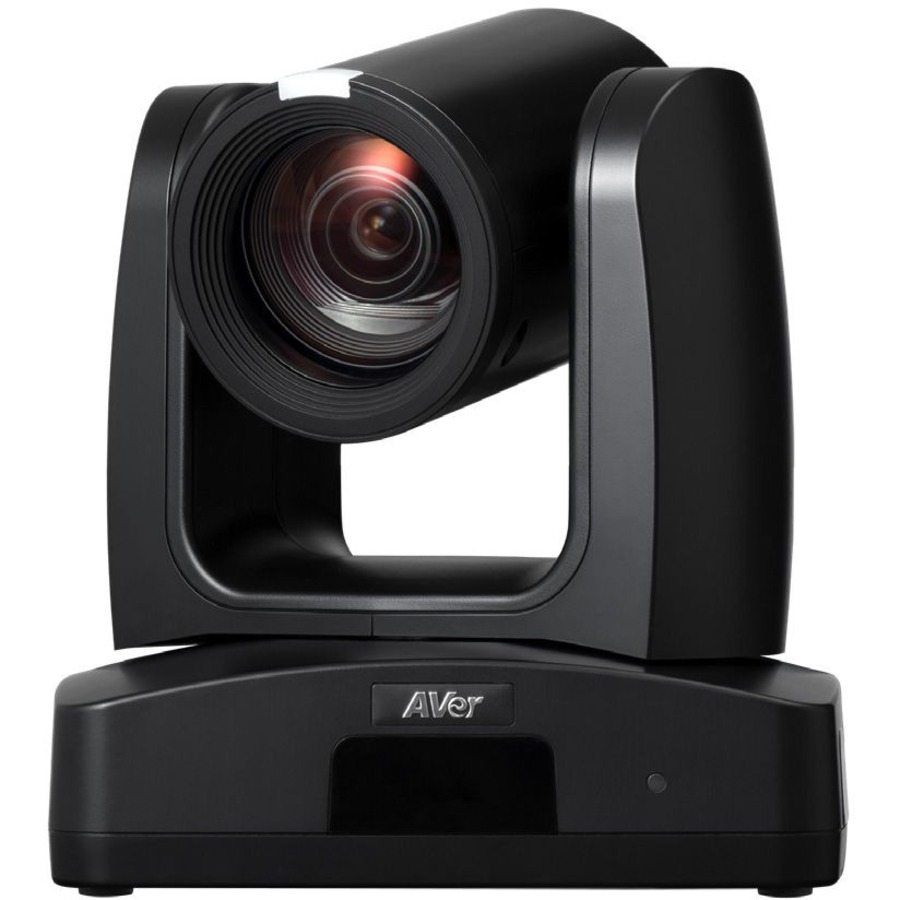

AVer TR323NV2 8 Megapixel Indoor 4K Network Camera - Color

Part No. PTR323NV2

by AVer Information Inc

AVer TR323NV2 8 Megapixel Indoor 4K Network Camera - Color

H.264, H.265, MJPEG - 3840 x 2160 - 5.3 mm (0.21")- 110 mm (4.33") Varifocal Lens - 21x Optical - 30 fps - CMOS - HDMI - Ceiling Mount, Wall Mount - Auto Tracking, Wide Dynamic Range, PTZ, Back Light Compensation (BLC), Automatic White Balance, Auto Gain Control, 3D Noise Reduction, 2D Noise Reduction, Mirror, Audio Compression, Microphone In

Part No. PTR323NV2

by AVer Information Inc

$4201.99
General Information
ManufacturerAVer Information Inc
Manufacturer Part NumberPTR323NV2
Brand NameAVer
Product ModelTR323NV2
Product NameTR323NV2 21X 4K NDI PTZ Live Streaming Camera
Marketing Information

Great Video. No Compromises.

The AVer TR323NV2 AI Auto Tracking Camera delivers professional-grade lectures, sermons, trainings or whatever you need to stream! The 21X optical zoom, powerful 8MP camera and 4K resolution offer the range and picture quality to produce the highest quality productions. The advanced artificial intelligence (AI) technology allows you to track your speaker (full or half body) or pre-set shoot zone without a dedicated camera operator.

With NDI|HX2 support, 3G-SDI/HDMI/IP/USB output, PoE+, Visca control, and compatibility with all popular video platforms, you have all you need to connect with ease in any environment. Includes a ceiling mount to keep clear of live audiences below.

Presenter tracking

  • Capture every interaction
  • Either track full body or half body
  • Simple click to track and manually follow an additional presenter via remote control or Web UI

Zone tracking

  • Establish preset zones
  • Create video focused on content
  • Enhance the capture of content on multiple displays

Hybrid mode

  • Camera auto switch between Presenter vs Zone mode
  • Combines the best features of Presenter and Zone mode
  • Flexibility of tracking presenter freely or fixed content

Voice tracking

With the aid of PTZ Link and select microphones, you can easily turn AVer PTZ camera to a voice tracking camera through setting preset points. Accomplish all this without having to hire expensive programmers!

Wide dynamic range

The Wide Dynamic Range (WDR) of the camera uses special algorithms to balance dark or bright lighting for one clear image.

Tally light

Simplify multi-camera live video productions with an illuminated red light on the active camera.

Product TypeNetwork Camera
Technical Information
Recording Formats4K
HD RecordingYes
Display & Graphics
Image Sensor TypeCMOS
Color SupportedColor
Field of ViewD FOV 66.4°(wide)~3.3°(Tele), H FOV 52.26°(wide)~2.66°(Tele), V FOV 41.26°(wide)~2°(Tele)
Effective Camera Resolution8 Megapixel
Video
Video Formats
  • H.264
  • H.265
  • MJPEG
Maximum Video Resolution3840 x 2160
Maximum Frame Rate30 fps
Analog Video Signal Format
  • 3G-SDI
  • SDI
  • NDI
Lens
Lens TypeVarifocal
Minimum Focal Length5.3 mm (0.21")
Maximum Focal Length110 mm (4.33")
Lens IncludedYes
Minimum Aperturef/3.8
Maximum Aperturef/1.6
Optical Zoom21x
Exposure
Shortest Shutter Speed1/10000 Second
Longest Shutter Speed1/1 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Interfaces/Ports
HDMIYes
Network (RJ-45)Yes
Power Description
Input Voltage12 V DC
Power Source Type
  • DC
  • PoE
Physical Characteristics
Mount Type
  • Ceiling Mount
  • Wall Mount
Height7.56" (192 mm)
Width7.09" (180 mm)
Depth5.71" (145 mm)
Weight (Approximate)4.41 lb (2000 g)
Environmental Conditions
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Maximum Operating Humidity80%
Miscellaneous
Features
  • Auto Tracking
  • Wide Dynamic Range
  • PTZ
  • Back Light Compensation (BLC)
  • Automatic White Balance
  • Auto Gain Control
  • 3D Noise Reduction
  • 2D Noise Reduction
  • Mirror
  • Audio Compression
  • Microphone In
Indoor/OutdoorIndoor
Package Contents
  • TR323NV2 21X 4K NDI PTZ Live Streaming Camera
  • Drilling Paper
  • Ceiling Mount Brackets
  • Quick Guide
  • Cable Fixing Plate
  • 3 x M2 x 4mm Screw
  • Power Adapter & Power Cord
  • 2 x 6.5mm Screw
  • Remote Control
  • 3 x M3 x 6mm Screw
  • DIN8 to D-Sub9 Cable
  • RS-232 In/Out Y Cable
  • 4 x Cable Tie
TAA CompliantYes
ConditionNo
UPC848090009158
Warranty
Limited Warranty3 Year
