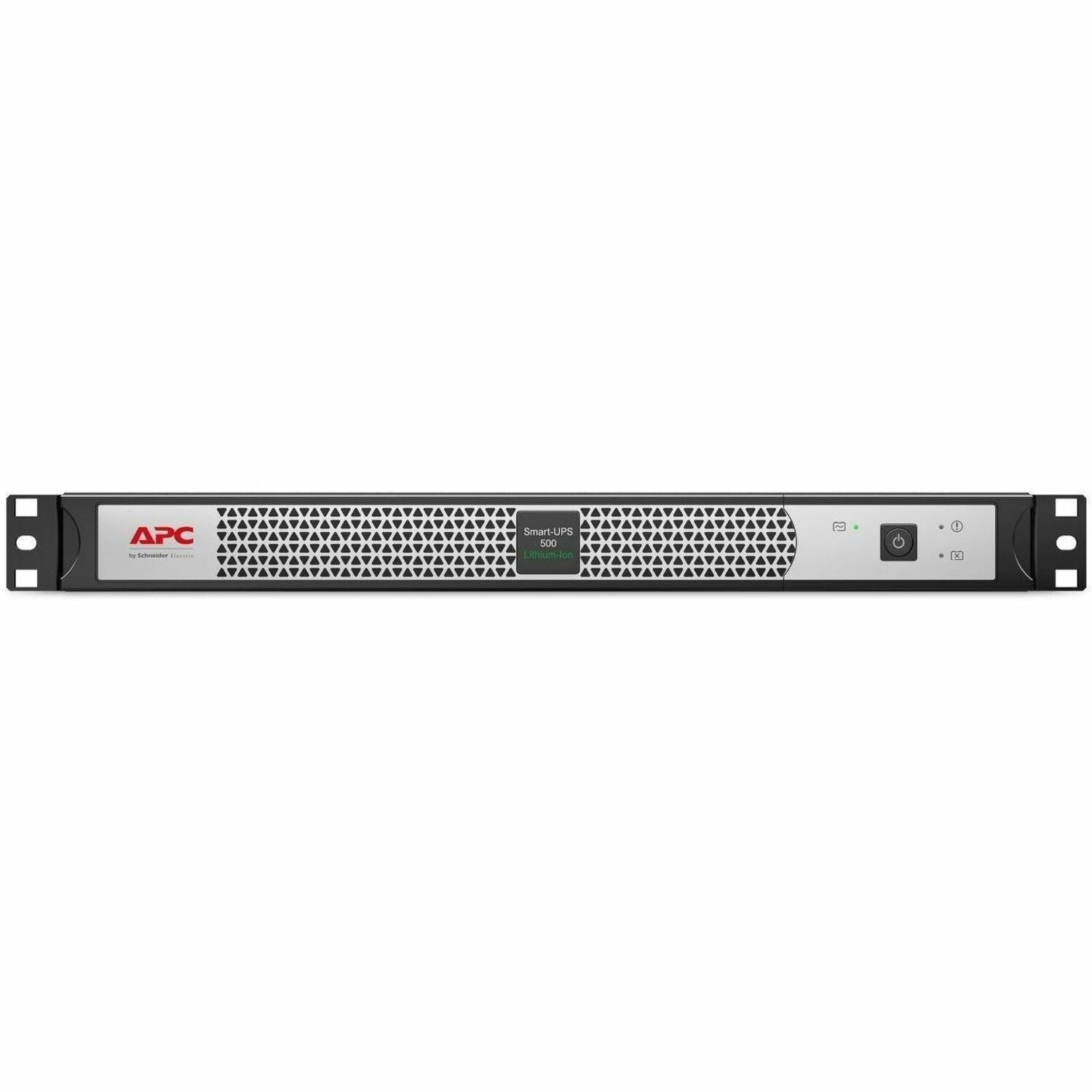

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, Short Depth
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SCL500RM1U |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 500VA Rack-mountable UPS |
| Marketing Information | This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery. |
| Packaged Quantity | 1 |
| Product Type | Line-interactive UPS |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 4 x NEMA 5-15R |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 10 ms |
| Phase | Single Phase |
| Application/Usage |
|
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 400 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 92 V AC - 139 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Display | LED |
| Alarm |
|
| Status Indicators | LED Indicators:
|
| USB | Yes |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 108 kJ |
| Backup/Run Time (Full Load) | 2.68 Minute |
| Backup/Run Time (Half Load) | 6.33 Minute |
| Battery Life | 10 Year |
| Typical Battery Recharge Time | 3 Hour |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 6561 ft (1999792.80 mm) |
| Maximum Storage Elevation | 49212 ft (14999817.60 mm) |
| Storage Relative Humidity | 10% - 90% |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Color Family | Dual Color |
| Product Color |
|
| Height | 1.73" (44 mm) |
| Width | 17.01" (432 mm) |
| Depth | 9.13" (232 mm) |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Mounting Preference | No Preference |
| Weight (Approximate) | 9.22 lb (4182.12 g) |
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | cULus|NOM |
| Software Included | Powerchute Serial Edition |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RM1U_ROHS_DECLARATION&p_FileName=SCL500RM1UKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557301627&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557301627&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 731304433040 |
| Limited Warranty | 5 Year |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
