Asus ZenScreen Ink MB14AHD 14" Class LCD Touchscreen Monitor - 16:9 - 5 ms

Part No. MB14AHD

by ASUS Computer International

This Product is currently not in offering

Asus ZenScreen Ink MB14AHD 14" Class LCD Touchscreen Monitor - 16:9 - 5 ms

Part No. MB14AHD

by ASUS Computer International

This Product is currently not in offering

General Information
ManufacturerASUS Computer International
Manufacturer Part NumberMB14AHD
Brand NameAsus
Product LineZenScreen Ink
Product ModelMB14AHD
Product NameZenScreen Ink MB14AHD Touchscreen LCD Monitor
Marketing Information

ASUS ZenScreen Ink MB14AHD portable monitor - 14-inch FHD (1920 x 1080), IPS, 10-point touch, Stylus Pen, USB Type-C, Micro HDMI, ergo kickstand, tripod socket, ASUS Flicker Free and Low Blue Light technologies

  • 14-inch FHD (1920 x 1080) IPS portable monitor with 10-point touch and active stylus support
  • MPP 2.0 stylus with 4096-level pressure sensitivity and low latency for precise and exceptional writing experiences

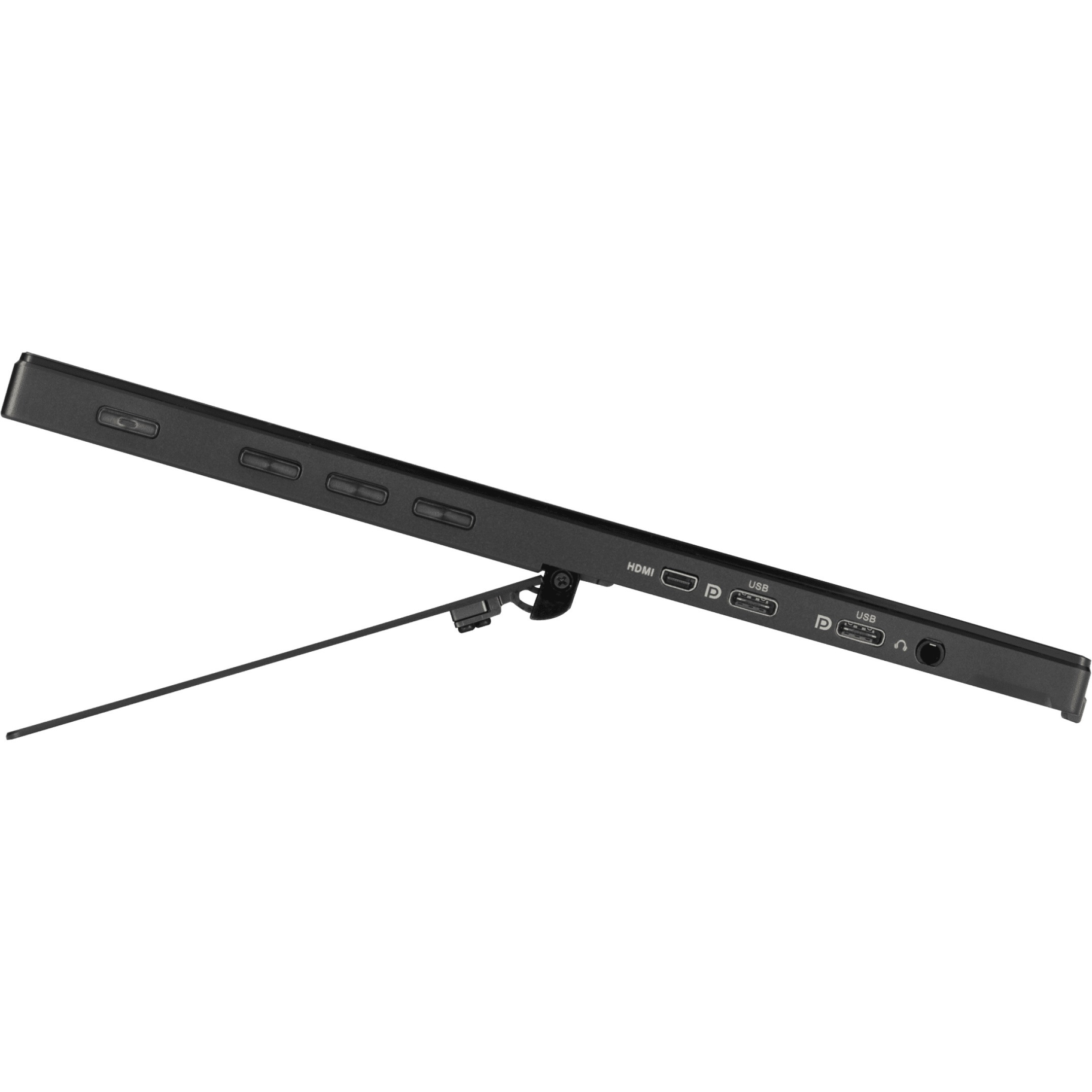

  • Rich connectivity with two USB-C® (DP Alt mode) and micro HDMI®
  • Integrated stepless kickstand offers up to 150° of hinge movement in both landscape and portrait orientation to suit different scenarios
  • Built-in ¼"-threaded socket for compatibility with a standard tripod

Productivity at the tip of your stylus
ASUS ZenScreen Ink MB14AHD is a 14-inch IPS FHD portable monitor with 10-point touch functionality and ASUS Pen (SA201H) that allows users to write, draw anytime and anywhere. The included ASUS Pen features MPP 2.0 and 4096 pressure level for precise and lag-free writing and drawing experiences. It even features an integrated stepless kickstand, enabling ZenScreen Ink to be used in almost any position.

The ultimate portable touchscreen and pen combination
With the MPP 2.0-compliant ASUS Pen, 10-point touch functionality and portable design, ZenScreen Ink is the perfect companion for taking notes, drawing or even signing documents - anywhere, anytime. Use it as an extended display to work more efficiently on the go, or simply kick back for hands-free tasks.

ASUS Pen | Take note of every creative idea
ASUS Pen is the perfect accessory for ZenScreen Ink, empowering you to write, draw or annotate in any supported app. It features Microsoft Pen Protocol (MPP) 2.0 technology and 4096-level sensitivity for low latency and fast response, enabling smooth, natural writing experiences. With built-in magnets securing it to the top of the monitor, and lasting up to a year on a single battery charge, ASUS Pen is ready to use whenever and wherever you want.

Tap into productivity
With its interactive 10-point touchscreen, ZenScreen Ink offers highly-accurate, responsive and seamless touch experiences, enabling you to edit documents, draw on slides or play games with your fingertips. It is Windows 10/11 compatible, allowing you to work smarter and more efficiently.

Flexible viewing positions
The built-in stepless kickstand supports both landscape and portrait modes. It offers up to 150° of hinge movement, so it's easy to use and flexible for all kinds of touch or writing scenarios. There's also an integrated tripod socket, enabling ZenScreen Ink to be elevated and oriented into any position.

Product TypeLCD Touchscreen Monitor
Technical Information
Screen Size Class14"
Viewable Screen Size14"
Screen ModeFull HD
Panel TechnologyIn-plane Switching (IPS) Technology
Response Time5 ms
Aspect Ratio16:9
Horizontal Viewing Angle170°
Vertical Viewing Angle170°
Backlight TechnologyLED
HDCP SupportedYes
Features
  • Flicker-free
  • Trace Free Technology
  • GamePlus
  • QuickFit
  • Display Widget
  • Low Blue Light
  • Landscape/Portrait Viewable
  • Anti-glare
Horizontal Frequency
  • 24 kHz to 83 kHz - HDMI
  • 83 kHz - USB Type C
Video
Maximum Resolution1920 x 1080
Color Supported262k
Native Contrast Ratio800:1
Dynamic Contrast Ratio100,000,000:1
Brightness220 cd/m²
Audio
SpeakersNo
Touchscreen Information
Touchscreen TypeProjected Capacitive
Multi-touch ScreenYes
Number of Simultaneous Touchpoints10
Interfaces/Ports
Micro HDMIYes
USBYes
USB Type-CYes
Number of USB Ports2
Total Number of USB Type-C Ports2
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Height7.92" (201.20 mm)
Width12.76" (324.20 mm)
Depth0.49" (12.50 mm)
Weight (Approximate)1.92 lb (870 g)
Miscellaneous
Package Contents
  • ZenScreen Ink MB14AHD Touchscreen LCD Monitor
  • ASUS Pen (MPP2.0)
  • Micro HDMI to HDMI cable
  • Power adapter
  • Quick start guide
  • USB Type-C to A adapter
  • USB-C cable
  • Warranty Card
  • ZenScreen sleeve
Country of OriginChina
Warranty
Limited Warranty3 Year
