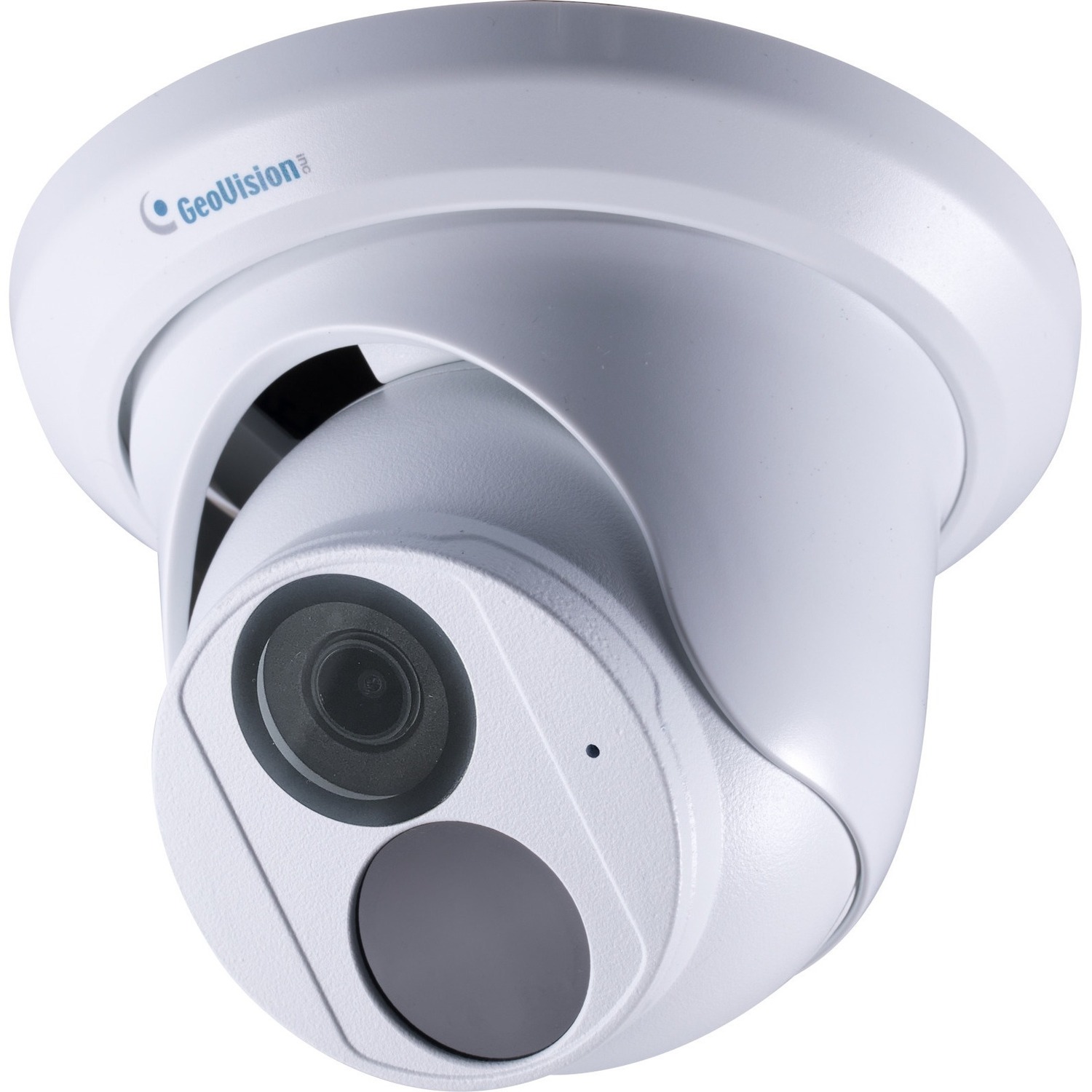

GeoVision GV-EBD4704 4 Megapixel Outdoor Network Camera - Color - Eyeball
98.43 ft (30 m) Infrared Night Vision - H.265, H.264, MJPEG - 2688 x 1520 - 2.8 mm (0.11") Fixed Lens - 30 fps - CMOS - Pendant Mount, Wall Mount, Corner Mount, Pole Mount, Junction Box Mount, Box Mount - IP67
$213.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | GeoVision, Inc |
| Manufacturer Part Number | 125-EBD4704-000 |
| Brand Name | GeoVision |
| Product Series | GV-EBD |
| Product Model | GV-EBD4704 |
| Product Name | 4MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera |
| Marketing Information | GV-EBD4704 is an outdoor, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image. |
| Product Type | Network Camera |
Technical Information
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Number of IR LEDs | 1 |
Display & Graphics
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal 101° |
| Effective Camera Resolution | 4 Megapixel |
Video
| Video Formats |
|
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
Lens
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
Exposure
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1 Second |
Network & Communication
| Connectivity Technology | Wired |
| Remote Management | Yes |
Storage
| Storage Type | Memory Card |
Interfaces/Ports
| Network (RJ-45) | Yes |
Power Description
| Input Voltage | 12 V DC |
| Power Source Type |
|
Physical Characteristics
| Mount Type |
|
| Form Factor | Eyeball |
| Diameter | 4.96" (126 mm) |
| Weight (Approximate) | 15.87 oz (450 g) |
Environmental Conditions
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
Miscellaneous
| Features |
|
| Indoor/Outdoor | Outdoor |
| Package Contents |
|
| Ingress Protection Rating | IP67 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| COO | TW |
| Condition | No |
Warranty
| Limited Warranty | 24 Month |
