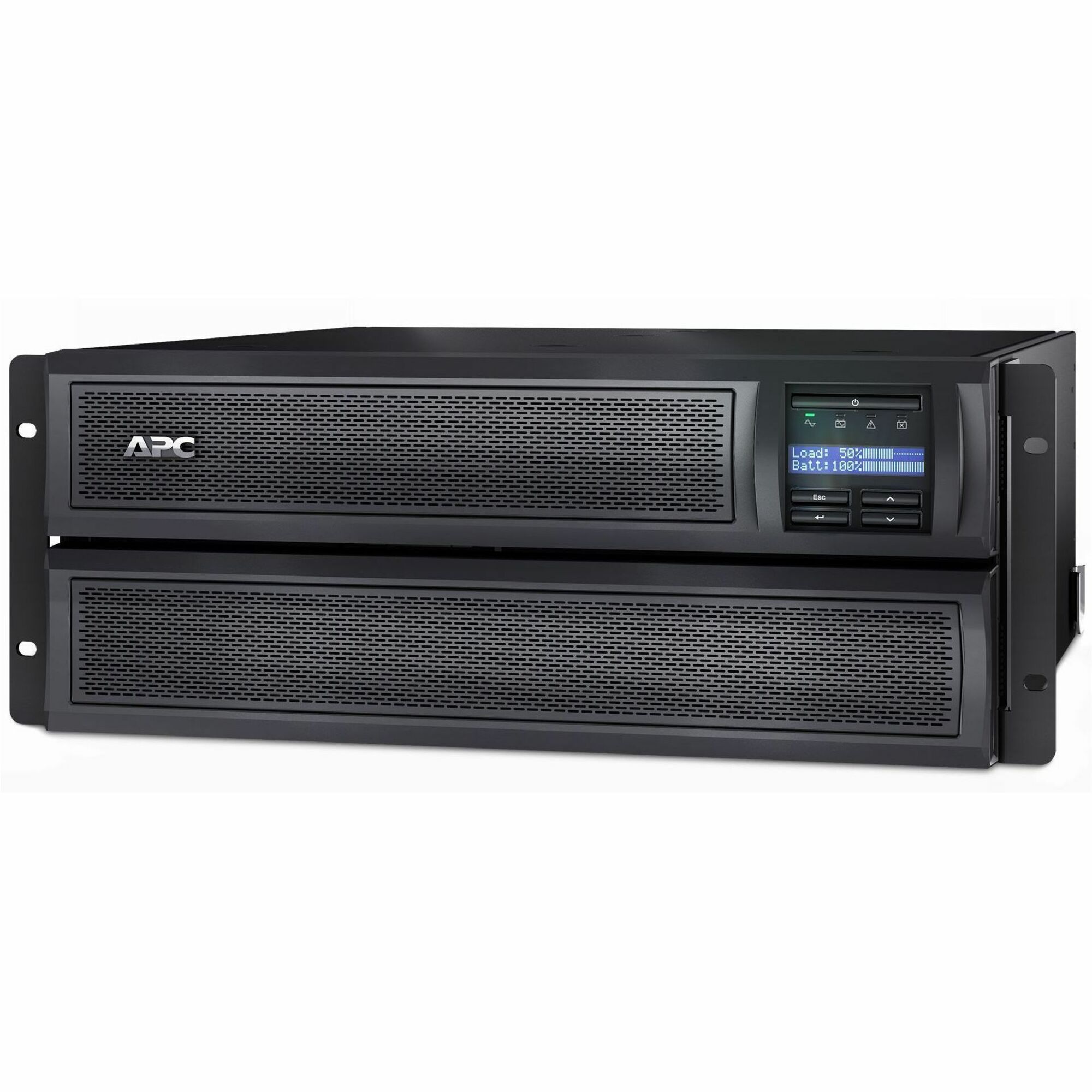

APC by Schneider Electric Smart-UPS 3000VA Rack-mountable UPS
4U Rack-mountable - 3 Hour Recharge - 120 V Input - 120 V AC Output - Sine Wave - 3 x NEMA 5-15R Receptacle(s) - 3 x Battery/Surge Outlet
$4326.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX3000RMX93 |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 3000VA Rack-mountable UPS |

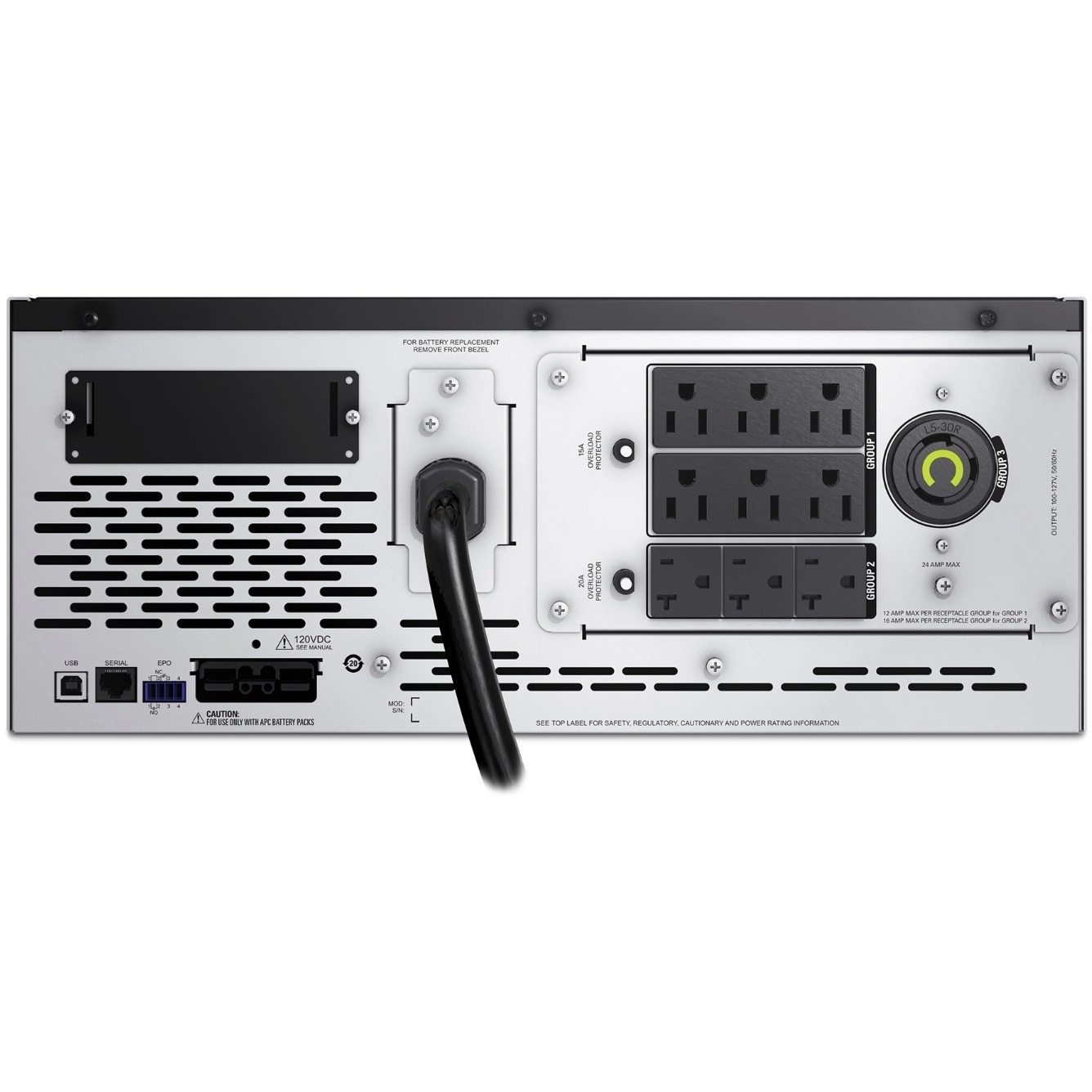

| Marketing Information | This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. |
| Product Type | Line-interactive UPS |
Technical Information
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30P |
| Receptacle Detail | 3 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 3 |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 4 ms |
| Application/Usage |
|
Power Description
| Load Capacity (VA) | 2.88 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V |
| Input Voltage Range | 70 V AC - 153 V AC |
| Input Current | 15 A |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
Management
| Alarm |
|
Interfaces/Ports
| USB (HID Compliant) Port | Yes |
Battery Information
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 15.67 Minute |
| Battery Life | 5 Year |
| Typical Battery Recharge Time | 3 Hour |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 276 BTU/h |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 7.01" (178 mm) |
| Depth | 19.02" (483 mm) |
| Rack Height | 4U |
| Form Factor | Rack-mountable |
| Mounting Preference | Lower |
| Mounting Location | Front |
| Weight (Approximate) | 85.19 lb (38641.53 g) |
Miscellaneous
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | BSMI |
| Software Included | Powerchute Serial Edition |
| Product Take Back Program | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000RMX93_ROHS_DECLARATION&p_FileName=SMX3000RMX93KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567111956&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567111956&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 0731304433668 |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Years |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
