Eaton Emergency Fallback Ventilation System for SRCOOL3KTP Air Conditioner

Part No. SRCOOLTMVENT

by Eaton Corporation

Eaton Emergency Fallback Ventilation System for SRCOOL3KTP Air Conditioner

8.74" (222 mm) Height x 56.59" (1437.39 mm) Width x 30.10" (764.54 mm) Depth - Black - Steel

Part No. SRCOOLTMVENT

by Eaton Corporation

$864.99
General Information
ManufacturerEaton Corporation
Manufacturer Part NumberSRCOOLTMVENT
Brand NameEaton
Product LineSmartRack
Product ModelSRCOOLTMVENT
Product NameEmergency Fallback Ventilation System for SRCOOL3KTP Air Conditioner
Marketing Information

Allows Hot Air Trapped Inside a Rack Enclosure to Vent Out During Power Emergencies

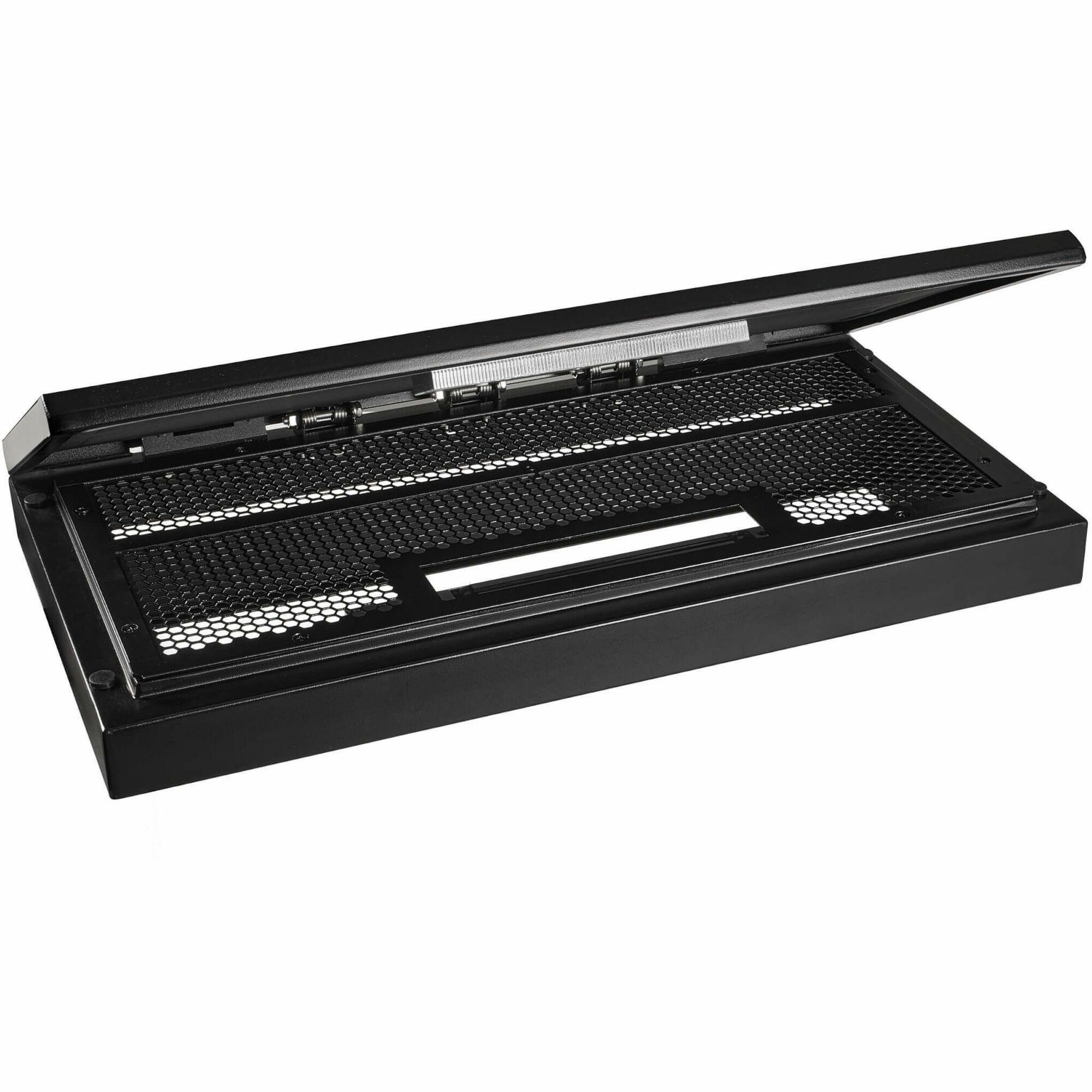

This SmartRack® emergency fallback ventilation system works in conjunction with the SRCOOL3KTP Top-of-Rack Precision Cooling Air Conditioner (sold separately) to help prevent rack equipment from overheating in case of a cooling system failure. If the SRCOOL3KTP malfunctions due to power failure, the SRCOOLTMVENT's embedded thermal sensor triggers a lid release, allowing the hot air within the rack to dissipate. An SNMP alert via the SRCOOL3KTP's remote management will notify you that the vent has opened.

Easy to Install with Included Hardware
The SRCOOLTMVENT inserts easily into the SRCOOL3KTP's reserved slot using the included mounting screws and can be retrofitted into existing installations. A 12V DC power supply is also included.

Product TypeEmergency Fallback Ventilation System
Power Description
Input Current1 A
Input Voltage
  • 100 V AC
  • 240 V AC
Power SourceAC Adapter
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Product MaterialSteel
Form FactorRack-mountable
Height8.74" (222 mm)
Width56.59" (1437.39 mm)
Depth30.10" (764.54 mm)
Weight (Approximate)17.20 lb (7800 g)
Miscellaneous
Package Contents
  • Emergency Fallback Ventilation System for SRCOOL3KTP Air Conditioner
  • Emergency Vent assembly
  • 6 x Mounting Screws
  • External Power Supply (Input: 100-240V, 50/60 Hz, 1A; Output: 12V 2.5A)
  • Installation Instructions
Application/UsageMonitor
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0037332267238
Warranty
Limited Warranty5 Year
