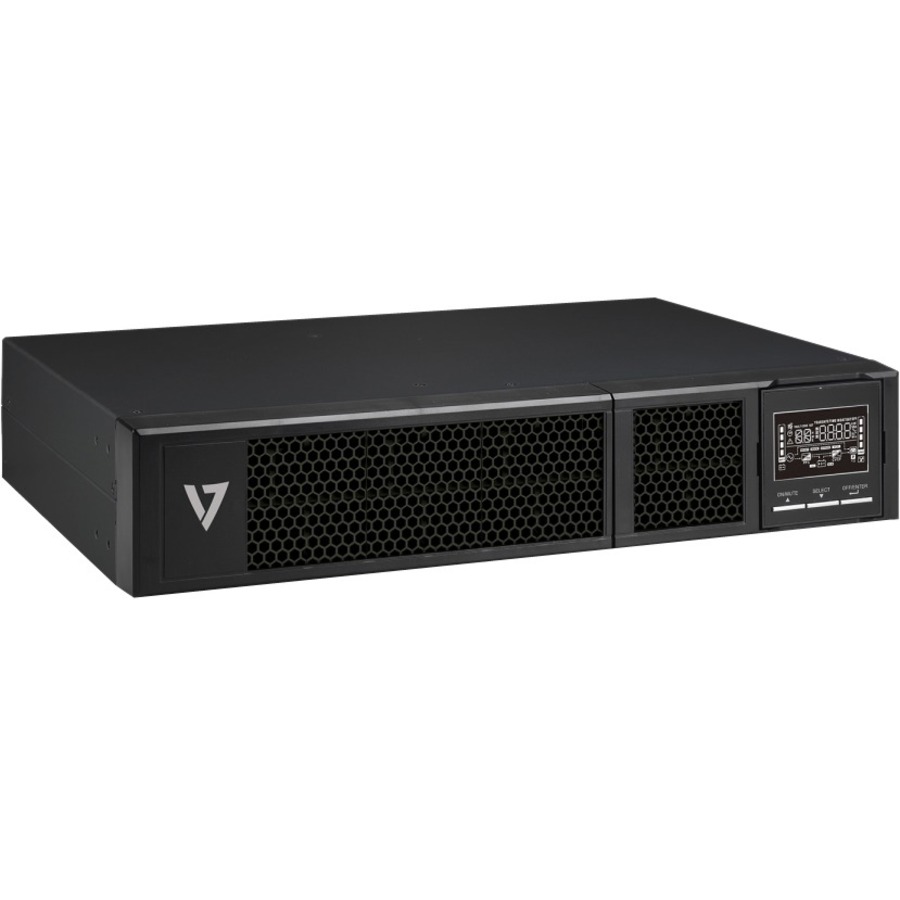

V7 On-Line UPS2URM1500DC-NC-1N 1500VA Rack-mountable UPS
V7 UPS2URM1500DC-NC-1N 1500VA/1300W 2U Rack/Tower UPS - 120V - Double Conversion Online - Pure Sine Wave - ECO - EPO - LCD Display - 8 x NEMA 5-15R Outlets - LAN card - Hot Swappable Battery - Energy Star - 3-Year Warranty
$916.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | V7 |
| Manufacturer Part Number | UPS2URM1500DC-NC-1N |
| Brand Name | V7 |
| Product Series | On-Line |
| Product Model | UPS2URM1500DC-NC-1N |
| Product Name | On-Line UPS2URM1500DC-NC-1N 1500VA Rack-mountable UPS |
| Marketing Information | Our On-Line UPS is designed to handle demanding power conditions, where uptime and efficiency is critical. Providing double-conversion online power protection technology and advanced management features for server rooms, network closets, edge computing and other high demand environments, this UPS is suitable for verticals ranging from healthcare, retail, finance to manufacturing and even industrial automation. |
| Product Type | Double Conversion Online UPS |
Technical Information
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Dataline Protection | RJ-11/RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage |
|
Power Description
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.30 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range |
|
| Output Voltage |
|
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 720 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.96 |
Display & Graphics
| Display | LCD |
Management
| Network Management |
|
| Alarm |
|
Controls/Indicators
| Status Indicators | LCD Display:
|
Interfaces/Ports
| USB | Yes |
| EPO Port | Yes |
Battery Information
| DC System Voltage | 41.1 V DC |
| Number of Batteries | 3 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Backup/Run Time (Half Load) | 9.80 Minute |
| Typical Battery Recharge Time | 3 Hour |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Operating Humidity | 20% - 95% |
| Sound Emission | 50 dB |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 3.39" (86.20 mm) |
| Width | 17.24" (438 mm) |
| Length | 16.14" (410 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 34.83 lb (15800 g) |
Miscellaneous
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 0662919114836 |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Year (1 Year Battery) |
