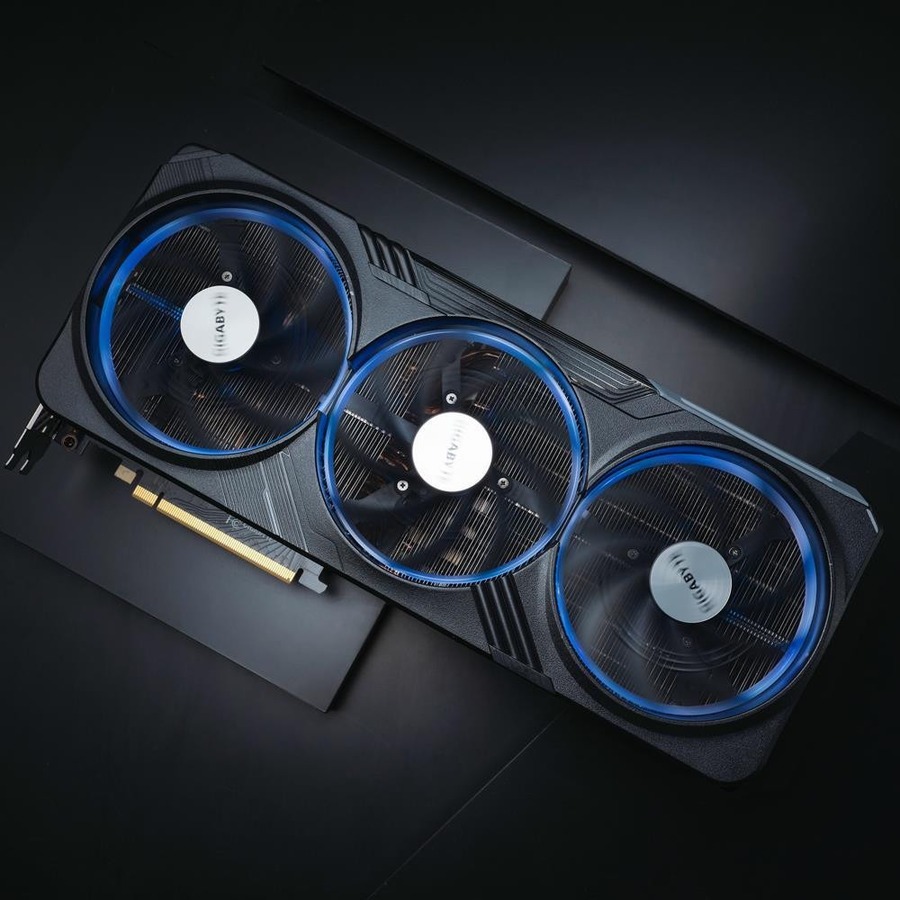

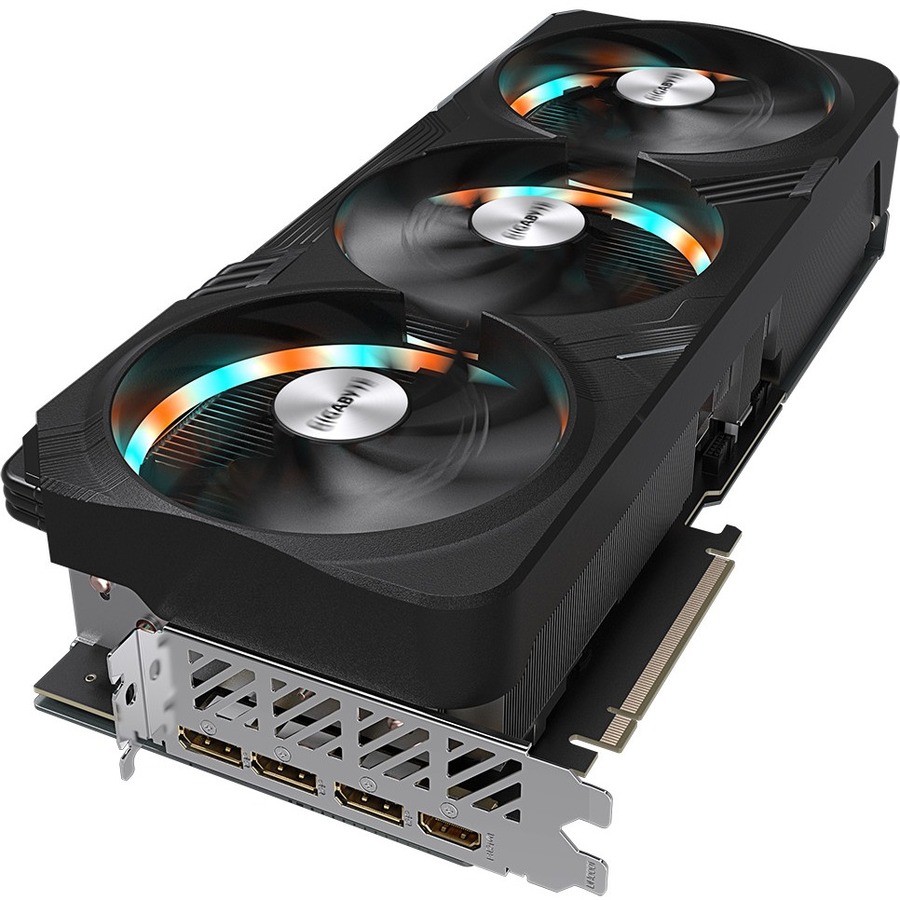

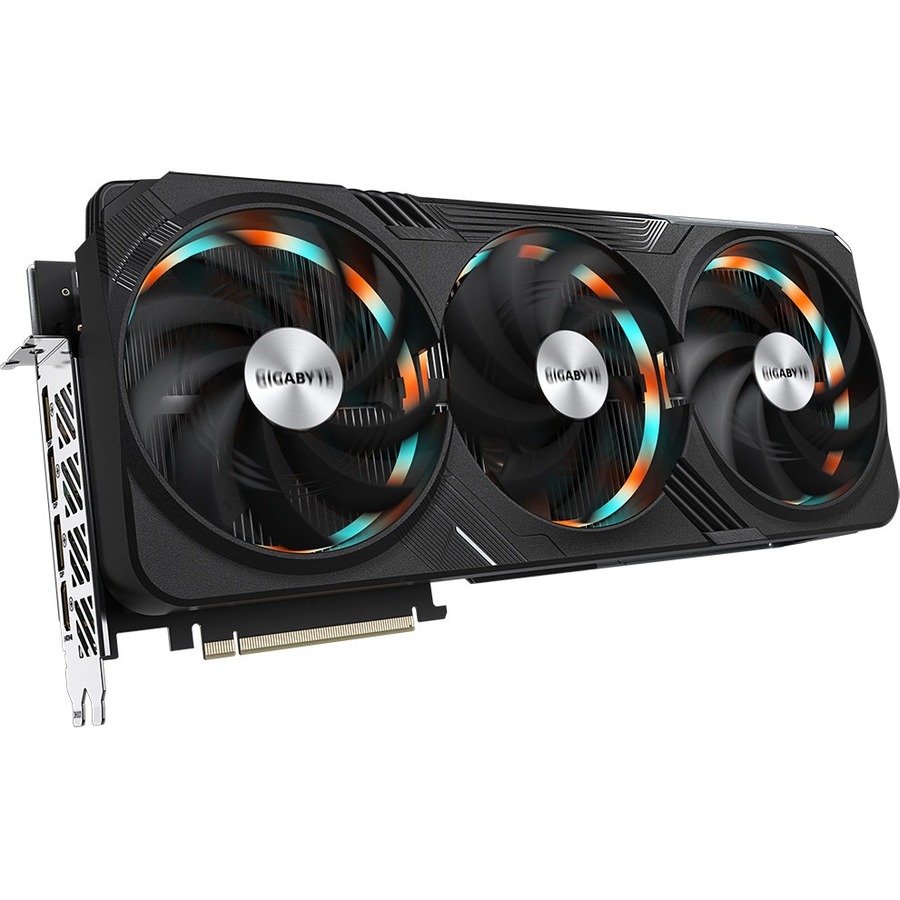

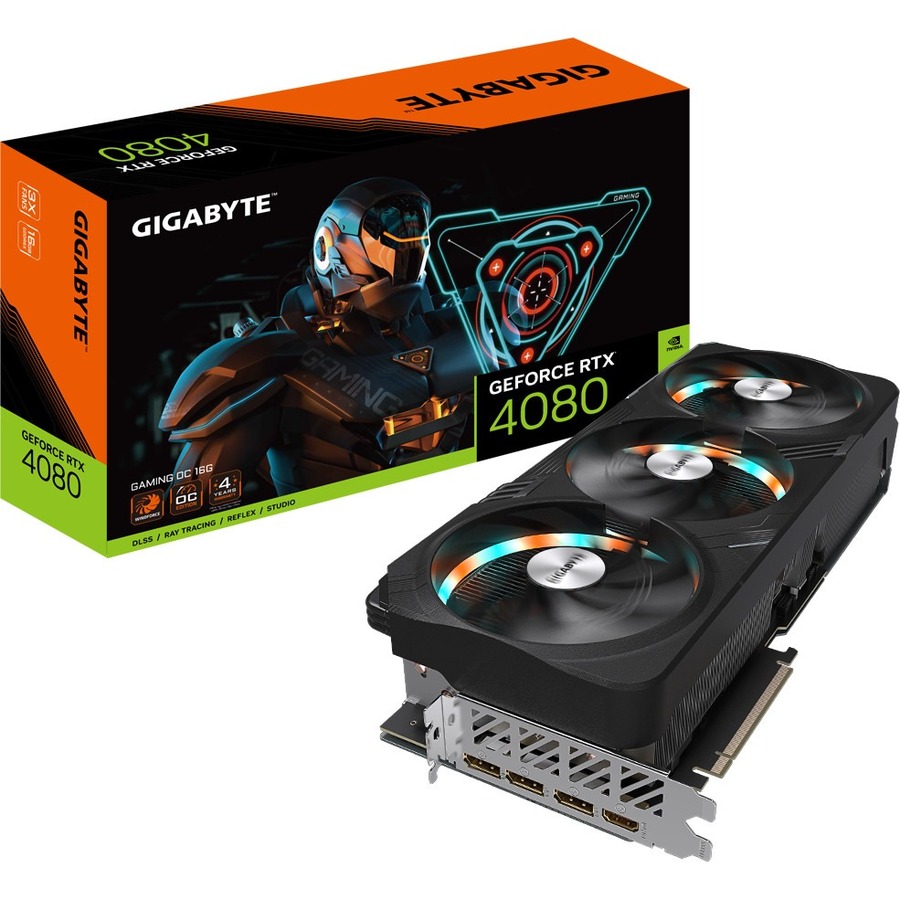

Gigabyte NVIDIA GeForce RTX 4080 Graphic Card - 16 GB GDDR6X
This Product is currently not in offering
On back-order, will ship once in-stock
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | GVN4080GAMINGOC16GD |
| Brand Name | Gigabyte |
| Product Model | GV-N4080GAMING OC-16GD |
| Product Name | GeForce RTX 4080 16GB GAMING OC Graphic Card |
| Marketing Information | CORE CLOCK 2535 MHz (Reference Card: 2505 MHz) WINDFORCE COOLING SYSTEM The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 11 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation. ALTERNATE SPINNING Reduce the turbulence of adjacent fans and increase airflow pressure. 3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. GRAPHENE NANO LUBRICANT Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter. LARGE VAPOR CHAMBER & HEAT-PIPE The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink. SCREEN COOLING Extended heatsink allows air to pass through, providing better heat dissipation. RGB FUSION The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER. EXCELLENT IN ESSENTIAL | PROTECTION METAL BACK PLATE The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. DUAL BIOS The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience. POWER INDICATOR When experiencing any power supply abnormality, the indicator will alert gamers by flashing light. ANTI-SAG BRACKET The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance. BUILT STRONG | ULTRA DURABLE Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life. FRIENDLY PCB DESIGN Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build. 4-YEAR WARRANTY |
| Product Type | Graphic Card |
| API Supported |
|
| Number of Monitors Supported | 4 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| CUDA Cores | 9728 |
| Chipset Manufacturer | NVIDIA |
| Chipset Line | GeForce |
| Chipset Series | RTX |
| Chipset Model | RTX 4080 |
| GPU Clock | 2.54 GHz |
| Standard Memory | 16 GB |
| Memory Technology | GDDR6X |
| Bus Width | 256 bit |
| Host Interface | PCI Express 4.0 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Power Supply Wattage | 850 W |
| Power Connector | 1x 16-pin |
| Slot Space Required | Quad |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 2.95" (75 mm) |
| Width | 5.91" (150 mm) |
| Length | 13.46" (342 mm) |
| Package Contents |
|
| Platform Supported | PC |
| Limited Warranty | 4 Year |
