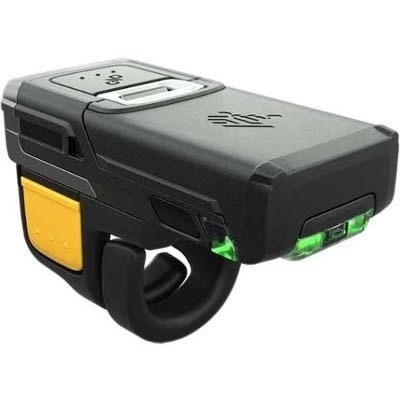

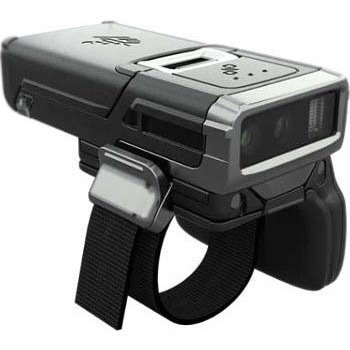

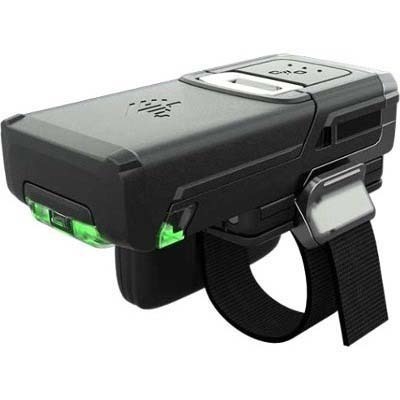

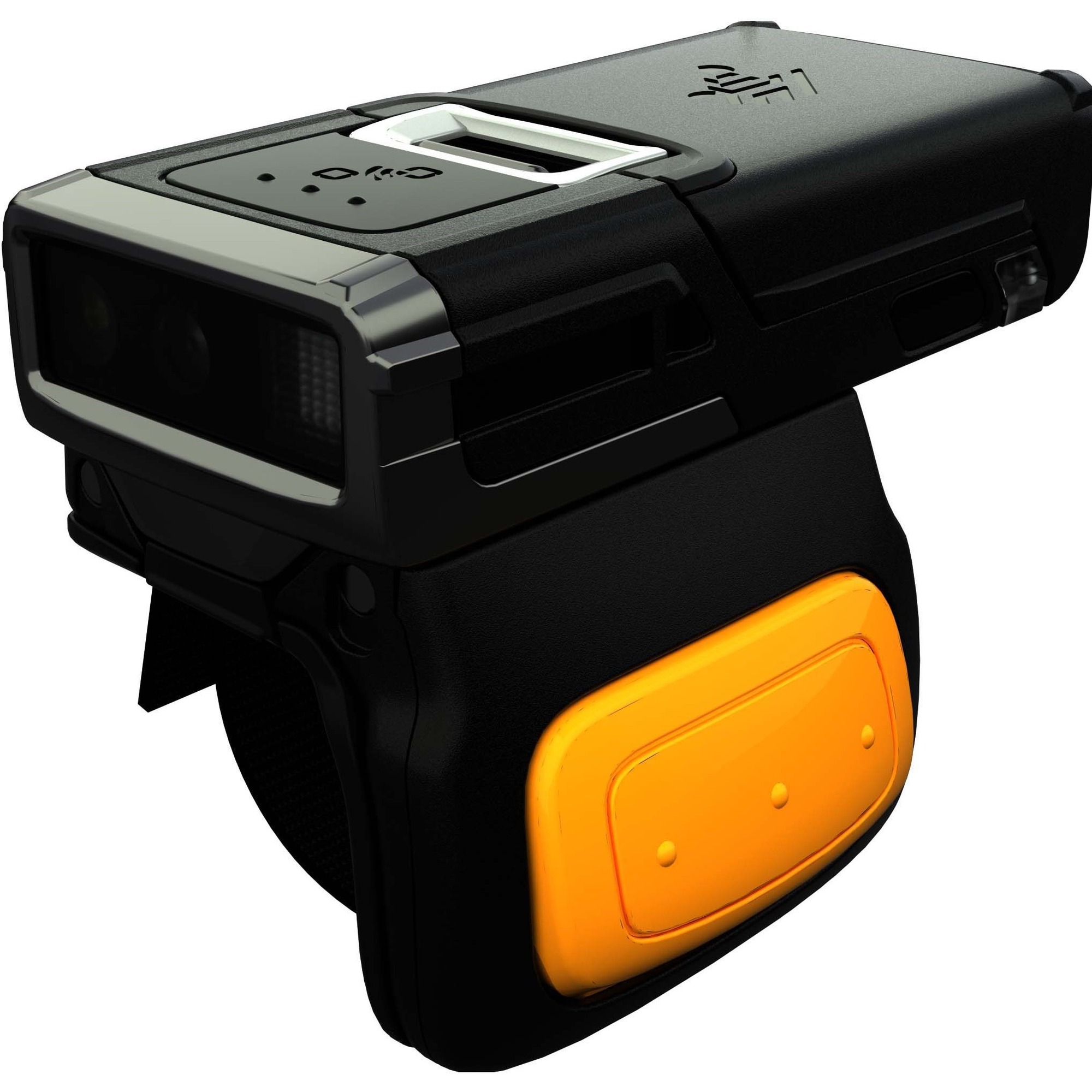

Zebra RS5100 Bluetooth Wearable Scanner

Wireless Connectivity - SE4770Scan Engine - 36.10" (916.94 mm) Scan Distance - 1D, 2D - Laser - Bluetooth - Black, Silver - IP65 - Warehouse, Distribution, Picking, Packing, Sorting, Transportation, Logistics, Sorting, Manufacturing, Inventory, Retail, ...

Part No. RS51C0-TBBHWR

by Zebra Technologies Corporation

$1505.99

Specifications

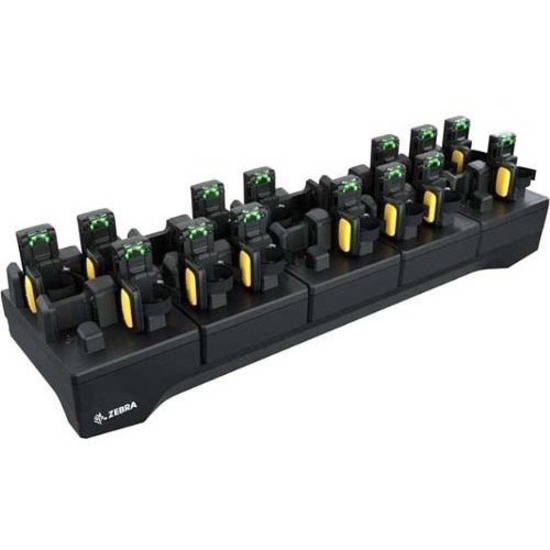

Options & Accessories (22)

General Information

Manufacturer	Zebra Technologies Corporation
Manufacturer Part Number	RS51C0TBBHWR
Brand Name	Zebra
Product Model	RS5100
Product Name	RS5100 Bluetooth Wearable Scanner
Marketing Information	The 'go-everywhere' wearable scanner built for the enterprise Wearable scanners can provide the hands-free scanning your workforce needs to maximize productivity. But today's workers have high expectations for wearable devices a modern design, a minimal footprint, so intuitive that virtually no training is required, plus point-and-shoot scanning simplicity on every barcode. Your business requires a design that's just as at home in customer-facing areas as the warehouse, wearable options for maximum use case flexibility, a rugged design to ensure a long lifecycle with a low Total Cost of Ownership (TCO), scanning options that match the needs of your environment, plus backroom accessories that reduce management time and cost. Now, you can have it all with the RS5100 Wearable Scanner. A comfortable, featherlight-yet-rugged industrial design that is at home anywhere in your facility. Zebra's advanced scan engines for unmatched scanning performance. Five interchangeable wearing styles for user comfort and application flexibility. And features that drive ease-of-use and manageability to a new level. Superior Ergonomics, Ease-of-Use and Application Flexibility Tiny and Practically Weightless For Extreme Comfort The small, light, low-profile RS5100 is purposefully understated at just over two ounces and two cubic inches and the low-profile prevents obstruction when reaching into tight locations. Five Interchangeable Wearing Styles All mounting accessories are interchangeable swap at any time to improve user comfort, address user preference or deploy in a different use case. Give every hand a snug, comfortable and secure custom fit with the new Enterprise Hand Mount accessory, which offers a range of sizes for right and left hands. And users can adjust the scanner position on the hand to achieve the perfect balance and optimal scan angle for the ultimate in comfort and user productivity. For workers who prefer to wear the scanner like a ring, there is a single finger mount with three trigger options single, double and top-mounted. The single trigger rotates between right and left sides, allowing users to choose and easily switch scanning hands. The double trigger enables workers to change hands on the fly. The industry-first top-mounted trigger allows the RS5100 to be rotated to the side of the finger, eliminating any protrusion above the hand. A one-size-fits-all back of hand mount allows workers to reach into small spaces, is ambidextrous and easily adjustable to accommodate gloves. And a retracting lanyard trigger worn around the neck or on a belt keeps the scanner handy yet out of the way ideal for occasional scanning. Freedom From Cords and Cables With Bluetooth, there's no cable to the host device for workers to manage hands-free scanning improves comfort, usability and productivity.
Product Type	Barcode Scanner

Technical Information

Connectivity Technology	Wireless
Scanning Capability	1D 2D
Barcode Symbology Supported	1D: Code 39 Code 128 Code 93 Codebar/NW7 Code 11 MSI UPC/EAN I 2 of 5 Korean 3 of 5 GSI DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes OCR: OCR-A OCR-B
Scan Engine Model	SE4770
Light Source	Laser
Scanner Range	Standard Range
Scanning Distance	36.10" (916.94 mm)
Field of View (Horizontal)	48°
Field of View (Vertical)	30°
Reading Angle (Skew)	60°
Reading Angle (Pitch)	60°
Reading Angle (Roll)	360°
Maximum Ambient Light	107639 lux
Drop Specification	Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Minimum Element Resolution (Code 39)	3 mil (0.08 mm)
Maximum Element Resolution (Code 39)	20 mil (0.51 mm)
Maximum Element Resolution (DataMatrix)	10 mil (0.25 mm)
Maximum Element Resolution (PDF417)	6.67 mil (0.17 mm)

Network & Communication

Bluetooth	Yes

Battery Information

Battery Included	Yes

Physical Characteristics

Form Factor	Wearable
Rugged	Yes
Product Color	Black Silver
Width	1.10" (27.94 mm)
Depth	0.83" (21.08 mm)
Length	2.67" (67.82 mm)
Weight (Approximate)	2.47 oz (70 g)

Miscellaneous

Package Contents	RS5100 Bluetooth Wearable Scanner Battery
Ingress Protection (IP) Rating	IP65
Application/Usage	Warehouse Distribution Picking Packing Sorting Transportation Logistics Manufacturing Inventory Retail Hospitality Price Checking Field Sales/Service Route Accounting Industrial Smartphone
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Condition	No
