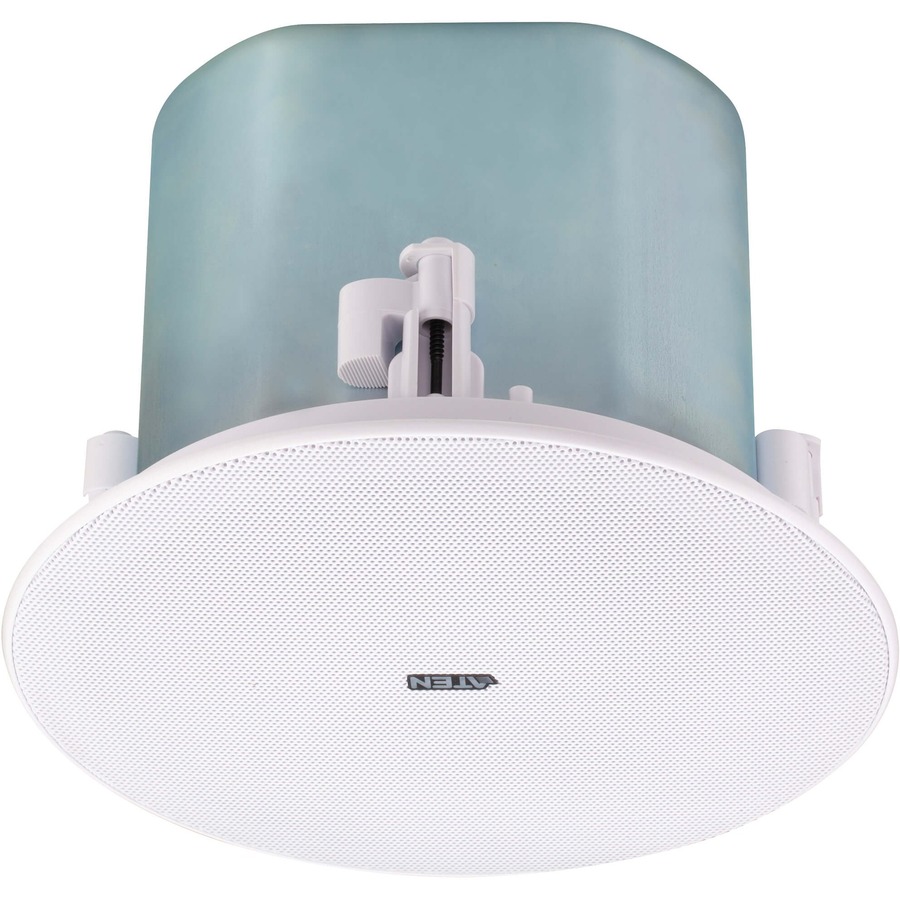

ATEN AS106 2-way Ceiling Mountable Speaker - 60 W RMS - White

Part No. AS106

by ATEN Technology, Inc

ATEN AS106 2-way Ceiling Mountable Speaker - 60 W RMS - White

120 W (PMPO) - 6.50" (165.10 mm) Paper Cone Woofer - 0.79" (20 mm) Polyetherimide (PEI) Tweeter - 80 Hz to 20 kHz - 8 Ohm

Part No. AS106

by ATEN Technology, Inc

$977.99
General Information
ManufacturerATEN Technology, Inc
Manufacturer Part NumberAS106
Brand NameATEN
Product ModelAS106
Product Name6.5" Coaxial Ceiling Loudspeaker
Marketing Information

The AS104 comes in a pair of 4" coaxial 2-way ceiling loudspeakers that deliver decent sonic performance. Each speaker ships with a 4" woofer, 20 mm dome tweeter, and 30 W RMS, 60 W peak (8Ω) power handling capability. Excellent and consistent sound quality is ensured by taking advantages of its 100 - 20 kHz bandwidth and wide coverage, allowing less speakers used to cover the listening area to lower the cost of the system installed.

The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8Ω to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-coated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.

AS104 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized commercial spaces that require a clear and intelligible sound solution without compromise on life safety.

Packaged Quantity2
Product TypeSpeaker
Technical Information
Crossover Type2-way
RMS Output Power60 W
PMPO Output Power120 W
Woofer Driver Size6.50" (165.10 mm)
Woofer Driver MaterialPaper Cone
Tweeter Driver Size0.79" (20 mm)
Tweeter Driver MaterialPolyetherimide (PEI)
Minimum Frequency Response80 Hz
Maximum Frequency Response20 kHz
Impedance8 Ohm
Sensitivity90 dB
Physical Characteristics
Color FamilyWhite
Product ColorWhite
Form FactorCeiling Mountable
Height7.78" (197.50 mm)
Width10.13" (257.20 mm)
Length10.13" (257.20 mm)
Cutout Diameter8.70" (221 mm)
Weight (Approximate)3.70 kg
Miscellaneous
Package Contents
  • 6.5" Coaxial Ceiling Loudspeaker
  • 2 x Euroblock Connectors
  • 2 x Ceiling Reinforcement Kits
  • 2 x Cutout Templates
  • 2 x Speaker Grilles
  • 1 x User Instructions
Application/Usage
  • Auditorium
  • House of Worship
  • Sports Field
  • Commercial
Environmentally FriendlyYes
Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
ConditionNo
UPC672792013515
Warranty
Limited Warranty3 Year
