Hikvision Pro DS-KD8003-IME1(B)/Surface Video Door Phone Sub Station

Part No. DS-KD8003-IME1(B)/SURFACE

by Hikvision

$287.99

On back-order, will ship once in-stock

  • All Locations: (0+)

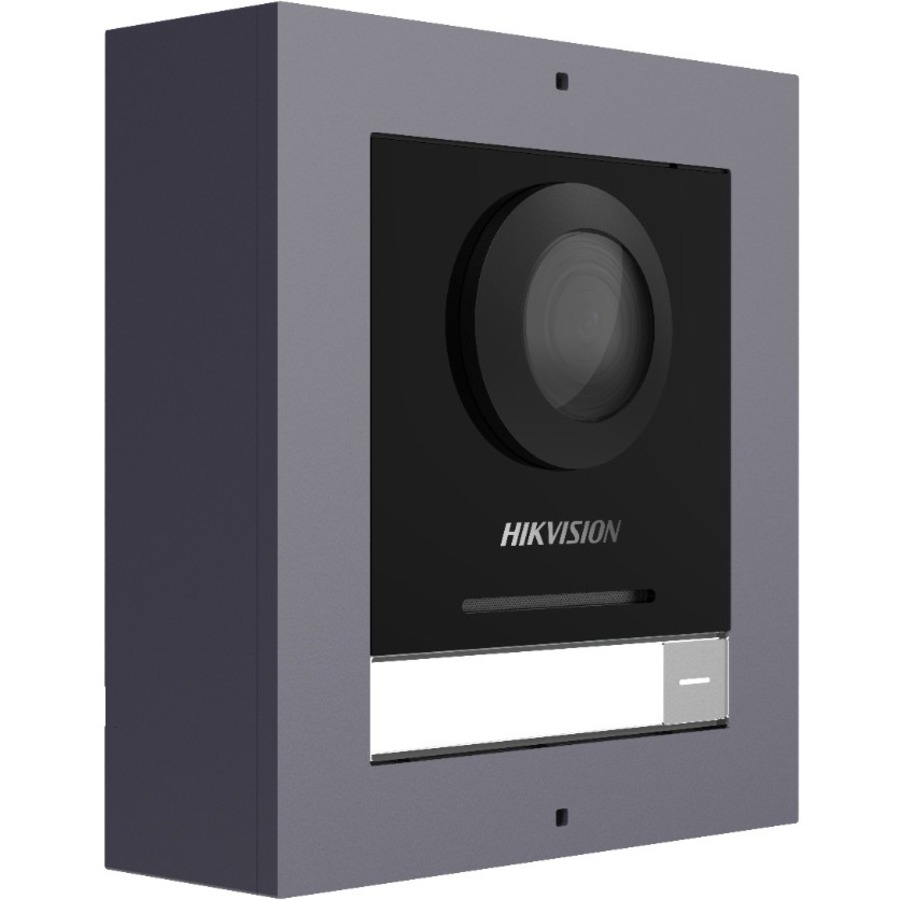

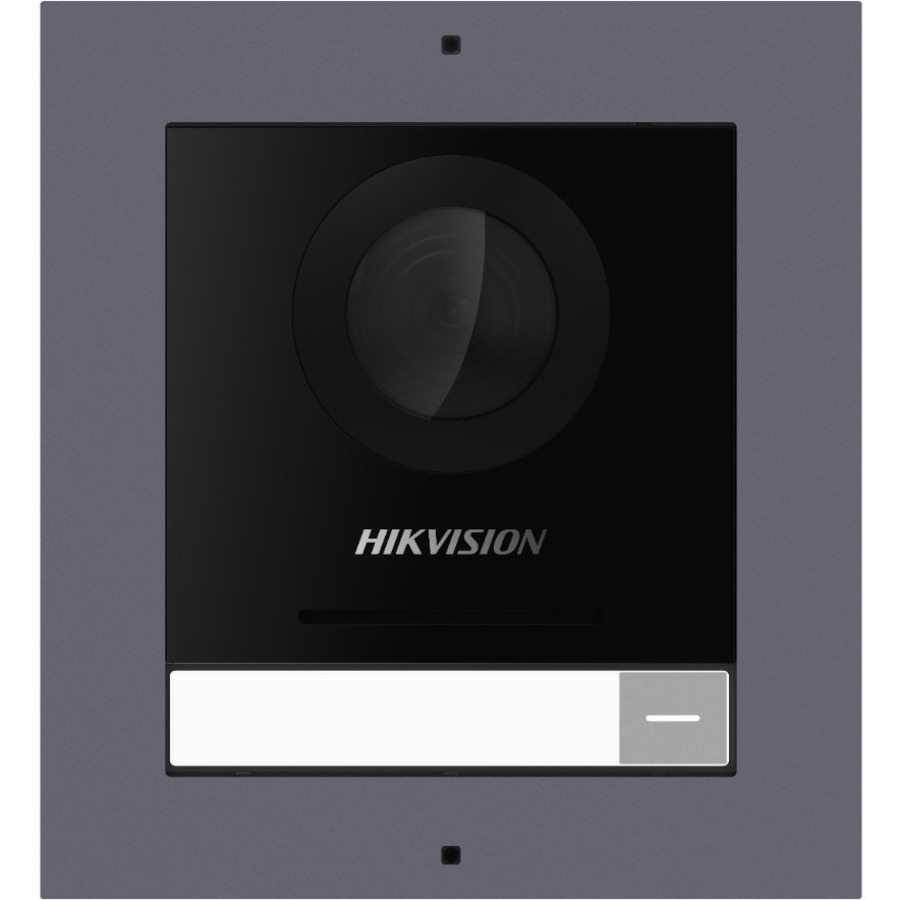

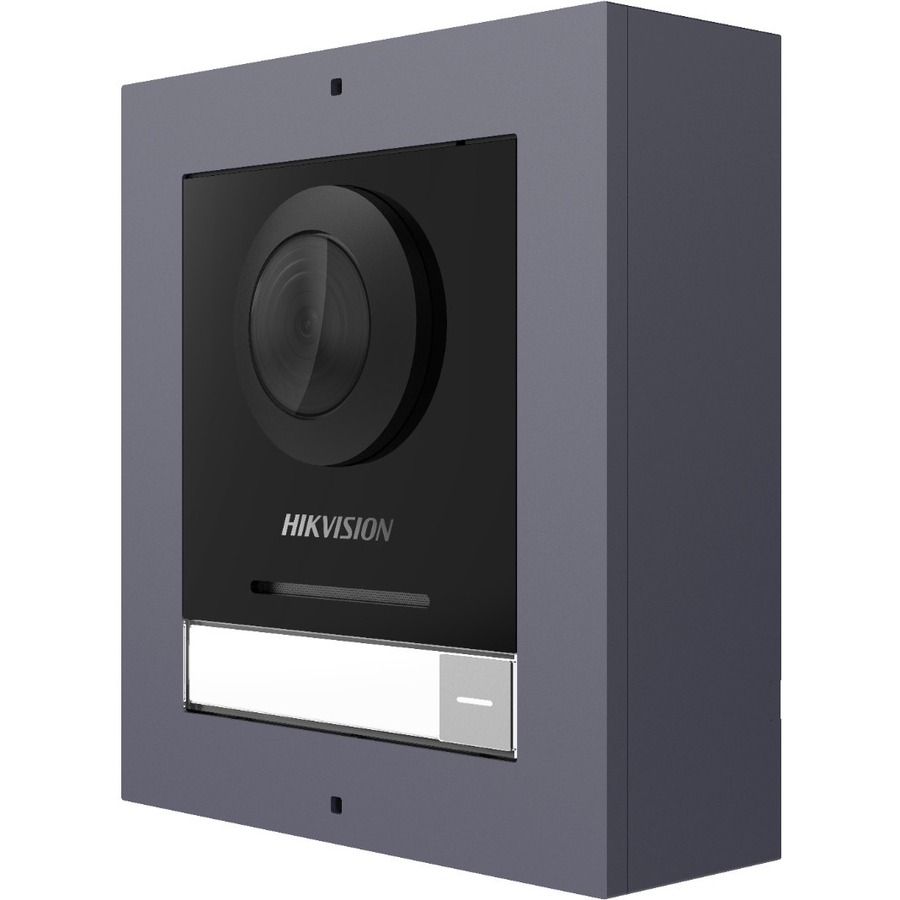

Hikvision Pro DS-KD8003-IME1(B)/Surface Video Door Phone Sub Station

2 Megapixel146° Horizontal - 82° Vertical - Outdoor

Part No. DS-KD8003-IME1(B)/SURFACE

by Hikvision

$287.99

On back-order, will ship once in-stock

  • All Locations: (0+)

General Information
ManufacturerHikvision
Manufacturer Part NumberDSKD8003IME1BSURFACE
Brand NameHikvision
Product LinePro
Product SeriesKD8
Product ModelDS-KD8003-IME1(B)/Surface
Product NamePro DS-KD8003-IME1(B)/Surface Video Door Phone Sub Station
Product TypeVideo Door Phone Sub Station
Technical Information
Ingress Protection (IP) RatingIP65
Camera
Camera Resolution2 Megapixel
Horizontal Viewing Angle146°
Vertical Viewing Angle82°
Power Description
Input Voltage12 V DC
Power Consumption5 W
Physical Characteristics
Height1.65" (42 mm)
Width3.94" (100 mm)
Depth3.86" (98 mm)
Weight (Approximate)600 g
Miscellaneous
Application/UsageOutdoor
Additional InformationSystem parameters:
  • Operating system: Embedded Linux operation system
  • ROM: 32 MB
  • RAM: 256 MB
  • CPU: Embedded Processor
Display parameters:
  • Screen size: NA
  • Operation method: NA
  • Type: NA
  • Resolution: NA
Video parameters:
  • Supplement light: Low illumination, IR supplement lights
  • Video standard: H.264
  • Lens: 1
  • WDR: Support
Audio parameters:
  • Audio input: Built-in omnidirectional microphone
  • Audio compression standard: G.711 U, G.711 A
  • Audio output: Built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity:

  • Fingerprint capacity: /
  • User capacity: 2000
  • Card capacity: 6000
  • Face capacity: NA
  • Linked indoor station capacity: 500
  • Event capacity: /
  • Sub door station capacity: 16
Network parameters:
  • Communication protocol: TCP/IP, RTSP
  • Wired network: 10/100 Mbps self-adaptive Ethernet
  • Wi-Fi: NA
  • Bluetooth: NA
  • 3G/4G: NA
Device interfaces
  • Alarm input: 4 (2 exit butttons and 2 door contacts by default)
  • Network interface: 1 RJ45
  • TAMPER: 1
  • Exit button: 2 (2 for lock control)
  • Door contact input: 1
  • RS-485: 1 (1 for Hikvision's sub module communication)
  • Wiegand: NA
  • TF card: NA
  • Alarm output: NA
  • Lock control: 2 (2 relay, max to 30 V, 2 A)
  • USB: NA
  • Power interface: 12 VDC power output (max to 12 V, 500 mA)
  • Two-wire IP interface: NA

General

  • Power supply: 12 VDC/PoE ( IEEE 802.3af)
  • Working temperature: -40° C to 60° C (-40° F to 140° F)
  • Working humidity: 10% to 95%
  • Button: 1
  • Installation: Surface mounting & flush mounting
  • Language:
    • English
    • French
    • Portuguese
    • BrazilianPortuguese
    • Spanish
    • Russian
    • German
    • Italian
    • Polish
    • Turkish
    • Vietnamese
    • Arabic
    • Czech
    • Hungarian
    • Dutch
    • Romanian
    • Bulgarian
    • Ukrainian
    • Croatian
    • Serbian
    • Greek
    • Slovak
  • Indicator: 0
  • With Package: 0.865 kg
  • Battery: /
ConditionNo
UPC842571125979
