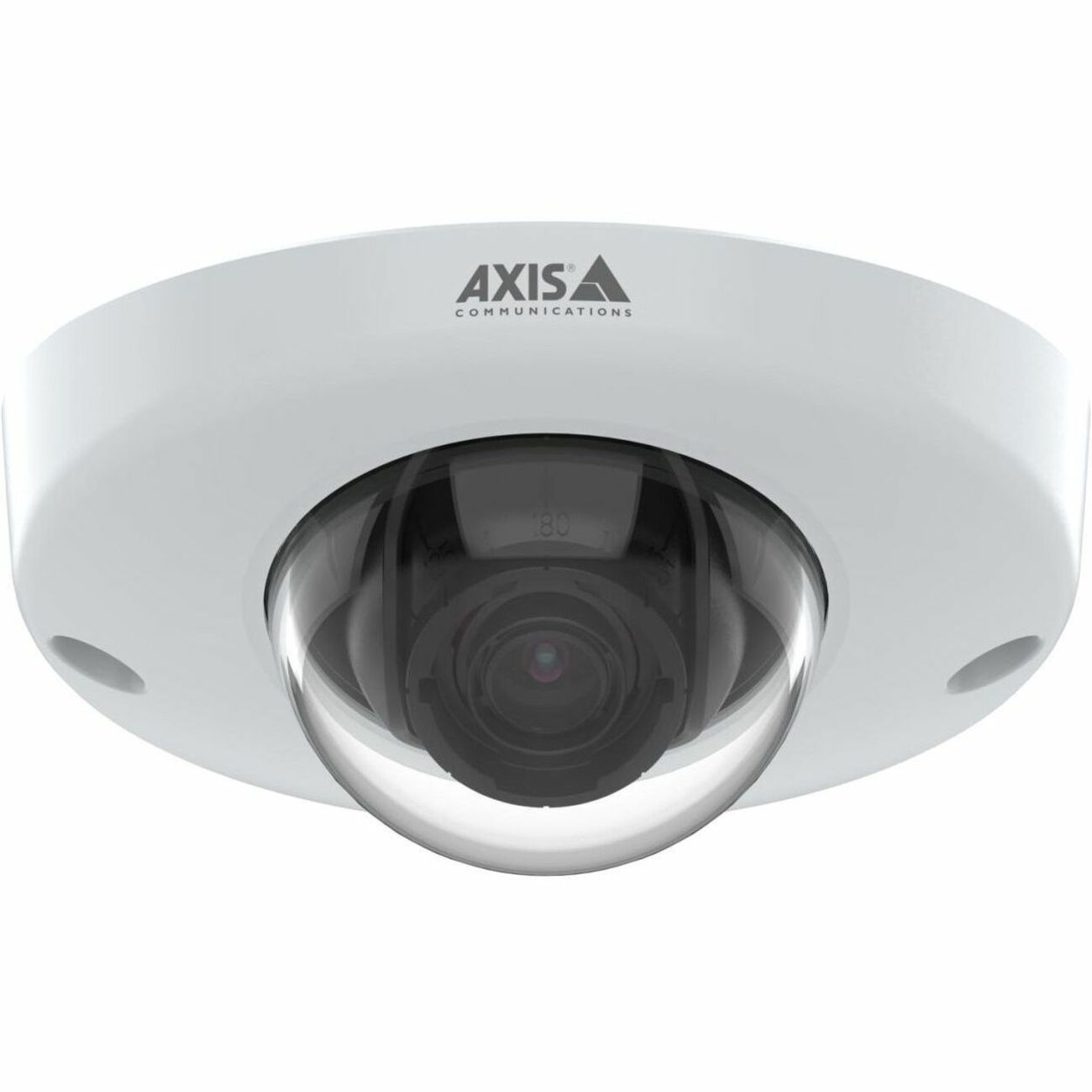

AXIS M3905-R M12 2 Megapixel Full HD Surveillance Camera - Color - Dome

Part No. 02502-001

by Axis Communications

AXIS M3905-R M12 2 Megapixel Full HD Surveillance Camera - Color - Dome

Zipstream - 1920 x 1080 - 3.6 mm (0.14") Fixed Lens - 45 fps - RGB CMOS - Vehicle Mount - IK10 - IP67

Part No. 02502-001

by Axis Communications

$490.99
General Information
ManufacturerAxis Communications
Manufacturer Part Number02502-001
Brand NameAXIS
Product ModelM3905-R M12
Product NameM3905-R Dome Camera
Marketing Information

Specifically designed for surveillance onboard buses, this rugged dome camera can withstand shock and vibrations and ensures high-performance in various light conditions.

Optimized for surveillance onboard buses

This 2 MP onboard camera ensures high-performance even in changing light conditions. With Forensic WDR you get clarity even when there are both dark and light areas in the scene. And, Axis Light finder captures full-color images in extremely low light. Thanks to traffic light mode, AXIS M3905-R can distinguish the color of traffic lights in dark scenes. Furthermore, for maximum flexibility, there are various lens options available for customized monitoring purposes.

For tough onboard conditions

AXIS M3905-R complies with transportation-industry regulations for buses including fire-safety. This rugged camera is IK10, IP66-, IP67-rated and comes with either M12 or RJ45 connector for flexible installation. Additionally, when used together with AXISTP3826-E Housing it can be mounted on the outside of a vehicle to withstand tough weather.

Secure and cost-effective

This onboard camera offers built-in cyber security features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Thanks to Zip stream technology, it significantly reduces storage and bandwidth requirements without compromising image quality. The result is high-forensic usability, significant savings, and a camera that's perfect for onboard conditions.

Product TypeSurveillance Camera
Technical Information
Recording FormatsFull HD
HD RecordingYes
Display & Graphics
Image Sensor TypeRGB CMOS
Image Sensor Size1/2.9"
Color SupportedColor
Field of ViewHorizontal field of view: 88° Vertical field of view: 47°
Effective Camera Resolution2 Megapixel
Video
Video FormatsZipstream
Maximum Video Resolution1920 x 1080
Maximum Frame Rate45 fps
Lens
Lens TypeFixed
Maximum Focal Length3.6 mm (0.14")
Lens IncludedYes
Lens Mount TypeM12-mount
Maximum Aperturef/2.0
Exposure
Shortest Shutter Speed1/19000 Second
Longest Shutter Speed1/5 Second
Network & Communication
Connectivity TechnologyWired
Storage
Storage TypeMemory Card
Power Description
Power Source TypePoE
Physical Characteristics
Mount TypeVehicle Mount
Form FactorDome
Height1.97" (50 mm)
Diameter4.33" (110 mm)
Weight (Approximate)8.50 oz (241 g)
Environmental Conditions
Minimum Operating Temperature-22°F (-30°C)
Maximum Operating Temperature158°F (70°C)
Maximum Operating Humidity100%
Miscellaneous
Features
  • Back Light Compensation (BLC)
  • Highlight Compensation (HLC)
  • 3D Digital Noise Reduction
  • Noise Detection
  • Auto Gain Control
  • Wide Dynamic Range
  • HTTPS Encryption
  • Video Management System
  • Mirror
  • Vehicle Detection
  • White Balance
  • Privacy Masking
Impact Protection RatingIK10
Ingress Protection RatingIP67
TAA CompliantYes
ConditionNo
UPC7331021078321
