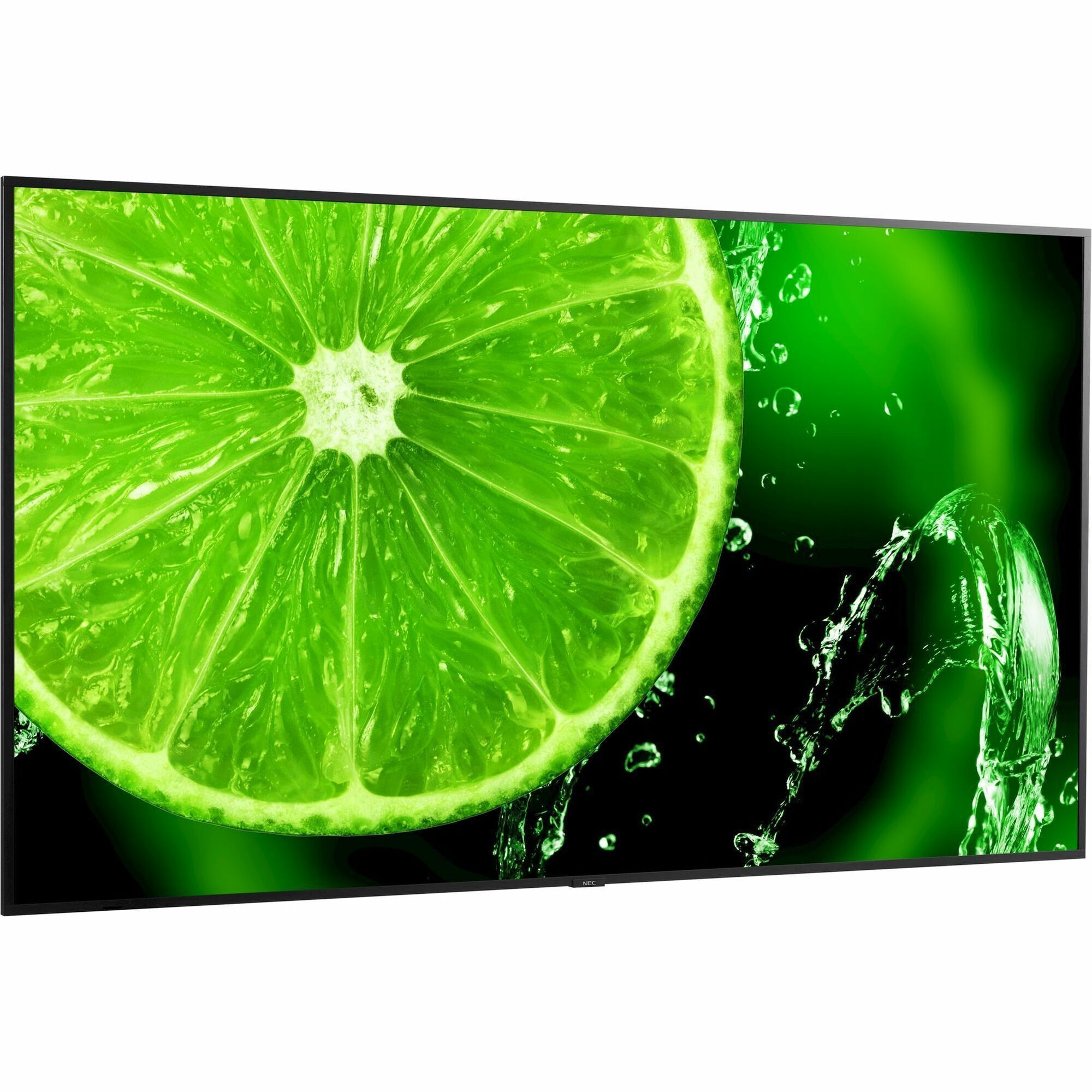

NEC Display 86" Ultra High Definition Commercial Display

Part No. E868

by Sharp

NEC Display 86" Ultra High Definition Commercial Display

86" (2184.40 mm) LCD - In-plane Switching (IPS) Technology - High Dynamic Range (HDR) - 18 Hours/7 Days Operation - 3840 x 2160 - Edge LED - 350 cd/m² - 2160p - HDMI - USB - SerialEthernet - Black - Energy Star

Part No. E868

by Sharp

$3799.99
General Information
ManufacturerSharp
Manufacturer Part NumberE868
Brand NameNEC Display
Product LineMultiSync
Product ModelE868
Product Name86" Ultra High Definition Commercial Display
Marketing Information

Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership with long life-times. Professional haze levels ensure great visibility without distracting reflections - along with brightness of up to 350 cd/m², the 86" NEC E868 meets the demands of today's meeting environments. An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. With this Sharp/NEC display presenters will feel confident during meetings of up to 12 participants while retailers and hospitality facilities can boost sales through digital signage. For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC NaviSet Administrator 2 functionality making this display the perfect choice for corporate meeting rooms and entry level digital signage.

  • 4K UHD native resolution allows for high end visual acuity!
  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • 24-Hour On/Off Timer maintains power schedules
  • Industrial-strength, premium-grade panel with additional internal temperature sensors, allows for hassle-free 18/7 operation
  • Integrated Media Player allows for audio, video or image playback via USB
  • Integrated Ambient Light Sensor allows the display to automatically adjust its luminance based on extenal brightness conditions
  • Built-in, integrated 10W speakers enhance the experience with superior sound
  • USB Type-C port for external power supply 5V/3A
  • Supports Video muting in addition to Audio mute and can also be muted individually
  • Joystick key for screen guided operation
  • Tilt back and forth installation (-15°?15°) to install it at desired angle
  • Full 3 year commercial warranty to allow for peace of mind and protection of your investment
  • Energy Star 8.0 Certified
  • NaViSet Administrator 2 free software solution that greatly eases administration and management of larger display device installations
Product TypeDigital Signage Display
Technical Information
Bezel Width (Bottom)0.58" (14.73 mm)
Bezel Width (Top)0.56" (14.22 mm)
Bezel Width (Left)0.58" (14.73 mm)
Bezel Width (Right)0.56" (14.22 mm)
Panel TechnologyIn-plane Switching (IPS) Technology
Operation Hours18 Hours/7 Days
Display & Graphics
Number of Screens1
Viewable Screen Size86" (2184.40 mm)
Display Screen TypeLCD
Display Resolution3840 x 2160
High Dynamic Range (HDR)Yes
High Dynamic Range (HDR) TypeHDR10
Pixel Pitch19.45 mil (0.49 mm)
Backlight TechnologyEdge LED
Video
Scan Format2160p
Dynamic Contrast Ratio8,000:1
Brightness350 cd/m²
Network & Communication
EthernetYes
Interfaces/Ports
USBYes
HDMIYes
SerialYes
Number of HDMI Inputs3
USB Type-CYes
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Physical Characteristics
Color FamilyBlack
Product ColorBlack
VESA Mount Standard600 x 400
Mount Type
  • Table Mount
  • Wall Mountable
Height43.20" (1097.28 mm)
Width75.80" (1925.32 mm)
Depth3.20" (81.28 mm)
Weight (Approximate)101.41 lb (46000 g)
Miscellaneous
Package Contents
  • 86" Ultra High Definition Commercial Display
  • Power Cord
  • HDMI Cable (3.0m)
  • Wireless Remote Control
  • Batteries
  • Setup Manual
Application/Usage
  • Conference Room
  • Meeting Room
  • Commercial
  • Hospitality
  • Industrial
Energy StarYes
Environmentally FriendlyYes
Energy Efficiency CertificationENERGY STAR 8.0
ConditionNo
UPC805736077544
Warranty
Limited Warranty3 Year
