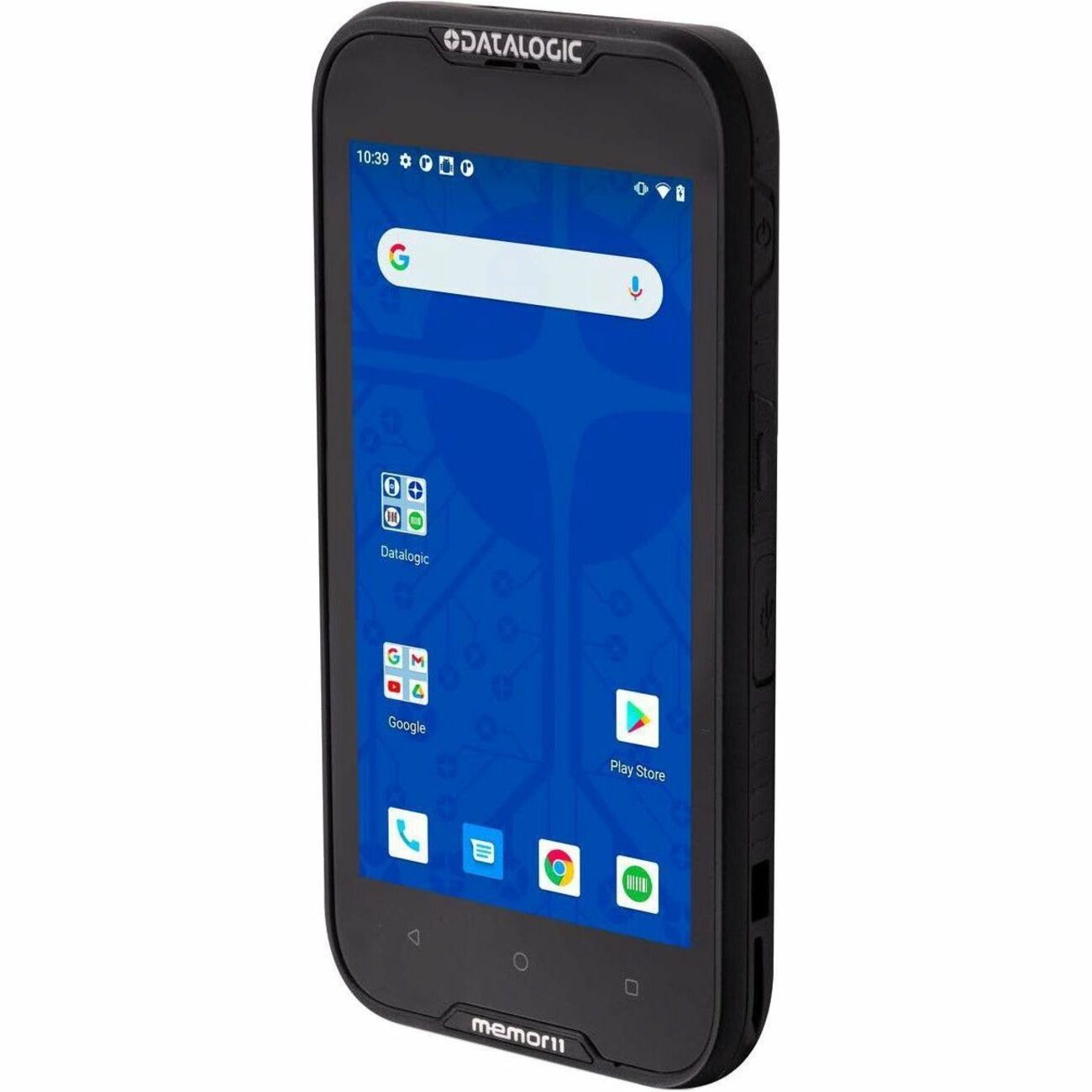

Datalogic Memor 11 Handheld Terminal

Part No. 944900002

by Datalogic S.p.A

Datalogic Memor 11 Handheld Terminal

1D, 2D - LTE Advanced, 4G, 3G, 2G2 GHz - 4 GB RAM - 32 GB Flash - 5" HD Touchscreen - LED - Android 11 Upgradable to Android 13 - Wireless LAN - Bluetooth - Rugged - Battery Included - IP65

Part No. 944900002

by Datalogic S.p.A

$989.99
General Information
ManufacturerDatalogic S.p.A
Manufacturer Part Number944900002
Brand NameDatalogic
Product LineMemor 11
Product NameMemor 11 Handheld Terminal
Marketing Information

FLEXIBILITY TAILORED FOR YOUR WORKFORCE

The Memor 11 family is designed to provide a versatile solution for today's mobile workforce. With an up-to-date operating system and enhanced processing capabilities, this family of devices deliver superior scanning performance and all-around efficiency. Whether you require flexibility in Retail, Warehouse, Manufacturing, or Transportation & Logistic applications, the Memor 11 family is built to meet your needs. Choose between Wi-Fi only or Wi-Fi/Cellular models to always be connected within your premises or wherever you go.

RUGGED AND COMPACT DESIGN IN AN ENTERPRISE-GRADE FORM FACTOR

The market-proven, semi-rugged, and compact design of the Memor 11 follows the highly successful Memor 10 and can withstands more tumble hits than most comparable devices in the market.

ADVANCED BATTERY MANAGEMENT AND WIRELESS CHARGING

Agile performance due to its long-lasting swappable battery and embedded SafeSwap Technology which ensures uninterrupted continuity. Its effective wireless charging system provides ultra-reliable contactless charging that helps reduce maintenance and promotes efficient charging.

IMPROVED SCANNING PERFORMANCE

Heighten scanning performance in dark warehouse environments with the high-end 2D scan engine, plus increased accuracy and efficiency when paired with Datalogic's exclusive 'Green Spot' Technology in scan-intensive settings.

ENTERPRISE-READY SOLUTION; A SECURE INVESTMENT

Certified as an Android Enterprise Recommended device with fortified security and privacy settings of Android 11, plus the benefits of Google Mobile Services.

Product TypeHandheld Terminal
Technical Information
Connectivity TechnologyWireless
Scanning Capability
  • 1D
  • 2D
Image Sensor TypeImager
Google Mobile Services (GMS)Yes
Wireless ChargingYes
Sensor Type
  • Accelerometer
  • Gyroscope
  • Magnetometer
  • Ambient Lighting
  • Proximity
SIM Size SupportedMicro
Features
  • Chemical Resistant
  • Oil Resistant
  • Push-to-talk
Drop Specification

Withstands drops from 1.5 m / 5.0 ft onto concrete (with rubber boot); Withstands drops from 1.2 m / 4.0 ft onto concrete (without rubber boot). Tested onto steel/ concrete according to IEC 68-2-32 Method 2 and MIL STD 810G Transit drop test.

Illumination TypeLED
Depth of Field

4 to 90 cm / 1.6 to 35 in, depending on bar code density and type; Resolution: Megapixel (1280 x 800 pixels); Illumination: White and Red LEDs (for Digimarc); Aiming: 650nm VLD; Field of View: 42°H x 26°V

Processor & Chipset
Processor CoreOcta-core (8 Core)
Processor Speed2 GHz
Memory
Standard Memory4 GB
Flash Memory32 GB
Memory Card Supported
  • microSD
  • microSDHC
Display & Graphics
Screen Size5"
Screen ModeHD
Screen Resolution720 x 1280
Display Screen TypeLED
Touchscreen Information
TouchscreenYes
Multi-touch ScreenYes
Number of Simultaneous Touchpoints5
Network & Communication
Wireless LANYes
BluetoothYes
Bluetooth StandardBluetooth 5.0 BLE
Near Field Communication (NFC)Yes
Cellular Network Supported
  • GSM
  • WCDMA
Cellular Data Connectivity Technology
  • LTE Advanced
  • 4G
  • 3G
  • 2G
GPSYes
Global Navigation Satellite System (GNSS) SupportedBeiDou
Interfaces/Ports
USBYes
USB Type-CYes
Software
Operating SystemAndroid 11
Upgradable Operating SystemAndroid 13
Power Description
Power SourceBattery
Battery Information
Battery Capacity4100 mAh
Battery ChemistryLithium Ion (Li-Ion)
Battery IncludedYes
Battery Voltage3.80 V
Removable BatteryYes
Environmental Conditions
Operating Temperature-4°F (-20°C) to 122°F (50°C)
Physical Characteristics
Product ColorBlack
Form FactorPhone-size
RuggedYes
Weight (With Battery)10.05 oz (285 g)
Miscellaneous
Application/Usage
  • Retail
  • Manufacturing
  • Logistics
  • Warehouse
Ingress Protection (IP) RatingIP65
