APC Smart-UPS, Line Interactive, 1500VA, Tower, 120V, 8x NEMA 5-15R outlets, SmartConnect Port+Network Card, AVR, LCD

Part No. SMT1500CNC

by Schneider Electric SA

APC Smart-UPS, Line Interactive, 1500VA, Tower, 120V, 8x NEMA 5-15R outlets, SmartConnect Port+Network Card, AVR, LCD

Tower - AVR - 3 Hour Recharge - 6.50 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave - USB - LCD Display - 8 x NEMA 5-15R Receptacle(s)

Part No. SMT1500CNC

by Schneider Electric SA

$1569.99
General Information
ManufacturerSchneider Electric SA
Manufacturer Part NumberSMT1500CNC
Brand NameAPC by Schneider Electric
Product LineSmart-UPS

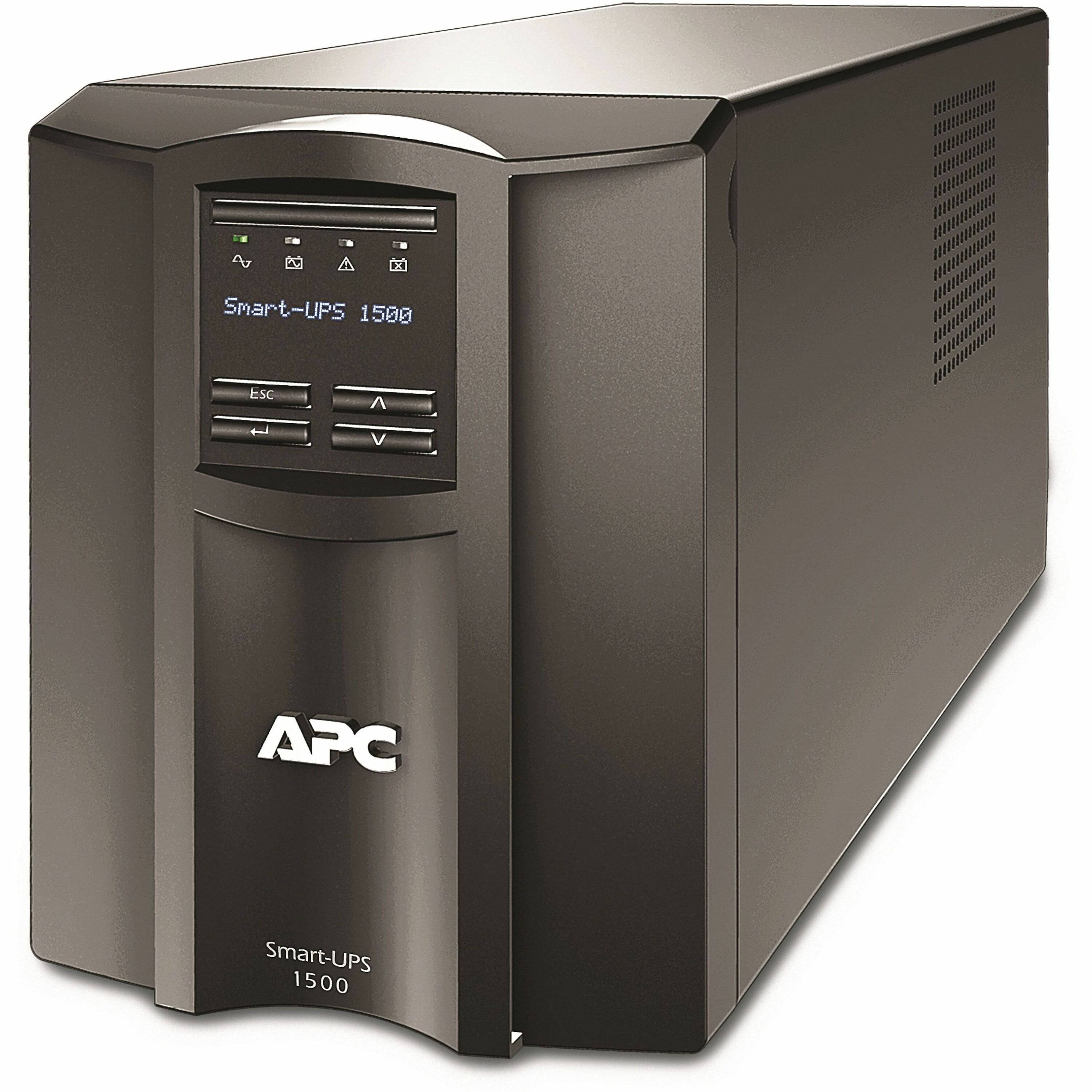

Product NameSmart-UPS 1500VA Tower UPS
Marketing Information

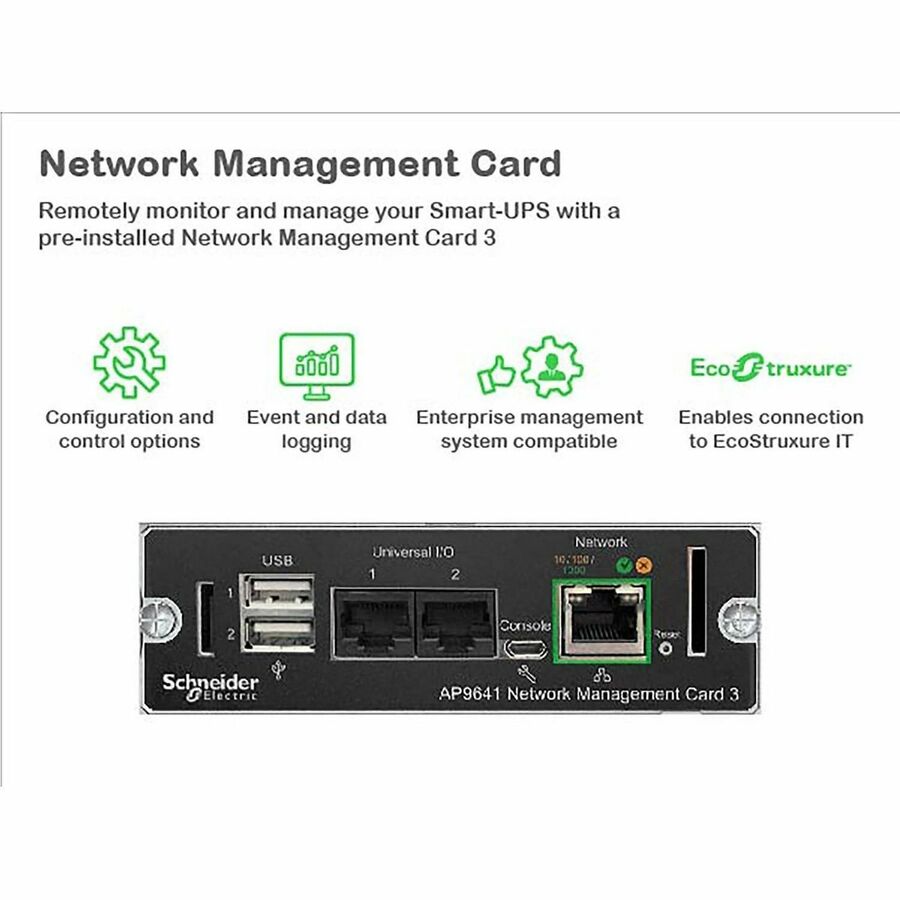

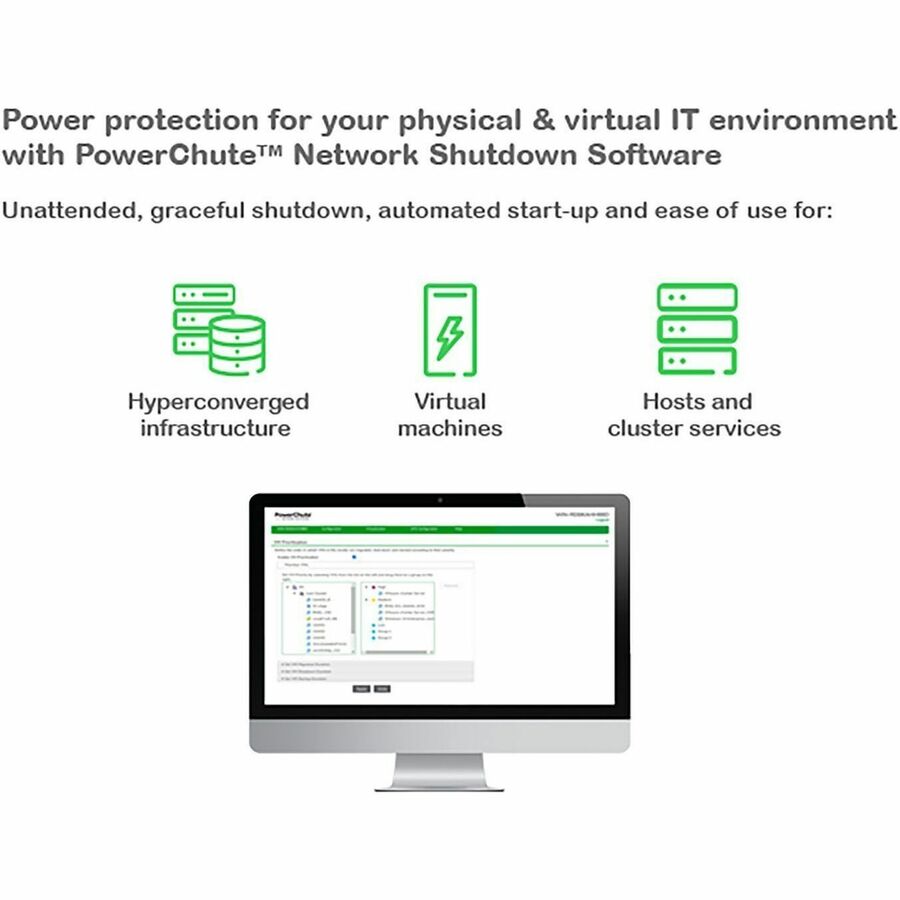

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

More from the Manufacturer

Packaged Quantity1
Product TypeLine-interactive UPS
Technical Information
AVRYes
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15P

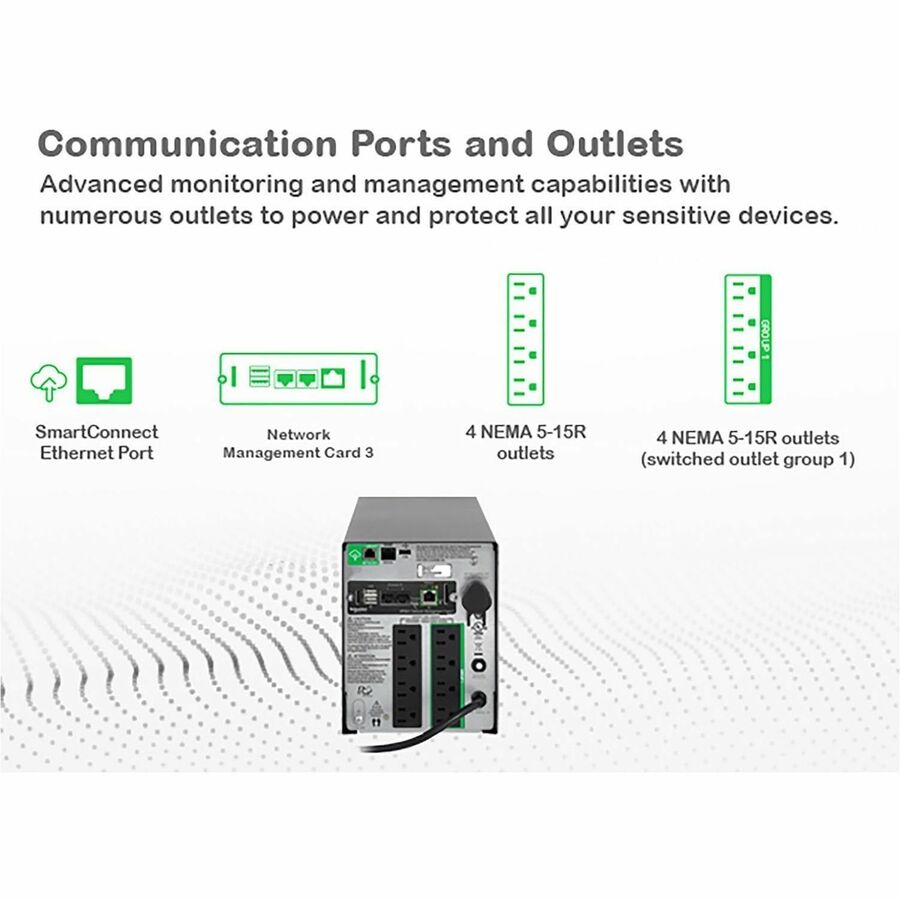

Receptacle Detail8 x NEMA 5-15R
Cord Length5.9 ft (1.80 m)
Transfer Time10 ms
PhaseSingle Phase
Application/Usage
  • IT System
  • Network
  • Business
  • Critical System
  • Server
  • Virtual Machine
  • Hyperconverged Infrastructure (HCI)
  • Storage
  • Network Closet
  • Desktop
  • VoIP
  • Retail
  • POS
Power Description
Load Capacity (VA)1.44 kVA
Load Capacity (Watt)1 kW
Input Voltage120 V AC
Input Voltage Range
  • 75 V AC - 154 V AC
  • 82 V AC - 144 V AC
Output Voltage120 V AC
Input Frequency60 Hz
Output Frequency60 Hz
Waveform TypeSine Wave
Surge Energy Rating680 J
Display & Graphics

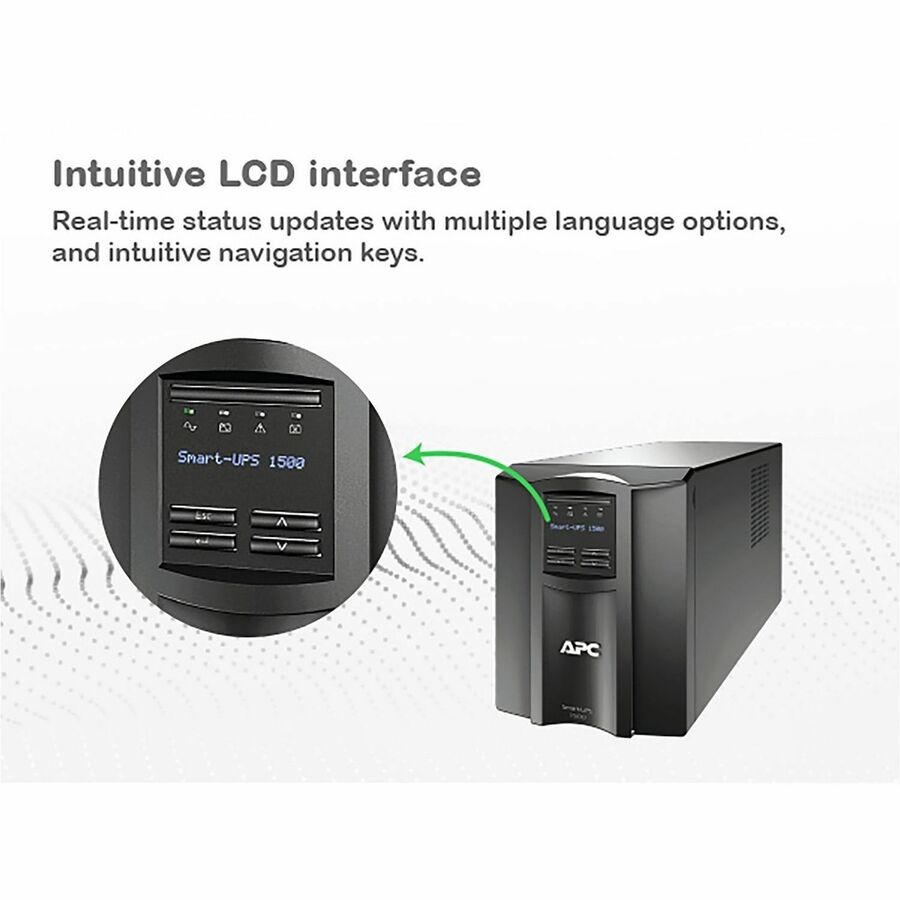

DisplayLCD
Management
Alarm
  • On Battery
  • Low Battery
  • Configurable Delay
Interfaces/Ports
USBYes
Battery Information
Battery ChemistryLead Acid
Battery Energy1468.8 kJ

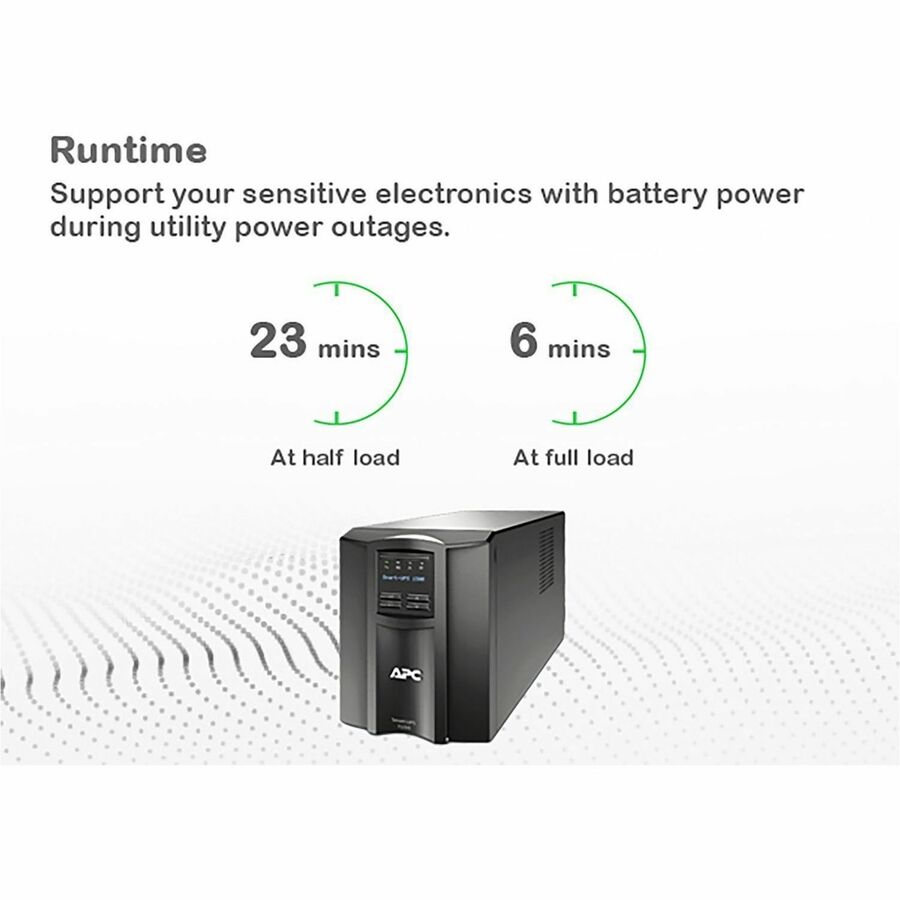

Backup/Run Time (Full Load)6.50 Minute
Backup/Run Time (Half Load)23.07 Minute
Battery Life5 Year
Typical Battery Recharge Time3 Hour
Replaceable BatteryYes
Environmental Conditions
Maximum Operating Temperature104°F (40°C)
Storage Temperature5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation10000 ft (3048000 mm)
Maximum Storage Elevation50000 ft (15240000 mm)
Storage Relative Humidity95%
Sound Emission (A-Weighted)45 dB(A)
Thermal Dissipation225 BTU/h
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Height8.62" (219 mm)
Width6.73" (171 mm)
Depth17.28" (439 mm)
Form FactorTower
Mounting PreferenceNo Preference
Mounting LocationFront
Weight (Approximate)54.23 lb (24598.31 g)
Miscellaneous
For Country/RegionUnited States
Package Contents
  • Smart-UPS 1500VA Tower UPS
  • Installation Guide
  • USB Cable
Certifications & StandardscULus|ENERGY STAR V2.0 (USA)
Energy StarYes
Optimized Energy EfficiencyYes
Product Take Back ProgramYes
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500CNC_ROHS_DECLARATION&p_FileName=SMT1500CNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552168918&lang=en-us
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552168918&lang=en-us
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028EN
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
Energy Star URLhttps://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHCNo
Country of OriginPhilippines
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0731304450801
Warranty
Limited Warranty3 Year
Additional Warranty InformationUPS: 36 month(s)|Battery: 24 month(s)
Directly Connected Equipment Guarantee$150000 Lifetime
