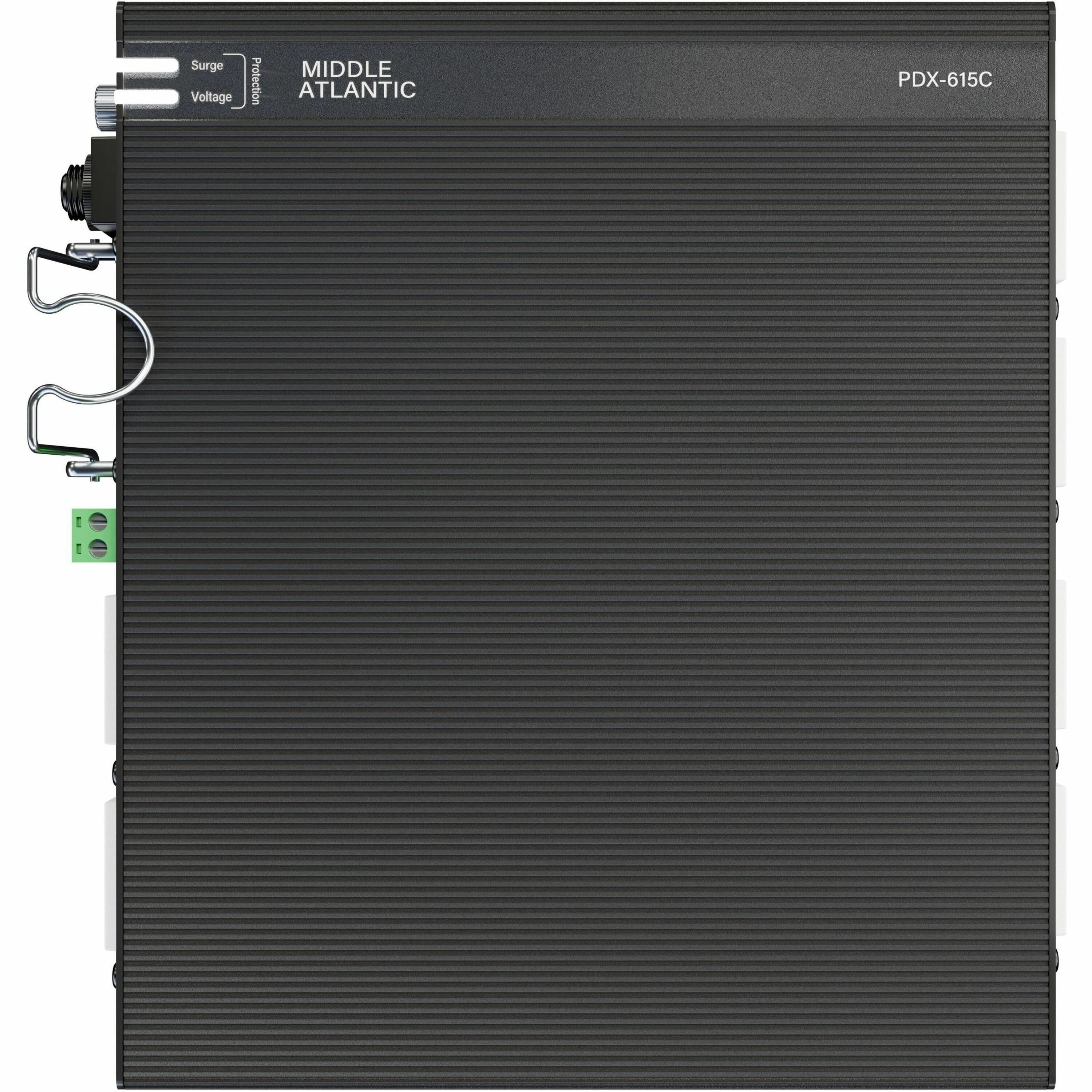

Middle Atlantic NEXSYS Compact Power Distribution Unit - 15 Amp, 6 Outlet PDU - Multi-Stage Surge Protection
NEMA 5-15P - 6 x NEMA 5-15R - 120 V AC - 0U - Rack-mountable, Wall-mountable - Rack
$429.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PDX615C |
| Brand Name | Middle Atlantic |
| Product Line | NEXSYS |
| Product Model | PDX-615C |
| Product Name | NEXSYS Compact Power Distribution Unit - 15 Amp, 6 Outlet PDU |
| Marketing Information | The Middle Atlantic PDX-615C is a compact NEXSYS PDU designed for 'behind-the-display' applications, particularly digital signage. It features (6) NEMA 5-15R outlets and operates at 15A. The PDU offers flexible mounting options with both clamp and L-brackets, which can be easily attached to a Lever Lock plate for tool-free installation inside a rack, kiosk, or in-wall box. It includes multi-stage MOV surge protection with 3 stages and visual indicators of surge status on the front and side. The selectable on/off voltage protection from the dry contact port helps safeguard sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the power is within the acceptable range. The PDU also supports cleaner cable management with a standard 2ft power cord and allows for the use of both outlets without obstruction, thanks to the orientation designed for easier plugging of DC transformers (wall warts). |
| Product Type | PDU |
Technical Information
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Protection Type | Surge Protection |
| Features | Compact |
Power Description
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 15 A |
Physical Characteristics
| Mount Type |
|
| Form Factor | Rack |
| Rack Height | 0U |
| Height | 1.73" (44 mm) |
| Width | 8.15" (207 mm) |
| Depth | 7.01" (178 mm) |
Miscellaneous
| Package Contents |
|
| Country of Origin | Malaysia |
| Condition | No |
| UPC | 656747396427 |
Warranty
| Limited Warranty | 3 Year |
