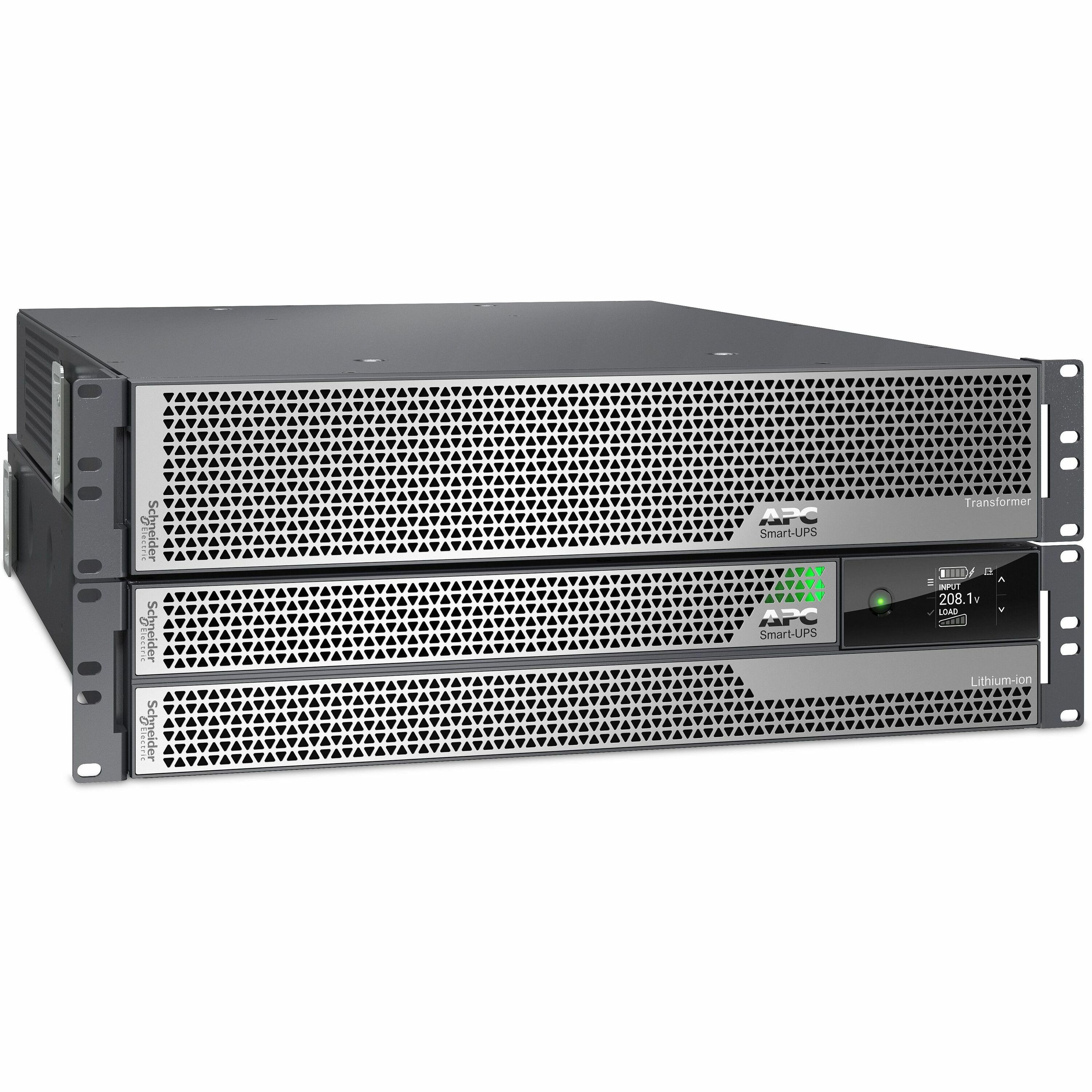

APC Smart-UPS Ultra, 5kVA, Rackmount 4U, 208V, 12x 5-20R+2x L6-20R+1x L6-30R NEMA, Network Card+SmartSlot, W/ rail kit, W/ transformer 208V to 120V
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL5KRM2UT-5KRMTF |
| Brand Name | APC |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra 5kVA Rack-mountable UPS |
| Marketing Information | Smart-UPS Ultra 5kW UPS and SRTL 5kVA Step-Down Transformer bundle. Including the Smart-UPS Ultra 5kVA/4.9kW double-conversion on-line pure sine wave 2U rack/tower convertable UPS. Including Smart-UPS Ultra SRTL 5kW, 2U rack/tower convertible, Step-Down Transformer lets you connect 120V equipment to your existing SRTL5K power protection. UPS Connections: (2) L6-20R, (2) L6-30R. Step Down Transformer Connections: 120V connections: 2x (4) 5-20R sockets with a 15A thermal circuit breaker + 2x groups (2) numbers of 5-20R sockets with a 15A thermal circuit breaker. |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30P |
| Receptacle Detail |
|
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |
| Load Capacity (VA) | 4.90 kVA |
| Load Capacity (Watt) | 4.90 kW |
| Input Voltage | 208 V AC |
| Input Voltage Range | 100 V AC - 275 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1260 J |
| Network Management | Network Management Card 3 (NMC3) |
| USB | Yes |
| EPO Port | Yes |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 2304 kJ |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Backup/Run Time (Half Load) | 11.90 Minute |
| Battery Life | 10 Year |
| Typical Battery Recharge Time | 1.50 Hour |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Relative Humidity | 95% |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 1047 BTU/h |
| Color Family | Black |
| Product Color | Black |
| Height | 6.93" (176 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.31" (719 mm) |
| Rack Height | 4U |
| Form Factor | Rack-mountable |
| Mounting Preference | No Preference |
| Mounting Location | Front |
| Weight (Approximate) | 159.37 lb (72289.02 g) |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | ENERGY STAR V2.0 (USA) |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL5KRM2UT-5KRMTF_ROHS_DECLARATION&p_FileName=SRTL5KRM2UT-5KRMTFKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=SRTL5KRM2UT-5KRMTF_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| EU RoHS Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=SRTL5KRM2UT-5KRMTF_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP2504005EN&p_File_name=ENVPEP2504005EN.pdf |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI2504005EN&p_File_name=ENVEOLI2504005EN.pdf |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304437086 |
| Limited Warranty | 5 Year |
