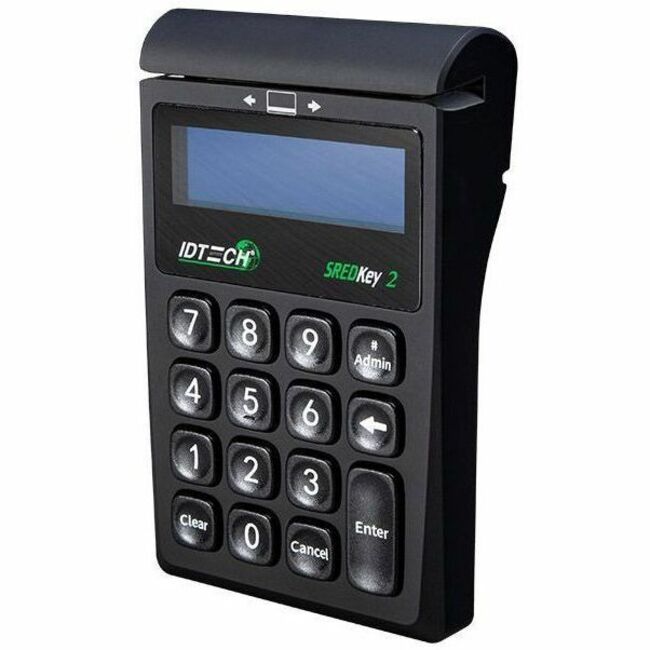

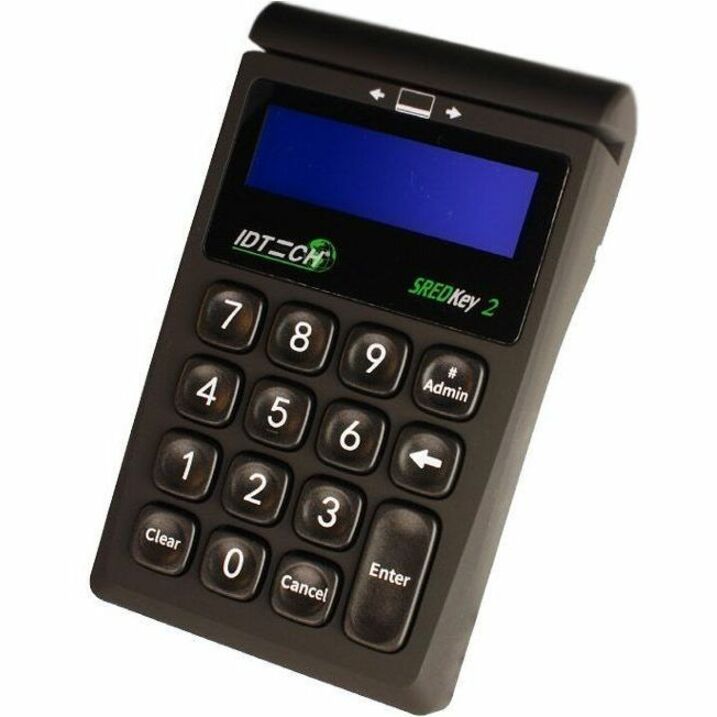

NEXT GENERATION ENCRYPTING KEYPAD

SREDKey 2 is a PCI PTS 5.X encrypted key pad that is ideal for back office P2PE solutions. This latest version in the product family will support international languages, RKI and comes in 2 different versions: MSR and non-MSR.

• DUKPT
• AES
• Triple DES

• INTERFACE: USB-Keyboard and USB-HID
• OPERATING TEMPS: 32°F to 131°F (0°C to 55°C)
• POWER 5V ± 5%, 92 ma Max
• STORAGE TEMPS: -4°F to 149°F (-20°C to 65°C)
• HUMIDITY: Maximum 90% non-condensing
• DROP TEST: 4 ft drop to concrete on 6 surfaces and 4 corners (6 cycles)
• OPERATING LIF: 4,000,000 key operations for each key and 1,000,000 card cycles
• MTBF: More than 60,000 power on hours
• ESD IMMUNITY: 8kV direct contact, 12kV air discharge
• APPROVALS: FCC class B/CE RoHS/REACH UL 60950
• DIMENSION 160.4mm x 96.7mm x 37.4mm
• MEDIA FORMATS: ISO 7810, ISO-7811, AAMVA
• CARD THICKNESS: 0.76mm (tolerance ±0.08mm)
• CABLE LENGTH: 1950±50mm
• CABLE CONNECTOR: USB-A connector

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
