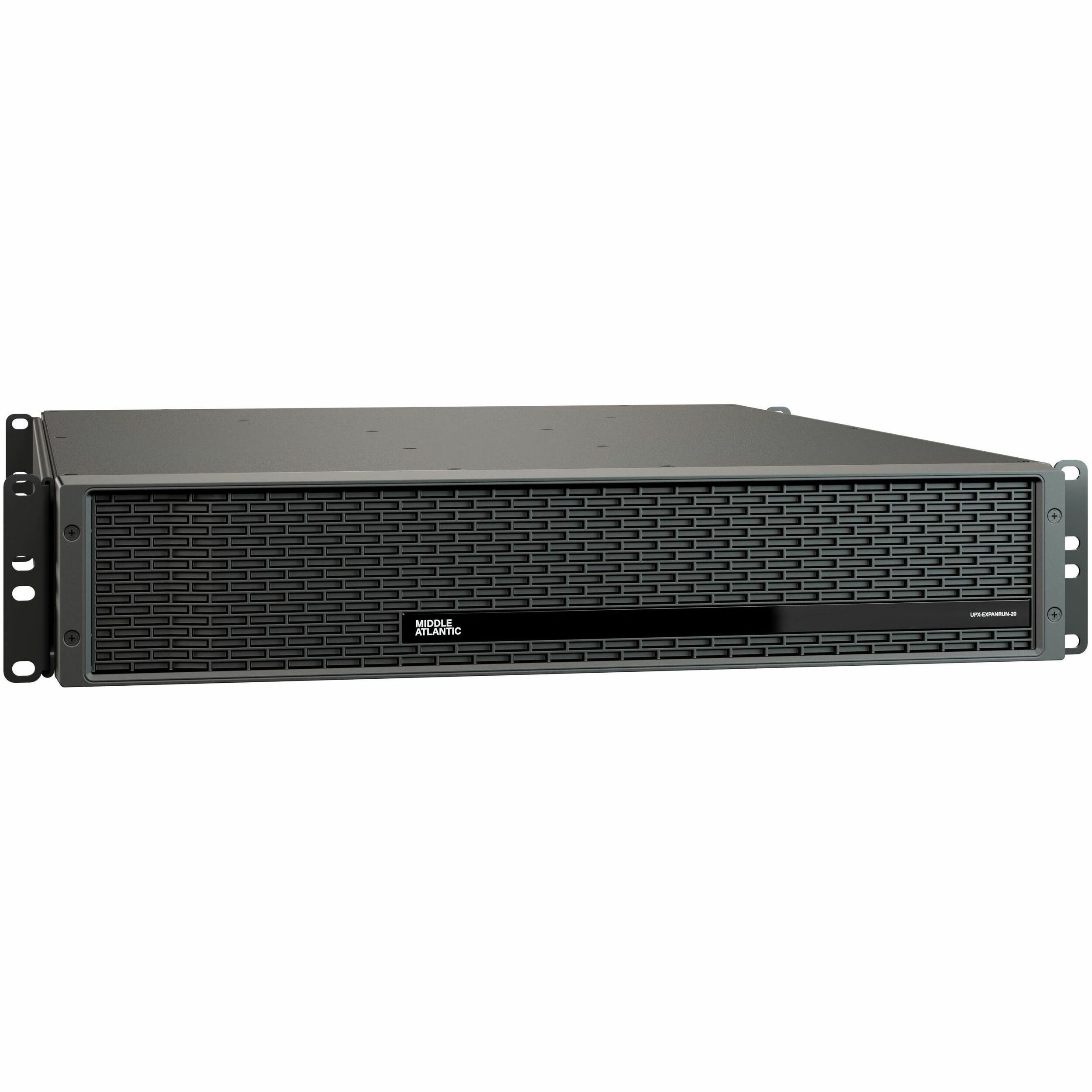

Middle Atlantic NEXSYS Series UPS Expandable Run Time Unit for 2000VA UPS Units
2U Rack-mountable - AVR - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave
$1771.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Legrand Group |
| Manufacturer Part Number | UPX-EXPANRUN-20 |
| Brand Name | Middle Atlantic |
| Product Name | Middle Atlantic NEXSYS Series UPS Expandable Run Time Unit for 2000VA UPS Units |
| Marketing Information | The Middle Atlantic UPX-EXPANRUN-20 is an expandable runtime battery unit compatible with line interactive UPS systems. It operates at a nominal voltage of 120VAC. The unit has a manual DC breaker to disable DC output to the battery main connector and features a sealed, maintenance-free lead-acid battery with a recharge time of 6-8 hours. The dimensions are 22in depth x 3.5in height x 19in width, and it weighs 70.1 lbs (31.8kg). The product is cTUVus tested to UL 1778 & CAN CSA-C22.2 standards and is RoHS REACH compliant. It comes with a three-year limited warranty (two years for the battery). |
| Product Type | Line-interactive UPS |
Technical Information
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
Power Description
| Load Capacity (VA) | 200 VA |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Waveform Type | Pure Sine Wave |
Battery Information
| DC System Voltage | 48 V DC |
| Hot Swappable | Yes |
Environmental Conditions
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 3.50" (88.90 mm) |
| Width | 22" (558.80 mm) |
| Depth | 19" (482.60 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 70.11 lb (31800 g) |
Miscellaneous
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 656747395680 |
