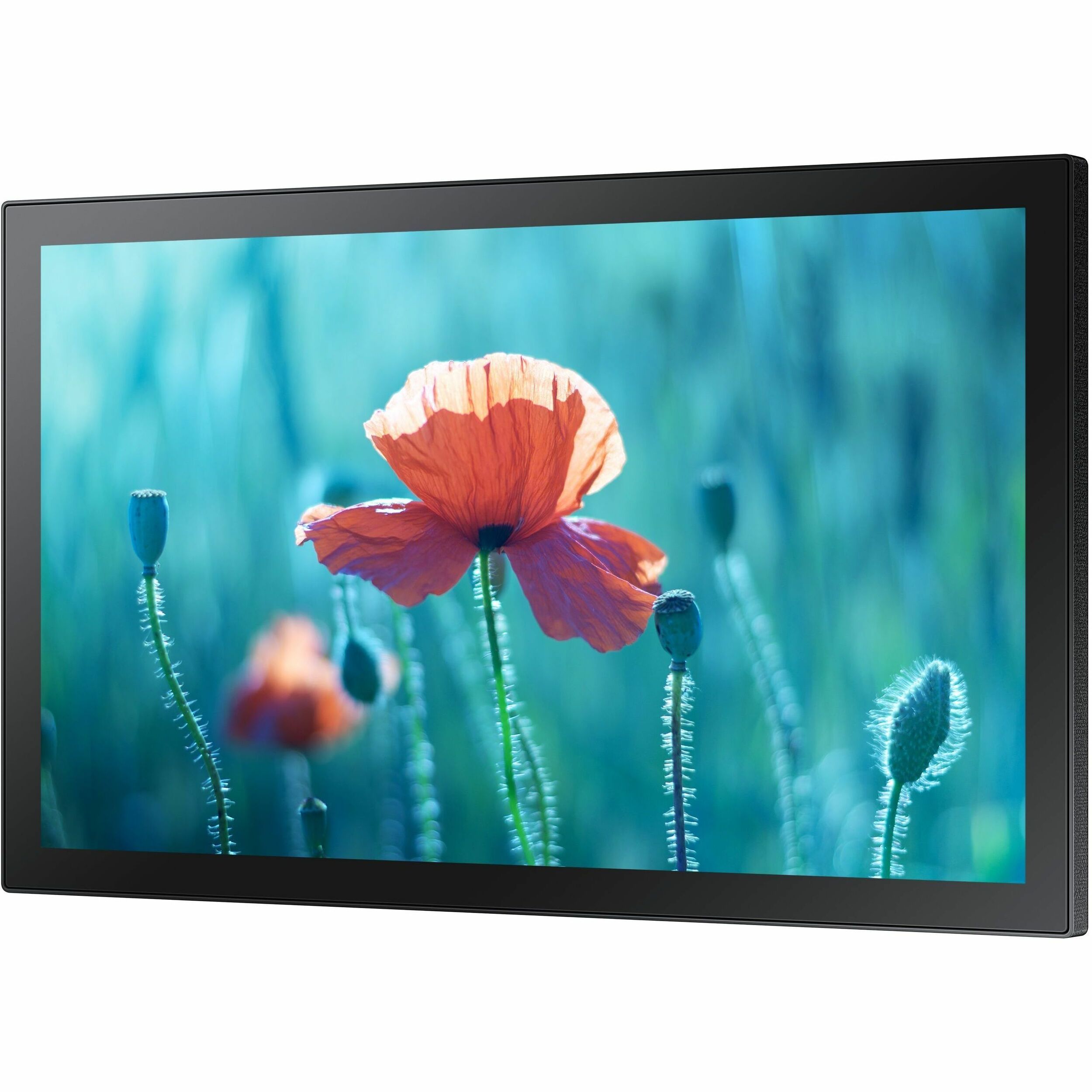

Samsung QB13R-TM Digital Signage Display

Part No. LH13QBRTMGCXZA

by Samsung

Samsung QB13R-TM Digital Signage Display

13" (330.20 mm) LCD - Advanced Super Dimension Switch ( ADS ) - Touchscreen - 16 Hours/ 7 Days Operation - 1920 x 1080 - Full HD - 30 ms - Edge LED - 500 cd/m² - 1080p - HDMI - USB - Serial - Wireless LAN - Ethernet - Tizen 4.0 - Black

Part No. LH13QBRTMGCXZA

by Samsung

$593.99
General Information
ManufacturerSamsung
Manufacturer Part NumberLH13QBRTMGCXZA
Brand NameSamsung
Product ModelQB13R-TM
Product NameQB13R-TM Digital Signage Display
Marketing Information

Improved engagement with intuitive interaction

Samsung's QB13R-TM touch-enabled small display provides a unique store experience and improves customer engagement, offering customers content up close in a compact design. Designed for professional use, it enables efficient content operation and reliable performance for any business use.

Fast, effective touch capabilities

With integrated capacitive touch functionality, the QB13R-TM provides a user-friendly experience. Its 10-point multi-touch and fast response time powers an intuitive interface that allows for customer-driven search and action, creating new customer interactions and driving purchase.

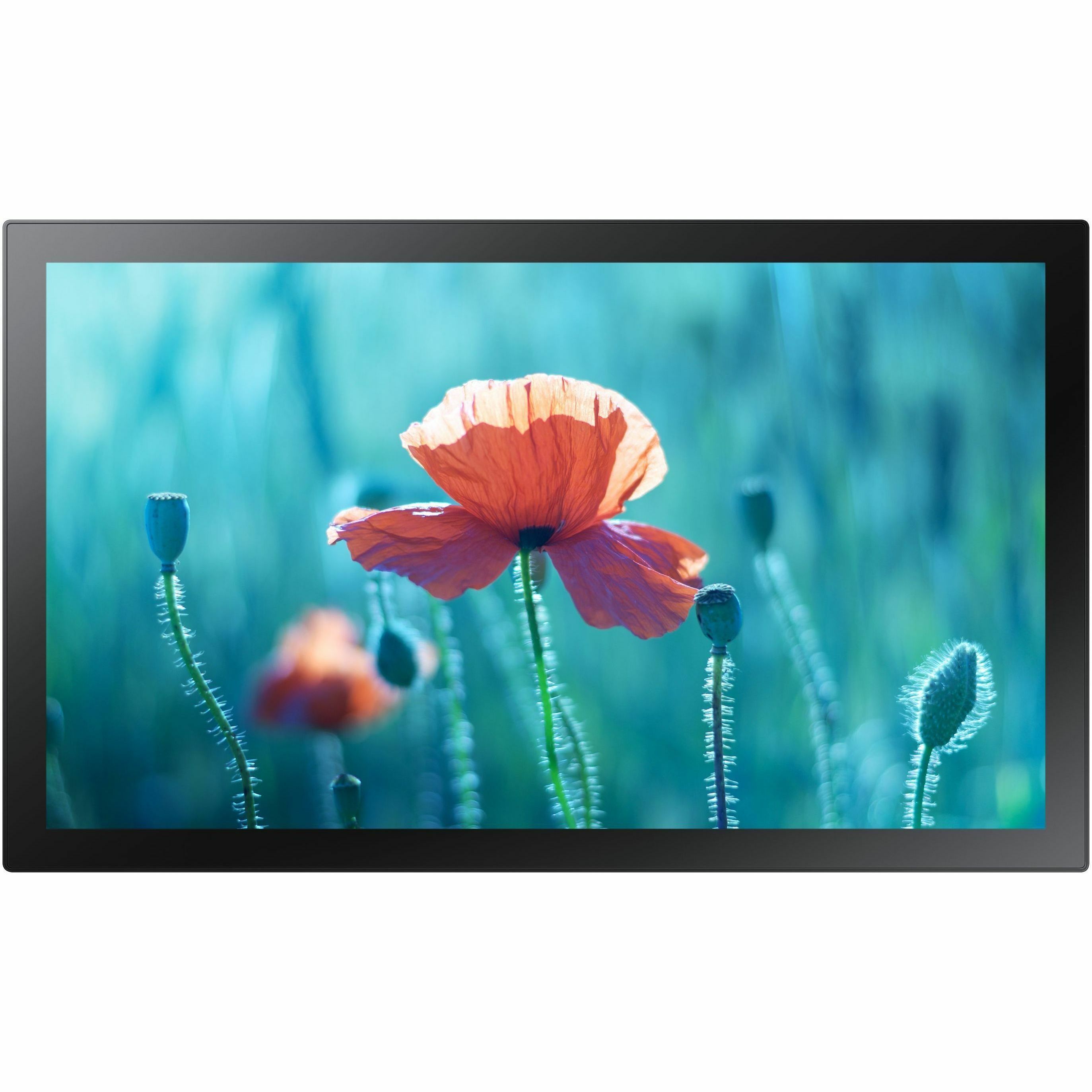

Crisp and visible content

The display supports 1920x1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel that always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

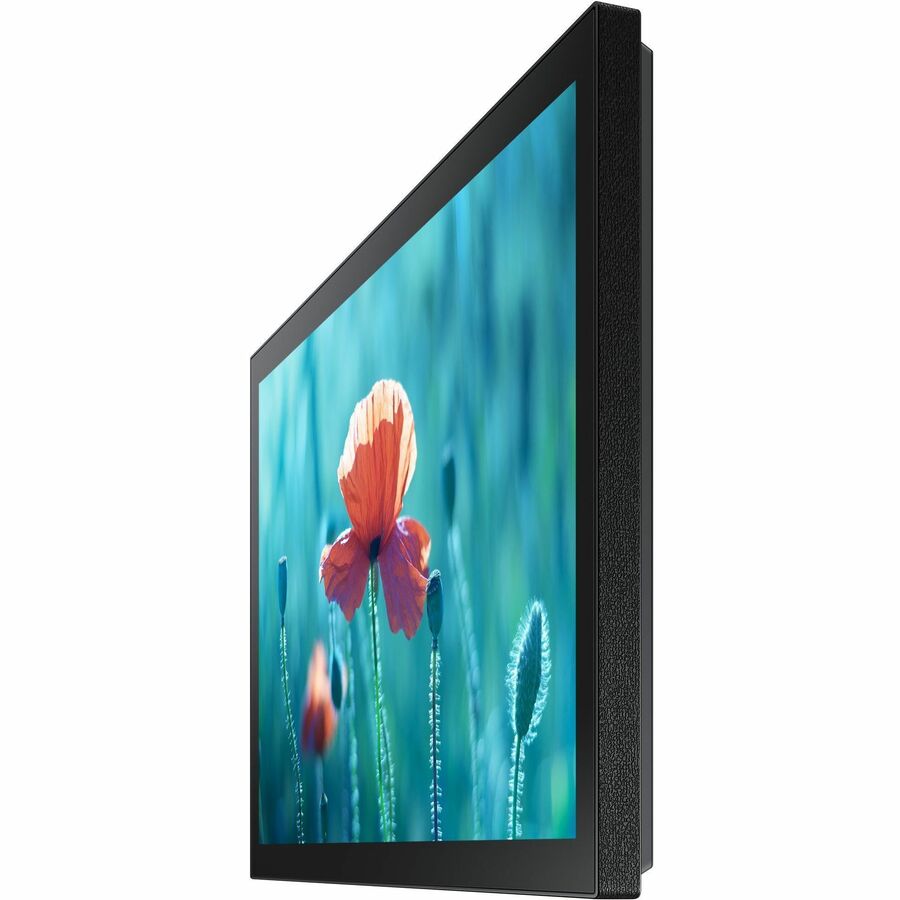

Slim, smart design

The compact and slim design of the QB13R-TM allows for efficient space utilisation, even in compact locations. A sleek back design makes the display optimal for both wall mounting or free standing, while the connectivity, content play and device controls are easy to operate.

Powerful content playback

With an embedded MagicINFO S player, backed by TIZEN, the QB13R-TM allows efficient and seamless playback without any external media player. Samsung Smart Signage Platform (SSSP) also allows easy content development through reinforced compatibility with multiple web formats.

Comprehensive security setup

The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorised access.

Convenient, clean display control

With centre IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, the display does not require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance

The QB13R-M is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Product TypeDigital Signage Display
Technical Information
Bezel Width0.52" (13.10 mm)
Ingress Protection (IP) RatingIP5X
Panel TechnologyAdvanced Super Dimension Switch ( ADS )
Operation Hours16 Hours/ 7 Days
Display & Graphics
Number of Screens1
Viewable Screen Size13" (330.20 mm)
Display Screen TypeLCD
TouchscreenYes
Multi-touch ScreenYes
Number of Simultaneous Touchpoints10
Display Resolution1920 x 1080
Graphics ModesFull HD
Response Time30 ms
Pixel Pitch6.02 mil (0.15 mm)
Backlight TechnologyEdge LED
Video
Scan Format1080p
Dynamic Contrast Ratio10,000:1
Native Contrast Ratio600:1
Brightness500 cd/m²
Color Gamut45%
Network & Communication
EthernetYes
Wireless LANYes

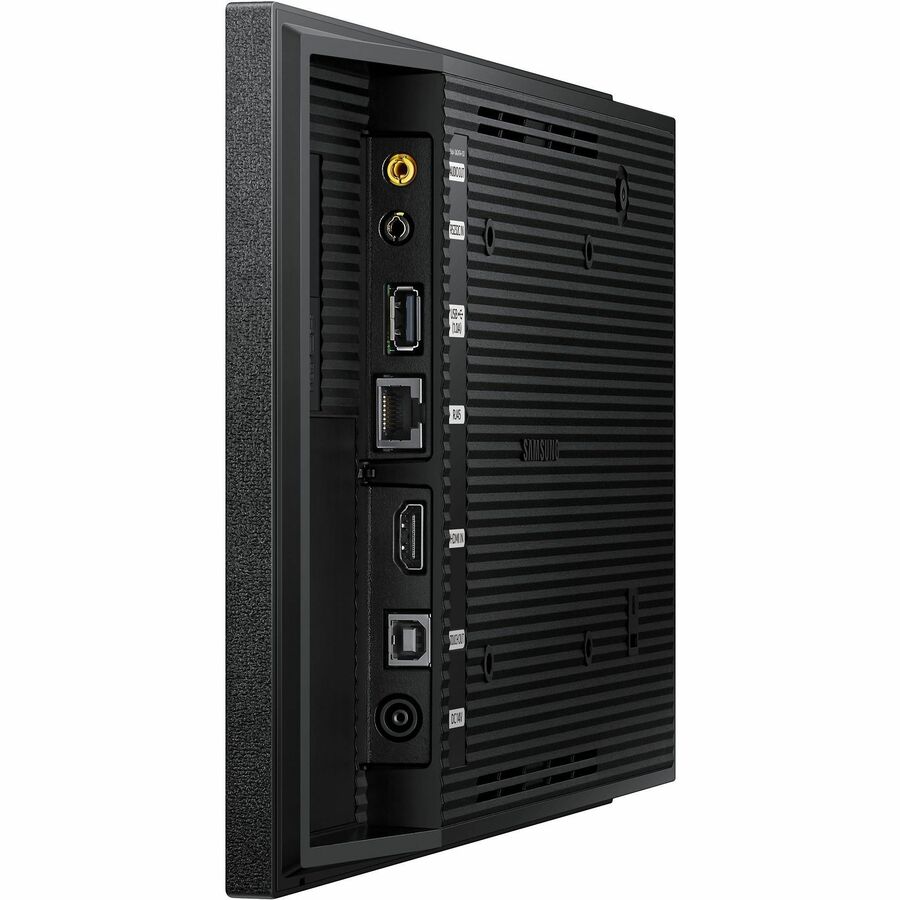

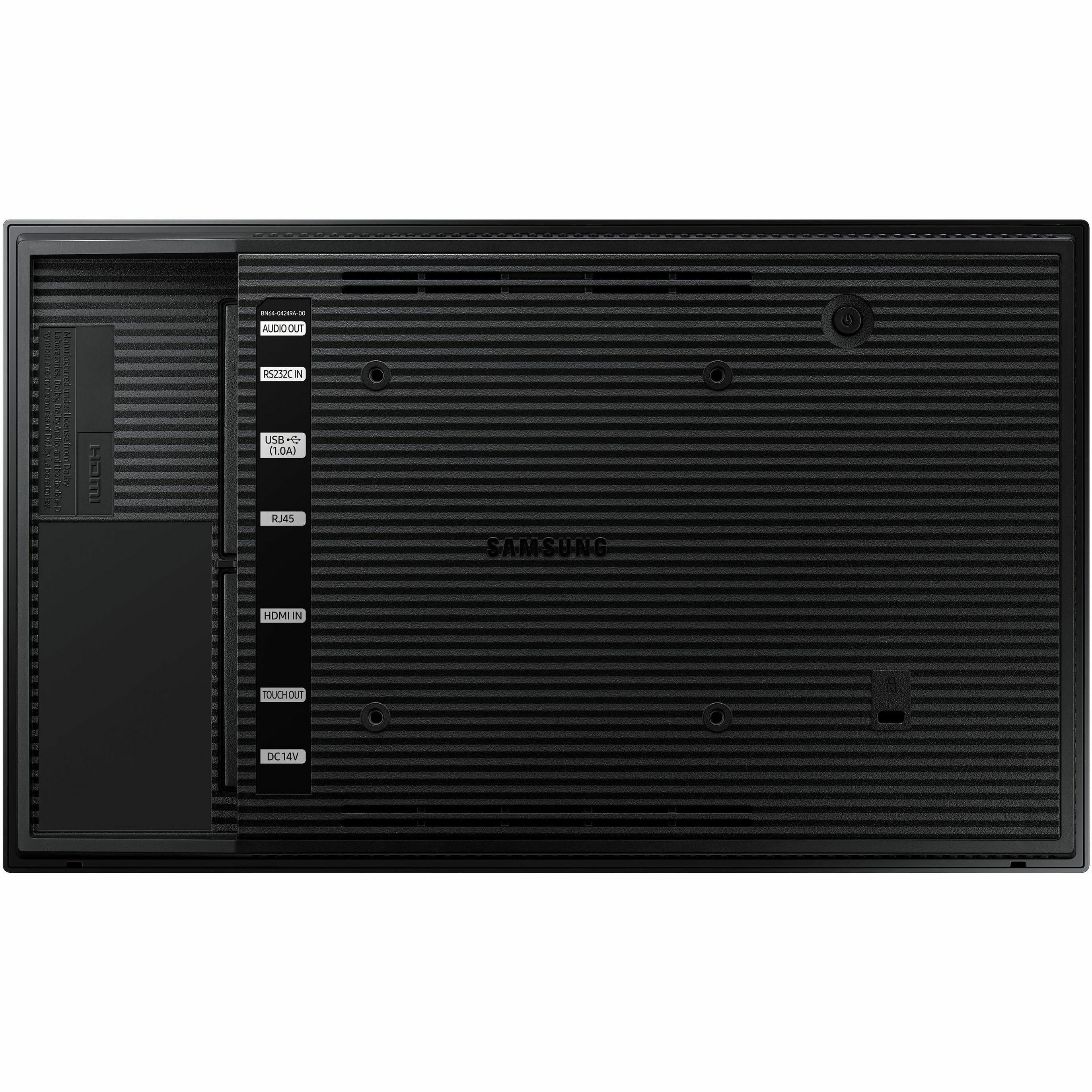

Interfaces/Ports
USBYes
HDMIYes
DisplayPortNo
SerialYes
Number of HDMI Inputs1
RS-232C InputYes
Software
Operating SystemTizen 4.0
Power Description
Input Voltage
  • 120 V
  • 230 V AC
Environmental Conditions
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Minimum Operating Humidity10%
Maximum Operating Humidity80%
Physical Characteristics
Color FamilyBlack
Product ColorBlack
VESA Mount Standard100 x 100

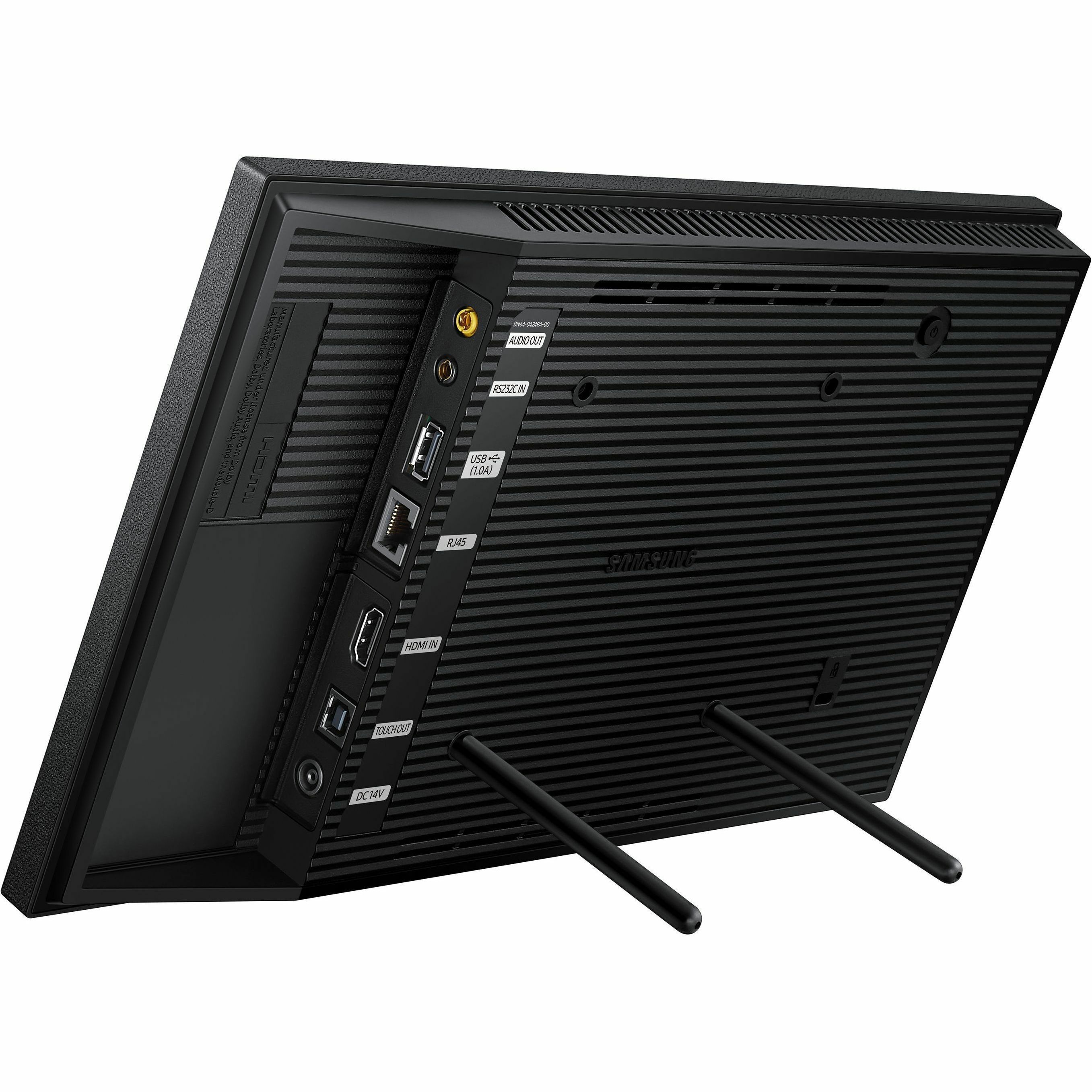

Mount Type
  • Wall Mountable
  • Stand Mount
Height7.62" (193.50 mm)
Width12.68" (322 mm)
Depth1.17" (29.80 mm)
Weight (Approximate)2.43 lb (1100 g)
Miscellaneous
Application/UsageBusiness
ConditionNo
UPC0887276769080
