Honeywell Xenon Ultra 1962h Healthcare Scanner

Part No. 1962HSR-5USB-5-N

by Honeywell International, Inc

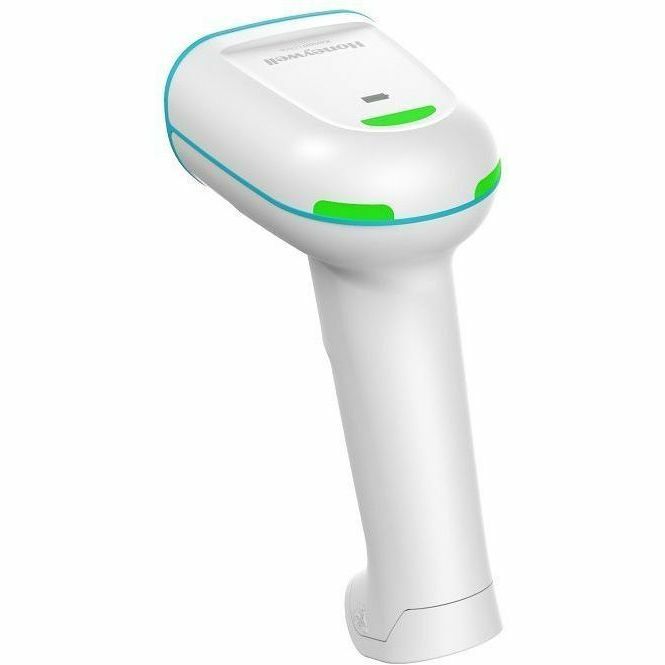

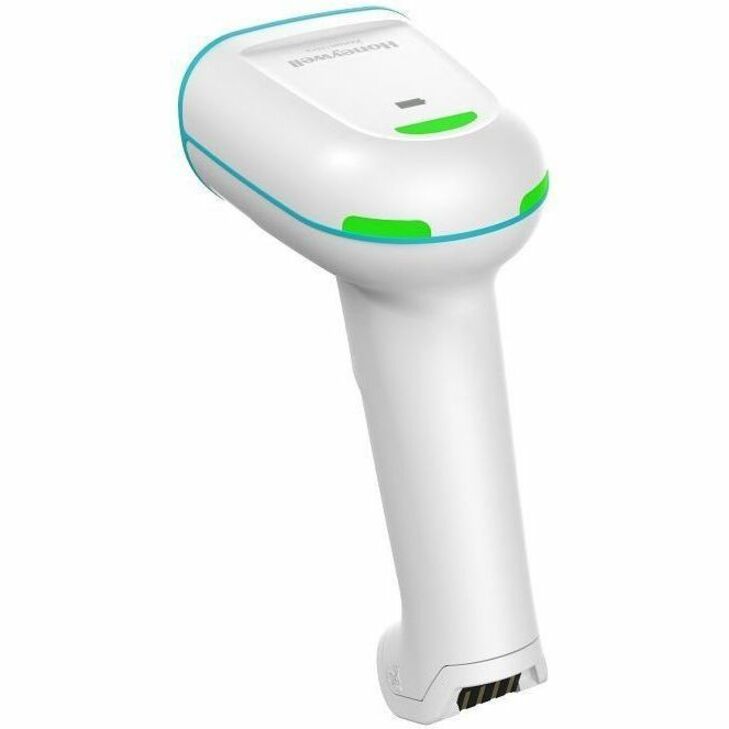

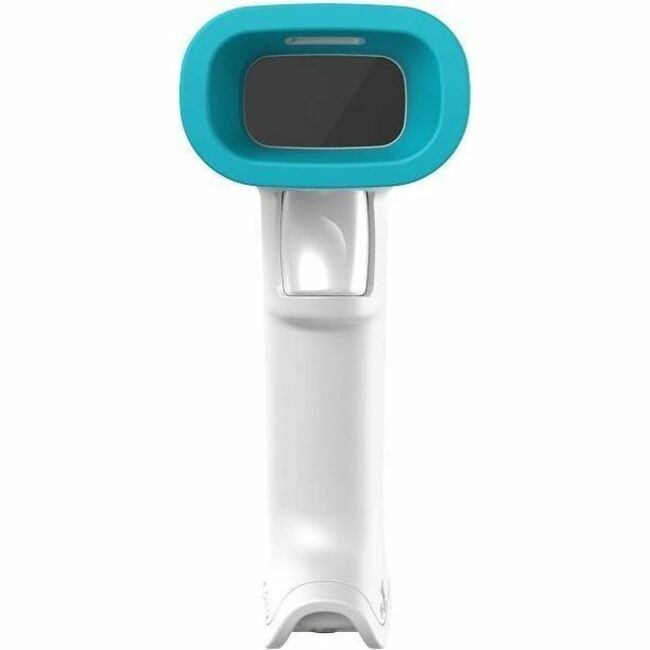

Honeywell Xenon Ultra 1962h Healthcare Scanner

Wireless Connectivity - 1 scan/s - 1D, 2D - LED - Imager - Bluetooth, Radio Frequency - USB - IP52, IP41 - Healthcare, Inventory, Asset Tracking, Pharmacy, Specimen Collection

Part No. 1962HSR-5USB-5-N

by Honeywell International, Inc

$1414.99
General Information
ManufacturerHoneywell International, Inc
Manufacturer Part Number1962HSR5USB5N
Brand NameHoneywell
Product LineXenon
Product Model1962hÂ
Product NameXenon Ultra 1962h Healthcare Scanner
Marketing Information

Continuing the legacy of barcode technology, Honeywell's Xenon Ultra helps to ensure clinicians are delivering fast, accurate and reliable patient care.

The Xenon Ultra 1962h incorporates Honeywell's next generation of scanning capability- allowing patient care to stay top priority for clinicians, helping improve retention of employees and helping lower the total cost of ownership for hospitals.

Developed with the healthcare environment in mind, the Xenon Ultra offers an improved design which reduces the amount of nooks or crannies, helping to limit areas where germs could linger and hide.

Freedom of movement around patients, family members, and expensive equipment - particularly in congested patient rooms or ICUs - is a continued challenge for today's clinician. As more and more technology is packed into the modern-day patient room, free space comes at a premium. The Xenon Ultra 1962h scanner takes up minimal space, can be mounted or stored in a variety of different places, ensuring nurses' focus is on patient safety and comfort. One scanner can now accept multiple power sources. Available with a battery-free supercapacitor or standard lithium-ion battery, both power options are also available in contactless orientations.

The battery-free technology runs on supercapacitors versus a battery and is capable of achieving a full charge in less than four minutes via the USB Port (under 60 seconds when using a powered USB port or external wall adapter). The Xenon Ultra 1962h scanner typically provides at least 450 scans of UPC/EAN Codes without recharging. This makes the scanner ideal for scanning applications at the bedside such as medicines administration or specimen collection.

Product TypeBarcode Scanner Kit
Technical Information
Connectivity TechnologyWireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported
  • Reads standard 1D
  • PDF
  • 2D
  • Postal Digimarc
  • DOT Code
  • OCR
Light SourceLED
Image Sensor TypeImager
Scan Rate1 scan/s
Depth of Field
  • Refer to the datasheet or users' manual for full depth of field specifications
Scanner RangeStandard Range
Field of View (Horizontal)42°
Field of View (Vertical)36°
Reading Angle (Skew)65°
Reading Angle (Pitch)65°
Reading Angle (Roll)360°
Motion Tolerance157.48 in/s (4000 mm/s)
Maximum Ambient Light100000 lux
Drop Specification

Engineered to withstand 50 1.8 m drops to concrete across operating temp range

Minimum Element Resolution (Code 39)3 mil (0.08 mm)
Maximum Element Resolution (Code 39)20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix)5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix)10 mil (0.25 mm)
Minimum Element Resolution (PDF417)5 mil (0.13 mm)
Maximum Element Resolution (PDF417)6.70 mil (0.17 mm)
Image Sensor Resolution1280 x 1088
Illumination ColorWhite
Network & Communication
BluetoothYes
Radio FrequencyYes
Interfaces/Ports
Host InterfaceUSB
Power Description
Maximum Operating Power Consumption2.50 W
Battery Information
Battery IncludedYes
Battery ChemistryLithium Ion (Li-Ion)
Battery Capacity3300 mAh
Maximum Battery Recharge Time4.50 Hour
Environmental Conditions
Operating Temperature41°F (5°C) to 95°F (35°C)
Storage Temperature-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing)95%
Physical Characteristics
Form FactorHandheld
Height6.31" (160.20 mm)
Width2.77" (70.40 mm)
Length4.26" (108.20 mm)
Weight (Approximate)8.99 oz (255 g)
Miscellaneous
Package Contents
  • Xenon Ultra 1962h Healthcare Scanner
  • USB Type A

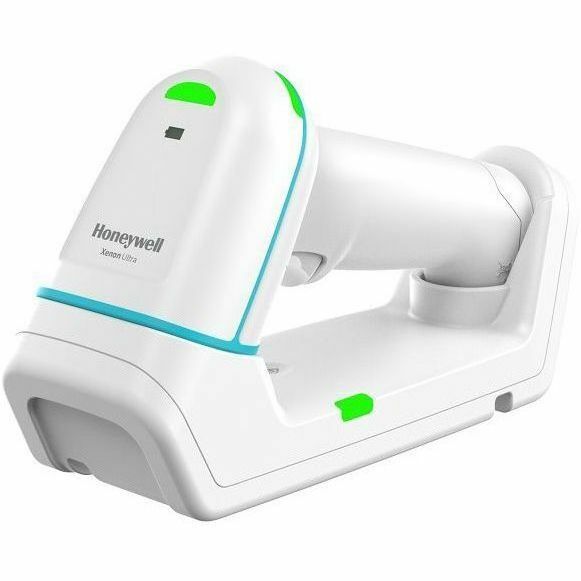

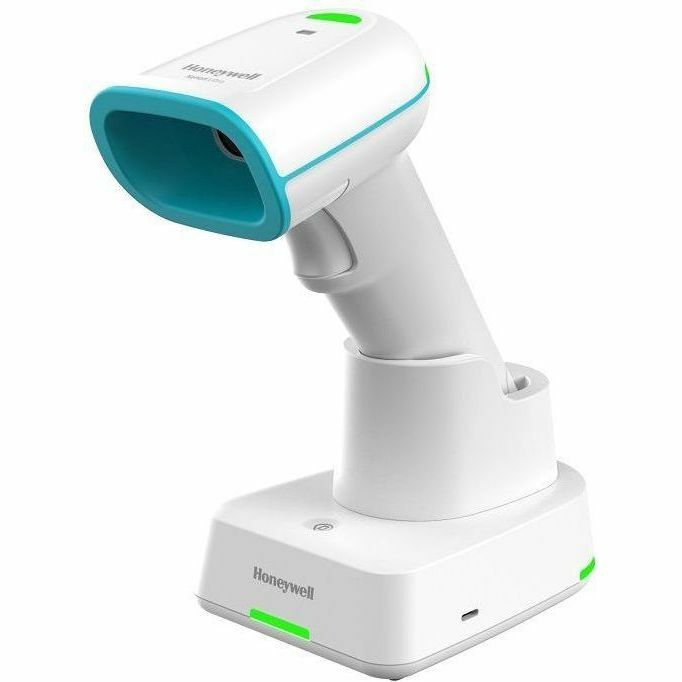

  • Presentation Charge and Communication Base
  • Ingress Protection (IP) Rating
    • IP52
    • IP41
    Application/Usage
    • Healthcare
    • Inventory
    • Asset Tracking
    • Pharmacy
    • Specimen Collection
    ConditionNo
    Warranty
    Limited Warranty3 Year
