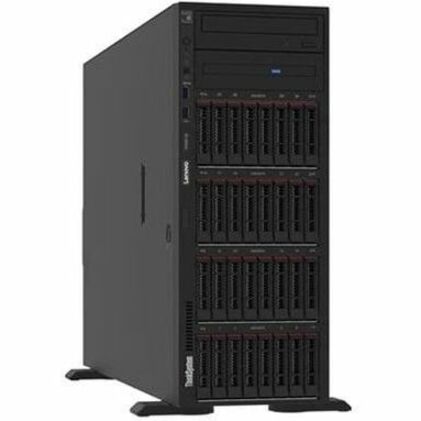

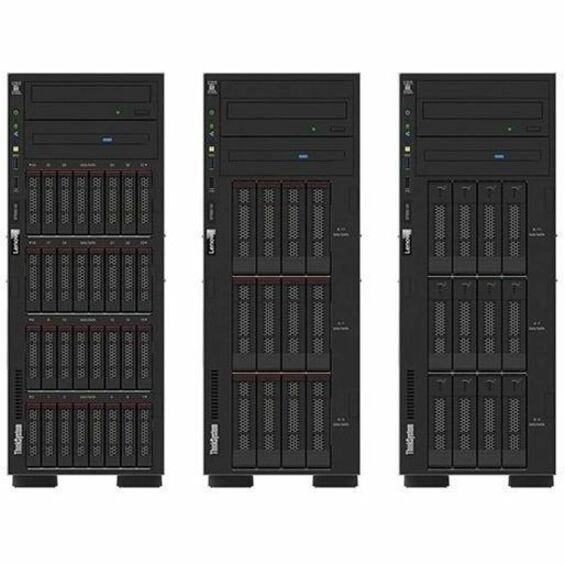

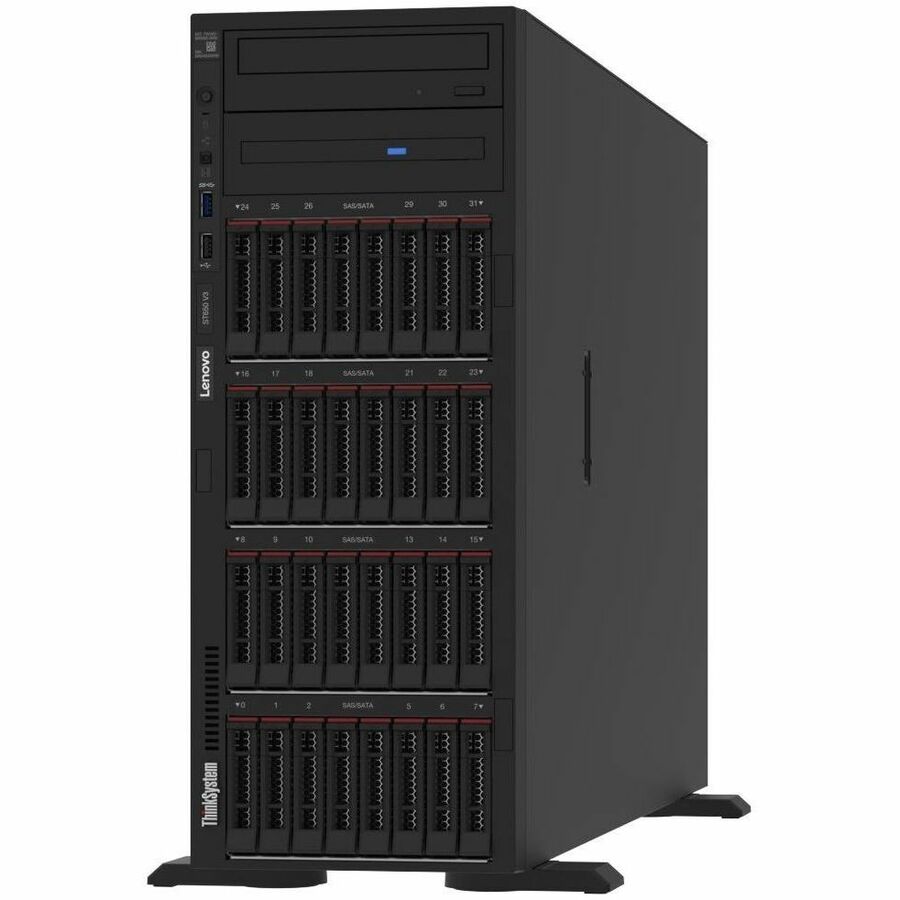

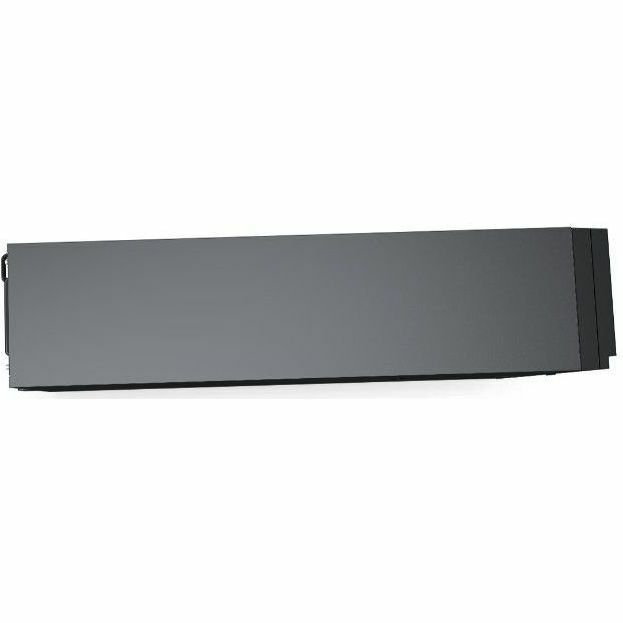

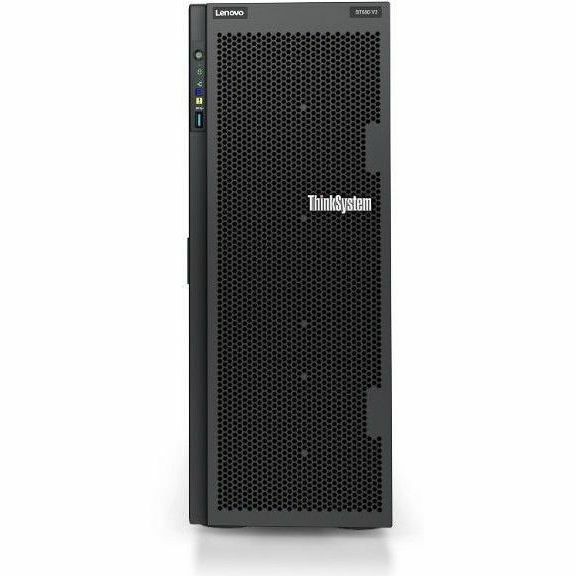

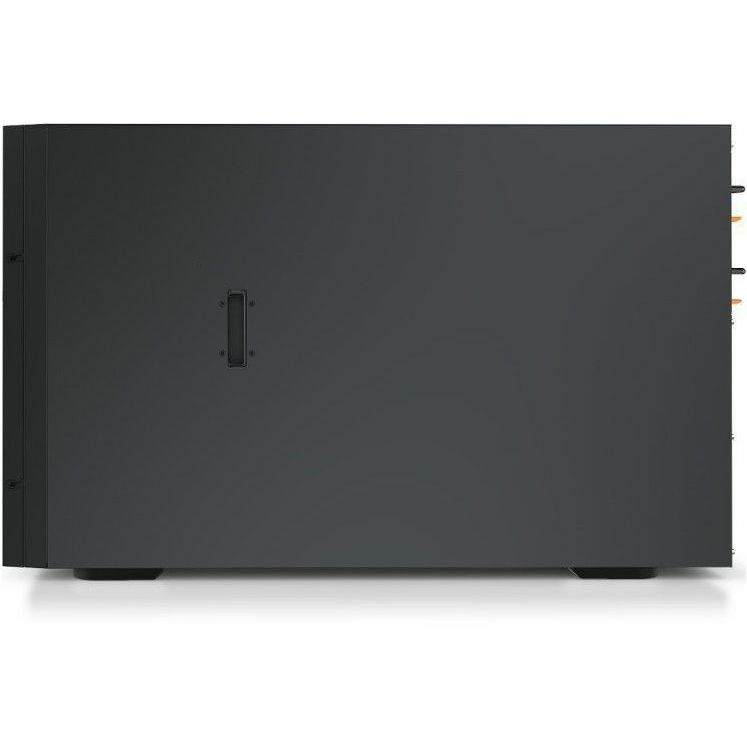

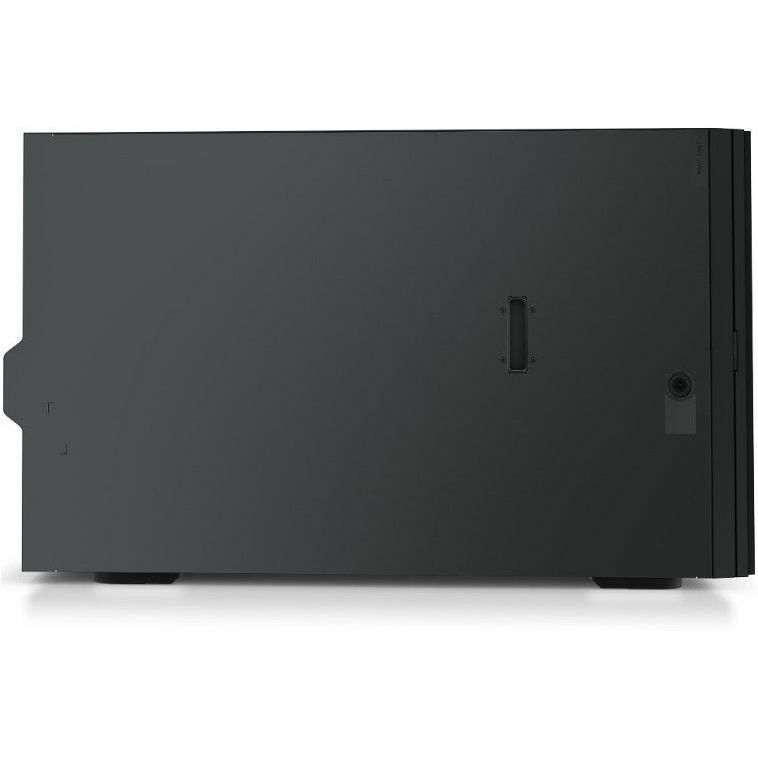

Lenovo ThinkSystem ST650 V3 7D7A1001NA 4U Tower Server - 1 Xeon Silver 4410T 2.70 GHz - 32 GB RAM - Serial ATA, 12Gb/s SAS Controller

Part No. 7D7A1001NA

by Lenovo Group Limited

This Product is currently not in offering

Lenovo ThinkSystem ST650 V3 7D7A1001NA 4U Tower Server - 1 Xeon Silver 4410T 2.70 GHz - 32 GB RAM - Serial ATA, 12Gb/s SAS Controller

Part No. 7D7A1001NA

by Lenovo Group Limited

This Product is currently not in offering

General Information
ManufacturerLenovo Group Limited
Manufacturer Part Number7D7A1001NA
Brand NameLenovo
Product LineThinkSystem
Product SeriesST650 V3
Product Model7D7A1001NA
Product NameThinkSystem ST650 V3 7D7A1001NA Server
Marketing Information

The Lenovo ThinkSystem ST650 V3 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

Product TypeServer
Processor
Number of Processors Supported2
Number of Processors Installed1
Processor TypeXeon Silver
Processor Generation4th Gen
Processor Model4410T
Processor CoreDeca-core (10 Core)
Processor Speed2.70 GHz
Cache26.25 MB
Chipset
Chipset ManufacturerIntel
Chipset ModelC741
Memory
Standard Memory32 GB
Maximum Memory Supported4 TB
Memory TechnologyTruDDR5
Memory Clock Speed4.80 GHz
Total Number of Memory Slots32
Number of Occupied Memory Slots1
Error CheckingECC
Signal ProcessingRegistered (Buffered)
Controllers
Controller Type
  • Serial ATA
  • 12Gb/s SAS
Controller Model9350-8i
RAID SupportedYes
I/O Expansions
Number of Total Expansion Bays10
Number of External 5.25" Bays2
Number of Internal 2.5" Bays8
Number of SFF Bays8
Hot Swappable BaysYes
Total Number of Expansion Slots9
PCI Express DetailsUp to nine PCIe slots, five of which are PCIe 5.0.
Display & Graphics
Graphics Memory Capacity16 MB
Network & Communication
Ethernet Technology10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports8
Number of USB 2.0 Ports1
Network (RJ-45)Yes
Number of Network (RJ-45) Ports2
VGAYes
Remote ManagementYes
Remote Management ControllerXCC Platinum
Operating System
Operating System Supported
  • Windows Server 2019
  • Windows Server 2022
  • Red Hat Enterprise Linux 8.6
  • Red Hat Enterprise Linux 8.7
  • Red Hat Enterprise Linux 9.0
  • Red Hat Enterprise Linux 9.1
  • SUSE Linux Enterprise Server 15 SP4
  • Ubuntu 22.04 LTS x64
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Number of Power Supplies Supported2
Number of Power Supplies Installed1
Plug/Connector TypeC13
Maximum Power Supply Wattage750 W
Hot Swappable Power SupplyYes
Miscellaneous
Package Contents
  • ThinkSystem ST650 V3 7D7A1001NA Server
  • Power Cord
Security Features
  • Power-on password
  • Administrator's password
  • Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR).
Energy StarYes
Environmentally FriendlyYes
Environmental Certification
  • China Environmental Labeling Program (CELP)
  • Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
  • GREENGUARD
Energy Efficiency Certification
  • China Energy Conservation Program (CECP)
  • ENERGY STAR 3.0
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Physical Characteristics
Form FactorTower
Rack Height4U
Height18.19" (462 mm)
Width6.89" (175 mm)
Depth28.90" (734 mm)
Weight (Approximate)86.20 lb (39100 g)
Warranty
Limited Warranty3 Year
Additional Warranty Information

Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
