Tapo C520WS 4 Megapixel Outdoor 2K Network Camera - Color

Part No. TAPO C520WS

by TP-LINK Technologies Co., Ltd

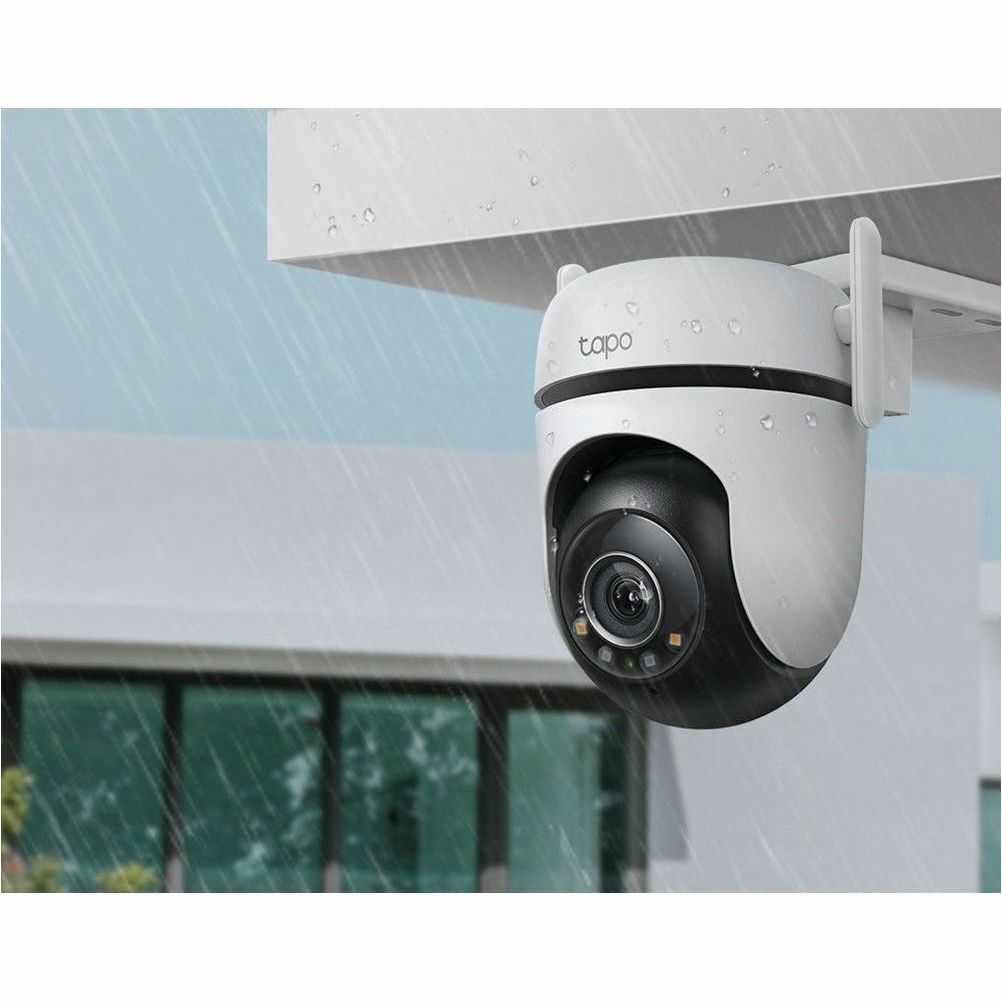

Tapo C520WS 4 Megapixel Outdoor 2K Network Camera - Color

98 ft (29.87 m) Color Night Vision - H.264 - 2560 x 1440 - 30 fps - CMOS - Wi-Fi - Ethernet - Wall Mount, Ceiling Mount, Pole Mount - Alexa, Google Home, Google Assistant Supported - IP66 - Weather Proof, Water Proof, Dust Proof

Part No. TAPO C520WS

by TP-LINK Technologies Co., Ltd

$100.99
General Information
ManufacturerTP-LINK Technologies Co., Ltd
Manufacturer Part NumberTAPOC520WS
Brand NameTapo
Product ModelC520WS
Product NameOutdoor Pan/Tilt Security Wi-Fi Camera
Marketing Information

See Colors in Low Light

Equipped with an F1.6 large-aperture lens and starlight sensor, TapoC520WS captures more light and has higher photosensitivity, revealing colorful images even without spotlights on.

Multiple Night Vision Modes

Tapo C520WS offers 3 night vision modes to choose from. Full-Color Mode provides 24/7 full-time colors while Smart Mode will only turn on spotlights for colorful pictures when an event is detected. Infrared Mode is also supported for your convenience.

Brighter than Full-Color

TapoC520WS renders brighter images than other full-color night vision cameras with spotlights on due to its starlight sensor.

2K QHD Crystal Clear View

Now with 1.7 times more pixels than 1080p, providing clearer videos and more crisp photos.


Multiple AI Detection, All for Free!

Smart AI identifies people, pets, and vehicles, notifying users as needed. All are provided for free.


Customize Your Detection

Adjust the sensitivity of motion detection and set up activity zones/boundaries for your convenience. You can also turn on the patrol mode to keep the camera cruising between two customized points

Reliable Networking, Flexible Connection

Dual powerful external antennas provides larger wireless coverage(up to 492 ft in open areas*) and more stable connection. You can also connect you're your camera to the network through the RJ45 Ethernet port


Product TypeNetwork Camera
Technical Information
Recording Formats2K
HD RecordingYes
Night VisionYes
Night Vision Distance98 ft (29.87 m)
Night Vision TypeColor
Virtual Assistant Supported
  • Alexa
  • Google Home
  • Google Assistant
Display & Graphics
Image Sensor TypeCMOS
Image Sensor Size1/3"
Color SupportedColor
Field of View360° horizontal and 130° vertical
Effective Camera Resolution4 Megapixel
Video
Video FormatsH.264
Maximum Video Resolution2560 x 1440
Maximum Frame Rate30 fps
Lens
Maximum Aperturef/1.6
Network & Communication
Connectivity TechnologyWired & Wireless
Wireless TechnologyWi-Fi
Ethernet TechnologyEthernet
Protocols
  • TCP/IP
  • ICMP
  • DNS
  • HTTPS
  • TCP
  • UDP
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage
  • 100 V AC
  • 240 V AC
Power Source TypeAC
Physical Characteristics
Mount Type
  • Wall Mount
  • Ceiling Mount
  • Pole Mount
Durability
  • Weather Proof
  • Water Proof
  • Dust Proof
Height3.50" (88.90 mm)
Width4.90" (124.46 mm)
Depth4.80" (121.92 mm)
Environmental Conditions
Minimum Operating Temperature-22°F (-30°C)
Maximum Operating Temperature140°F (60°C)
Maximum Operating Humidity90%
Miscellaneous
Features
  • Vehicle Detection
  • Motion Detection
  • Cross Line Detection
  • Motion Tracking
  • Built-in Microphone
  • Built-in Speaker
  • Human Detection
Indoor/OutdoorOutdoor
Package Contents
  • Tapo C520WS Camera
  • Power Adapter (3.0m)
  • Mounting Anchors
  • Mounting Screws
  • Bracket Screws
  • Mounting Template
  • Mounting Bracket
  • Waterproof Seal
  • Waterproof Cable Attachments
  • Quick Start Guide
Ingress Protection RatingIP66
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0840030706042
