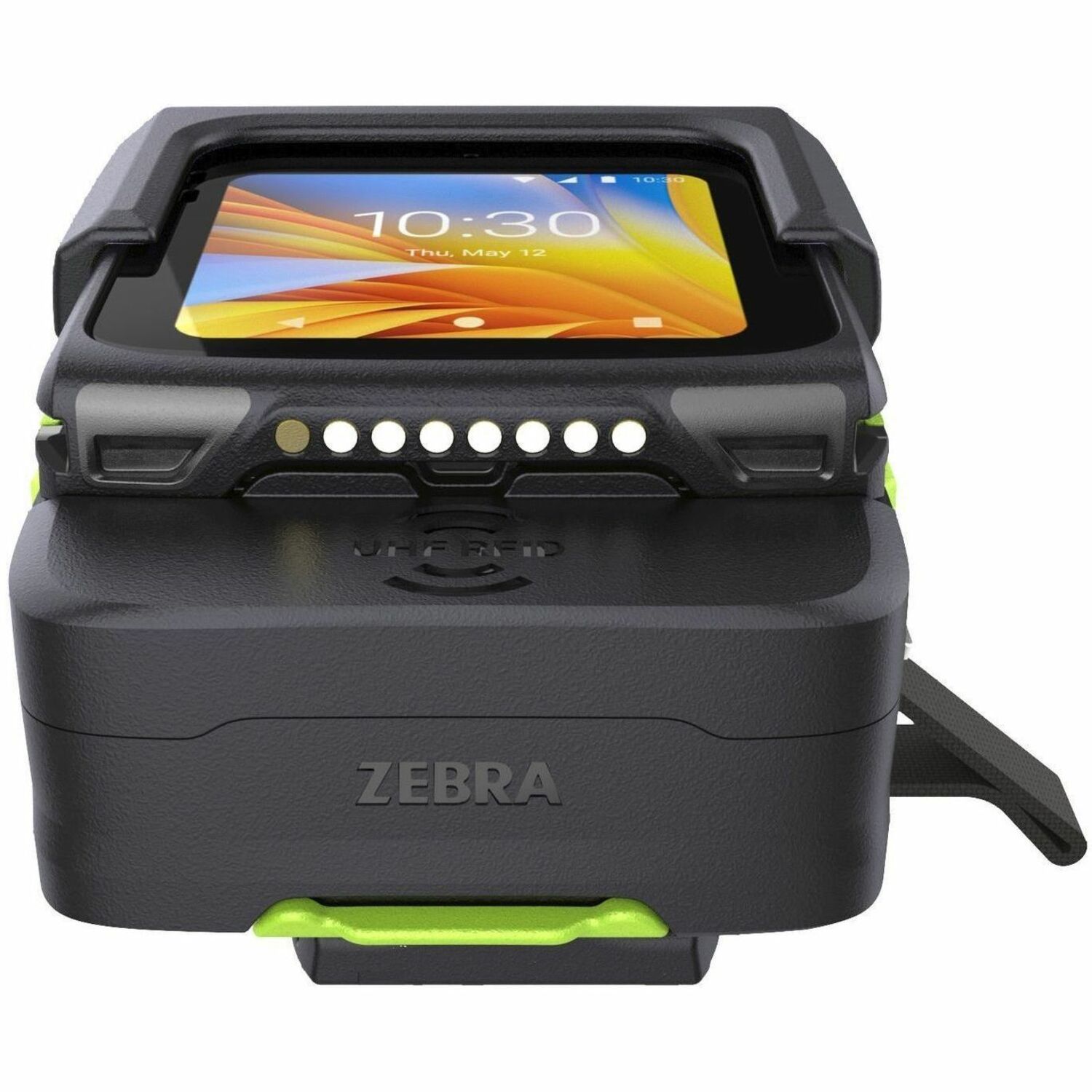

Zebra WS50 RFID Android Wearable Computer

Part No. WS5001-0D2J303PENA

by Zebra Technologies Corporation

Zebra WS50 RFID Android Wearable Computer

1D, 2D - 60" (1524 mm) - SE4770Scan EngineSnapdragon 2 GHz - 1 GB RAM - 8 GB Flash - Touchscreen - LED - Android 11 - Wireless LAN - Bluetooth - Battery Included - IP65

Part No. WS5001-0D2J303PENA

by Zebra Technologies Corporation

$2385.99
General Information
ManufacturerZebra Technologies Corporation
Manufacturer Part NumberWS50010D2J303PENA
Brand NameZebra
Product ModelWS50
Product NameWS50 RFID Android Wearable Computer
Marketing Information

The world's smallest all-in-one enterprise-class wearable computer - now with RFID

The WS50 RFID is another industry first from Zebra, packing even more functionality into the world's smallest all-in-one enterpriseclass Android wearable computer. Now, you can give your disconnected task workers more tools to complete more types of tasks, boosting collaboration, productivity and workflow efficiency to the next level. With this powerful little device, your workers get an integrated ergonomic host-free UHF RFID reader, a barcode scanner that can capture virtually any barcode in any condition, two-way radio instant push-to-talk capabilities and more that can be worn on a wrist, back of the hand or two fingers. The advanced 2-inch touchscreen is perfect for task management, providing the right amount of screen space without compromising wearability. Designed for the enterprise, the WS50 RFID delivers the rugged reliability, multi-shift swappable battery power and easy manageability that your business needs. And Mobility DNA adds unmatched value with features that make these devices easier to use and manage.

All the key features of a full-size mobile computer

Optimize efficiency and accuracy with enterprise-class UHF RFID

With high performance UHF RFID functionality, the WS50 RFID empowers workers to be more efficient and effective. The WS50 RFID can read RFID tags up to 5 ft./1.5 m away. With an integrated upward facing antenna and external downward antenna, the WS50 RFID is ideal for a wide variety of use cases, including package sorting, item picking and user locationing. And Zebra's industryleading RFID technology ensures extraordinary reliability and read accuracy.

Better connect your workforce with push-to-talk (PTT) and task management applications

All models are PTT ready, enabling managers and workers to instantly collaborate for faster issue resolution and increased staff productivity. All models also support task management applications, enabling better staff utilization and management.

Advanced enterprise-class scanner for intense barcode scanning

The WS50 RFID includes Zebra's SE4770 imager, delivering superior data capture performance. Scan virtually any barcode in practically any condition, as fast as you can press the trigger - even if they are damaged or poorly printed. Superior motion tolerance enables the capture of barcodes, even if the scanner and barcode are in motion. No need to depress the trigger for every scan - scan continuously with an optional integrated proximity sensor. A wide field of view makes it easy to capture large or multiple barcodes with split-second point-and-shoot simplicity. And with a single trigger press, capture,

Designed for maximum flexibility

True 'no-host' one-piece wearable

With the WS50 RFID, workers only need to wear one device to capture and access data instead of a host mobile computer and ring scanner, providing a true converged wearable solution. And push-totalk (PTT) support eliminates the need for separate voice devices.

Wear it your way with modular mounting options

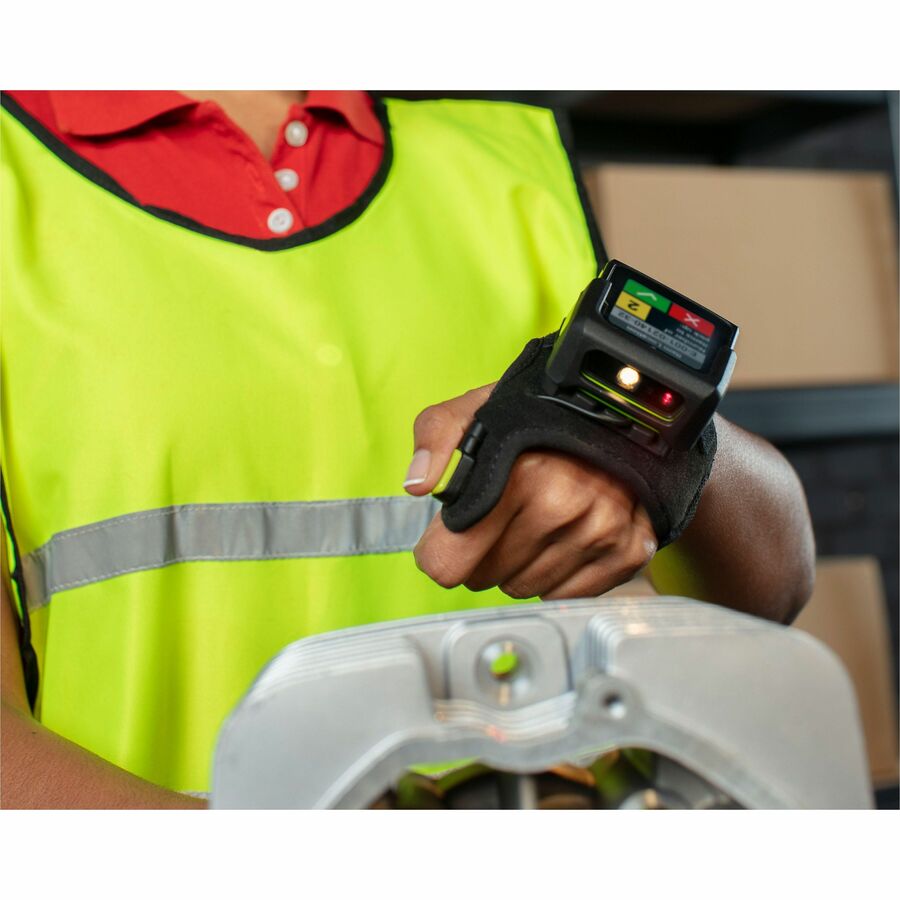

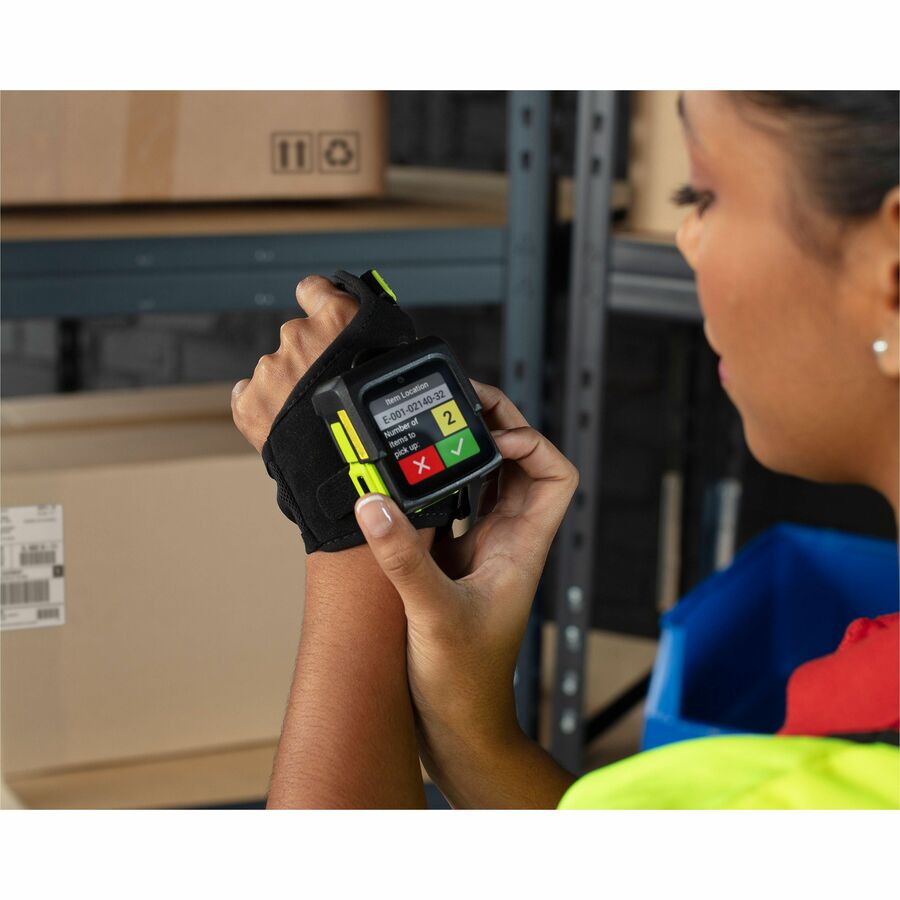

With three different wearing styles, the adaptable WS50 RFID is ideal for virtually any task worker in practically any industry. It can be worn on a wrist, two fingers or the back of the hand.

Product TypeHandheld Terminal
Technical Information
Connectivity TechnologyWireless
Scanning Capability
  • 1D
  • 2D
Scan Engine ModelSE4770
Image Sensor TypeImager
Image Sensor Resolution1280 x 800
Light SourceLaser
Scanner RangeStandard Range
Scanning Distance60" (1524 mm)
Sensor Type
  • Proximity
  • Light Sensor
  • Motion Sensor
  • Accelerometer
  • Gyroscope
FeaturesGorilla Glass
Drop Specification

5 ft./1.5 m drop to concrete per MIL-STD 810G across operating temperature

Scan ModeTrigger
Processor & Chipset
Processor TypeSnapdragon
Processor ModelSDW429w
Processor CoreQuad-core (4 Core)
Processor Speed2 GHz
Memory
Standard Memory1 GB
Flash Memory8 GB
Display & Graphics
Screen Resolution460 x 460
Display Screen TypeLED
Touchscreen Information
TouchscreenYes
Network & Communication
Wireless LANYes
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/d/h/i/r/k
BluetoothYes
Bluetooth StandardBluetooth 4.2
Near Field Communication (NFC)Yes
Software
Operating SystemAndroid 11
Battery Information
Battery Capacity2400 mAh
Battery IncludedYes
Removable BatteryYes
Environmental Conditions
Operating Temperature14°F (-10°C) to 122°F (50°C)
Storage Temperature-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing)5% to 95%
Physical Characteristics
Width2.40" (60.96 mm)
Depth1.49" (37.85 mm)
Length3.18" (80.77 mm)
Weight (Approximate)6.90 oz (195.611709 g)
Miscellaneous
Application/Usage
  • Retail
  • Warehouse
  • Distribution
  • Transportation
  • Logistics
  • Manufacturing
Ingress Protection (IP) RatingIP65
COOCN
ConditionNo
Warranty
Limited Warranty1 Year
