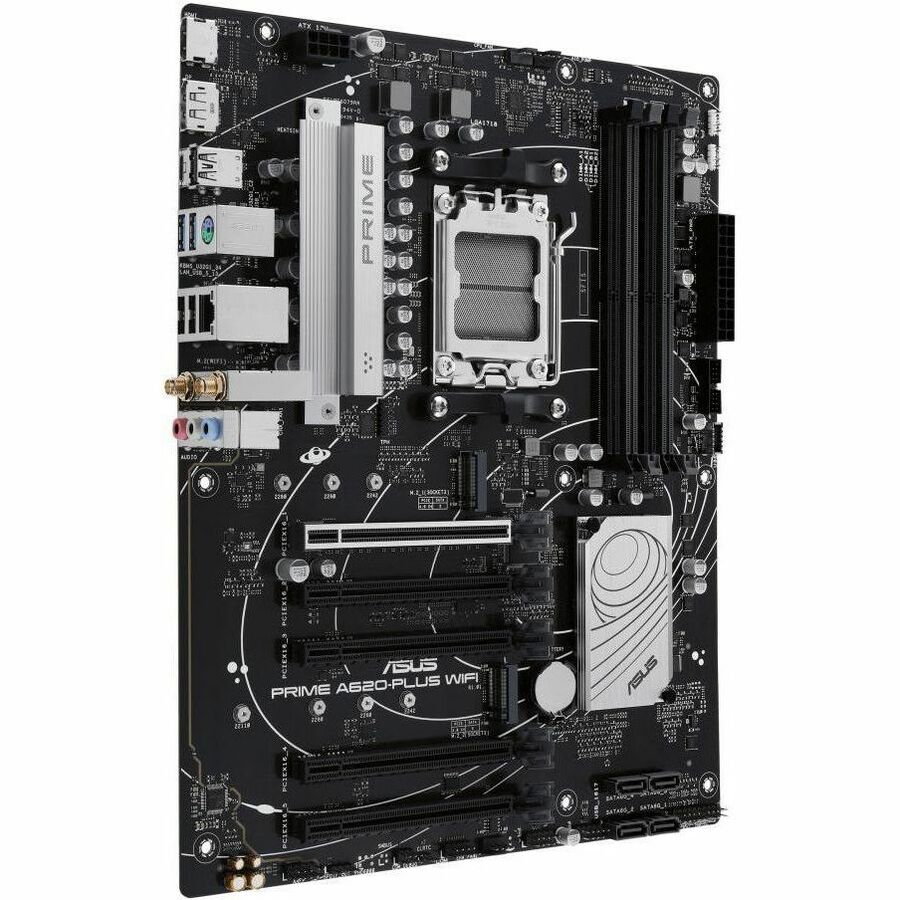

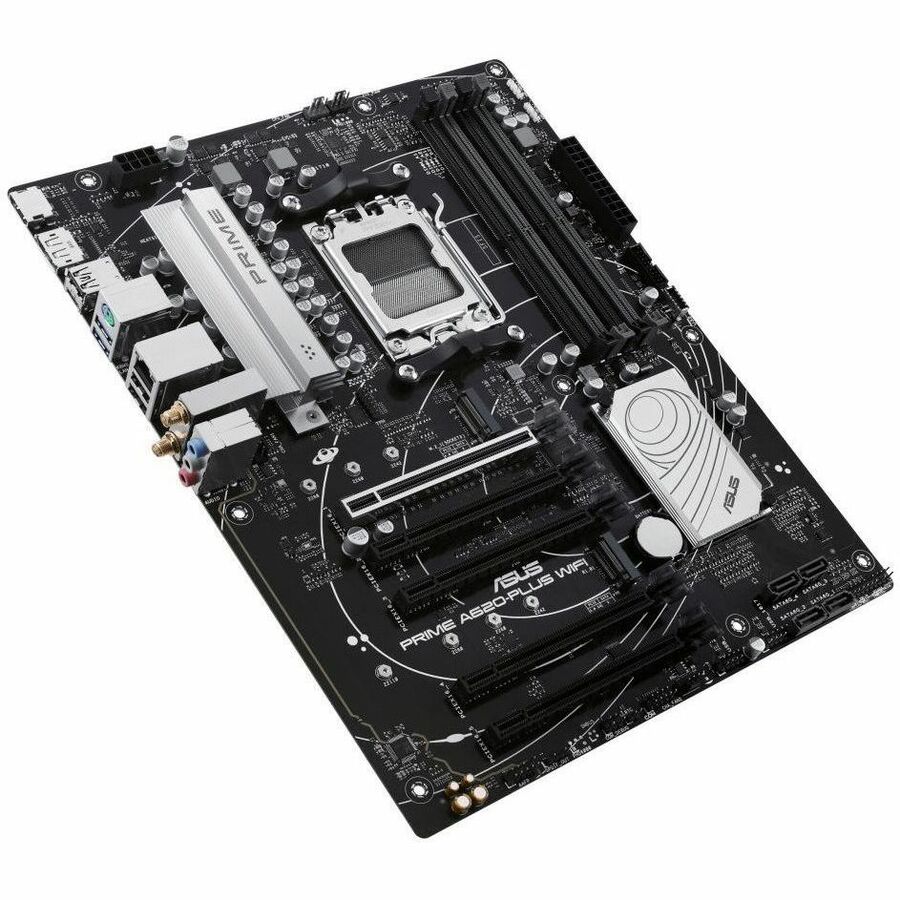

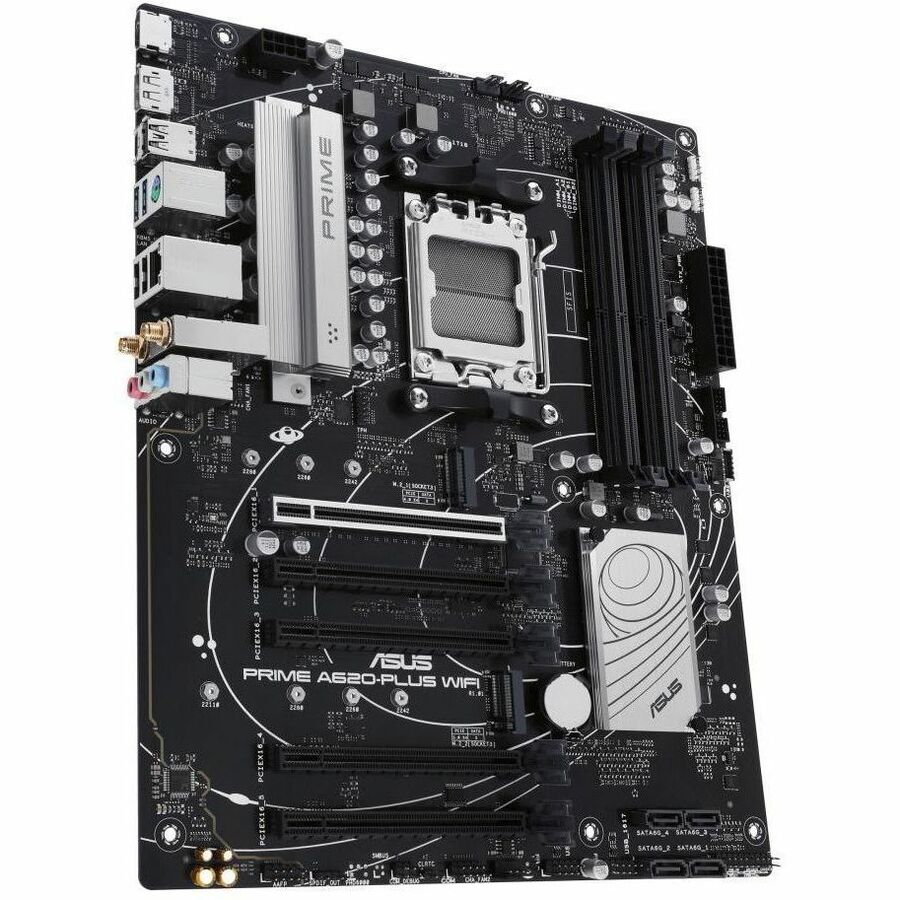

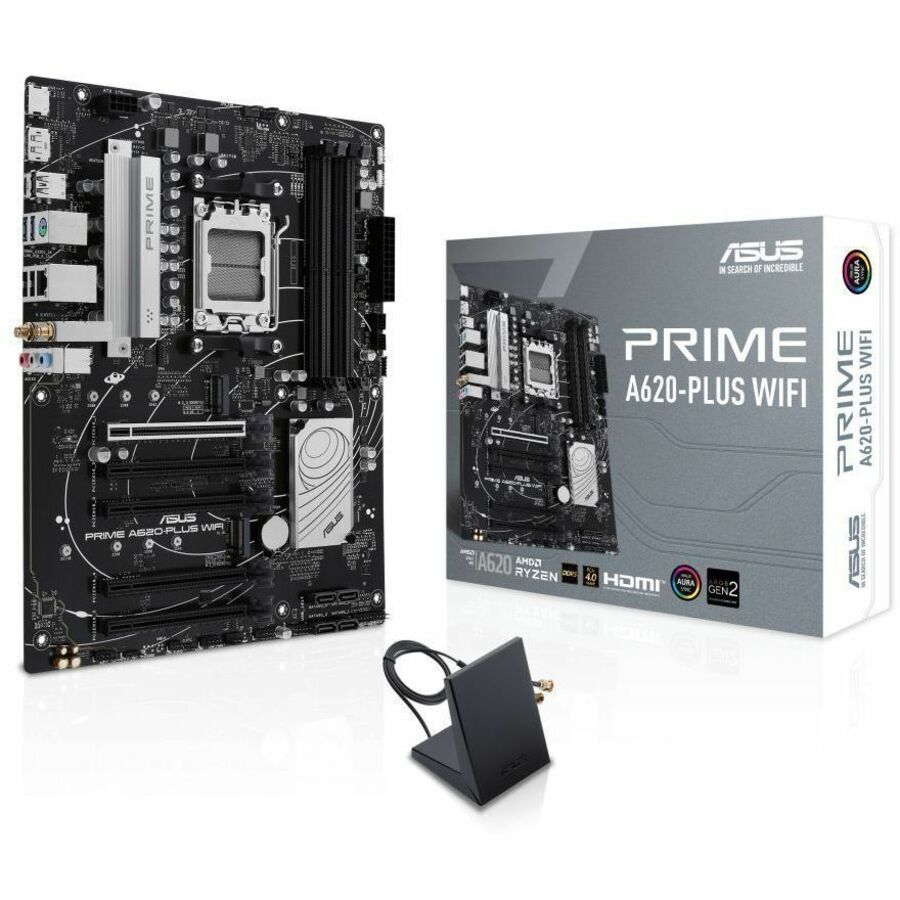

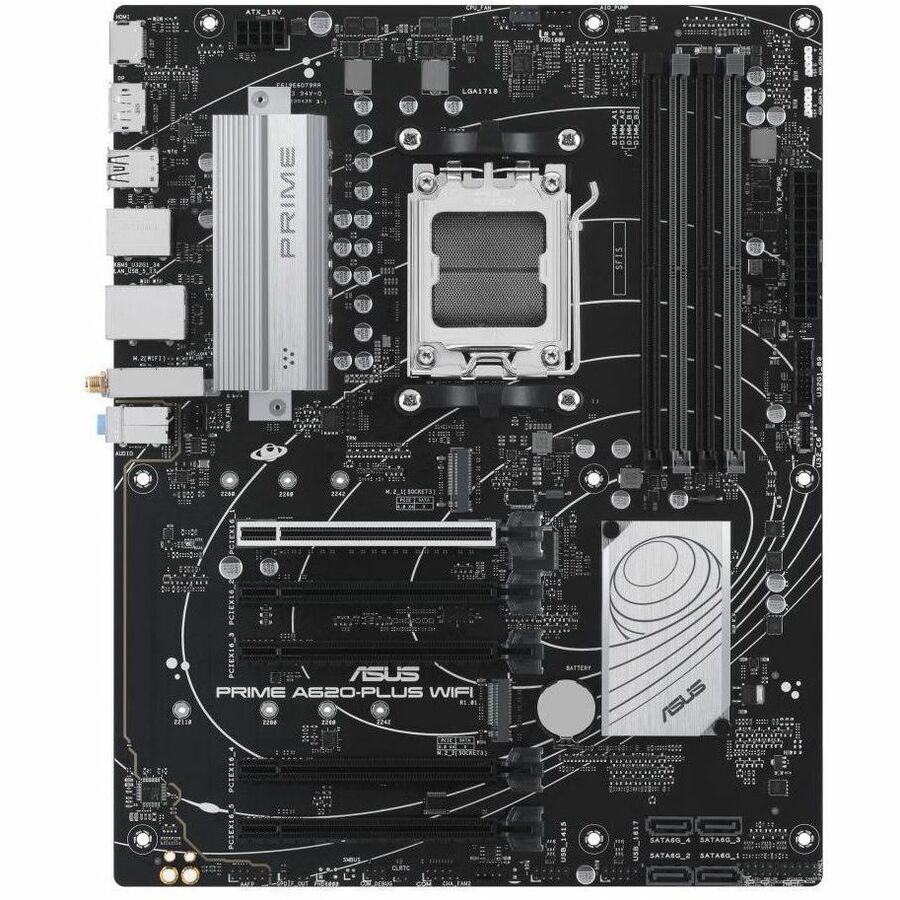

Asus Prime PRIME A620-PLUS WIFI Gaming Desktop Motherboard - AMD A620 Chipset - Socket AM5 - ATX
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PRIMEA620PLUSWIFI |
| Brand Name | Asus |
| Product Line | Prime |
| Product Model | PRIME A620-PLUS WIFI |
| Product Name | PRIME A620-PLUS WIFI Gaming Desktop Motherboard |
| Marketing Information | ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A620-PLUS WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
|
| Product Type | Gaming Desktop Motherboard |
Processor & Chipset
| Chipset Manufacturer | AMD |
| Chipset Model | A620 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7 |
Memory
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 192 GB |
| Memory Speed Supported |
|
| Memory Technology | DDR5 SDRAM |
I/O Controller
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
Video
| Onboard Video | CPU Dependent Video |
Audio
| Audio Channels | 7.1 |
Network & Communication
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.0 |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
I/O Expansions
| Total Number of Expansion Slots | 5 |
| Number of PCI Express x16 Slots | 5 |
| PCI Express Standard |
|

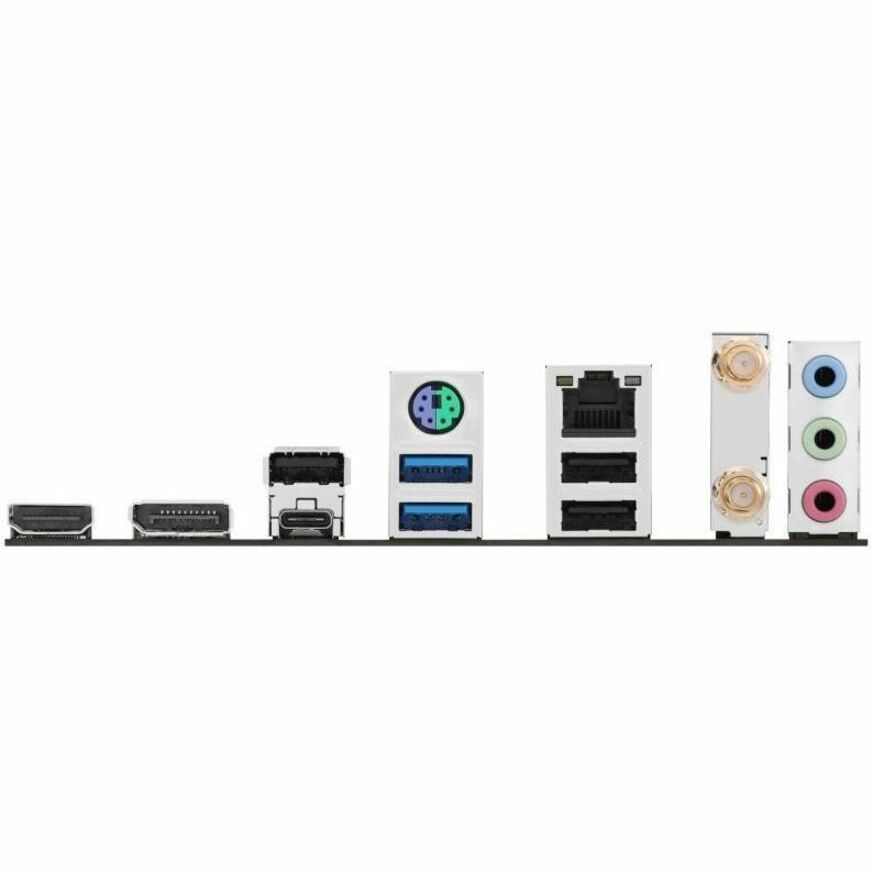

Interfaces/Ports
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
Onboard Interfaces
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
Physical Characteristics
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
Miscellaneous

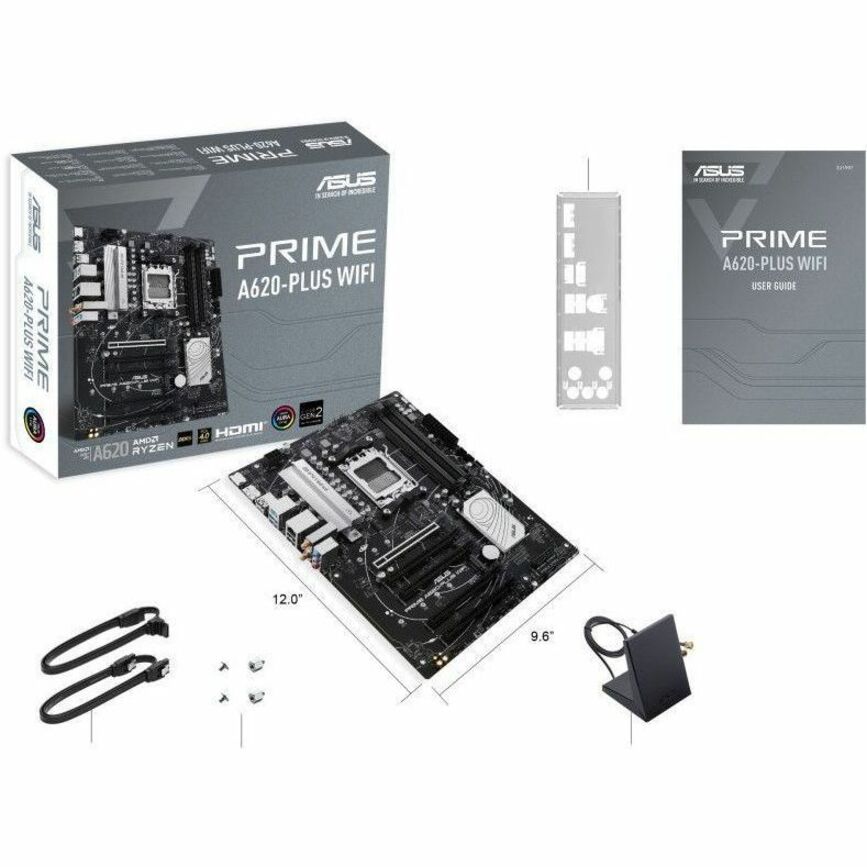

| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
