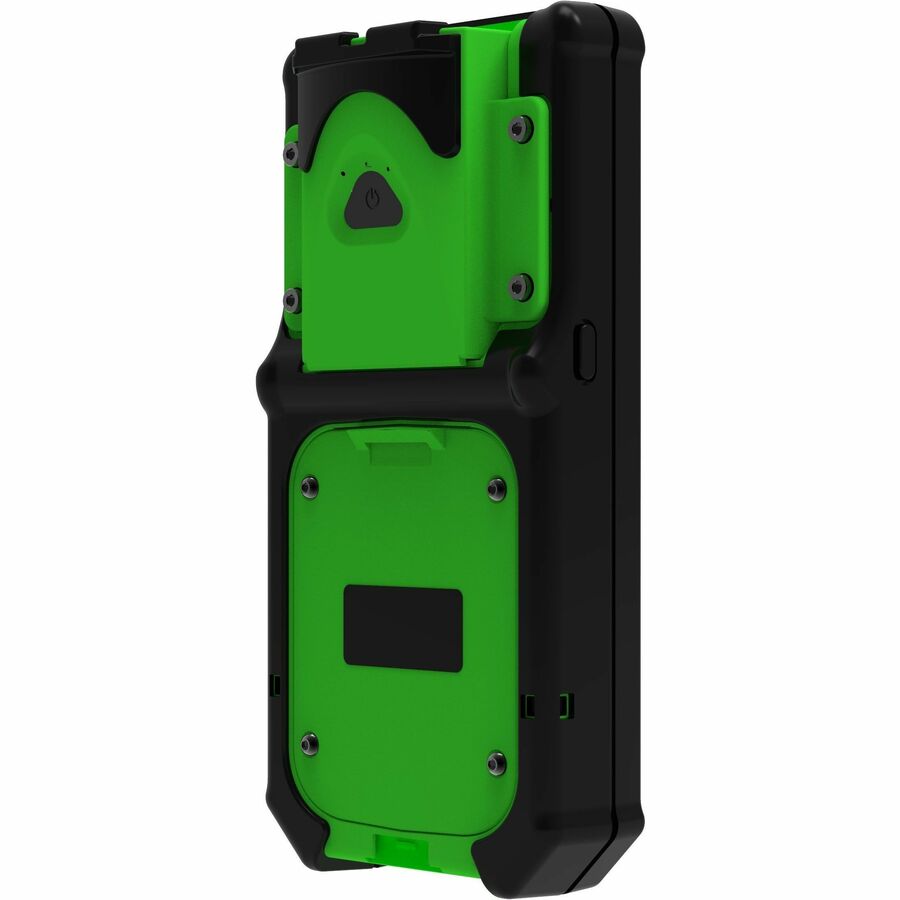

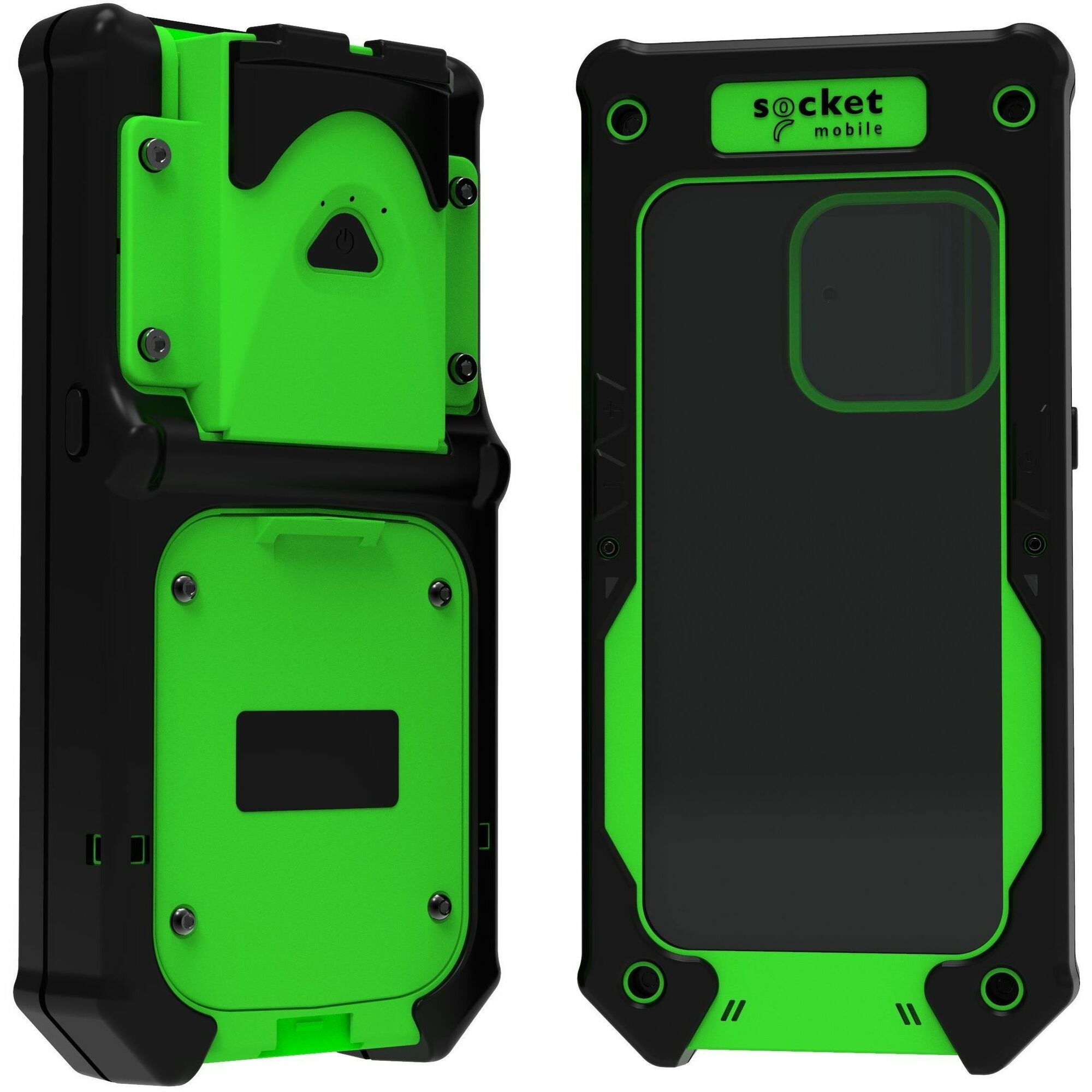

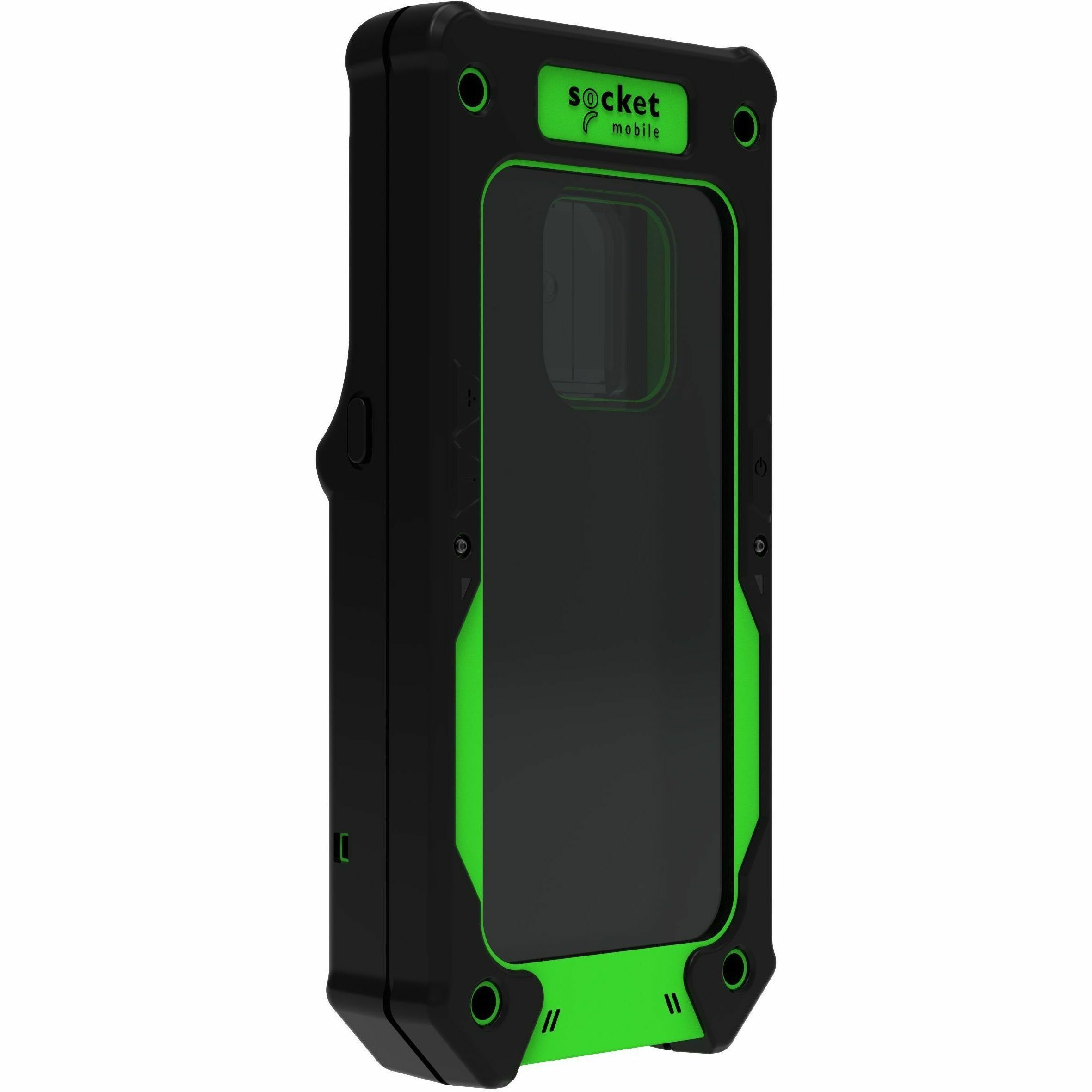

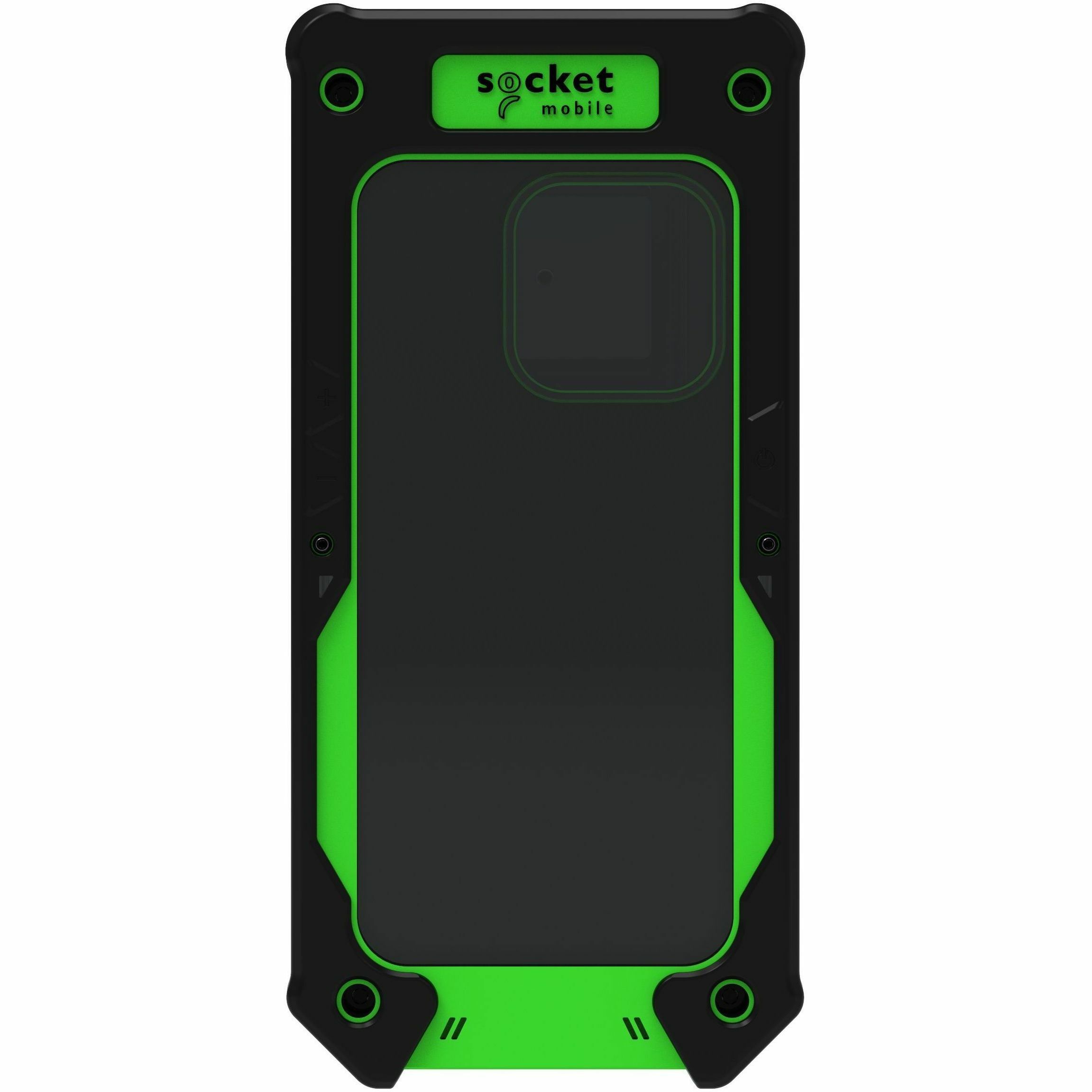

Socket Mobile XtremeScan XS930 1D Laser Barcode Reader
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX4180-3247 |
| Brand Name | Socket Mobile |
| Product Line | XtremeScan |
| Product Model | XS930 |
| Product Name | XtremeScan XS930 1D Laser Barcode Reader |
| Marketing Information | The XtremeScan XS930 is a modular, rugged, handheld mobile data reader that combines an iPhone case and 1D laser barcode reader to form a one-handed, industrial-grade scanning solution. It features long-range scanning capability, making it ideal for applications scanning barcodes on floor labels and rack labels on high shelves. The integration of the scanner with a heavy-duty case is designed to withstand heavy use in demanding industrial environments. The XtremeScan case provides IP67 sealed housing and protects against jets of low-pressure water. It includes an integrated wireless charger, so you can charge the iPhone without removing it from the case. With a compatible iPhone, the XtremeScan XS930 laser barcode scanner becomes a versatile and powerful mobile solution that can be used with a variety of industrial applications. The XS930 has a class 2 laser that scans through plastic or glass, in bright or poor lighting conditions, sideways, upside down, or straight at imperfect barcodes. Depending on the barcode symbology, width, size, and label media, the XS930 can scan from 1.2 inches (3.0 cm) to 180 inches (457.2 cm). The industrial-grade, rugged housing can handle multiple drops onto concrete. |
| Product Type | Barcode Scanner |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D |
| Barcode Symbology Supported | Default Barcode Symbologies:
Supported Barcode Symbologies:
|
| Light Source | Laser |
| Depth of Field |
|
| Scanner Range | Long Range |
| Scanning Distance | 15 ft (4572 mm) |
| Features |
|
| Maximum Ambient Light | 86000 lux |
| Drop Specification | Standard:
Freezer:
|
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 100 mil (2.54 mm) |
| Bluetooth | Yes |
| Battery Included | Yes |
| Battery Chemistry | Lithium Polymer (Li-Polymer) |
| Battery Capacity | 700 mAh |
| Battery Weight | 0.44 oz (12.50 g) |
| Maximum Battery Run Time | 25 Hour |
| Maximum Battery Recharge Time | 8 Hour |
| Operating Temperature | 32°F (0°C) to 113°F (45°C) |
| Storage Temperature | 23°F (-5°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Form Factor | Handheld |
| Rugged | Yes |
| Product Material | Rubber |
| Durability |
|
| Package Contents |
|
| Compatibility |
|
| Ingress Protection (IP) Rating |
|
| Application/Usage |
|
| Platform Supported |
|
| Environmental Certification | TÜV Rheinland Green Product |
| Environmental Compliance |
|
| COO | US |
| Condition | No |
| Limited Warranty | 1 Year |
