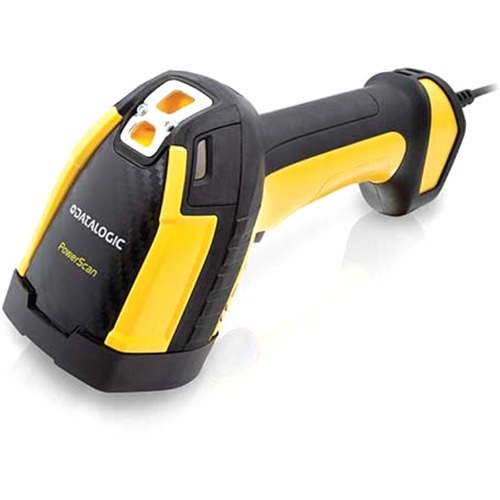

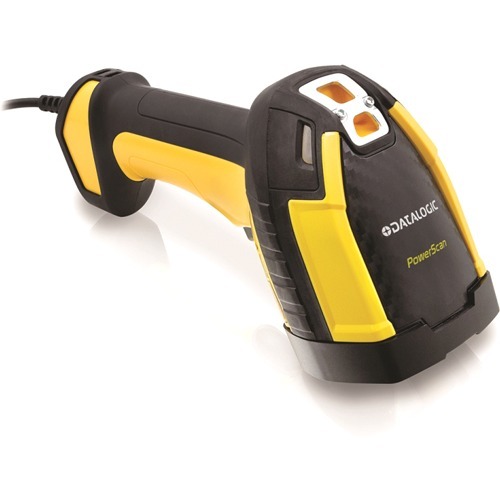

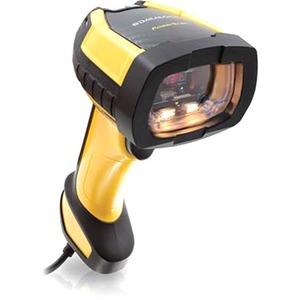

Datalogic PowerScan PM9600-HP Barcode Scanner Kit
In Stock Availability
- All Locations: (12+)
- Mississuaga, ON (12+)
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PM9600-HP910RBK30 |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PM9600-HP |
| Product Name | PowerScan PM9600-HP Barcode Scanner Kit |
| Marketing Information | ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. MOBILITY ENHANCES PRODUCTIVITY The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions. MODULARITY WITH THE BEST FLEXIBILITY The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols. |
| Product Type | Barcode Scanner Kit |
| Connectivity Technology | Wireless |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanning Distance | 95.60" (2428.24 mm) |
| Features |
|
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 20kV |
| Radio Frequency | Yes |
| Host Interface | Ethernet |
| Power Supply Included | Yes |
| Input Current | 480 mA |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 3.20 Hour |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color |
|

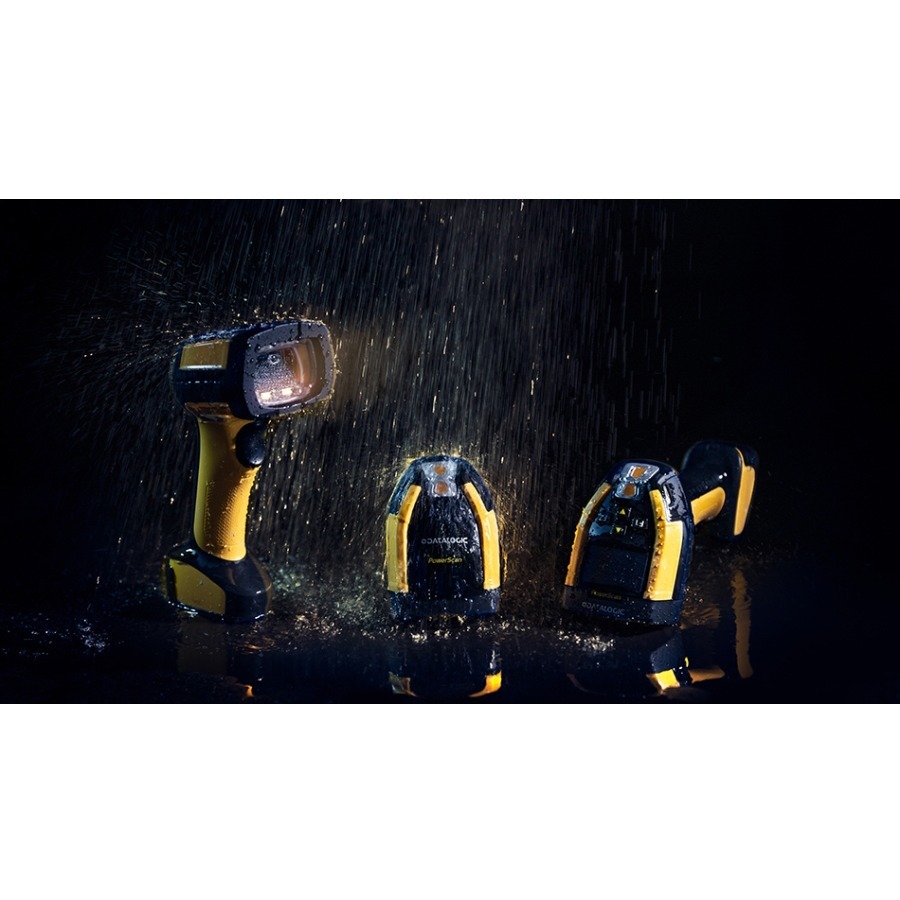

| Durability | Water Resistant |
| Height | 7.80" (198.12 mm) |
| Width | 3.10" (78.74 mm) |
| Length | 5.50" (139.70 mm) |
| Ingress Protection (IP) Rating |
|
| Application/Usage |
|
| COO | US |
| Condition | No |
