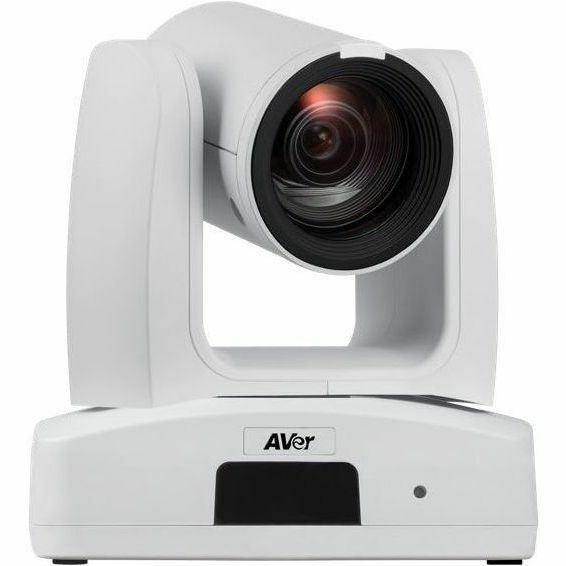

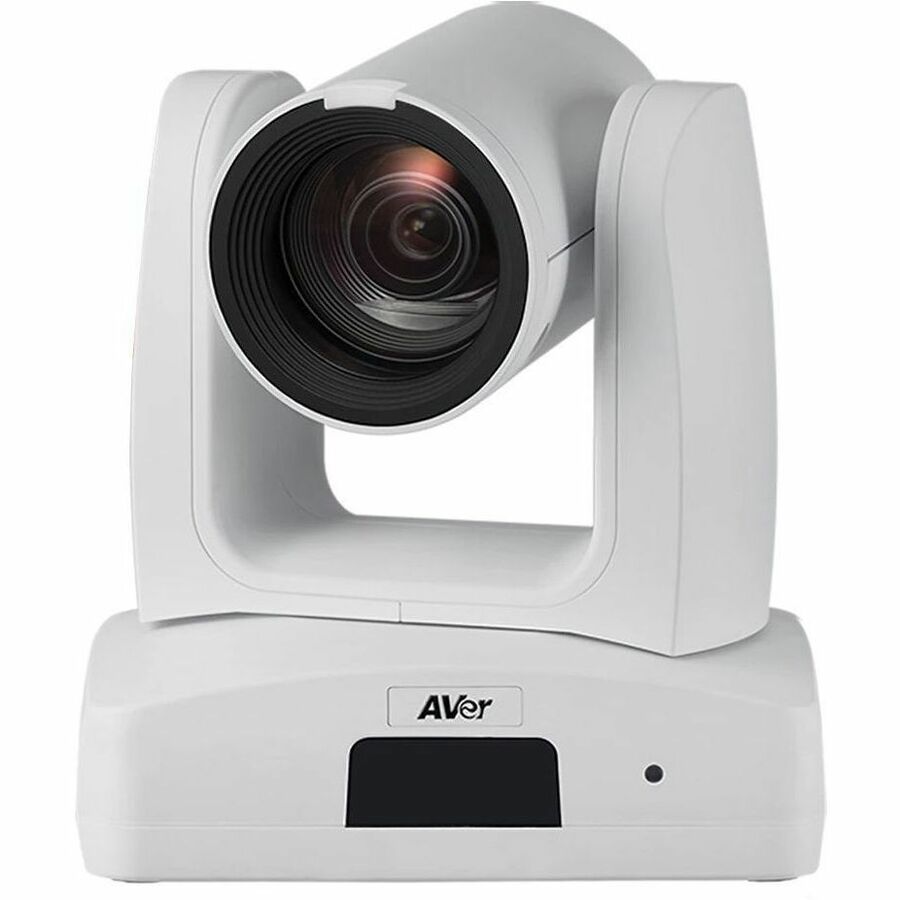

AVer Ptz211 2 Megapixel Indoor Full HD Network Camera - Color

Part No. PAPTZ211W

by AVer Information Inc

AVer Ptz211 2 Megapixel Indoor Full HD Network Camera - Color

H.265, H.264, MJPEG - 1920 x 1080 - 4.5 mm (0.18")- 135 mm (5.31") Varifocal Lens - 30x Optical - 60 fps - Exmor CMOS - Gigabit Ethernet - USB - HDMI - Ceiling Mount - Audio Support - PTZ, 2D Noise Reduction, 3D Noise Reduction, Mirror, Auto Gain Control, Automatic White Balance, Wide Dynamic Range

Part No. PAPTZ211W

by AVer Information Inc

$2220.99
General Information
ManufacturerAVer Information Inc
Manufacturer Part NumberPAPTZ211W
Brand NameAVer
Product ModelPtz211
Product Name12X HD AI PTZ camera
Marketing Information

Capture Your Events in True-to-life Video Quality with AI!

The AVer PTZ211 12X HD AI PTZ Camera is our latest generation of PTZs to offer the best image quality, video streaming support and AI functionality. The camera offers 12X optical zoom, HD resolution, 2MP picture with 60fps and simultaneous output of USB/IP/HDMI/3G-SDI. The PTZ211 includes a number of impressive upgrades from the previous generation PTZ310W, including new improved performance, USB 3.0, a tally light to identify the active camera, and two IR sensors for reliable operation. The camera also includes a ceiling mount and is SRT Ready to optimize video streaming performance across unpredictable networks. Built-in AI functions provide preset content areas or adjust FOV to capture everyone on screen. Includes the 5 year AVerCare warranty for peace of mind.

Multi-Stream Capability

Simultaneous output support from all ports, USB/IP/HDMI/3G-SDIHarness the Magic of NDI/HX3

Includes the most recent edition of the NDI protocol is NDI®version 3 (NDI®|HX3). Features 4Kp60 NDI output with latency less than 100ms.

Seamless tracking between your preset zones

AVer SmartShoot uses AI functionality to optimize your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot's Advanced Preset Zone Tracking, you can create an uncompromising multi-camera feel with just one PTZ211 across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.

Highly versatile camera motion control

The PTZ211 advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ211 is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.

Prepare for any angle with outstanding preset location functionality

Preset the PTZ211 with up to 256 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.

Product TypeNetwork Camera
Technical Information
Recording FormatsFull HD
HD RecordingYes
Camera Iris
  • Auto
  • Manual
AI-poweredYes
Display & Graphics
Image Sensor TypeExmor CMOS
Image Sensor Size1/2.8"
Color SupportedColor
Field of ViewDFOV : 69.2° (Wide) to 2.8° (Tele), HFOV : 62.3° (Wide) to 2.5° (Tele), VFOV : 37.3° (Wide) to 1.4° (Tele)
Effective Camera Resolution2 Megapixel
Video
Video Formats
  • H.265
  • H.264
  • MJPEG
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
Analog Video Signal Format3G-SDI
Audio
Audio SupportYes
Lens
Lens TypeVarifocal
Minimum Focal Length4.5 mm (0.18")
Maximum Focal Length135 mm (5.31")
Lens IncludedYes
Minimum Aperturef/4.7
Maximum Aperturef/1.8
Optical Zoom30x
Exposure
Shortest Shutter Speed1/32000 Second
Longest Shutter Speed1/1 Second
Network & Communication
Connectivity TechnologyWired
Ethernet TechnologyGigabit Ethernet
Protocols
  • VISCA
  • PELCO-D
  • PELCO-P
Remote ManagementYes
Interfaces/Ports
USBYes
HDMIYes
Network (RJ-45)Yes
Power Description
Maximum Power Consumption19 W
Input Voltage
  • 100 V AC
  • 240 V AC
  • 12 V DC
Power Source Type
  • DC
  • AC
  • PoE+
Physical Characteristics
Mount TypeCeiling Mount
Height7.56" (192 mm)
Width7.09" (180 mm)
Depth5.71" (145 mm)
Environmental Conditions
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Minimum Storage Temperature-4°F (-20°C)
Maximum Storage Temperature140°F (60°C)
Minimum Operating Humidity20%
Maximum Operating Humidity80%
Minimum Storage Humidity20%
Maximum Storage Humidity95%
Miscellaneous
Features
  • PTZ
  • 2D Noise Reduction
  • 3D Noise Reduction
  • Mirror
  • Auto Gain Control
  • Automatic White Balance
  • Wide Dynamic Range
Indoor/OutdoorIndoor
Package Contents
  • 12X HD AI PTZ camera
  • Drilling Paper
  • 2 x Ceiling Mount Bracket
  • Quick Start Guide
  • Cable Fixing Plate
  • 3 x M2 x 4 mm Screw
  • Power Adapter & Power Cord
  • 2 x 1/4"-20 L=6.5 mm Screw
  • Remote Control,
  • 3 x M3 x 6 mm Screw
  • DIN 8 to D-Sub 9 Cable
  • RS-232 In/Out Y Cable
  • 4 x Cable Ties
  • 1 x HDMI Cable
TAA CompliantYes
ConditionNo
UPC848090009431
Warranty
Limited Warranty5 Year
Additional Warranty Information

Accessories 1 Year
