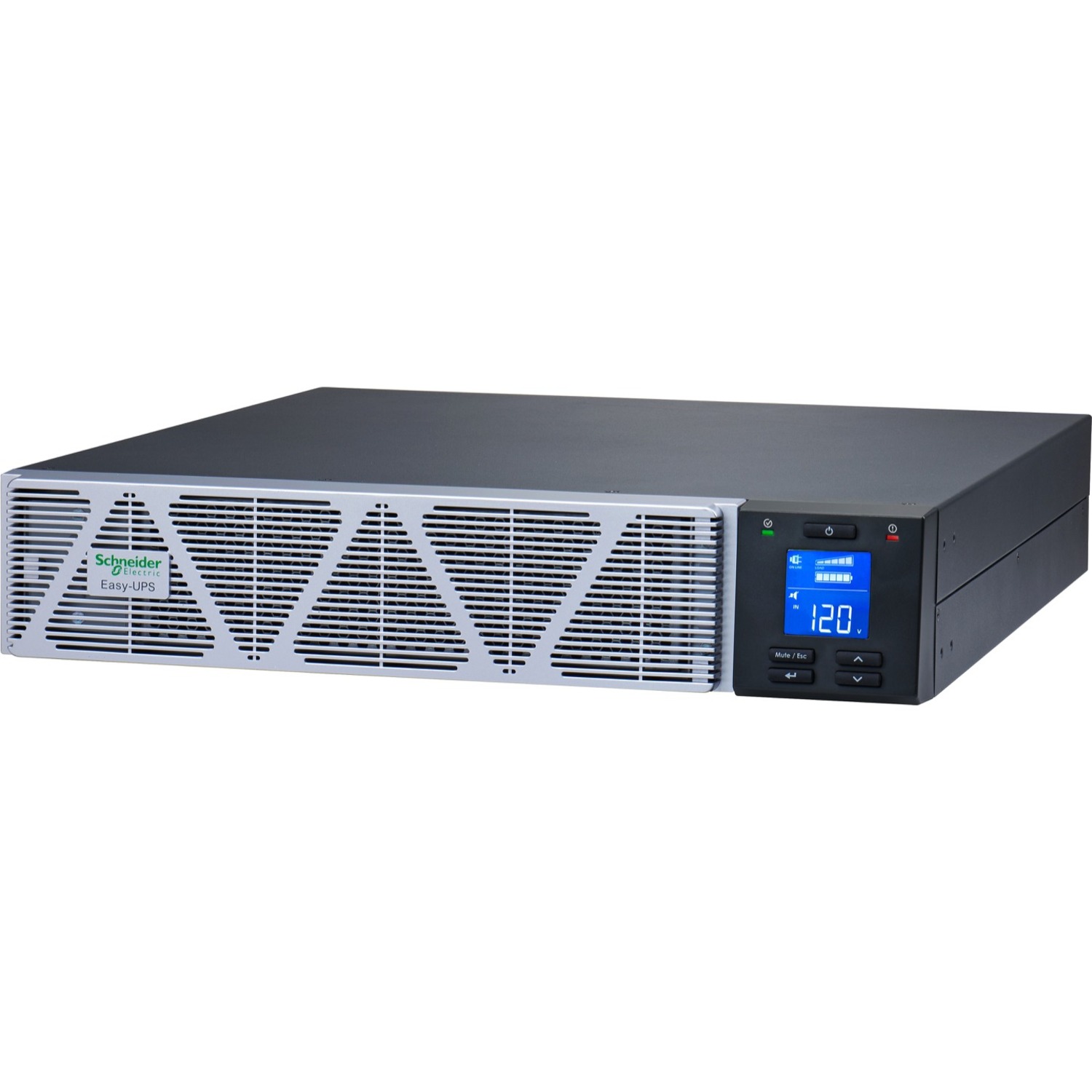

Schneider Electric Easy UPS On-Line Li-Ion SRVSL RT 2000VA 120V, with Rail Kit

2U Rack-mountable - 2 Hour Recharge - 10.38 Minute Stand-by - 120 V AC Input - 120 V AC, 110 V AC, 115 V AC Output - Single Phase - Sine Wave - Serial Port - USB - LCD Display - 6 x NEMA 5-20R Receptacle(s)

Part No. SRVSL2KRARK

by Schneider Electric SA

$3945.99

Specifications
Options & Accessories (5)

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SRVSL2KRARK
Brand Name	Schneider Electric
Product Line	Easy UPS On-Line
Product Series	SRVSL RT
Product Name	Easy UPS On-Line Li-Ion SRVSL RT 2000VA 120V, with Rail Kit
Packaged Quantity	1
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	6 x NEMA 5-20R
Phase	Single Phase
Application/Usage	Building System Distribution Center Automation System

Power Description

Load Capacity (VA)	2 kVA
Load Capacity (Watt)	1.80 kW
Input Voltage	120 V AC
Input Voltage Range	80 V AC - 150 V AC 55 V AC - 150 V AC
Output Voltage	120 V AC 110 V AC 115 V AC
Input Frequency	70 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	220 J
Output Power Factor	0.9

Display & Graphics

Display	LCD

Management

Alarm	On Battery Low Battery Overload

Interfaces/Ports

Serial Port	Yes
USB	Yes
EPO Port	Yes

Battery Information

Battery Chemistry	Lithium Ion (Li-Ion)
Battery Size	48V
Backup/Run Time (Full Load)	10.38 Minute
Backup/Run Time (Half Load)	21 Minute
Battery Life	10 Year
Typical Battery Recharge Time	2 Hour

Environmental Conditions

Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-4°F (-20°C) - 122°F (50°C)
Maximum Operating Elevation	9842.52 ft (3000000 mm)
Maximum Storage Elevation	49212.60 ft (15000000 mm)
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	50 dB(A)

Physical Characteristics

Color Family	Dual Color
Product Color	Black Silver
Height	3.39" (86 mm)
Width	17" (431.80 mm)
Depth	20" (508 mm)
Rack Height	2U
Form Factor	Rack-mountable
Weight (Approximate)	36.60 lb (16600 g)

Miscellaneous

Package Contents	Easy UPS On-Line Li-Ion SRVSL RT 2000VA 120V, with Rail Kit Basic UPS Signalling RS-232 Cable USB Cable Rack Mounting Brackets Rack Mounting Support Rails Stabilization Feet
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) China Restriction of Hazardous Substances (China RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Condition	No

Warranty

Limited Warranty	3 Year
