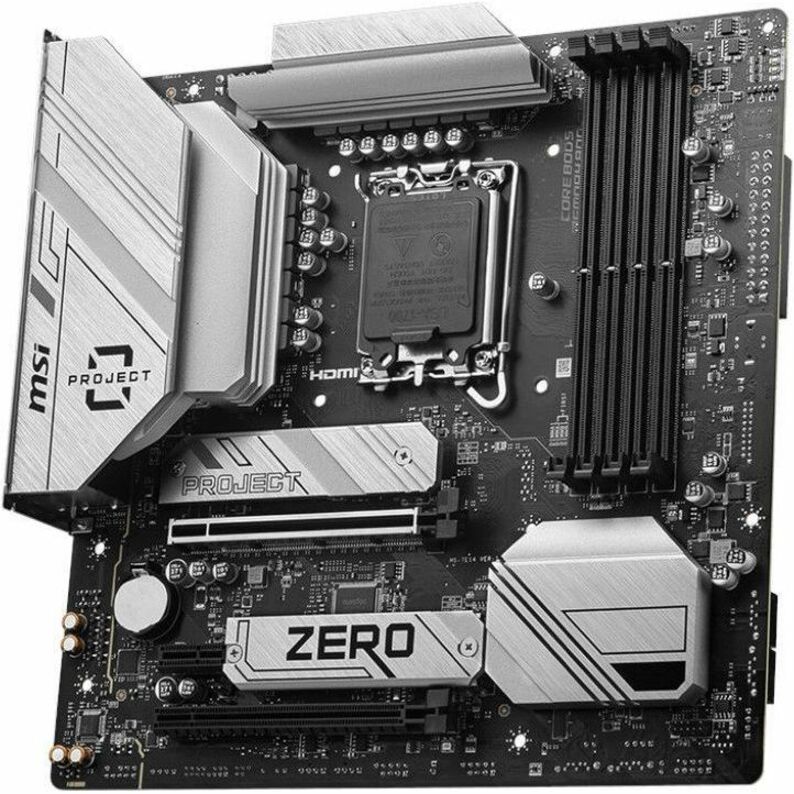

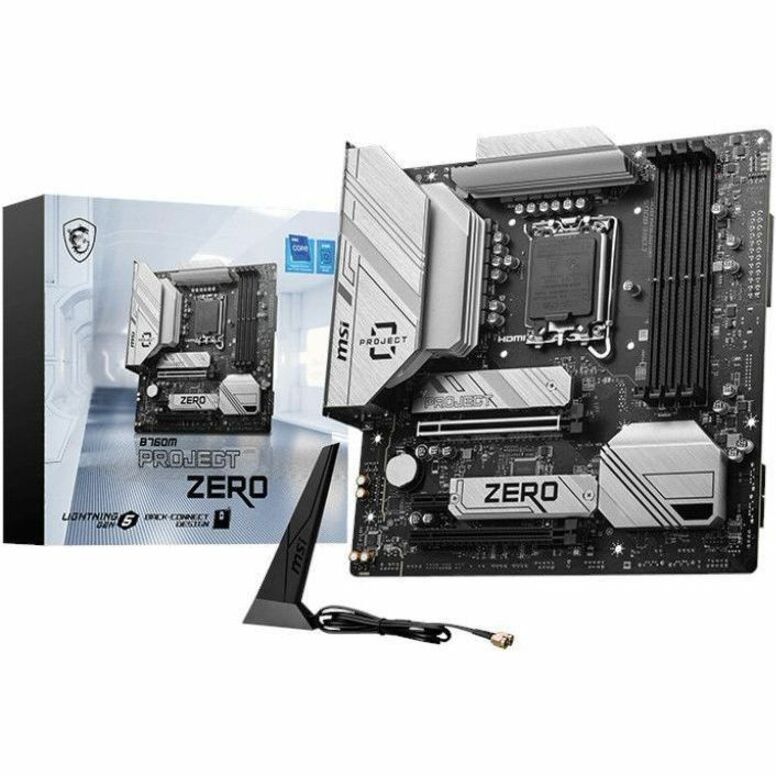

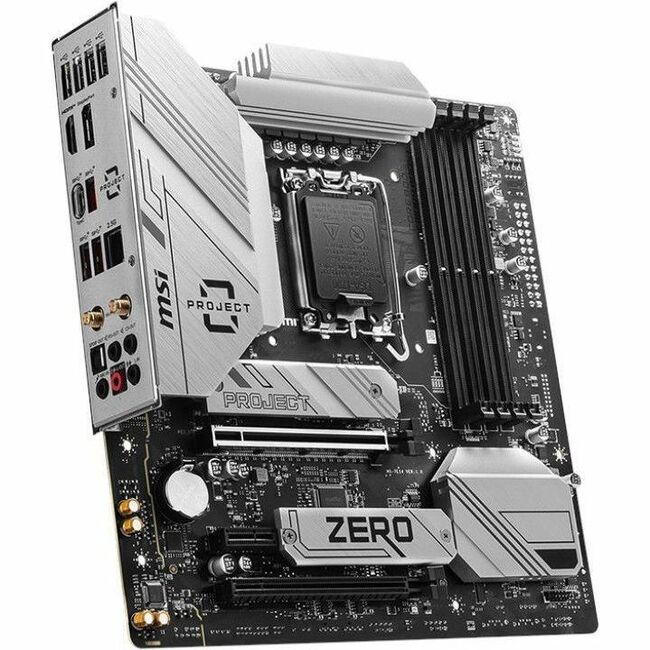

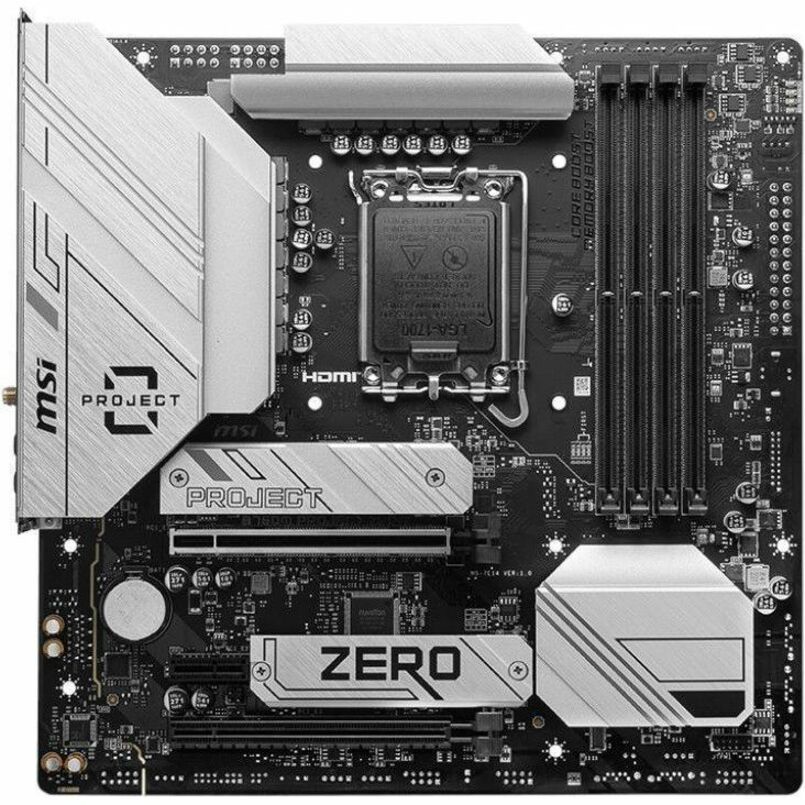

MSI B760M PROJECT ZERO Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX
This Product is currently not in offering
On back-order, will ship once in-stock
| Manufacturer | MSI |
| Manufacturer Part Number | B760MPZERO |
| Brand Name | MSI |
| Product Model | B760M PROJECT ZERO |
| Product Name | B760M PROJECT ZERO Gaming Desktop Motherboard |

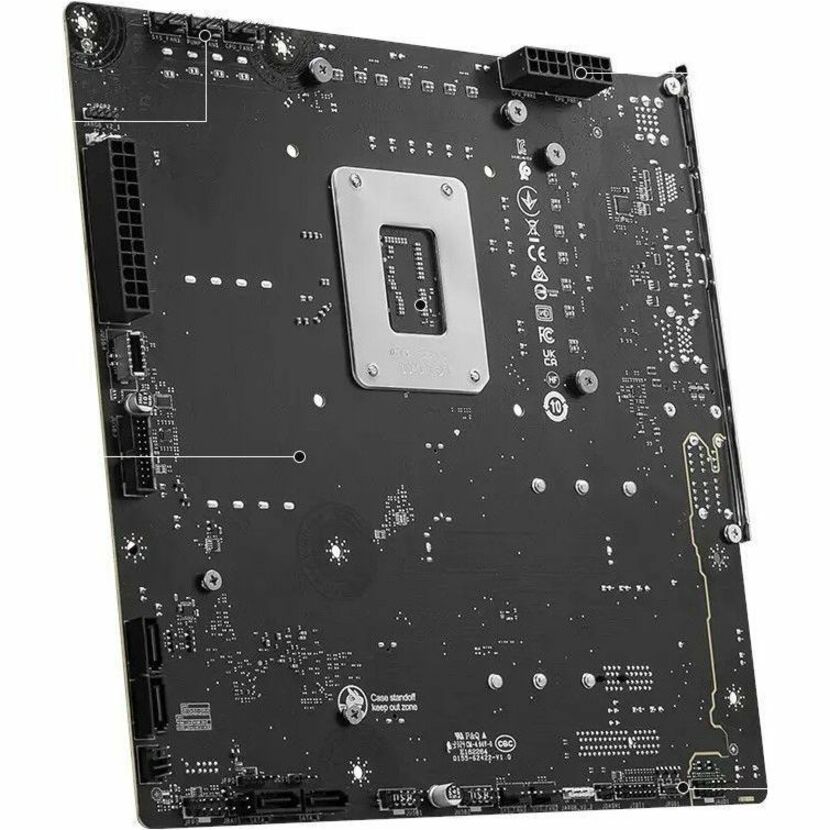

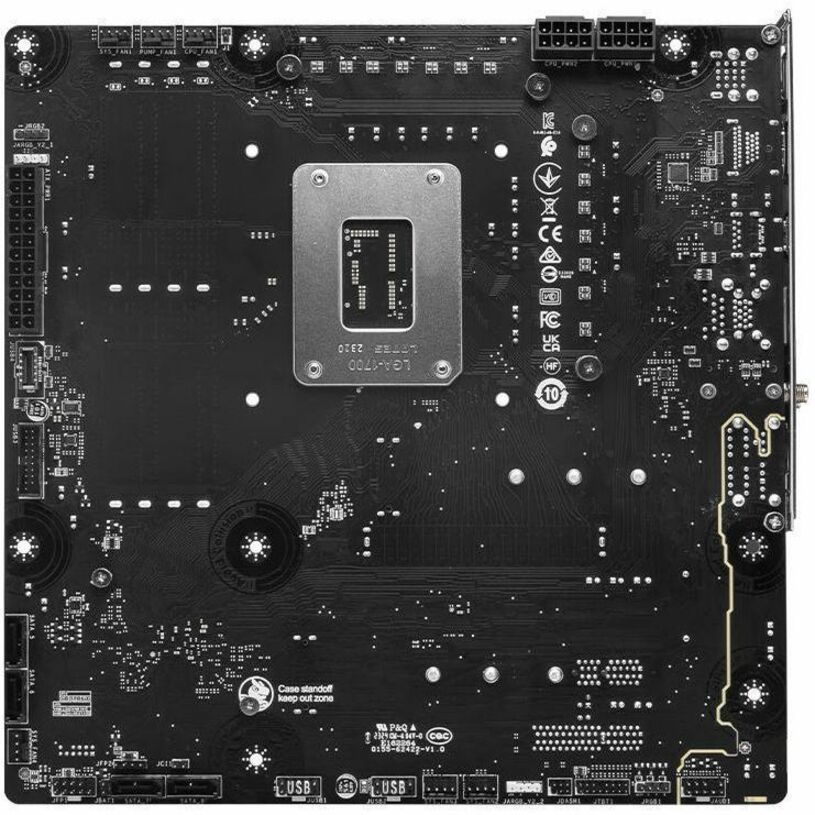

| Marketing Information | The B760M PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It's compatible with Intel 14th/13th/12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 6E solution. This makes it an excellent choice among mATX motherboards. ABSOLUTE SIMPLICITY B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed. DIY FRIENDLY Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks. EASY OVERCLOCKING WITH XMP PROFILE The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability. |
| Product Type | Gaming Desktop Motherboard |
| AI-powered | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported |
|
| Processor Supported |
|
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 192 GB |
| Memory Speed Supported |
|
| Memory Technology | DDR5 SDRAM |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
| Onboard Video | CPU Dependent Video |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard |
|

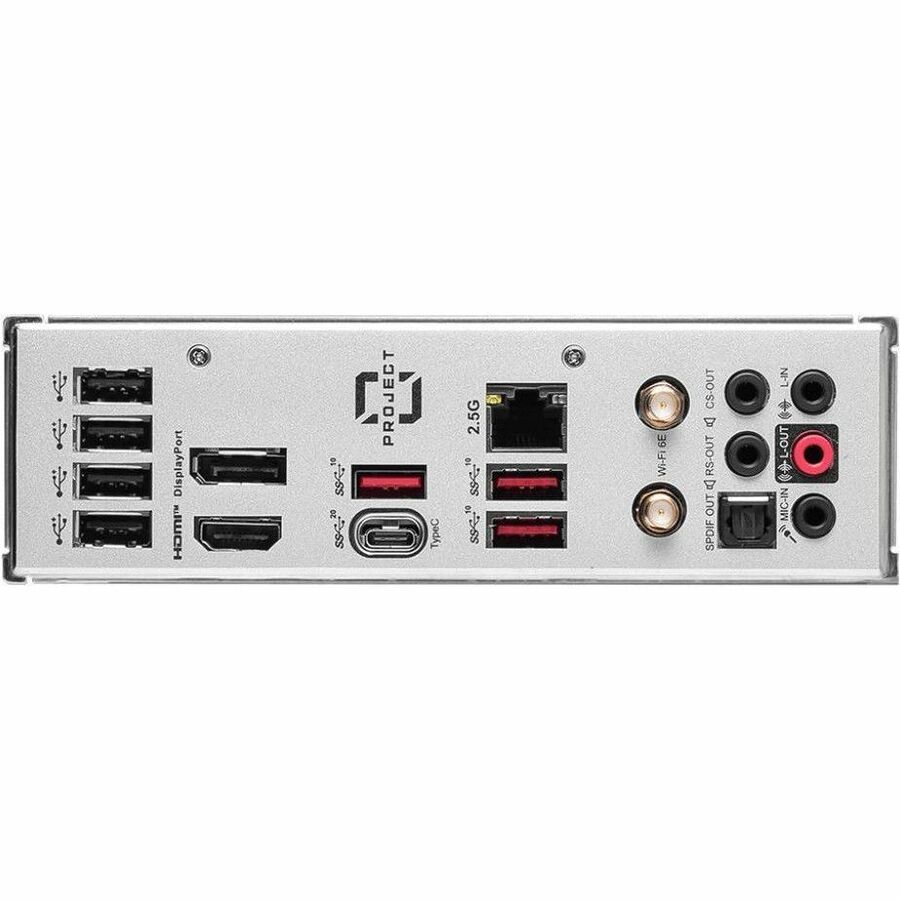

| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
| Weight (Approximate) | 2.69 lb (1220 g) |
| Package Contents |
|
| Environmental Compliance |
|
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years - Warranty period of 36 months applies on new retail MSI motherboards. |
