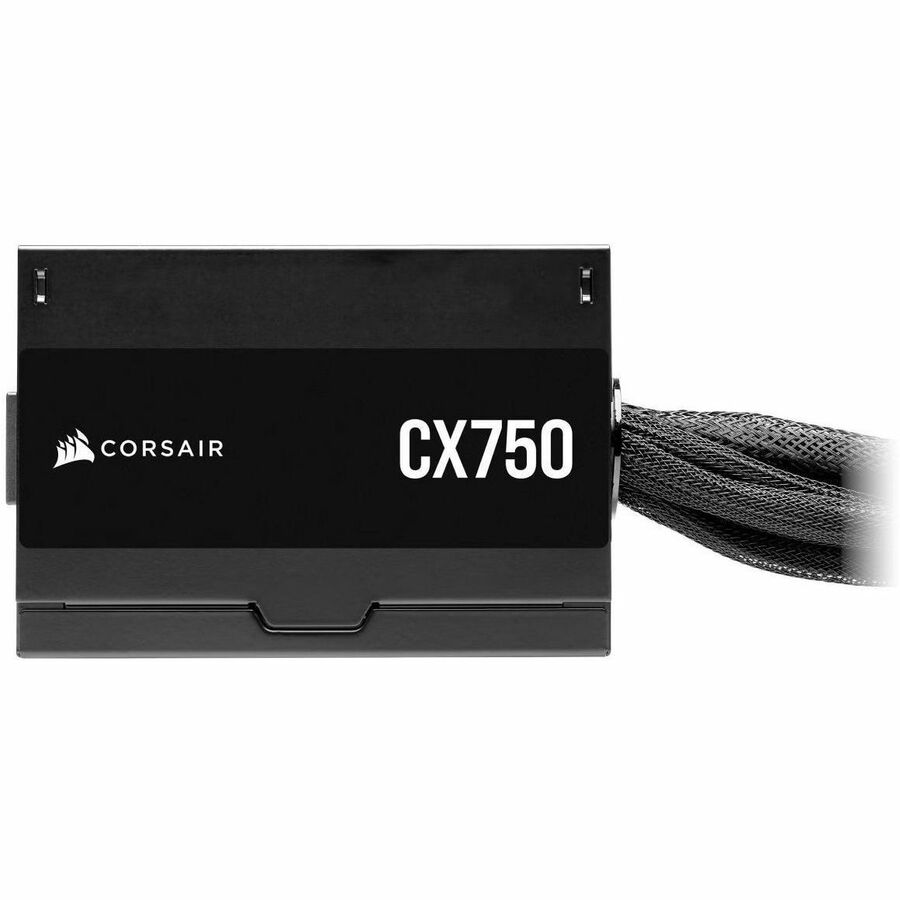

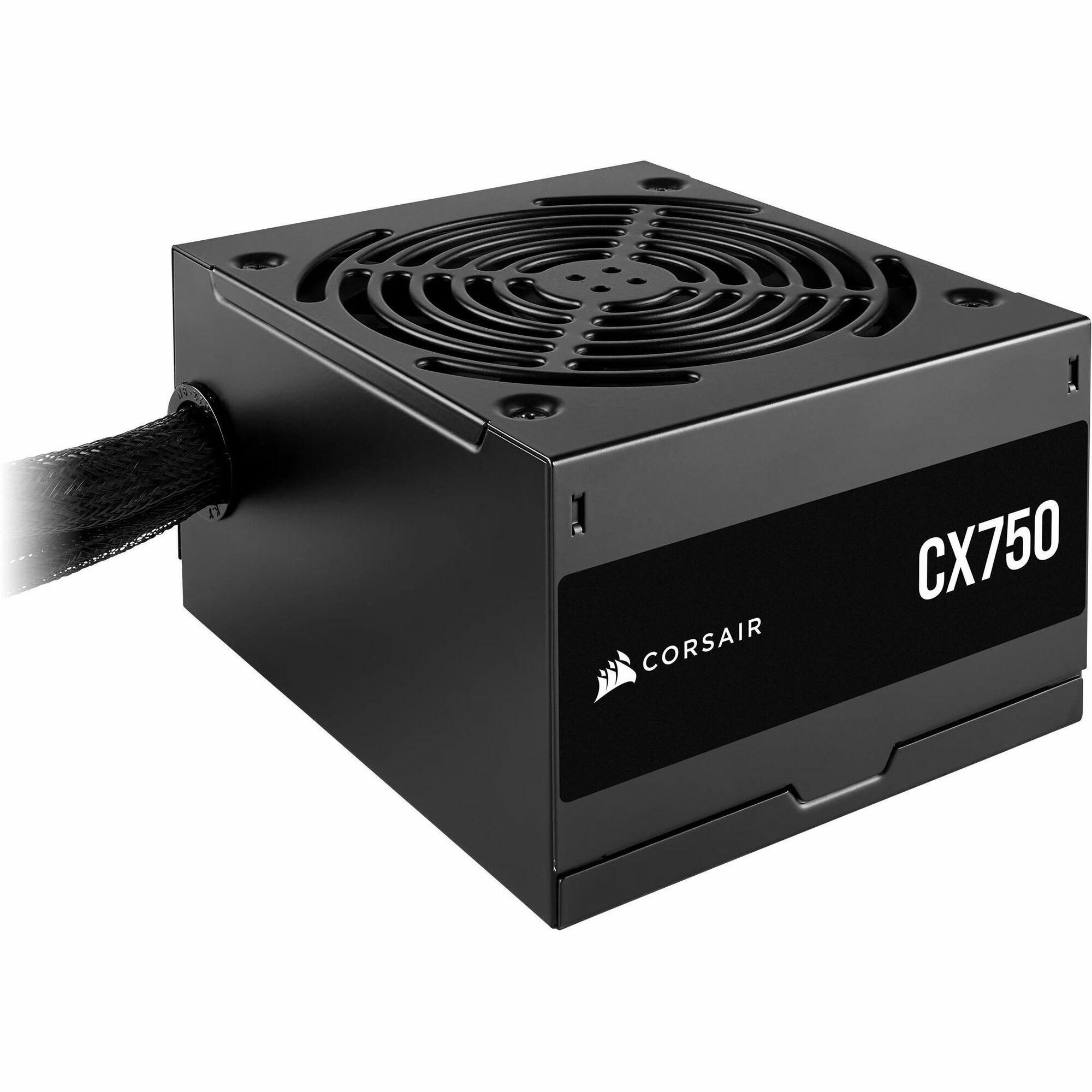

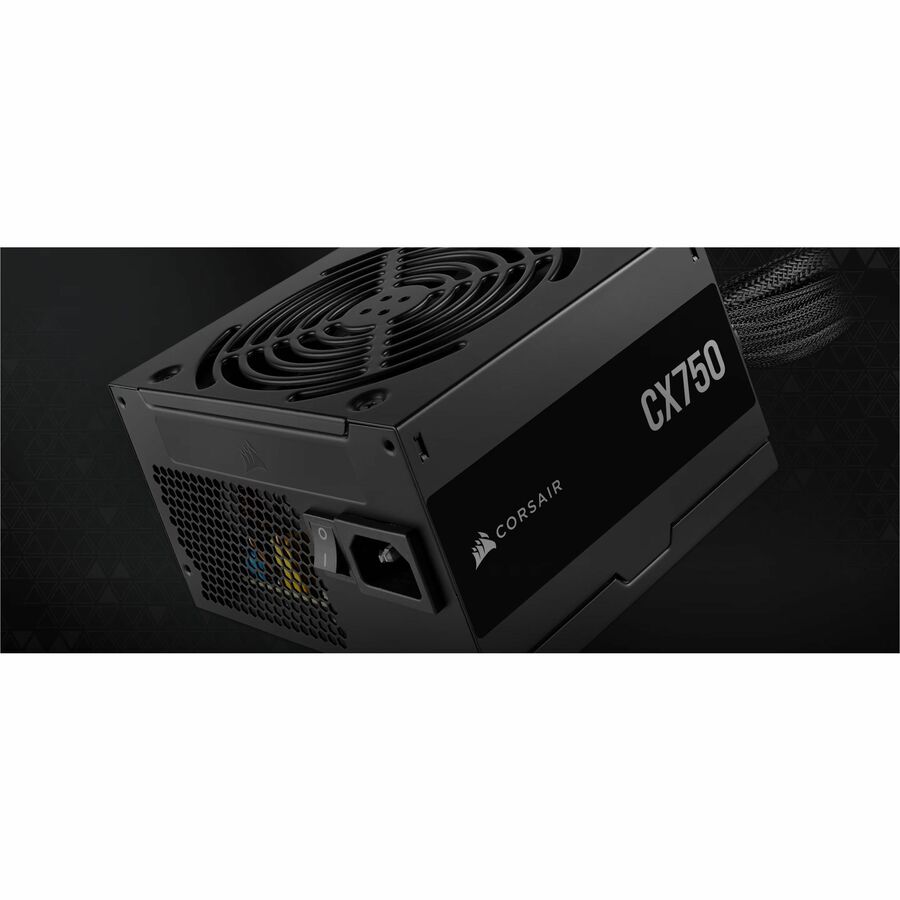

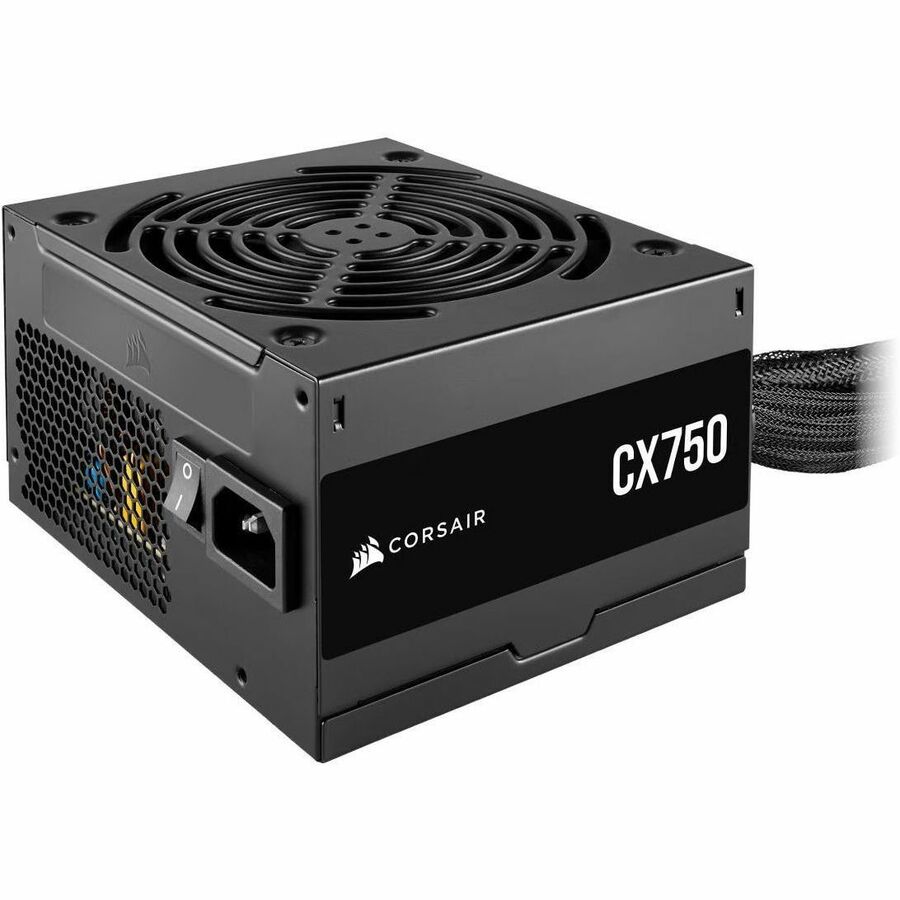

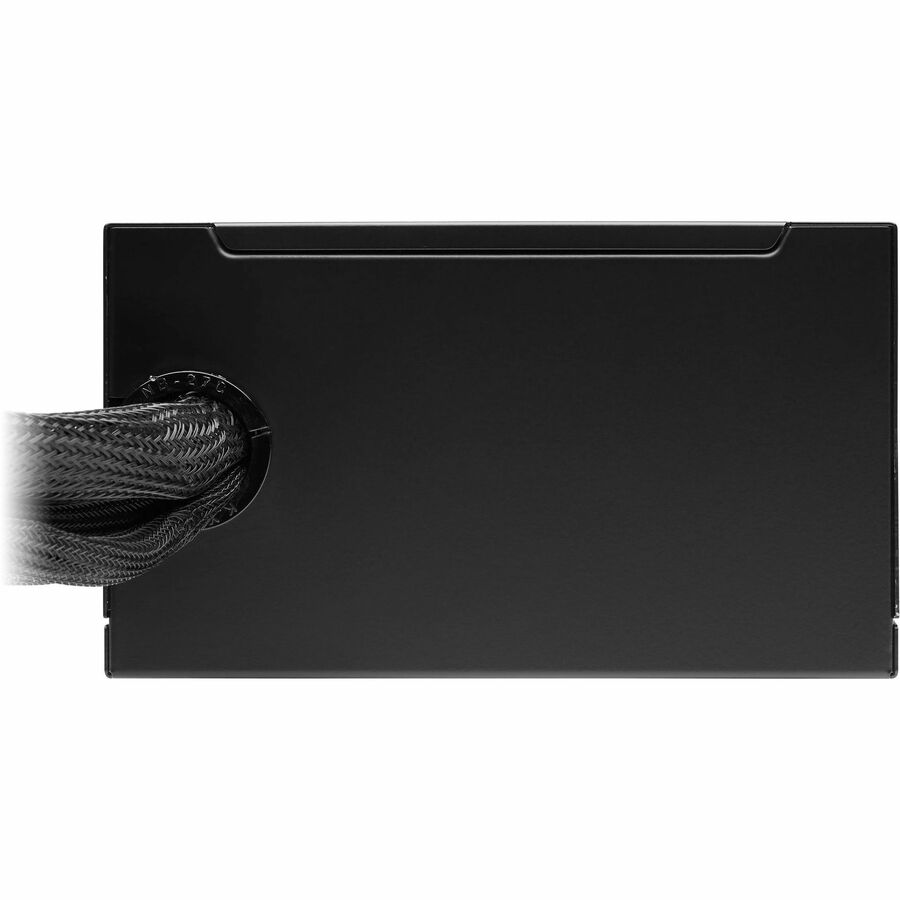

Corsair CX Series™ CX750 - 750 Watt 80 PLUS Bronze ATX Power Supply
ATX - 120 V AC, 230 V AC Input - 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB Output - 750 W - 1 +12V Rails - PCI Express Connector - 1 Fan(s) - 88% Efficiency
$125.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Corsair |
| Manufacturer Part Number | CP-9020279-NA |
| Brand Name | Corsair |
| Product Series | CX |
| Product Model | RPS0146 |
| Product Name | CX Series™ CX750 - 750 Watt 80 PLUS Bronze ATX Power Supply |

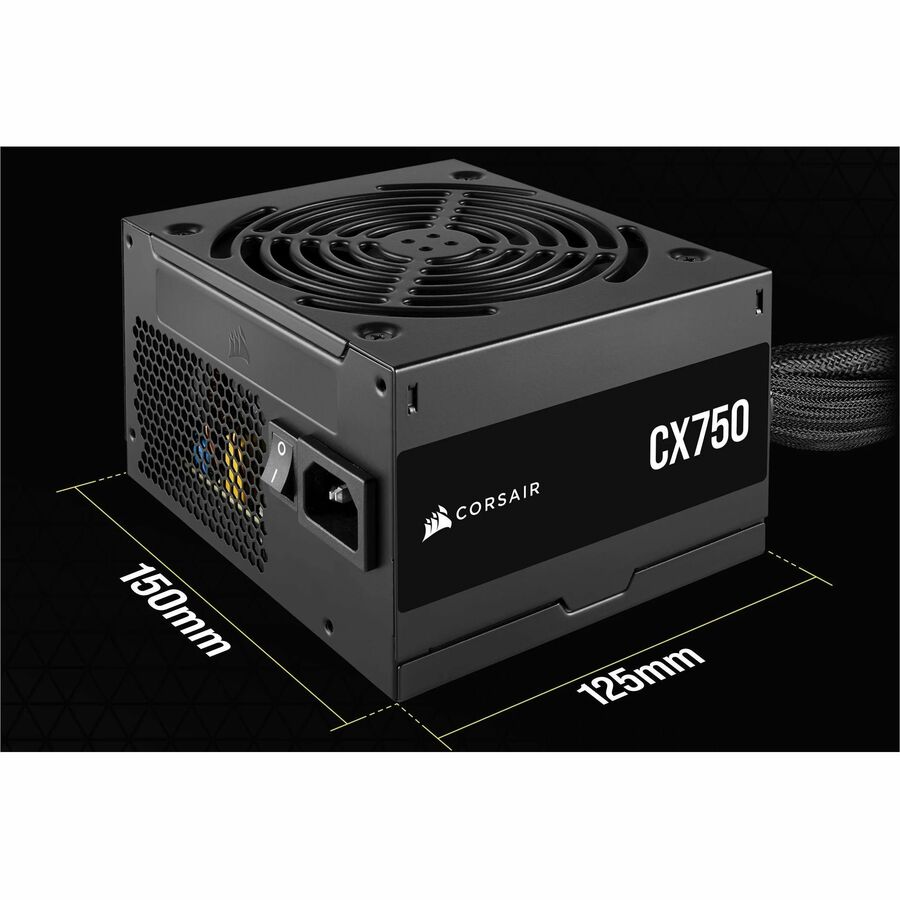

| Marketing Information | ATX POWER SUPPLIES | QUIET AND DEPENDABLE | 80 PLUS BRONZE POWER Delivers consistent power to your PC with up to 88% operational efficiency, generating less heat and lowering your energy costs. 120mm LOW-NOISE FAN Fitted with a thermally controlled fan that only spins at high speed when your power supply is under heavy load, automatically slowing down for quieter operation at lower loads. AN EASY FIT A compact 125mm-long casing ensures an easy fit in almost all modern PC cases. WORLD-CLASS SUPPORT Our award-winning service means you can enjoy your gear worry-free. |
| Product Type | Power Supply |
Technical Information
| Specification Compliance | ATX12V v2.31 |
| Efficiency | 88% |
| Number of Fans | 1 |
| Fan Bearing Type | Sleeve Bearing |

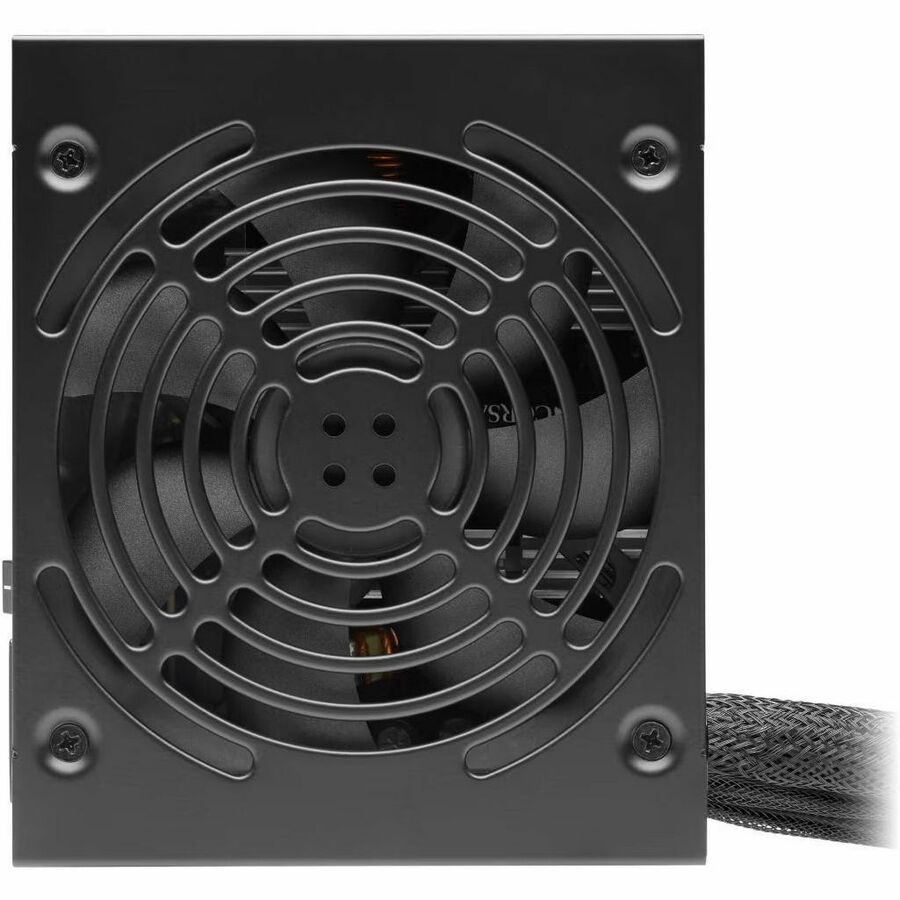

| Fan Diameter | 120 mm (4.72") |
| Modular | No |
| Features | Compact |
Reliability
| MTBF | 100000 Hour |
Power Description
| Number of +12V Rails | 1 |
| Input Voltage |
|
| Output Voltage |
|
| Output Voltage Detail |
|
| Output Power | 750 W |
| Input Frequency | 63Hz |
Interfaces/Ports
| Number of SATA Power Connectors | 3 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 2 |
| Number of (4+4 pin) CPU Power Connectors | 1 |
Physical Characteristics
| Form Factor | ATX |
| Weight (Approximate) | 5.14 lb (2330 g) |
Miscellaneous
| Package Contents |
|
| Energy Efficiency Certification | 80 Plus Bronze |
| Condition | No |
Warranty
| Limited Warranty | 5 Year |
