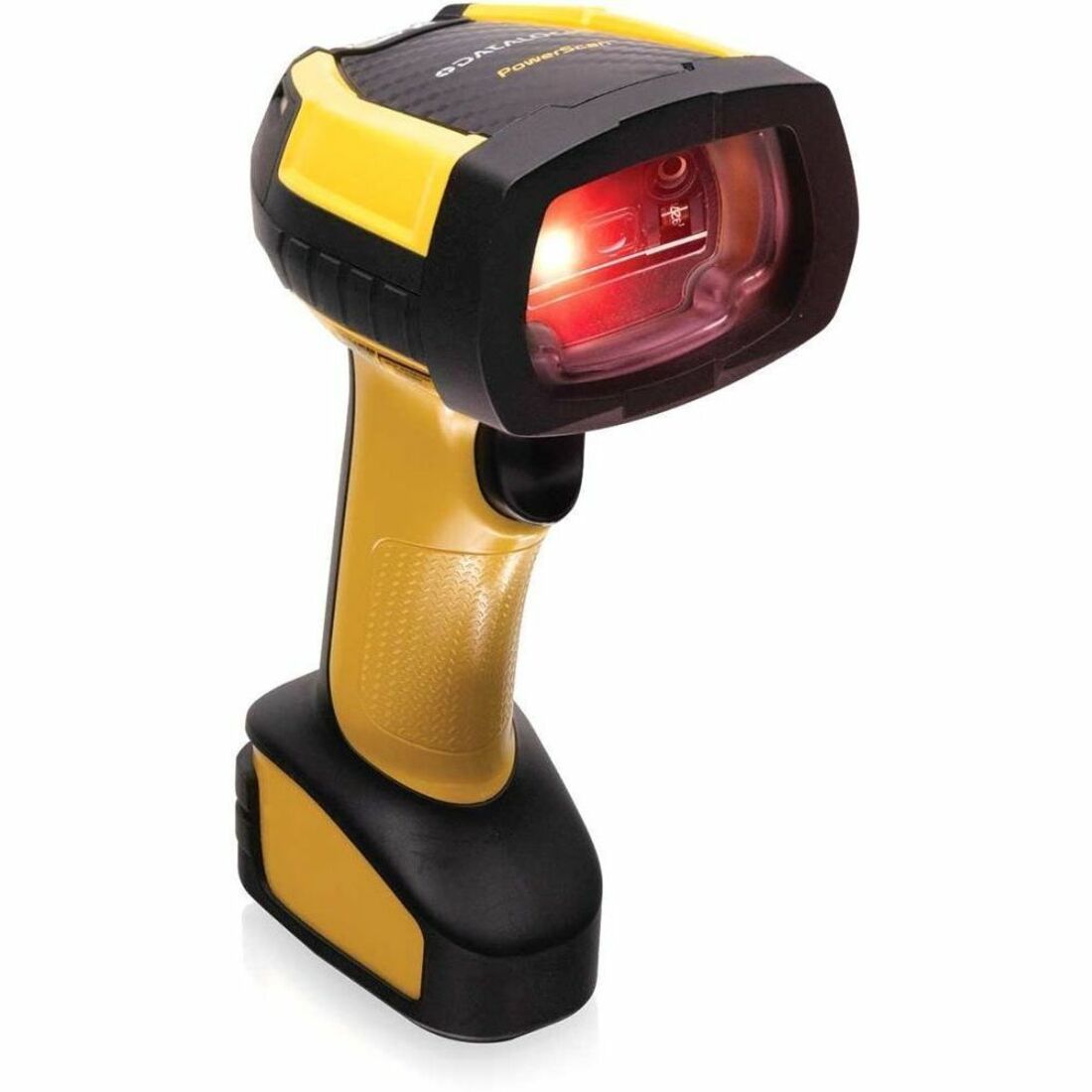

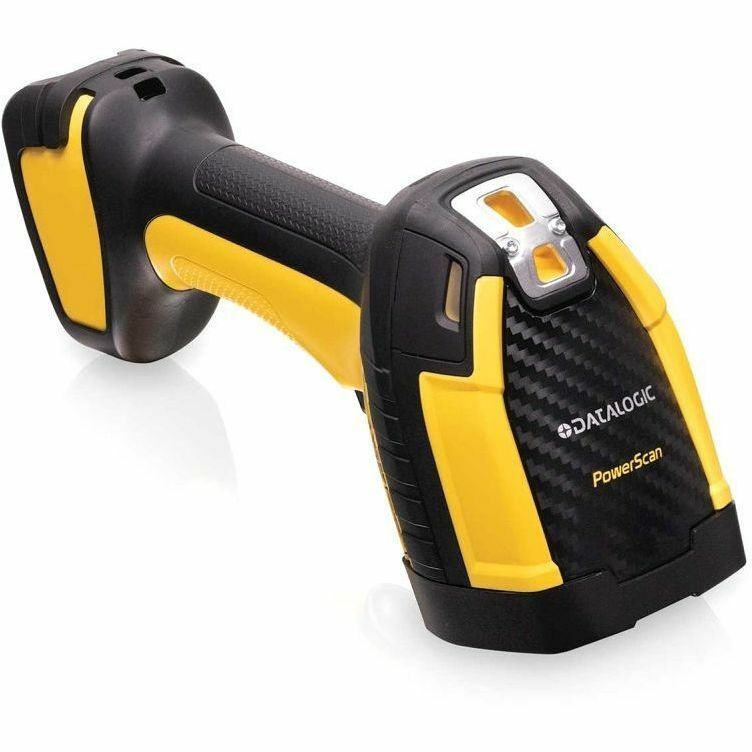

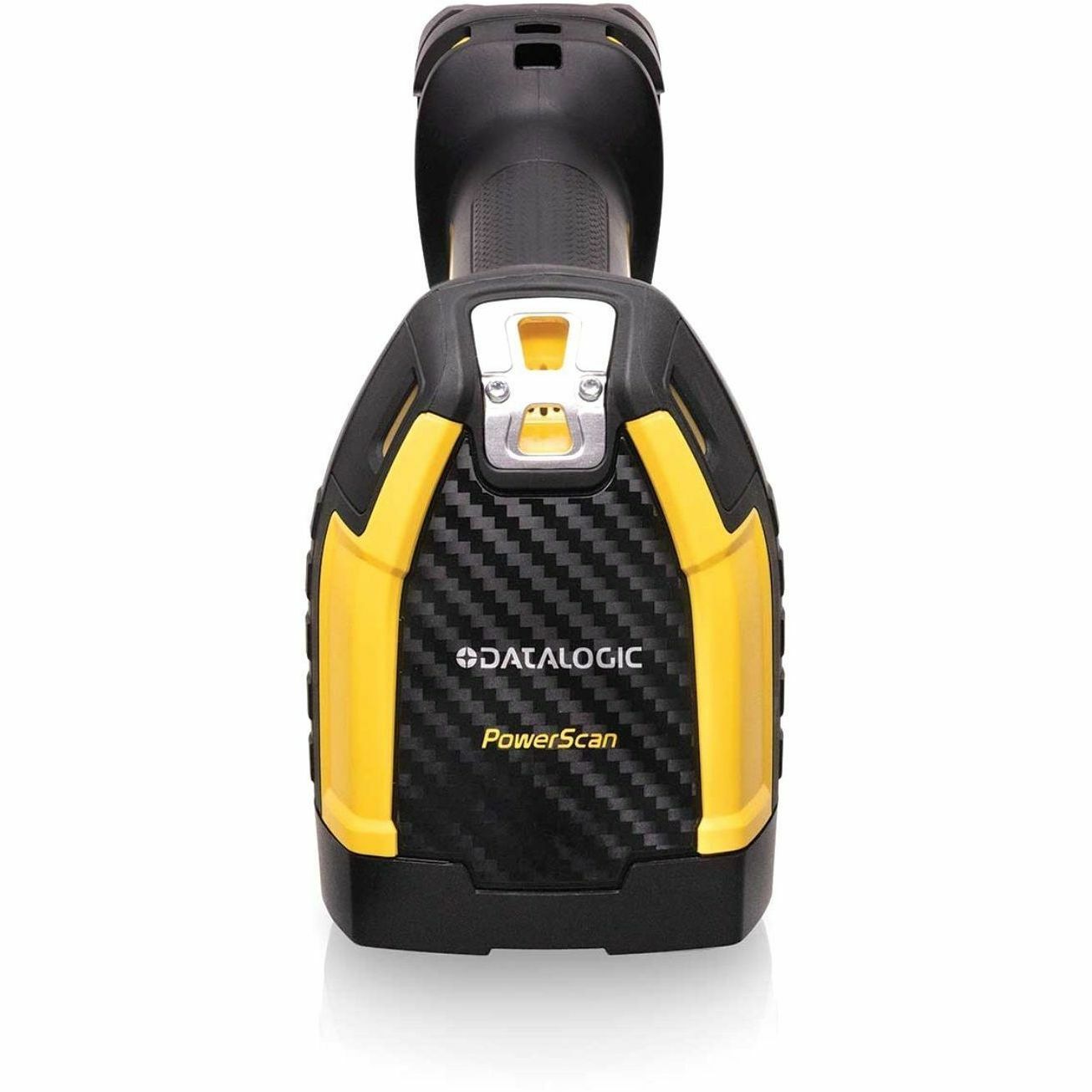

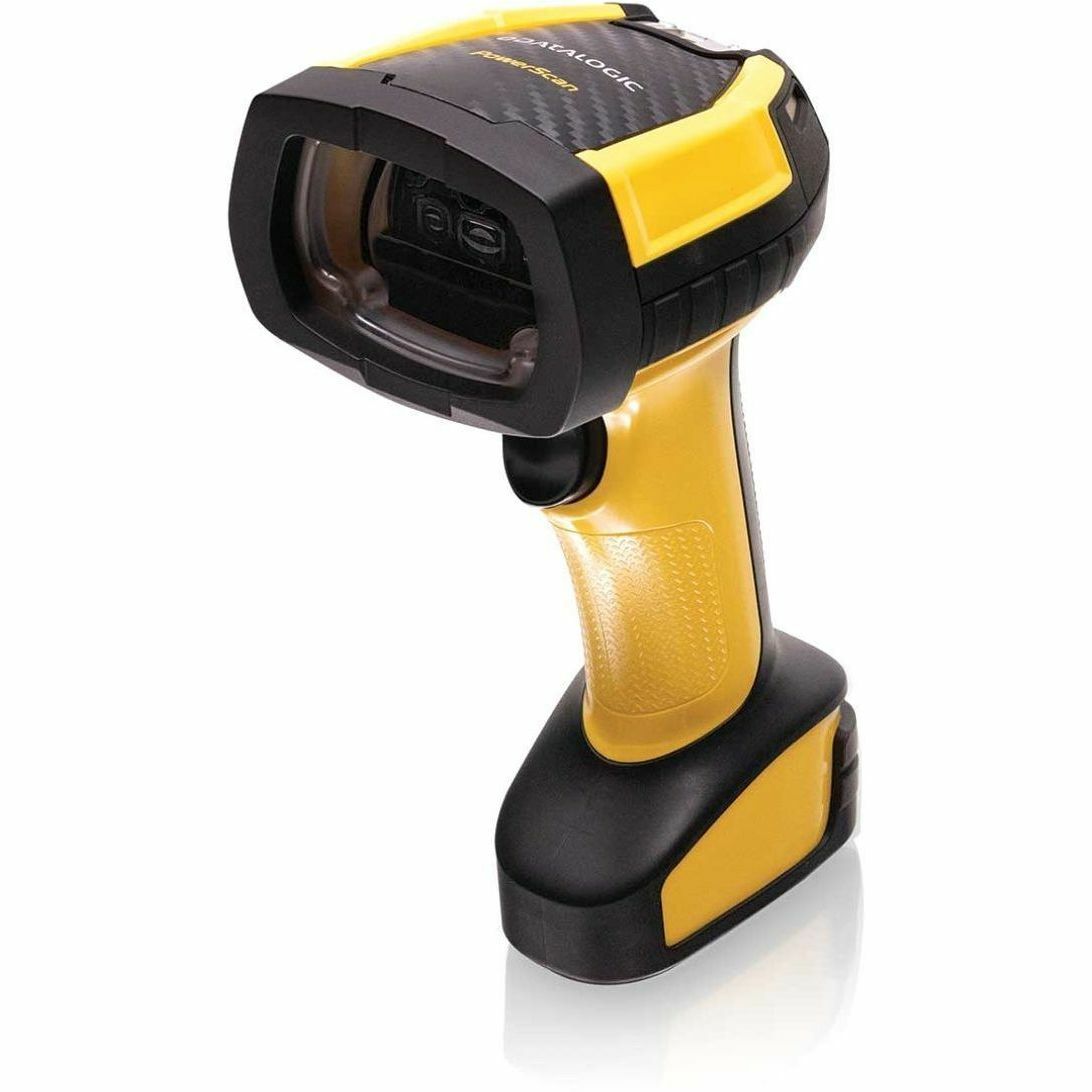

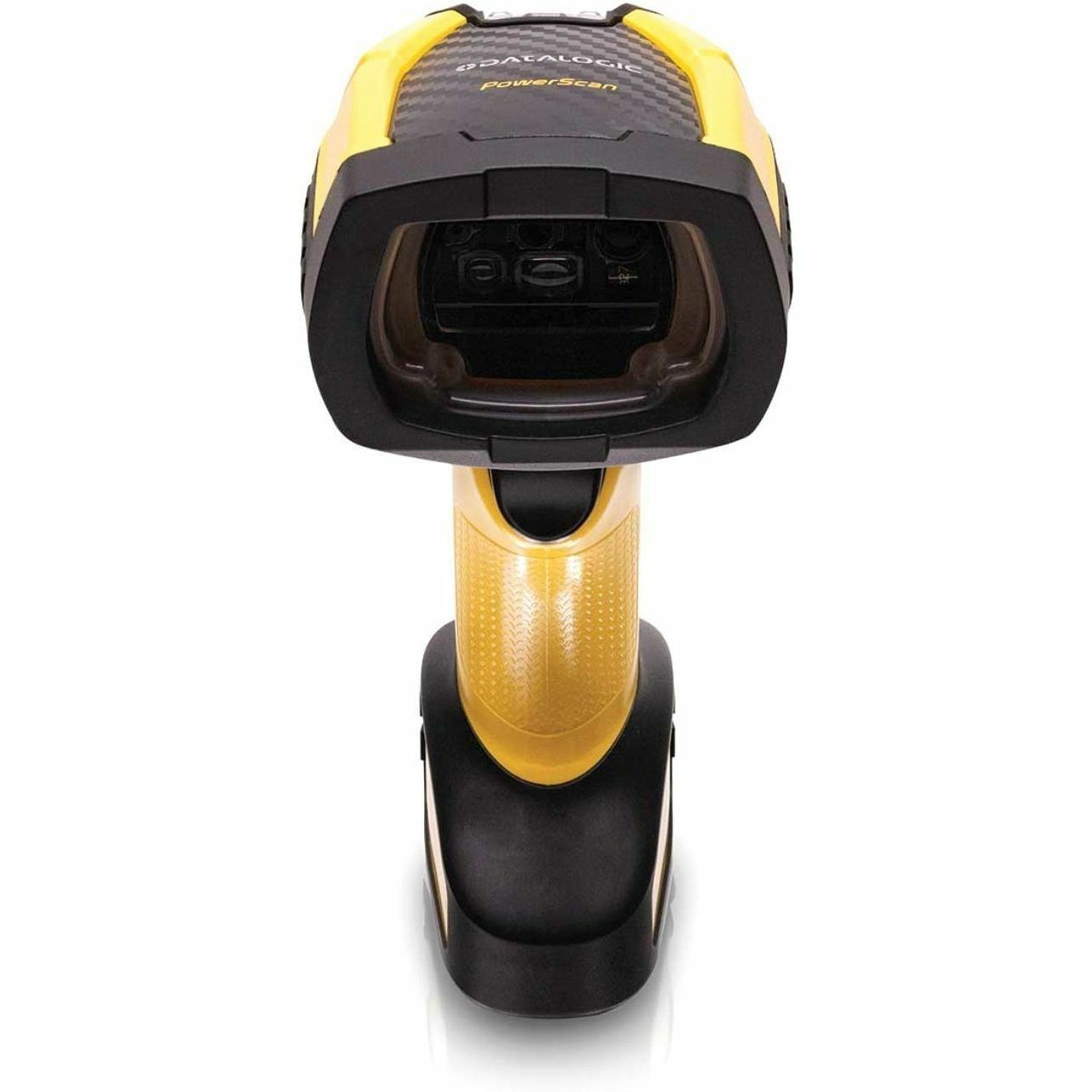

Datalogic PowerScan PD9630-AR Barcode Scanner Kit
In Stock Availability
- All Locations: (17+)
- Mississuaga, ON (17+)
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PD9630-ARK2 |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Model | PD9630-AR |
| Product Name | PowerScan PD9630-AR Barcode Scanner Kit |
| Marketing Information | Industrial Handheld Auto Range Scanner with extra-long range capabilities and high flexibility ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS! The PowerScan 9600 Auto Range (AR) barcode series is designed to withstand the toughest environmental conditions of a warehouse. The PowerScan 9600 imagers have an ultra rugged center of gravity design with balanced weight to avoid any stress during daily activities. A very visible aiming system allows the precise aiming on the barcode, including codes that are either close or far away. AUTO RANGE OPTIC TO FULFILL ANY CUSTOMER NEED The PowerScan 9600 AR series is a top performer even on damaged barcodes or when aiming through shrink wrap, and is equipped with a very fast 1D/2D autofocus scan engine that allows the operator to move easily from a short distance of a few centimeters of a pick list up to more than 20 m / 65 ft to aim at the highest barcode of a warehouse rack, even in very challenging scanning conditions. MOBILITY ENHANCES PRODUCTIVITY The PowerScan 9600 AR cordless imagers further enhance operator efficiency and safety with a double option of radios: Datalogic's proprietary STAR Cordless System™ or the new Bluetooth® 5.0 variant. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 family features Datalogic's Wireless Charging System. Based on inductive-charging technology, the Wireless Charging System eliminates interaction with battery contacts and pins which often get dirty, bent, or broken over time. This removes a key point of failure for devices used in industrial and retail functions. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communications such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols. |
| Product Type | Barcode Scanner Kit |
| Connectivity Technology | Cable |
| Scanning Capability |
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scanner Range | Auto Range |
| Scanning Distance | 65.58 ft (19989.80 mm) |
| Features | Vibration |
| Cable Type Included | Serial |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 100 mil (2.54 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | Red |
| Host Interface |
|
| Input Current | 770 mA |
| Standby Current | 140 mA |
| Battery Included | Yes |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 3.20 Hour |
| Operating Temperature | -22°F (-30°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Form Factor | Handheld |
| Rugged | Yes |
| Height | 7.80" (198.12 mm) |
| Width | 3.10" (78.74 mm) |
| Length | 5.50" (139.70 mm) |
| Weight (Approximate) | 11.29 oz (320 g) |
| Ingress Protection (IP) Rating |
|
| Application/Usage |
|
| COO | VN |
| Condition | No |
