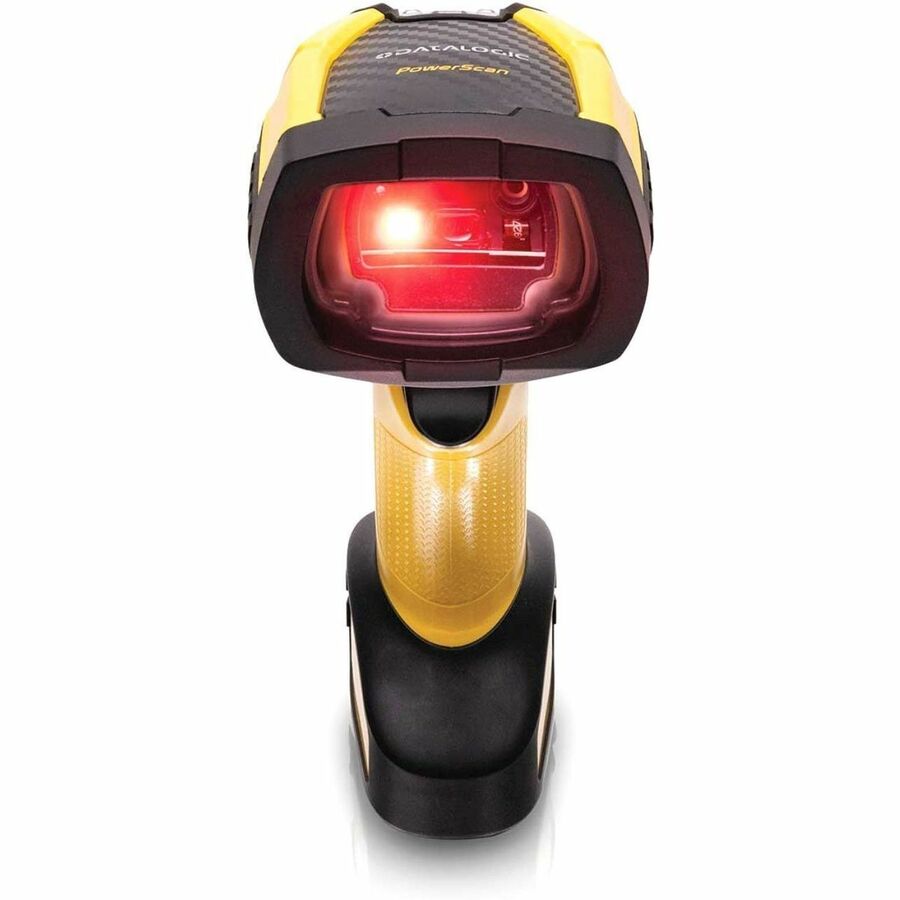

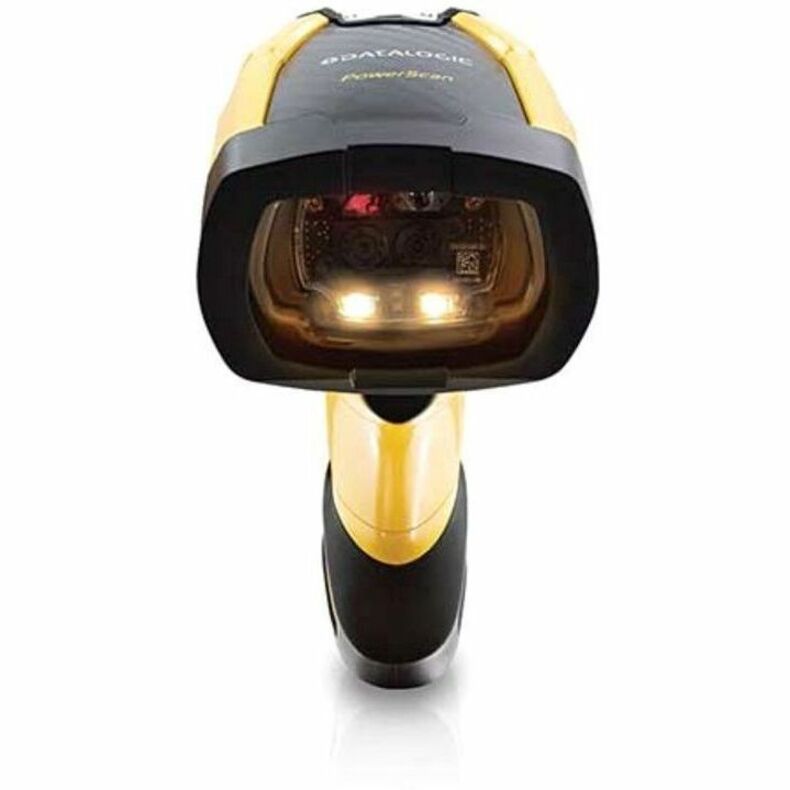

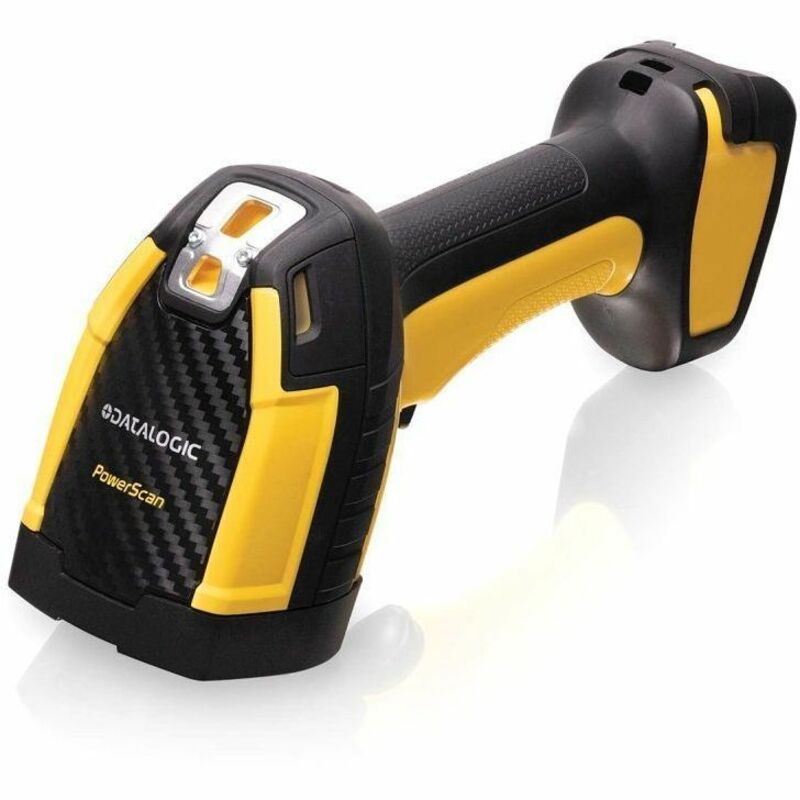

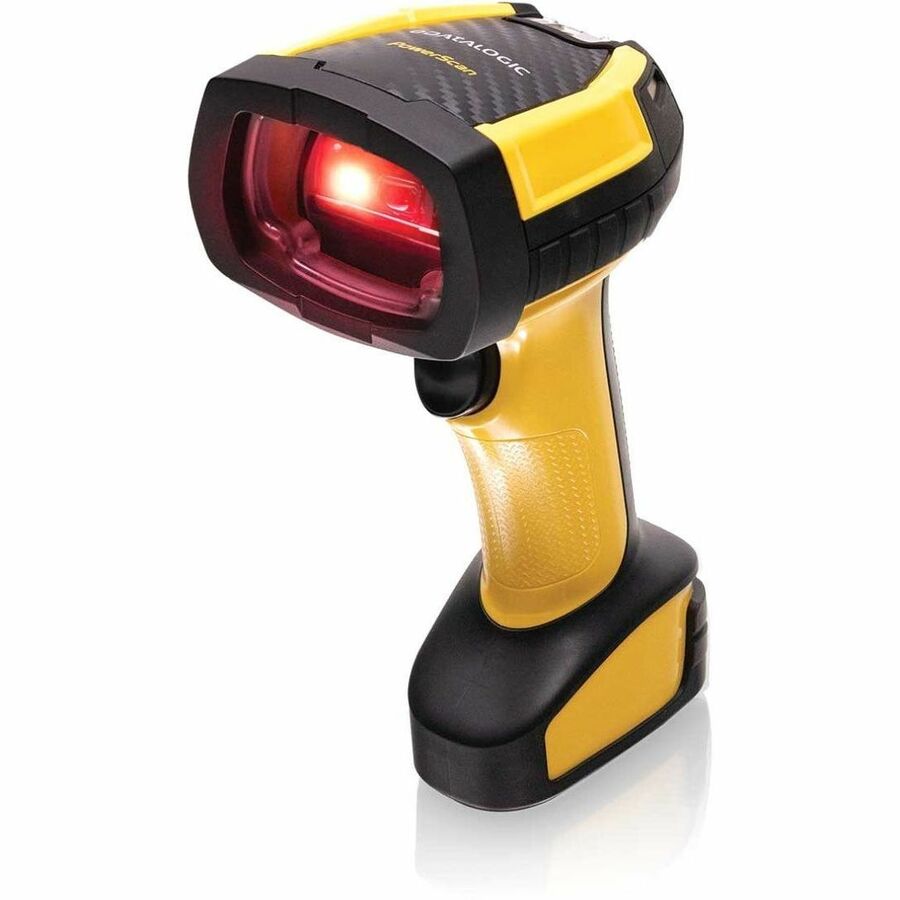

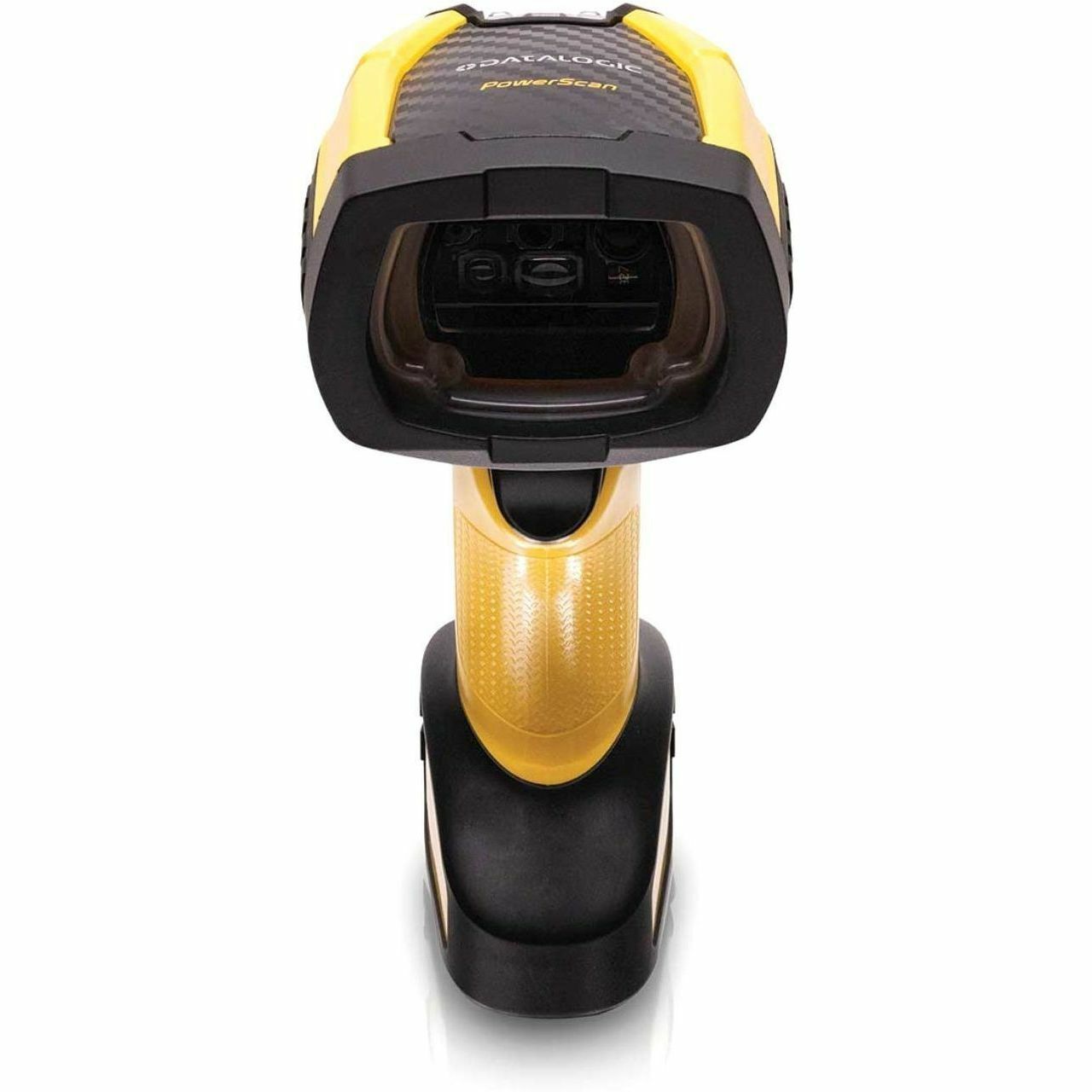

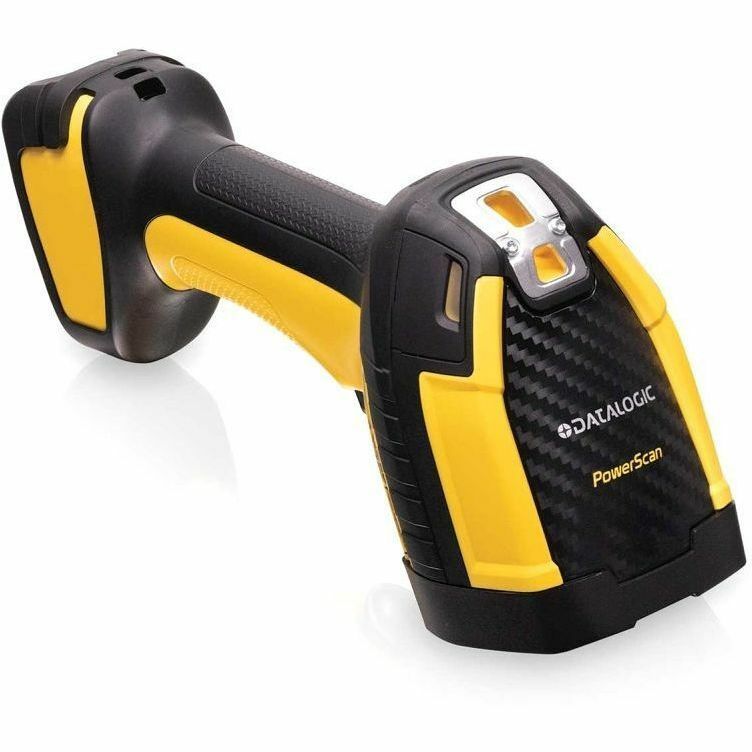

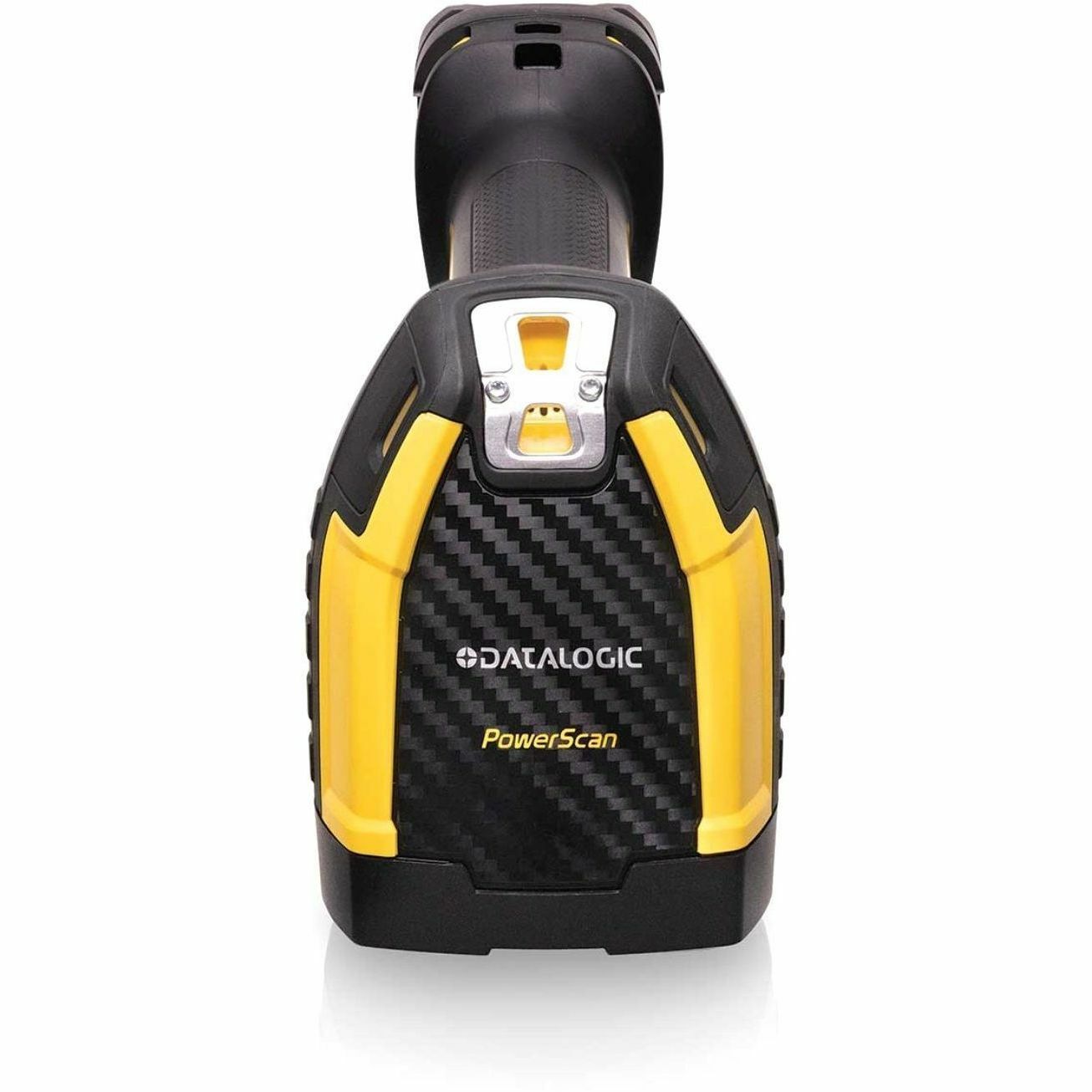

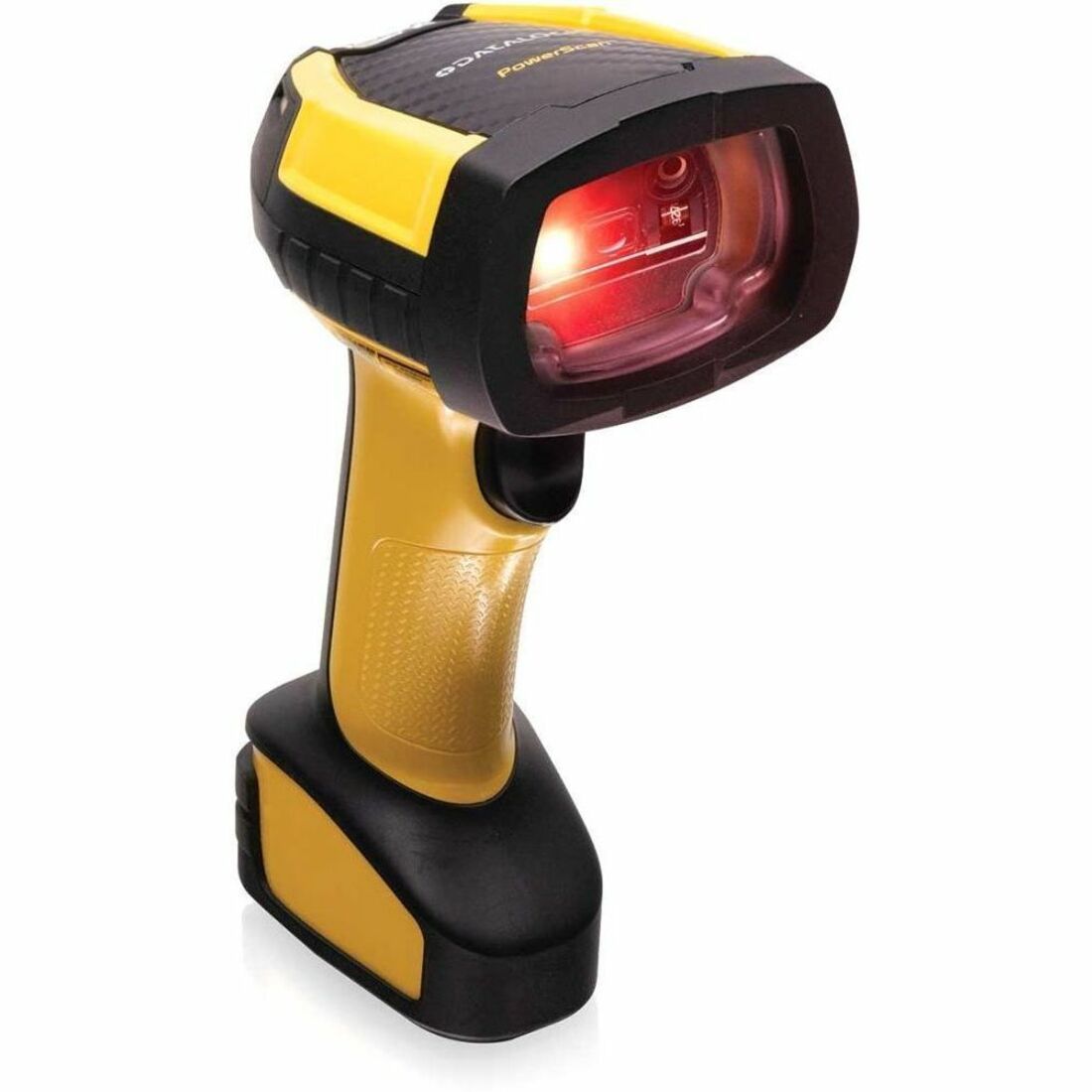

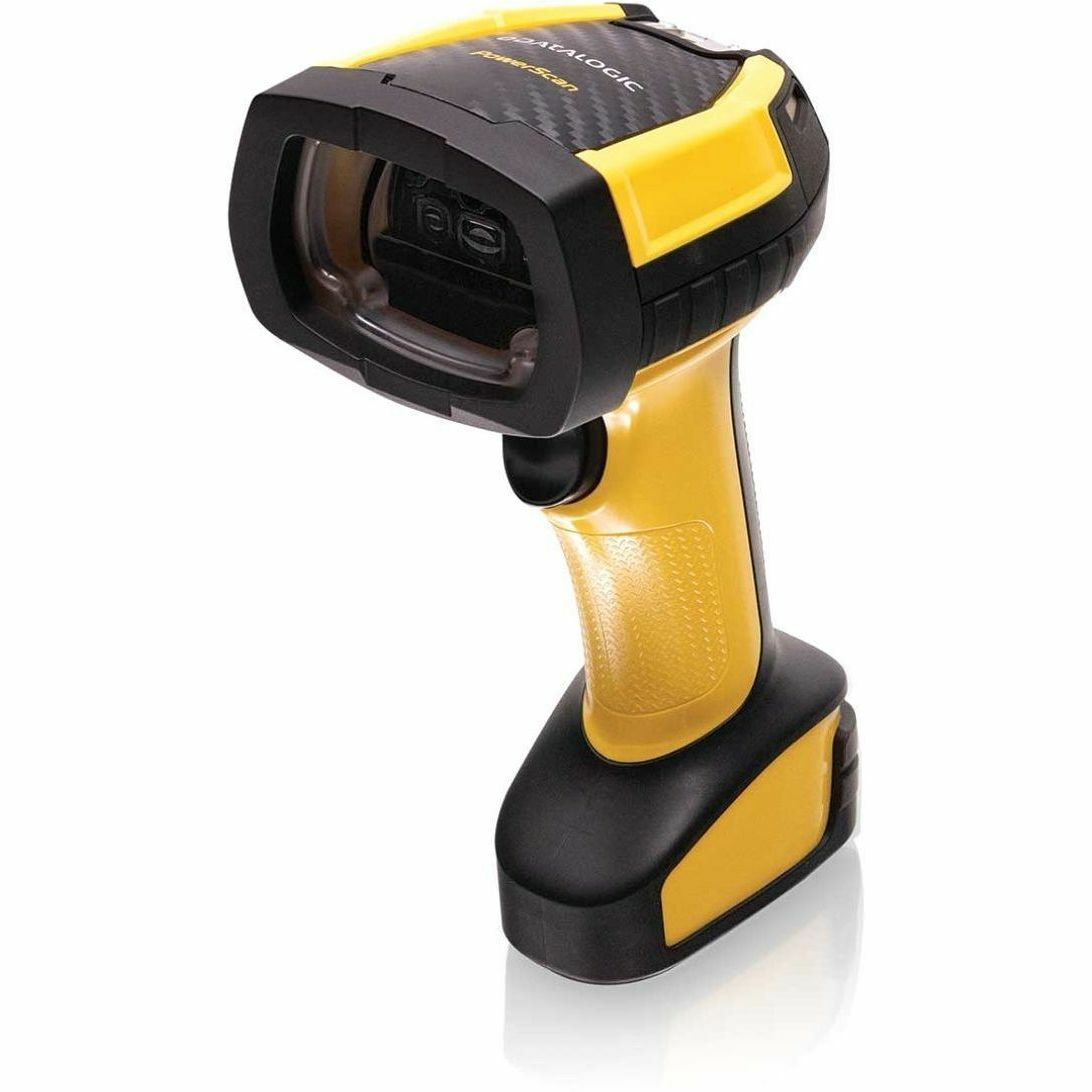

Datalogic PowerScan PD9630 Barcode Scanner
In Stock Availability
- All Locations: (50+)
- Mississuaga, ON (50+)
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PD9630-AR |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Model | PD9630 |
| Product Name | PowerScan PD9630 Barcode Scanner |
| Marketing Information | ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS! The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities. MOBILITY ENHANCES PRODUCTIVITY The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols. WIRELESS CHARGING The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions. THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications. |
| Product Type | Barcode Scanner |
| Connectivity Technology | Cable |
| Scanning Capability |
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Omni-directional |
| Scanner Range | Auto Range |
| Features | Vibration |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 100 mil (2.54 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Host Interface |
|
| Input Current | 770 mA |
| Standby Current | 140 mA |
| Operating Temperature | -22°F (-30°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Form Factor | Handheld |
| Rugged | Yes |
| Product Color |
|
| Height | 7.80" (198 mm) |
| Width | 3.11" (79 mm) |
| Length | 5.51" (140 mm) |
| Weight (Approximate) | 11.29 oz (320 g) |
| Ingress Protection (IP) Rating |
|
| Application/Usage |
|
| Condition | No |
