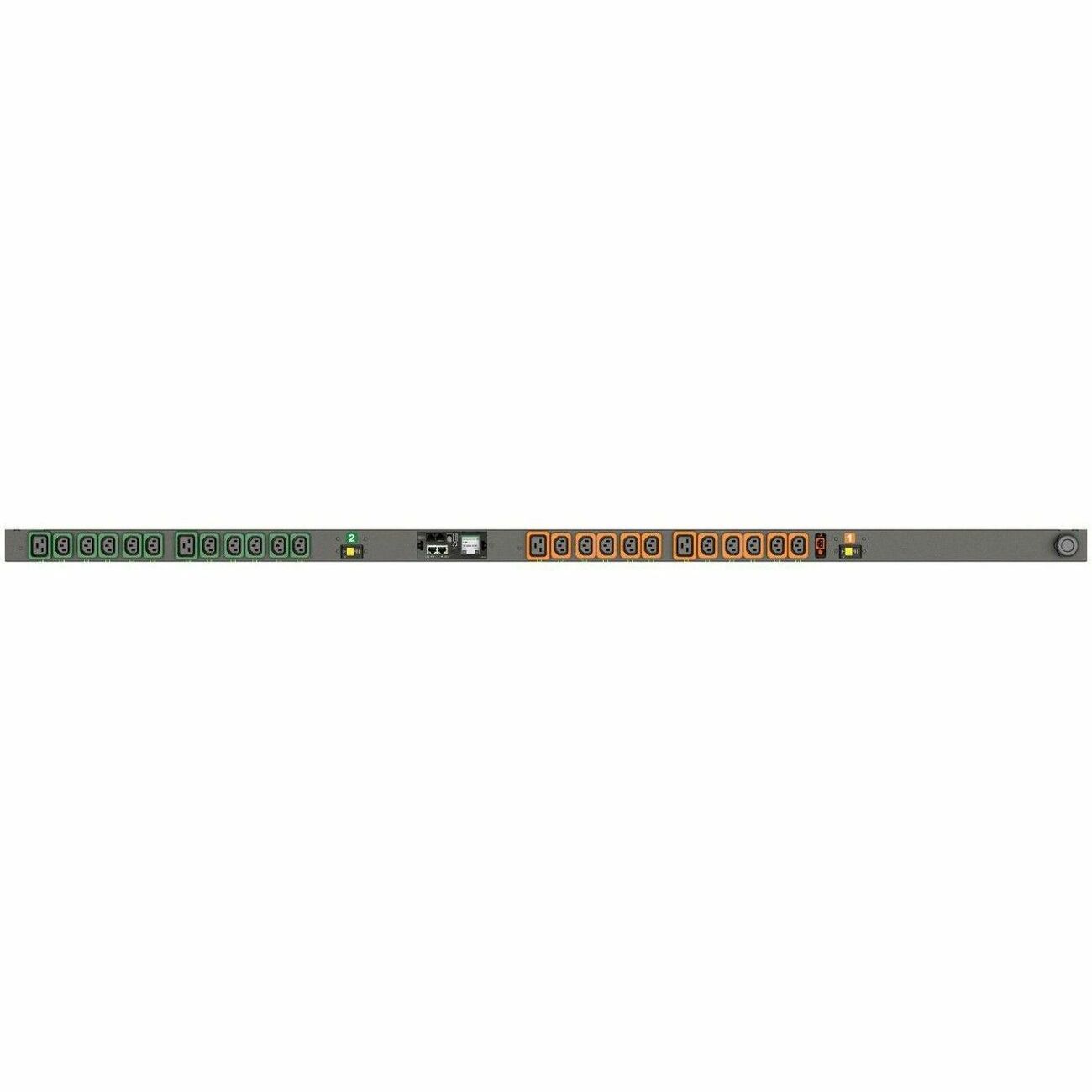

Vertiv Geist Switched Rack PDU with Next Generation IMD - 0U| 30A| 208V| (20) U-Lock C13 and (4) U-Lock C19 Receptacles| 4.9kW| NEMA L6-30P| VP5N30AU
Redundant Power-Sharing Port | High-Contrast Display | Internal Orientation Sensor | Enhanced Security | Interchangeable Monitoring Device | UL Listed | TAA-Compliant | RoHS Certified | Hyperscale| 3-Year Warranty Which Extends to 5-Year Warranty if Registered Within 120 Days of Purchase
$2386.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Vertiv |
| Manufacturer Part Number | VP5N30AU |
| Brand Name | Vertiv Geist |
| Product Line | Geist Upgradeable |
| Product Series | No |
| Product Name | GU VP5N30AU PDU |
| Marketing Information | The Vertiv Geist Switched RPDU VP5N30AU is a 30A, 208V, 0U vertical rack power distribution unit with input power monitoring and outlet level switching. It has (20) U-Lock C13 and (4) U-Lock C19 receptacles and a NEMA L6-30P plug providing 4.9kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability. |
| Product Type | PDU |
Technical Information
| PDU Type | Switched |
| Plug/Connector Type | NEMA L6-30P |
| Plug/Connector Detail | 1 x NEMA L6-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Locking Receptacles | Ulock |
| Features |
|
Power Description
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Power Rating (Watt) | 4.90 kW |
| Input Current | 30 A |
Management
| Management |
|
| Remote Outlet Switching | Yes |
Interfaces/Ports
| Network (RJ-45) | Yes |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 66.25" (1682.75 mm) |
| Width | 2" (50.80 mm) |
| Depth | 2.60" (66.04 mm) |
| Weight (Approximate) | 20 lb (9071.85 g) |
Miscellaneous
| Certifications & Standards | UL & c-UL Listed 62368 |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
Warranty
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
