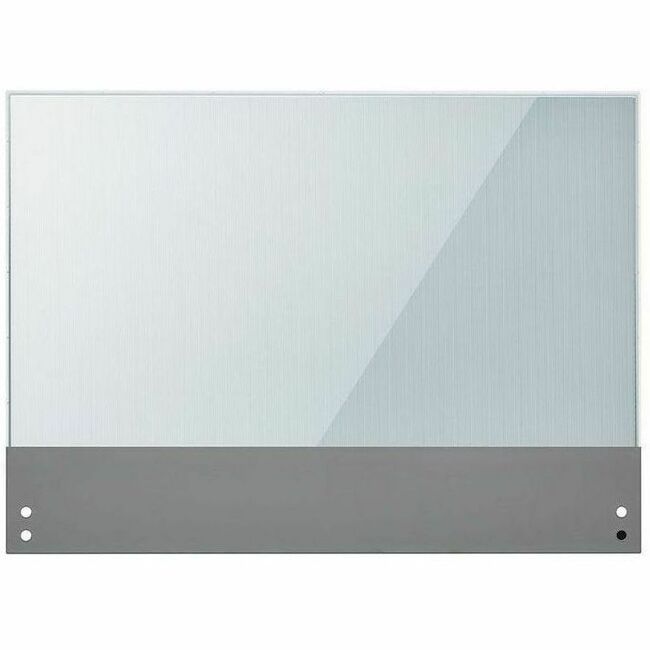

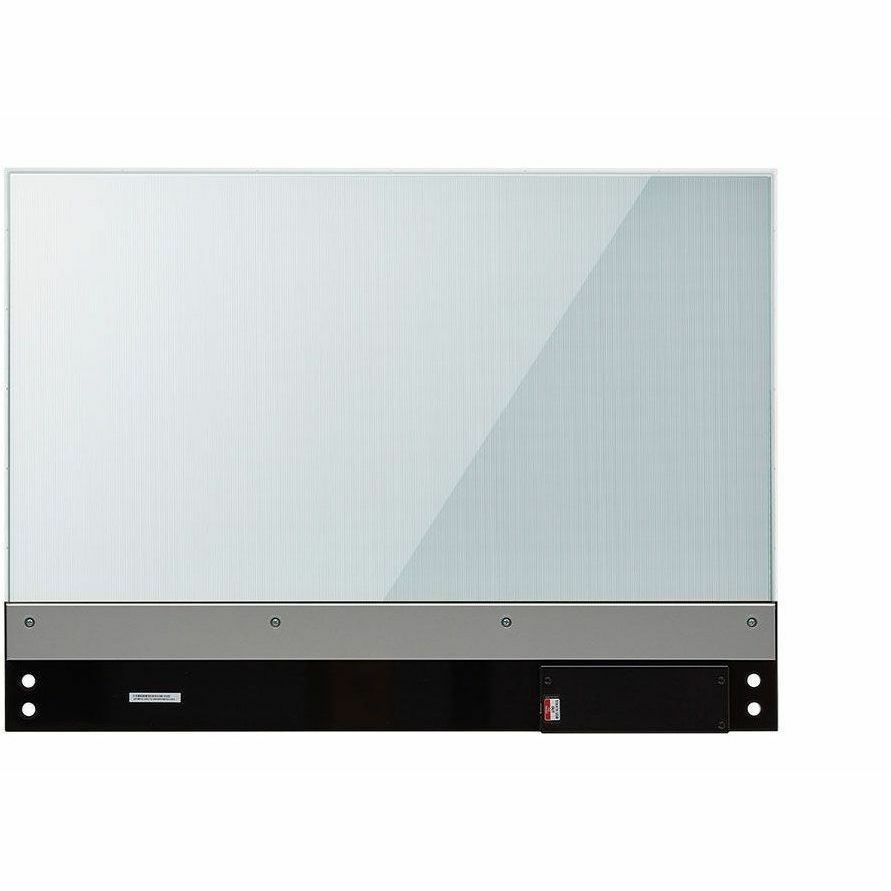

LG Transparent OLED Touch Signage
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | LG Electronics |
| Manufacturer Part Number | 30EW5TP-A |
| Brand Name | LG |
| Product Model | 30EW5TP-A |
| Product Name | Transparent OLED Touch Signage |
| Marketing Information | Accurate and Vivid Colors Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally. Intuitive P-Cap Touch By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips. High Transparency LG's OLED technology makes the Transparent OLED Touch Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency even with P-Cap touch film. While clearly showing objects behind the screen, it overlays the relevant information right before them. Protective Tempered Glass Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers' injuries. Enhanced Spatial Versatility Experience the extraordinary with the state-of-the-art LG Transparent OLED Signage, which breaks down the barriers between the screen and surrounding environment, seamlessly connecting different spaces and people. |
| Product Type | Digital Signage Display |
| Features |
|
| On Screen Display (OSD) Languages |
|
| Bezel Width (Bottom) | 0.91" (23 mm) |
| Bezel Width (Top) | 0.14" (3.50 mm) |
| Bezel Width (Left) | 0.14" (3.50 mm) |
| Bezel Width (Right) | 0.14" (3.50 mm) |
| HDCP Version | 1.4/2.2 |
| Surface Hardness | 5H |
| Panel Technology | OLED |
| Operation Hours | 18 Hours/7 Days |
| Maximum Heat Generation | 310.2 kJ |
| Touch Object Size Diameter | 0.31" (8 mm) |
| Content Synchronization | RS-232C |
| Embedded CMS | Local Contents Scheduling |
| Image Sticking Minimization (ISM) Method | Yes |
| Protection Glass Transmission | 37% |
| Viewable Screen Size | 30" (762 mm) |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Display Resolution | 1366 x 768 |
| Response Time | 1 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Orientation | Landscape/Portrait |
| Accuracy Touch | 78.74 mil (2 mm) |
| Maximum LED Life | 3.4 Year |
| Speakers | No |
| Standard Refresh Rate | 120 Hz |
| Dynamic Contrast Ratio | 200,000:1 |
| Color Depth | 10-bit |
| Brightness | 600 cd/m² |
| Color Gamut | 110% BT.709 |
| Wireless LAN | No |
| Bluetooth | No |
| Audio Line In | No |
| Audio Line Out | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of HDMI Inputs | 1 |
| USB Type-C | No |
| DisplayPort Output | Yes |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Audio Line Out | 1 |
| Number of DisplayPort Outputs | 1 |
| DVI-D In | No |
| DisplayPort In | Yes |
| Infrared Output | Yes |
| Operating System | webOS 7.5 |
| Input Voltage |
|
| Power Consumption | 86 W |
| Off-Mode Power Consumption | 500 mW |
| Power Consumption (DPM) | 0.5W |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Bezel Color | Black |
| VESA Mount Compatible | No |
| Height | 44.20" (1122.68 mm) |
| Width | 98.80" (2509.52 mm) |
| Depth | 3.70" (93.98 mm) |
| Weight (Approximate) | 198.60 lb (90083.44 g) |
| Front Glass Thickness | 0.16" (4 mm) |
| Package Contents | |
| Additional Information | |
| Certifications & Standards | |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Certification | ErP |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Compatible Software |
|
| Condition | No |
| UPC | 0195174085080 |
| Limited Warranty | 3 Year |
